Spectral Analysis Practice

Author
Dr. Atle Rimehaug

Homework: Spectral Analysis Practice

This notebook gives you hands-on practice with the core ideas from the spectral analysis sessions, working entirely with toy signals you build yourself. Because you decide exactly what frequencies go into each signal, constructing your own signals is a great way to check that an analysis tool recovers what you expect and to get a better understanding of how the tool works before applying it to real data.

You will generate periodic signals (sinusoids, chirps, and sums of them), compute their power spectra with the Fourier transform, track time-varying frequency content with Morlet wavelets, and estimate spectra of noisy signals with multitapering.

Setup

Import Libraries

import numpy as np
import matplotlib.pyplot as plt
from scipy import signal
from scipy.fft import fft, fftfreq
import pywt

Utility Functions

Run the cell below, but feel free to ignore this code — it’s some utility functions we’ll use later for convenience.

class utils:

    @staticmethod
    def style_plot(title, xlabel, ylabel):
        '''
        Styles plots displaying filters. Adds labels, grids and shows legends

        Args:
            title: title of plot
            xlabel: label x-axis
            ylabel: label y-axis
        '''

        plt.title(title)
        plt.xlabel(xlabel)
        plt.ylabel(ylabel)
        plt.margins(0, 0.1)
        plt.grid(which='both', axis='both')
        plt.legend();

    @staticmethod
    def calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs: int = 100, bandwidth: float = 1.5, center_frequency: float = 1.0):
        '''
        Calculates the time-resolved spectrum of a signal using Morlet wavelets

        Args:
            sig: signal that the wavelet spectrum is calculated for
            sampling_frequency: sampling frequency of signal
            number_of_freqs: number of frequencies the wavelet spectrum is calculated for
            bandwidth: the bandwidth of the Morlet wavelet
            center_frequency: the central frequency of the Morlet wavelet
        Returns:
            freqs: frequencies for which the spectral values are calculated
            spectrum_amp: spectral amplitudes
        '''
        # the bandwidth and the central frequency sets which Morlet wavelet is used
        wavelet = "cmor"+str(bandwidth)+"-"+str(center_frequency)

        # widths of the Morlet wavelet determines which frequencies the wavelet spectrum is calculated for
        widths = np.logspace(start=3, stop=10, num=number_of_freqs, base=2)

        sampling_period = 1/sampling_frequency
        spectrum, freqs = pywt.cwt(sig, widths, wavelet, sampling_period=sampling_period)

        # take absolute value to get amplitude of spectrum
        spectrum_amp = np.abs(spectrum)

        return freqs, spectrum_amp

    @staticmethod
    def get_fft(data, time_vec):
        """
        Calculates the Fourier transform and frequencies of the transform for a signal
        """

        # Step 1: calculate the Fourier amplitude spectrum by taking the fourier transform of the signal
        fft_result = fft(data)

        # Step 2: Get all frequencies for which the Fourier amplitude spectrum was calculated in step 1
        freqs = fftfreq(len(data), d=(time_vec[1]-time_vec[0]))

        # Step 3A: Extract positive frequencies only
        positive_freqs = freqs[freqs > 0]
        # Step 3B: Extract Fourier amplitude spectrum for positive frequencies only
        fft_result_positive = fft_result[freqs > 0]

        # Step 4: Get amplitude of spectrum and normalize it
        fft_amp_norm = np.abs(fft_result_positive)/np.abs(fft_result_positive).max()

        return positive_freqs, fft_amp_norm

    @staticmethod
    def plot_signal(sig, time_vec):
        """Makes plot of signal"""
        plt.figure()
        plt.plot(time_vec,sig)
        plt.title('Signal')
        plt.xlabel('Time')
        plt.ylabel('Amplitude')

Section 1: Generate Periodic signals

It’s often useful to construct toy signals when doing signal analysis. Toy signals allow you to test the tools you use to make sure that you are using them correctly and to understand how they work before applying them to real data. This section provides a hands-on introduction to creating and visualizing toy signals using the scipy.signal module.

Code Description
np.pi The mathematical constant π.
np.linspace(start, stop, n) Generates an array of n evenly spaced values from start to stop.
np.arange(start, stop, step_size) Generates an array of values evenly spaced from start to stop, with the spacing given by step_size
np.sin(2*np.pi*f*time_vec + phase) Generates a sine wave oscillating with a frequency f over a time period time_vec (a vector of time points)
signal.chirp(time_vec, f0, f1, t1) Generates a chirp signal, which is a signal where the frequency changes over time.
plt.plot(x, y) Plots the data in y against the corresponding values in x.

Exercises

Example: Generate and plot a sinusoid signal lasting 1 second with a frequency of 5 Hz.

# Generate signal
duration = 1 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,int(sampling_frequency*duration)) # seconds

frequency = 5 # Hz
phase = 0
sig = np.sin(2*np.pi*frequency*time_vec+phase)

plt.figure()
plt.plot(time_vec,sig)

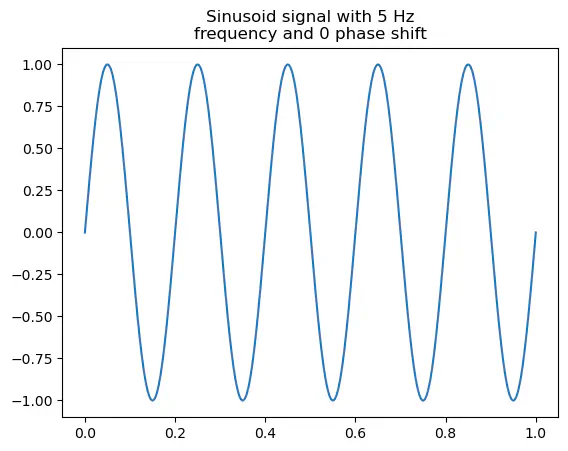

plt.title(f'Sinusoid signal with {frequency} Hz\nfrequency and 0 phase shift');

Exercise: Generate and plot a sinusoid signal lasting 1 second with a frequency of 5 Hz and a phase of π/2\pi/2.

Solution
duration = 1 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,int(sampling_frequency*duration)) # seconds

frequency = 5 # Hz
phase = np.pi/2
sig = np.sin(2*np.pi*frequency*time_vec+phase)

plt.figure()
plt.plot(time_vec, sig)

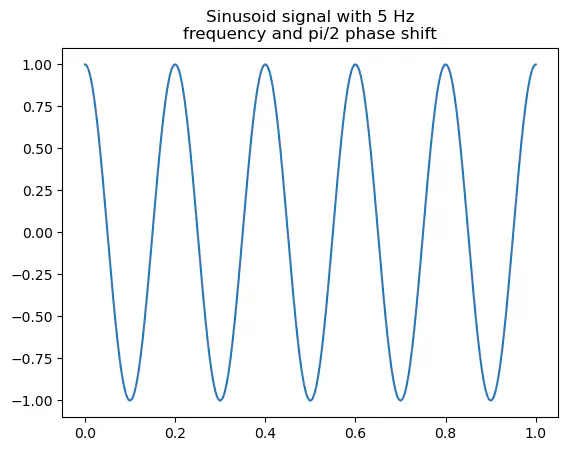

plt.title(f'Sinusoid signal with {frequency} Hz\nfrequency and pi/2 phase shift');

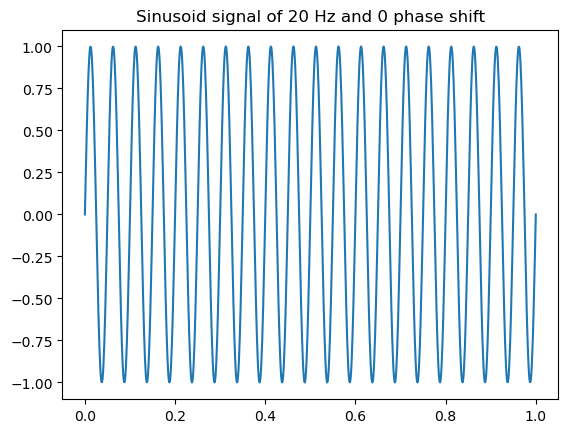

Exercise: Generate and plot a sinusoid signal lasting 1 second with a frequency of 20 Hz and a phase of 0.

Solution
duration = 1 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,int(sampling_frequency*duration)) # seconds

frequency = 20 # Hz
phase = 0
sig = np.sin(2*np.pi*frequency*time_vec+phase)

plt.figure()
plt.plot(time_vec, sig)
plt.title(f'Sinusoid signal of {frequency} Hz and 0 phase shift');

Exercise: Generate and plot a chirp signal that starts at a frequency of 1 Hz and increases to 10 Hz over a period of 1 second.

Solution
duration = 1 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,int(sampling_frequency*duration)) # seconds

sig = signal.chirp(time_vec, f0=1, f1=10, t1=1)
plt.plot(time_vec, sig);

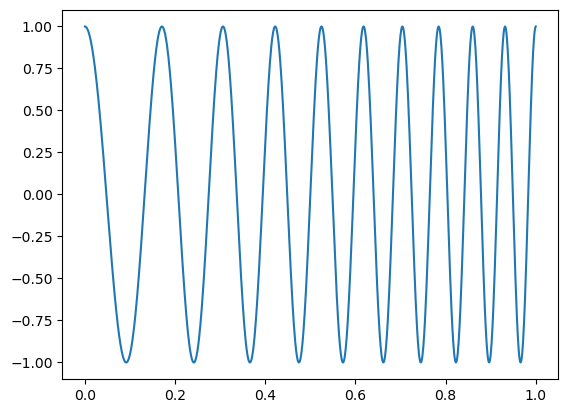

Exercise: Generate and plot a chirp signal that starts at a frequency of 5 Hz and increases to a frequency of 15 Hz over a period of 1 second.

Solution
duration = 1 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,duration*sampling_frequency) # seconds
sig = signal.chirp(time_vec, f0=5, f1=15, t1=duration)

plt.plot(time_vec, sig);

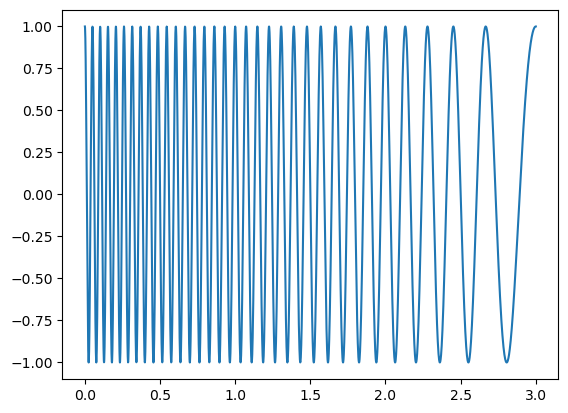

Exercise: Generate and plot a chirp signal that starts at a frequency of 20 Hz and decreases to a frequency of 2 Hz over a period of 3 seconds.

Solution
duration = 3 # second
sampling_frequency = 1000
time_vec = np.linspace(0,duration,int(sampling_frequency*duration)) # seconds

sig = signal.chirp(time_vec, f0=20, f1=2, t1=duration)

plt.plot(time_vec, sig);

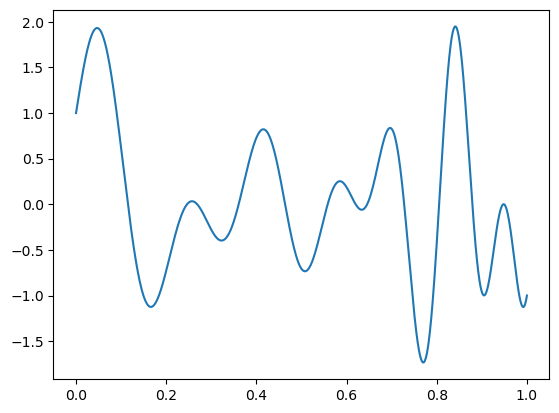

Example: Generate and plot a composite signal that is a sum of a chirp signal that starts at a frequency of 1 Hz and increases to 10 Hz over a duration of 1 second and a sine wave with frequency of 5 Hz and phase 0.

# Generate signal
duration = 1
sampling_frequency = 1000
time_vec = np.linspace(0,duration,sampling_frequency) # seconds
frequency = 5 # Hz
phase = 0
sine_signal = np.sin(2*np.pi*frequency*time_vec+phase)

chirp_signal = signal.chirp(time_vec, f0=1, f1=10, t1=duration)

composite_signal = sine_signal + chirp_signal
plt.plot(time_vec, composite_signal);

Exercise: Generate and plot a composite signal that is a sum of a chirp signal that starts at a frequency of 2 Hz and increases to 20 Hz over a duration of 1 second and a sine wave with frequency of 5 Hz and phase π/2\pi/2.

Solution
# Generate signal
duration = 1
time_vec = np.linspace(0,duration,1000) # seconds
frequency = 5 # Hz
phase = np.pi/2
sine_signal = np.sin(2*np.pi*frequency*time_vec+phase)

chirp_signal = signal.chirp(time_vec, f0=2, f1=20, t1=duration)

composite_signal = sine_signal + chirp_signal

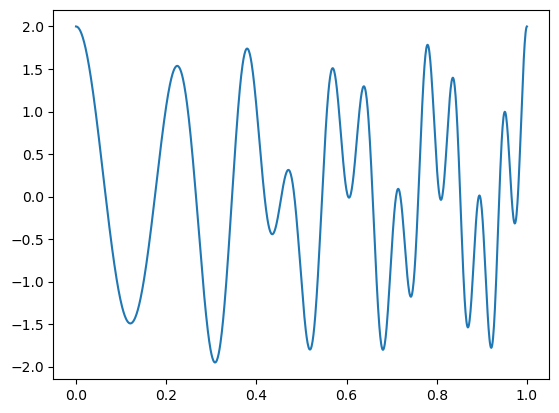

plt.plot(time_vec, composite_signal);

Section 2: Calculate the Total Frequency Content of a Signal with the Fourier Transform

The Fourier transform is a standard way of calculating the frequency amplitude spectrum of a signal. Here, you will apply the Fourier transform to different toy signals to get a better intuition for the relationship between peaks in the Fourier amplitude spectrum and oscillations in your original signal.

Code Description
freq, fft_amp = utils.get_fft(sig, times_sampled) Calculate the Fourier amplitude spectrum of a signal sig with the Fourier transform. times_sampled contains the time points at which the signal was sampled.
utils.plot_signal(sig, times_sampled) Plots the signal sig against the time points the signal was sampled times_sampled
plt.plot(x, y) Plot y values against x values.
plt.xlim([some_lower_xlim, some_upper_xlim]) Limit the x-axis in a plot to be between the numbers some_lower_xlim and some_upper_xlim.

Exercises

Run the cell below to generate a sinusoid signal oscillating at 5 Hz.

# provided

# Generate sine signal
time_vec = np.linspace(0,1,50) # seconds
frequency = 5 # Hz
sine = np.sin(2*np.pi*frequency*time_vec)

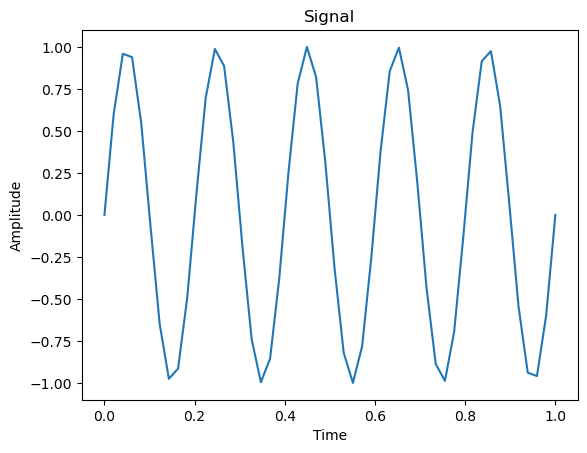

utils.plot_signal(sine, time_vec)

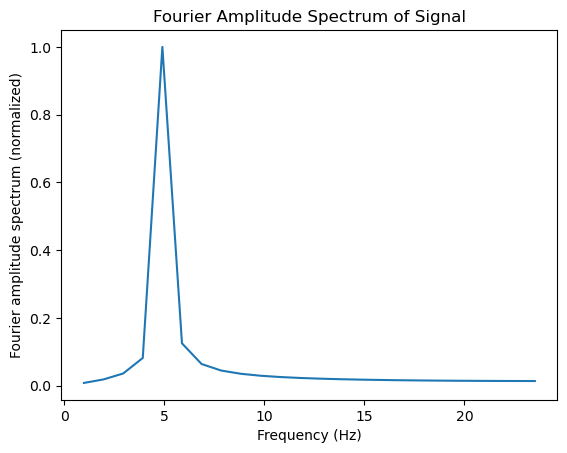

Example: Calculate the Fourier amplitude spectrum for the sinusoid signal generated above. Plot the spectrum.

freqs, psd = utils.get_fft(sine, time_vec)

plt.plot(freqs,psd)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Fourier amplitude spectrum (normalized)')
plt.title('Fourier Amplitude Spectrum of Signal');

Run the cell below to generate a sinusoid signal oscillating at 20 Hz.

# Generate signal
time_vec = np.linspace(0,1,200) # seconds
frequency = 20 # Hz
sine = np.sin(2*np.pi*frequency*time_vec)

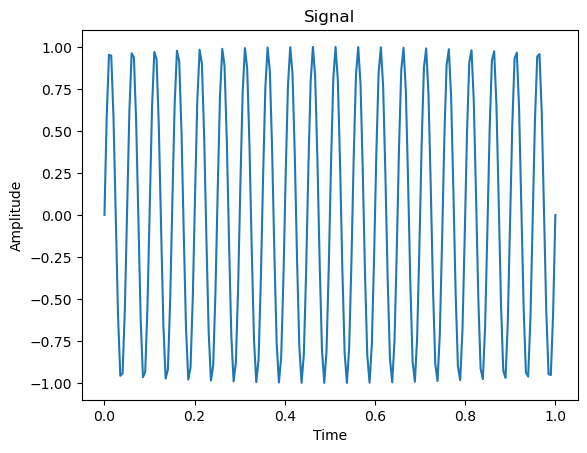

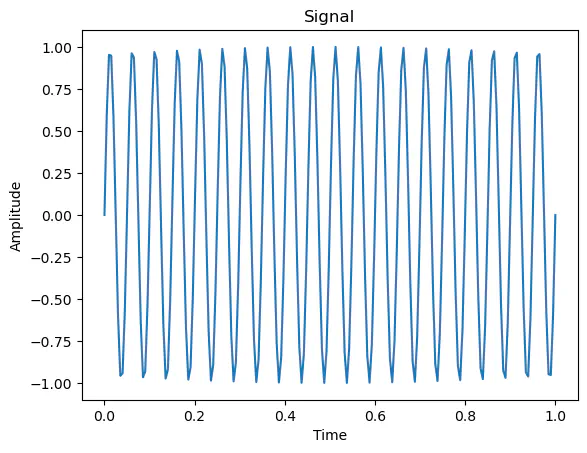

utils.plot_signal(sine, time_vec)

Exercise: Use the utils.get_fft function to calculate the Fourier amplitude spectrum for the sinusoid signal generated above. Plot the spectrum.

Solution

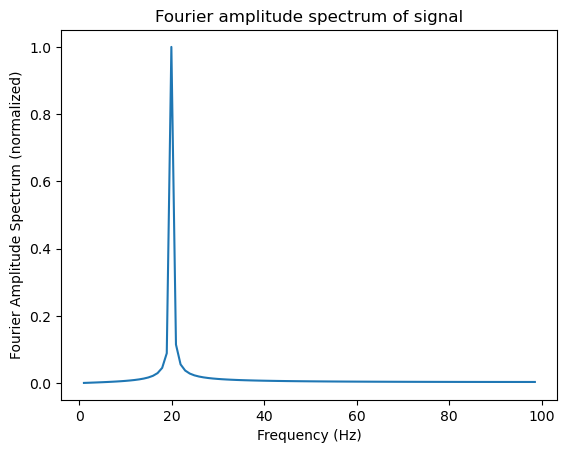

freqs, psd = utils.get_fft(sine, time_vec)

plt.plot(freqs,psd)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Fourier Amplitude Spectrum (normalized)')
plt.title('Fourier amplitude spectrum of signal');

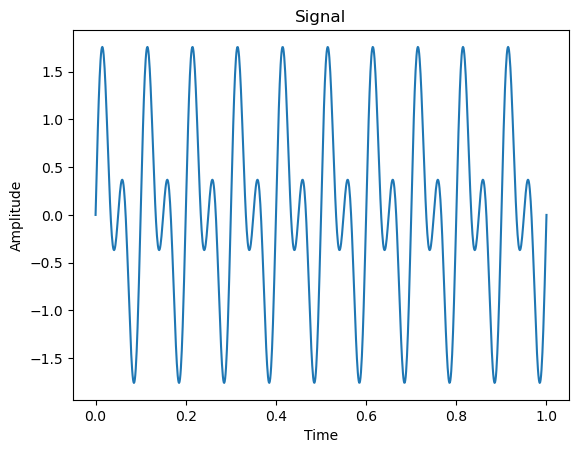

Run the cell below to generate a composite signal consisting of two sinusoids.

# provided

# Create composite signal

sampling_frequency = 1000
time_vec = np.linspace(0,1,sampling_frequency) # seconds
frequencyA = 10 # Hz
sineA = np.sin(2*np.pi*frequencyA*time_vec)

frequencyB = 20 # Hz
sineB = np.sin(2*np.pi*frequencyB*time_vec)

composite_signal = sineA+sineB

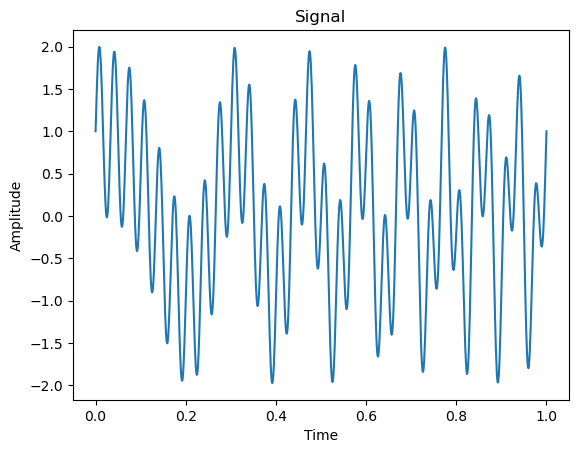

utils.plot_signal(composite_signal, time_vec)

Exercise: Calculate Fourier amplitude spectrum for the composite signal above. Plot the spectrum.

When you calculate the Fourier amplitude spectrum with the utils.get_fft function, note that the variable containing the composite signal is called composite_signal.

Which frequencies do the two sinusoids that make up the composite signal oscillate at?

Hint: If the spectral peaks are all to the left in the plot, you can limit the x-axis to focus on them by adding the line plt.xlim([lower_limit, upper_limit]) (insert numbers for lower_limit and upper_limit).

Solution
freqs, psd = utils.get_fft(composite_signal, time_vec)

plt.plot(freqs,psd)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Fourier Amplitude Spectrum (normalized)')
plt.title('Fourier amplitude spectrum of signal')

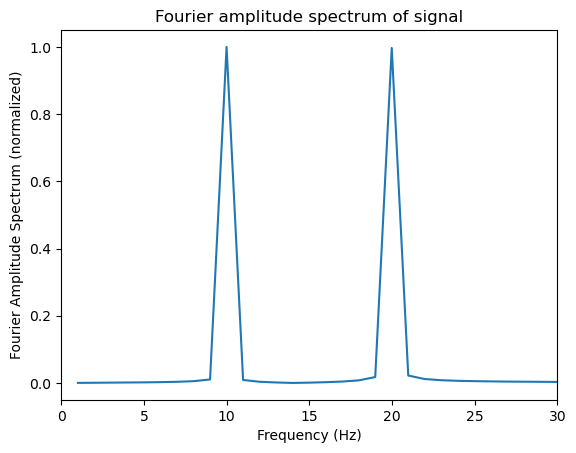

plt.xlim([0, 30]);

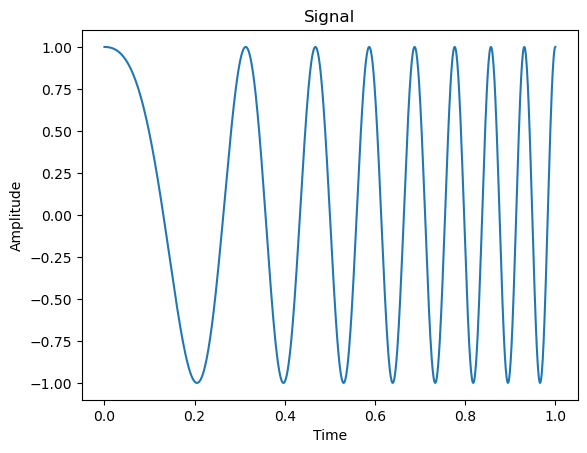

Run the cell below to generate a chirp signal that is gradually increasing its frequency from 1 to 15 Hz.

# provided

sampling_frequency = 1000
time_vec = np.linspace(0,1,sampling_frequency) # seconds

# generate chirp signal
chirp_signal = signal.chirp(time_vec, f0=1, f1=15, t1=1)

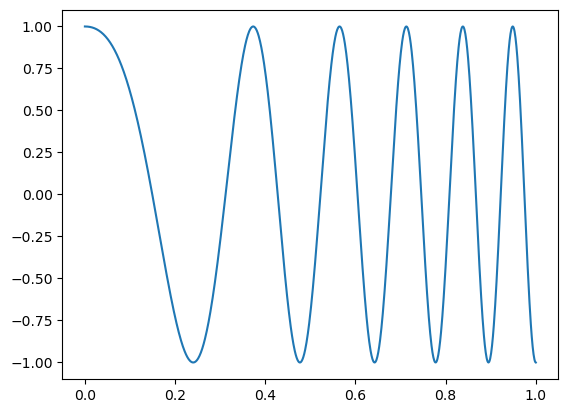

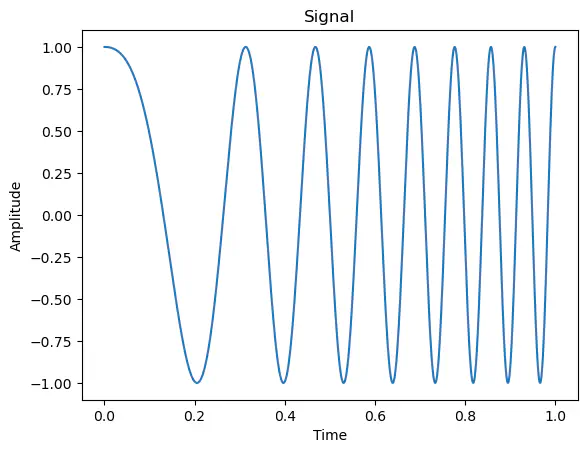

utils.plot_signal(chirp_signal, time_vec)

Exercise: Calculate and plot the Fourier amplitude spectrum for the chirp signal (chirp_signal) generated above. Is the region of the spectrum with most power where you would expect given how the signal was constructed?

Solution
freqs, psd = utils.get_fft(chirp_signal, time_vec)

plt.plot(freqs,psd)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Fourier Amplitude Spectrum (normalized)')
plt.title('Fourier amplitude spectrum of signal')
plt.xlim([0, 50]);

Run the cell below to generate a composite signal consisting of a sine wave with a 30 Hz frequency and a chirp signal increasing from 1 to 15 Hz.

# Create composite signal

sampling_frequency = 1000
time_vec = np.linspace(0,1,sampling_frequency) # seconds

# set frequency of sine wave and generate it
frequency = 30 # Hz
sineA = np.sin(2*np.pi*frequency*time_vec)

# generate chirp signal
chirp_signal = signal.chirp(time_vec, f0=1, f1=15, t1=1)

# create composite signal by summing sine wave and chirp signal
composite_signal = sineA+chirp_signal

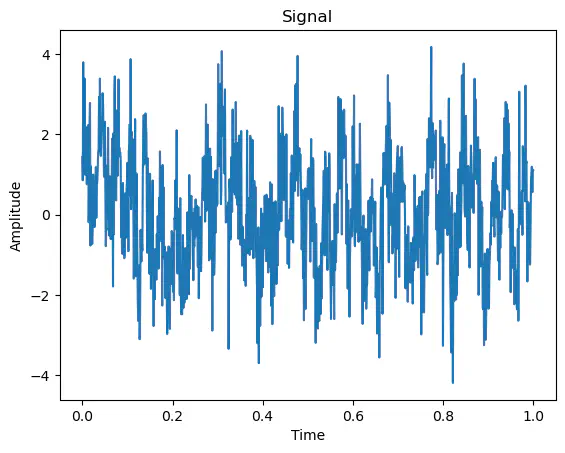

utils.plot_signal(composite_signal, time_vec)

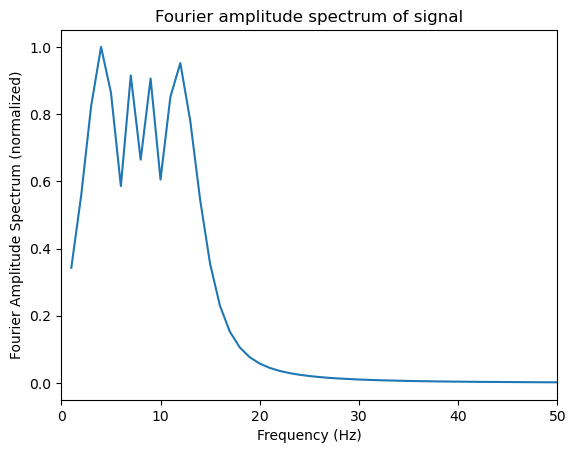

Exercise: Use the get_fft function to calculate Fourier amplitude spectrum for the composite signal generated above. Plot the spectrum.

Solution

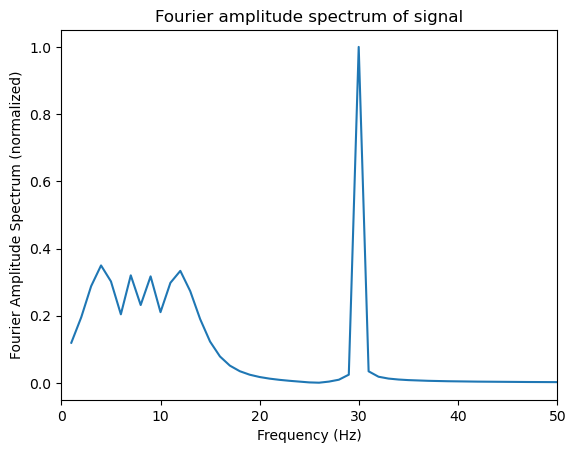

freqs, psd = utils.get_fft(composite_signal, time_vec)

plt.plot(freqs, psd)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Fourier Amplitude Spectrum (normalized)')
plt.title('Fourier amplitude spectrum of signal')
plt.xlim([0, 50]);

Section 3: Time-resolved frequency analysis with Morlet wavelets

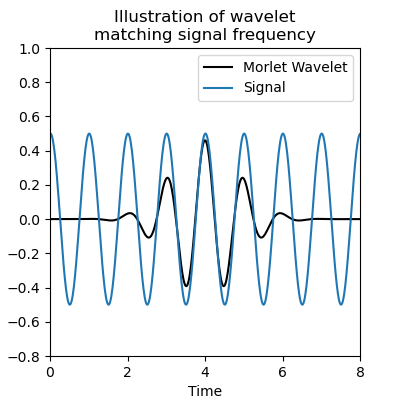

One important and frequently used method for computing time-resolved frequency spectra is the Morlet wavelet transform. Morlet wavelets are wavelets with specific frequencies, and the process of convolving them with the signal can be seen as a matching process. You check how well the frequency of the signal matches with the frequency of the Morlet wavelet at a given time point. The better the match is, the higher the power will be for that frequency at that time point in the Fourier amplitude spectrum. The plot below illustrates a Morlet wavelet whose frequency matches the frequency of the signal.

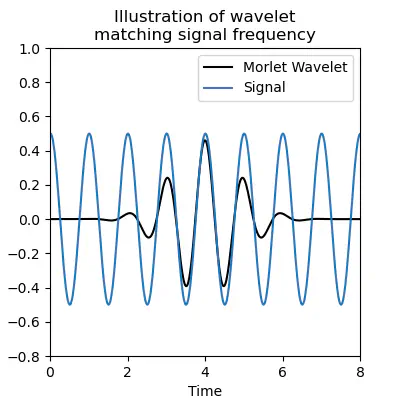

Code Description
freqs, spectrum_amp = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency) Calculates the wavelet spectrum spectrum for a signal sig with a given sampling_frequency. number_of_freqs sets the number of frequencies the spectrum is calculated for. bandwidth and center_frequency sets the parameters for the Morlet wavelet.
plt.pcolormesh(x, y, C, cmap = 'plasma', shading = 'gouraud') Make a 2D colormap of values in a 2D array (C) against x and y values. The optional parameters cmap and shading define the colormap and the interpolation applied to the plot, respectively.

Exercises

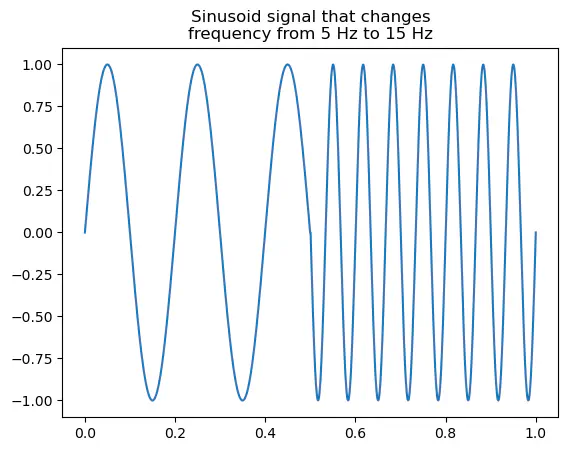

Run the cell below to generate a signal that changes its frequency from 5 Hz to 15 Hz at the midpoint of the recording period.

# provided

# Generate signal
sampling_frequency = 1000
durationA = 0.5
time_vecA = np.linspace(0,durationA,int(sampling_frequency*durationA)) # seconds
frequencyA = 5 # Hz
sineA = np.sin(2*np.pi*frequencyA*time_vecA)

durationB = 0.5
time_vecB = np.linspace(durationA, durationA+durationB, int(sampling_frequency*durationB)) # seconds
frequencyB = 15 # Hz
sineB = np.sin(2*np.pi*frequencyB*time_vecB)

time_vec = np.linspace(0,durationA+durationB,int(sampling_frequency*(durationA+durationB)))
sig = np.concatenate([sineA,sineB])

plt.figure()
plt.plot(time_vec,sig)
plt.title(f'Sinusoid signal that changes\nfrequency from {frequencyA} Hz to {frequencyB} Hz');

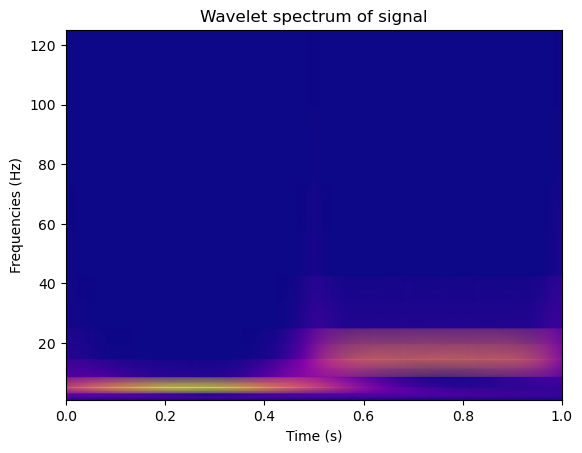

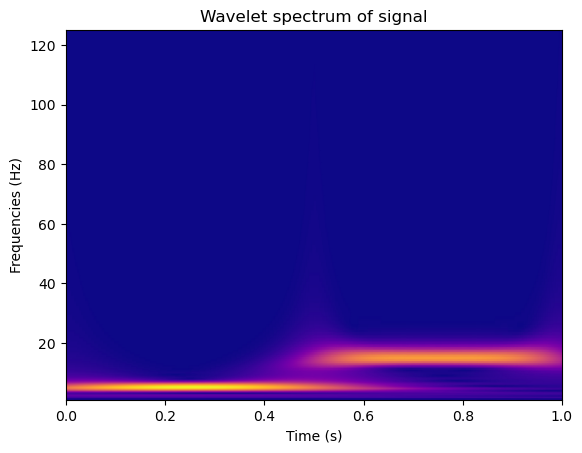

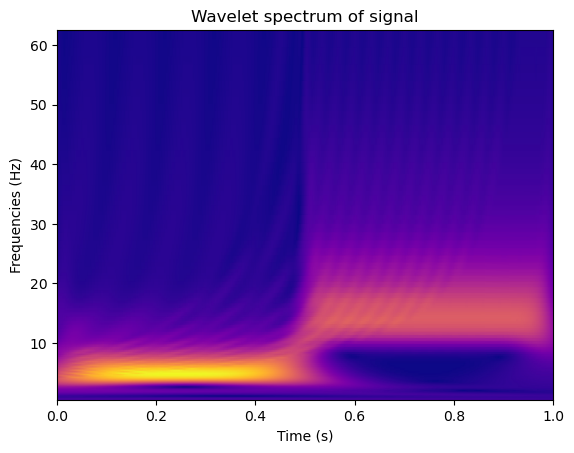

Example: Calculate the time-resolved spectrum for the constructed signal below using a Morlet wavelet. Plot the resulting spectrum using the pcolormesh function.

# solution

number_of_freqs = 10
bandwidth = 1.5
center_frequency = 1.0

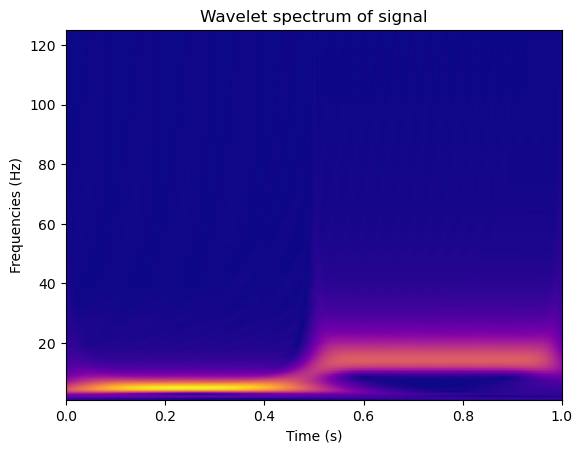

freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

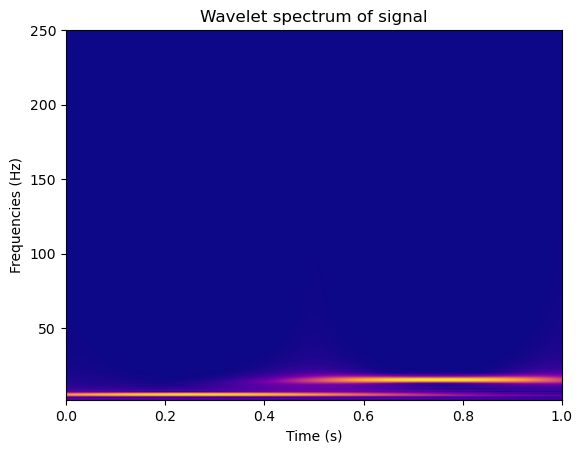

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

Exercise: Calculate the time-resolved Fourier amplitude spectrum for the same constructed sinusoid below using a Morlet wavelet. But this time change the number_of_freqs to 100. This parameter specifies how many frequencies to calculate the spectrum for. Plot the result using the pcolormesh function.

What happens to the frequency resolution when you compare to the plot above?

Solution
number_of_freqs = 100
bandwidth = 1.5
center_frequency = 1.0
freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

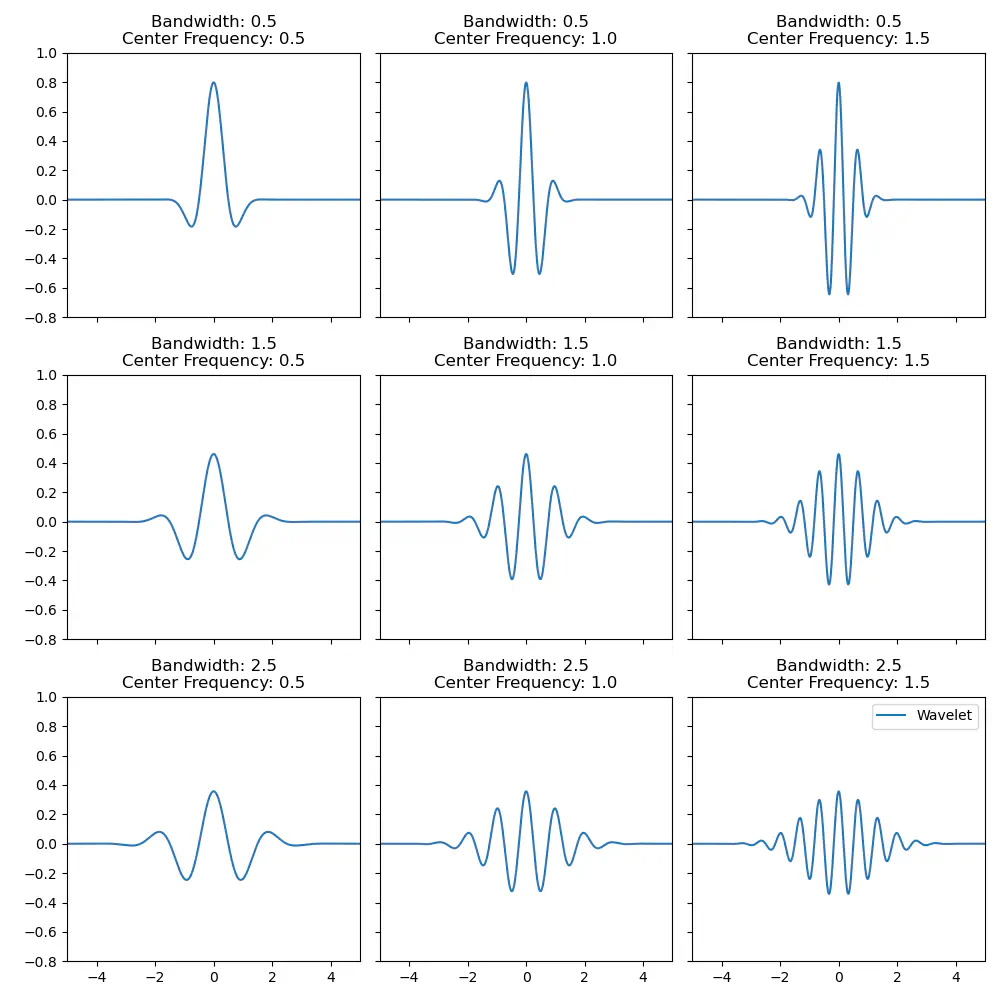

The Morlet wavelet comes in many different shapes and sizes. There are two parameters that determine which kind of Morlet wavelet is used in the calculation of the spectrum: the bandwidth and the center frequency of the wavelet. The bandwidth determines how broad the wavelet is and the center frequency determines how many oscillations it has. Wavelets with different bandwidths and center frequencies are illustrated in the figure below. These two parameters determine the frequency- and time-resolution of the resulting spectrum.

Exercise: Calculate the time-resolved spectrum for the same constructed sinusoid below using a Morlet wavelet. Keep the number_of_freqs parameter at 100, but change the center_frequency parameter to 0.5.

What happens to the frequency resolution now?

Note: The vertical, periodic stripes you see in the plot are just due to the discontinuity in the signal when it jumps from 5 to 15 Hz in the middle.

Solution
number_of_freqs = 100
bandwidth = 1.5
center_frequency = 0.5
freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

Exercise: Change the center_frequency parameter to 2.0. Calculate and plot the time-resolved spectrum for the same constructed sinusoid below using a Morlet wavelet.

What happens to the frequency resolution? What happens to the time resolution?

Solution
number_of_freqs = 100
bandwidth = 1.5
center_frequency = 2.0
freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

Exercise: Set the center_frequency parameter back to 1.0, but change the bandwidth parameter to 0.5. Calculate and plot the time-resolved spectrum for the same constructed sinusoid again.

What happens to the frequency resolution this time?

Solution
number_of_freqs = 100
bandwidth = 0.5
center_frequency = 1.0
freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

Exercise: Change the bandwidth of the wavelet to 2.5. Calculate and plot the spectrum using pcolormesh.

What happens to the frequency resolution compared to the last plot?

Solution
number_of_freqs = 100
bandwidth = 2.5
center_frequency = 1.0
freqs, spectrum = utils.calc_wavelet_spectrum(sig, sampling_frequency, number_of_freqs, bandwidth, center_frequency)

plt.pcolormesh(time_vec, freqs, spectrum, cmap = 'plasma', shading='gouraud')
plt.xlabel('Time (s)')
plt.ylabel('Frequencies (Hz)')
plt.title('Wavelet spectrum of signal');

Comment: The exercises and plots above should demonstrate that if you increase the time resolution, you decrease the frequency resolution in your spectrum. And vice versa, if you increase the frequency resolution, you decrease the time resolution of your spectrum. There’s a fundamental trade-off between resolution in frequency and resolution in time.

The different parameters used for the Morlet wavelet determine where you strike the balance between frequency and time resolution. The frequency resolution increases and the time resolution goes down with greater bandwidth or greater center frequency.

Section 4: Multitapering

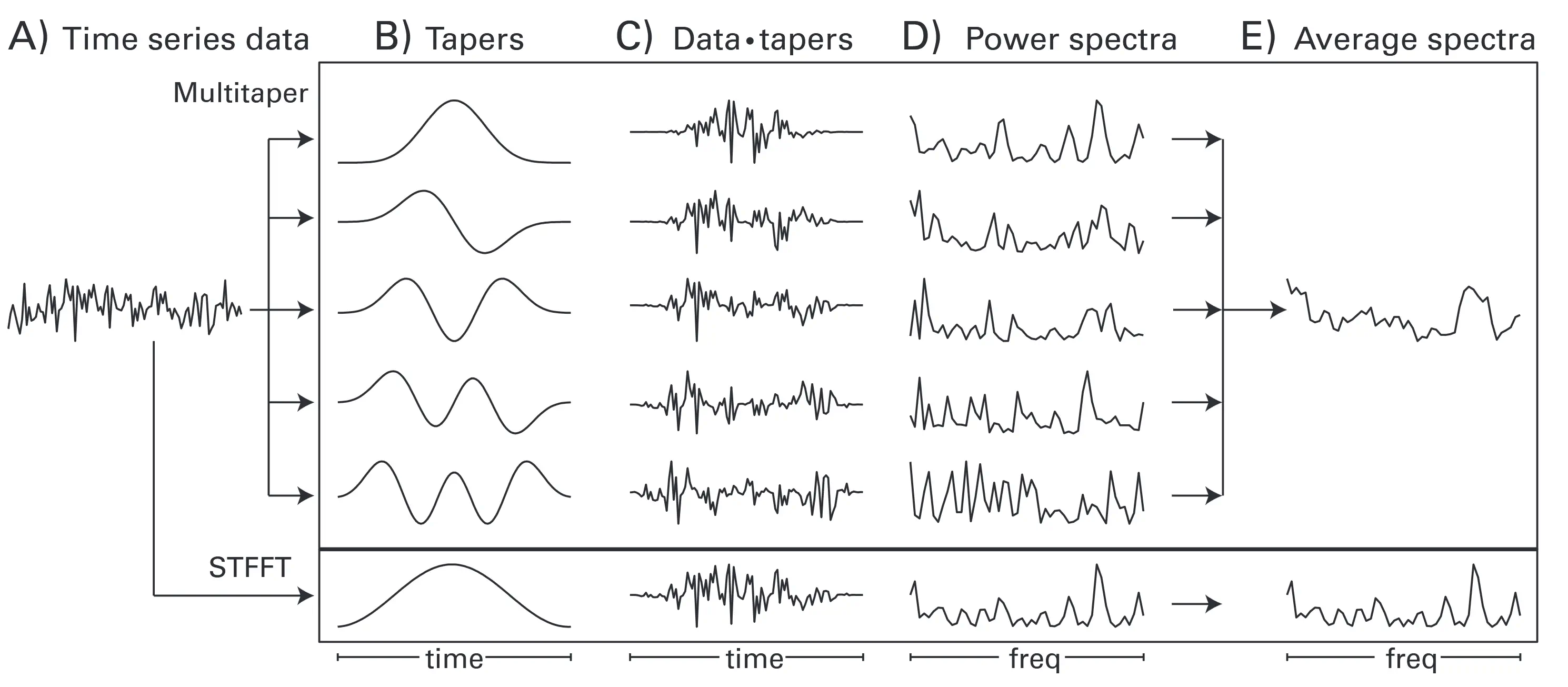

Multitapering is a method to reduce noise in your spectrum through averaging across multiple spectra. With multitapering, your signal is multiplied with different “tapers”, as they are called (illustrated in panel B in the figure below) and the Fourier transform is calculated for each of the tapered signals to get a collection of power spectra. In the end, these power spectra are averaged to produce the total power spectrum (panel E).

From: Analyzing Neural Time Series, Chapter 16: Multitapers, Mike Cohen.

Code Description
freqs, psd_mt, _ = multi_taper_psd(sig, Fs) Calculate the power spectral density using multitapering. Fs is the sampling frequency.
plt.plot(x, y) Plot y values against x values.
plt.xlim([some_lower_xlim, some_upper_xlim]) Limit the x-axis in a plot to be between the numbers some_lower_xlim and some_upper_xlim.

Exercises

from nitime.algorithms import multi_taper_psd

Run the cell below to generate a signal.

# provided

# Generate signal
sampling_frequency = 200 # sampling frequency (Hz)
duration = 1 # seconds
time_vec = np.linspace(0,duration,sampling_frequency) # seconds
frequency = 20 #
pure_sine = np.sin(2*np.pi*frequency*time_vec)

# generate noise
noise = np.random.normal(0,1,len(time_vec))

# add noise to sine wave
sine = pure_sine + noise

utils.plot_signal(sine, time_vec)

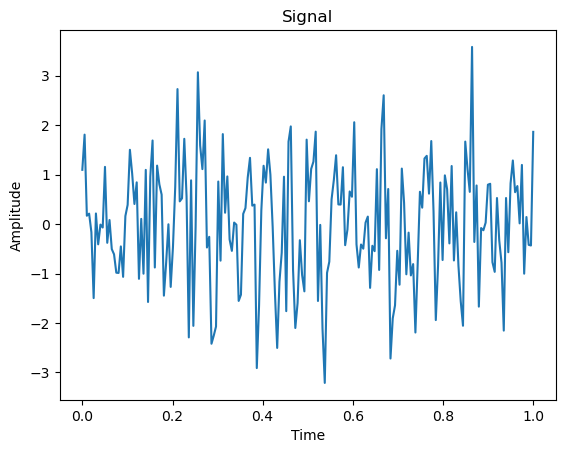

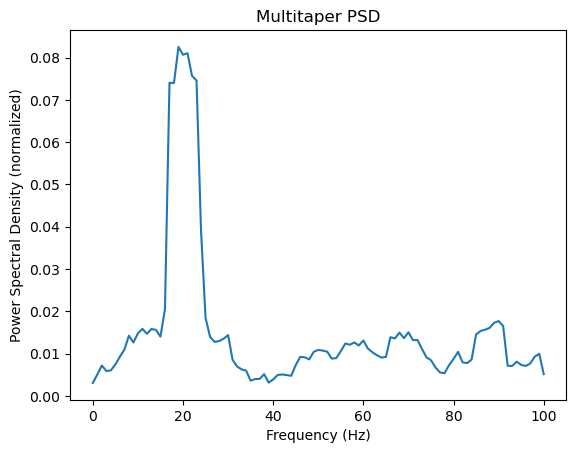

Example: Use the multitapering method to calculate the spectrum for the signal generated above. Plot the power spectrum against frequencies.

# solution

freqs, psd_mt, _ = multi_taper_psd(sine, Fs=sampling_frequency)

# Plot the result
plt.figure()
plt.plot(freqs, psd_mt)
plt.xlabel('Frequency (Hz)')
plt.ylabel('Power Spectral Density')
plt.title('Multitaper PSD');

Run the cell below to generate a composite signal.

# provided

# Create composite signal
sampling_frequency = 200
time_vec = np.linspace(0,1,sampling_frequency) # seconds
frequencyA = 10 # Hz
sineA = np.sin(2*np.pi*frequencyA*time_vec)

frequencyB = 20 # Hz
sineB = np.sin(2*np.pi*frequencyB*time_vec)

composite_signal = sineA+sineB

utils.plot_signal(composite_signal, time_vec)

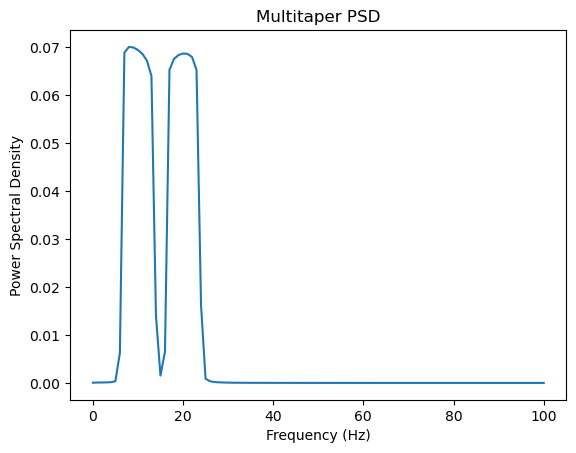

Exercise: Use the multitapering method to calculate the spectrum for the composite signal above consisting of two sine waves with frequencies 10 Hz and 20 Hz. Plot the result.

Solution
freqs, psd_mt, _ = multi_taper_psd(composite_signal, sampling_frequency)

plt.plot(freqs, psd_mt)

plt.xlabel('Frequency (Hz)')
plt.ylabel('Power Spectral Density')
plt.title('Multitaper PSD');

Run the cell below to generate a new composite signal.

# provided

# Create composite signal
sampling_frequency = 1000
time_vec = np.linspace(0,1,sampling_frequency) # seconds
frequency = 30 # Hz
sineA = np.sin(2*np.pi*frequency*time_vec)

chirp_signal = signal.chirp(time_vec, f0=1, f1=15, t1=1)

np.random.seed(5)
noise = np.random.normal(0,1,len(time_vec))

composite_signal = sineA+chirp_signal+noise

utils.plot_signal(composite_signal, time_vec)

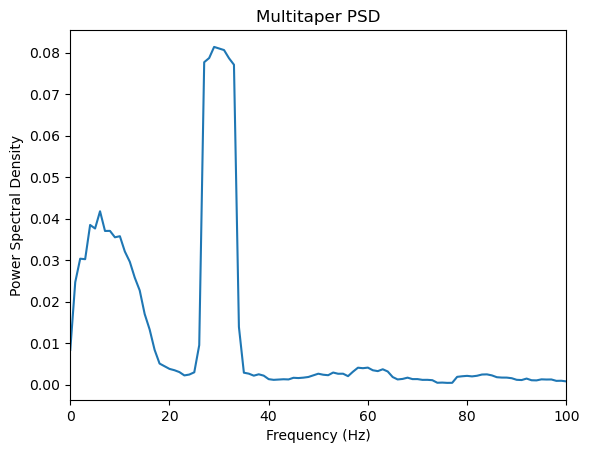

Exercise: Use the multitapering method to calculate the spectrum for the composite signal generated above consisting of a sine wave with frequency 30 Hz, a chirp signal, and noise. Plot the spectrum against frequencies.

Hint: If the spectral peaks are all to the left in the plot, you can limit the x-axis to focus on them using plt.xlim([lower_limit, upper_limit]) (insert numbers for lower_limit and upper_limit).

Solution
freqs, psd_mt, _ = multi_taper_psd(composite_signal, sampling_frequency)

plt.plot(freqs, psd_mt)

plt.xlabel('Frequency (Hz)')
plt.ylabel('Power Spectral Density')
plt.title('Multitaper PSD')
plt.xlim([0,100]);
