Thus far, we have created neural networks using nn.Sequential, which stacks layers in a fixed order. This works well for simple architectures, but more advanced models require greater flexibility. For example, residual networks use skip connections that add the input of a block to its output, allowing information to bypass layers. To build such architectures, we need to define our model using Python’s object-oriented programming features and PyTorch’s nn.Module. In this notebook, you will learn how to create classes with attributes and methods, how inheritance allows one class to build on another, and how to use these concepts to define custom neural network model classes.

Setup

Import Libraries

import torch
import torch.nn as nn
from torchviz import make_dot

import numpy as np

from IPython.display import Image

Section 1: Create Classes with Initialized and Inherited Attributes

A class is a blueprint for creating objects that bundle data (attributes) and behavior (methods) together. When you create an instance of a class, Python calls the special __init__ method to set up the object’s initial state. Classes can also inherit from other classes, which means a child class automatically gets all the attributes and methods of its parent class. This is useful for avoiding repetition and building on existing code.

Code Description
class MyClass:
    def __init__(self, a = 2):
        self.a = 2		 Define a class named MyClass with an __init__ function that initializes the attribute a with a default value of 2.
my_instance = MyClass() Create an instance of MyClass named my_instance.
my_instance.a Access the attribute a from the instance my_instance.
MyClass(a=10) Create an instance of MyClass and override the default value by setting a to 10.
class MySubClass(MyClass):
    def __init__(self, b = 2):
        super().__init__()
        self.b = b		 Define a class named MySubClass that inherits from MyClass. The super().__init__() initializes the parent
class so that the attribute a from the parent class MyClass is also initialized for instances of MySubClass.
class MySubClass(MyClass):
    def __init__(self, b = 2):
        super().__init__(a=25)
        self.b = b		 Define a class named MySubClass that inherits from MyClass and overrides the parent’s attribute a
by passing a=25 to super().__init__().

Exercises

Let’s say that we want to do an inventory for supermarkets.

Run the cell below to define the class Fruits that will be used in the exercises of this section.

# define class
class Fruits:
    # initialize attributes
    def __init__(self, num_apples = 10):
        self.num_apples = num_apples

Above, a class named Fruits with an attribute named num_apples is defined. The __init__ function initializes the attributes of the class when an instance of the class is created. Here, num_apples is given a default value of 10 (which can be overriden).

Example: Create an instance of Fruits called aldi_fruits and access its attribute num_apples to check that it’s equal to 10.

# create instance of class
aldi_fruits = Fruits()

# access attribute
aldi_fruits.num_apples
10

Rewe also wants to use the class Fruits to create an inventory of its apples.

Exercise: Create an instance of Fruits called rewe_fruits and access its attribute num_apples.

Solution
rewe_fruits = Fruits()

rewe_fruits.num_apples
10

The different supermarkets probably don’t all have 10 apples. We can override the default value by passing an argument num_apples and giving it a different value when creating the instance.

Exercise: Create an instance of Fruits called lidl_fruits with the argument num_apples set to 25. Access lidl_fruits’s attribute num_apples to check that it’s now equal to 25.

Hint: See code reference table.

Solution
lidl_fruits = Fruits(num_apples=25)

lidl_fruits.num_apples
25

Exercise: Define a class named Vegetables that takes num_carrots as an argument with a default value of 15.

Hint: Look at how the Fruits class was defined at the beginning of the section.

Solution
class Vegetables:
    def __init__(self, num_carrots = 15):
        self.num_carrots = num_carrots

Exercise: Create an instance of Vegetables called aldi_vegetables and access its attribute num_carrots to check that it’s equal to 15.

Solution
aldi_vegetables = Vegetables()
aldi_vegetables.num_carrots
15

Exercise: Create an instance of Vegetables called rewe_vegetables with num_carrots set to 13 and access its attribute num_carrots to check that it’s equal to 13.

Solution
rewe_vegetables = Vegetables(num_carrots=13)
rewe_vegetables.num_carrots
13

Exercise: Create a class named PerishedFruits with an __init__ function that takes two arguments: num_apples = 10 and num_bad_apples = 2.

Solution
class PerishedFruits():
    def __init__(self, num_apples = 10, num_bad_apples = 2):
        self.num_apples = num_apples
        self.num_bad_apples = num_bad_apples

Run the code below to create an instance named aldi_perished_fruits (without overriding the default values) and access the attribute num_bad_apples from the instance to check that it returns 2.

# create an instance
aldi_perished_fruits = PerishedFruits()

# access the atribute
aldi_perished_fruits.num_bad_apples
2

Instead of creating a new class that contains both num_apples and num_bad_apples, we can exploit that we already have a class Fruits that has the attribute num_apples and inherit from it. That reduces unnecessary repetition and the amount of code we have to write.

Example: Define a class named Perished that inherits from Fruits has one attribute num_bad_apples = 2. Create an instance named aldi_perished_fruits and access the attribute num_apples from the class to check that it returns 10.

class Perished(Fruits):
    def __init__(self, num_bad_apples = 2):
        super().__init__() # initialize the parent class Fruits
        self.num_bad_apples = num_bad_apples

aldi_perished_fruits = Perished()
aldi_perished_fruits.num_apples
10

Exercise: Create a class named Rotten that inherits from the class Vegetables provided below. Rotten should have one attribute num_bad_carrots = 7.

class Vegetables:
    def __init__(self, num_carrots = 15):
        self.num_carrots = num_carrots
Solution
class Rotten(Vegetables):
    def __init__(self, num_bad_carrots = 7):
        super().__init__()
        self.num_bad_carrots = num_bad_carrots

Exercise: Create an instance named aldi_rotten_vegetables and access the attribute num_carrots from the class to check that it returns 15.

Solution
aldi_rotten_vegetables = Rotten()
aldi_rotten_vegetables.num_carrots
15

You may have noticed the line super().__init__() in the exercise and example above and wondered what it does. It initializes the parent class (Fruits and Vegetables above) so that its attributes are set when the child class (Perished and Rotten above) are initialized.

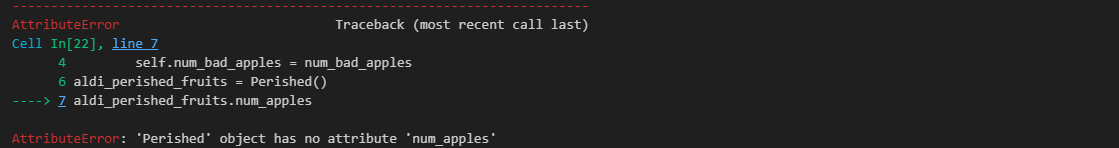

Exercise: Try to comment out the line super().__init__() in the Perished class and then access the attribute num_apples. What error message do you get?

Solution
Image("img/error_inheritance_without_super.png")

super().__init__() can be also be used to override the values of the attributes in the parent class, not just to initialize them.

Demo: Define a class Rotten that inherits from the Vegetables class defined below. Rotten should have one attribute num_bad_carrots = 7 and override the num_carrots attribute inherited from Vegetables and sets it to 35. Create an instance named rewe_rotten_vegetables and access the attribute num_carrots from the class to check that it returns 35.

Hint: Check code reference to see how arguments are passed to super().__init__() .

class Vegetables:
    def __init__(self, num_carrots = 15):
        self.num_carrots = num_carrots
class Rotten(Vegetables):
    def __init__(self, num_bad_carrots = 7):
        super().__init__(num_carrots=35)
        self.num_bad_carrots = num_bad_carrots

rewe_rotten_vegetables = Rotten()
rewe_rotten_vegetables.num_carrots
35

Section 2: Methods

Methods are functions defined inside a class that operate on instances of that class. They always take self as their first argument, which gives them access to the instance’s attributes. Like attributes, methods are inherited by child classes, so a subclass can use methods defined in its parent without rewriting them.

Code Description
class MyClass:
    def myclass_method(self):
        print("A method in MyClass")		 Define a class named MyClass that has a method named myclass_method.
class MyClass:
    def add_two_numbers(self, a, b):
        return a + b		 Define a class named MyClass that has a method named add_two_numbers that returns the sum
of the arguments a and b.
MyClass().some_attribute Access the attribute named some_attribute from MyClass.
MyClass().myclass_method() Call MyClass’s method myclass_method
my_instance = MyClass() Create an instance of MyClass
my_instance.myclass_method() Call MyClass’s method myclass_method from the instance.
class SubClass(MyClass):
    ...		 Define a class named MySubClass that inherits from MyClass. This will make inherit the methods of MyClass.
my_new_instance = SubClass()
my_new_instance.myclass_method()		 Create an instance of SubClass and call the method myclass_method, which is inherited from MyClass

Exercises

Example: Define a class named Addition with a method named add_two_numbers that takes two arguments a and b (in addition to self) and returns the result of a + b when called. Call the method from a class instance with a=2 and b=3 to check that it returns 5.

class Addition:
    def add_two_numbers(self, a, b):
        return a + b

Addition().add_two_numbers(a=2,b=3)
5

Exercise: Define a class named Subtraction with a method named subtract_two_numbers that takes two arguments a and b (in addition to self) and returns the result of a-b when called. Call the method from a class instance with a=7 and b=4 to check that it returns 3.

Solution
class Subtraction:
    def subtract_two_numbers(self, a, b):
        return a-b

Subtraction().subtract_two_numbers(a=7,b=4)
3

Exercise: Define a class named Multiply with a method named multiply_two_numbers that takes two arguments a and b (in addition to self) and returns the result of a * b when called. Create an instance of Multiply named multiplication and call the method multiply_two_numbers from multiplication. Set a=2 and b=3 to check that it returns 6.

Solution
class Multiply:
    def multiply_two_numbers(self, a, b):
        return a*b

multiplication = Multiply()
multiplication.multiply_two_numbers(a=2,b=3)
6

Example: Define a new class named Addition with a method named add_two_numbers and an __init__ method where a and b are set to default values 2 and 7, respectively. add_two_numbers should return the sum of the a and b set in __init__, that is, the result of self.a + self.b.

Call add_two_numbers from a class instance with the default values for a and b to check that it returns 9.

class Addition:
    def __init__(self, a = 2, b = 7):
        self.a = a
        self.b = b

    def add_two_numbers(self):
        result = self.a + self.b
        return result


Addition().add_two_numbers()
9

Exercise: Define a new class named Subtraction with a method named subtract_two_numbers and an __init__ method where a and b are set to default values 2 and 7, respectively. The method subtract_two_numbers should return the difference between the values of a and b set in __init__, that is, the result of self.a - self.b.

Call subtract_two_numbers from a class instance with the default values for a and b to check that it returns -5.

Solution
class Subtraction:
    def __init__(self, a = 2, b = 7):
        self.a = a
        self.b = b

    def subtract_two_numbers(self):
        result = self.a - self.b
        return result


Subtraction().subtract_two_numbers()
-5

Demo: Methods are also inherited when a subclass inherits from a parent class. Below, a class named ParentMath has an __init__ method for initializing a and b and the methods add_two_numbers and subtract_two_numbers.

A subclass named MyMath inherits from ParentMath, meaning it inherits its __init__ and its add_two_numbers and subtract_two_numbers methods. It adds its own method multiply_two_numbers. An instance of MyMath will have all methods of ParentMath and MyMath, as shown below.

class ParentMath:
    def __init__(self, a = 2, b = 7):
        self.a = a
        self.b = b

    def add_two_numbers(self):
        result = self.a + self.b
        return result

    def subtract_two_numbers(self):
        result = self.a - self.b
        return result
class MyMath(ParentMath):
    def multiply_two_numbers(self):
        result = self.a * self.b
        return result

# create instance of MyMath and override default values of a and b
math = MyMath(a=5,b=10)
print(f'Arguments of math are a = {math.a} and b = {math.b}')
print(f'Sum of a and b = {math.add_two_numbers()}')
print(f'Difference of a and b = {math.subtract_two_numbers()}')
print(f'Product of a and b = {math.multiply_two_numbers()}')
Arguments of math are a = 5 and b = 10
Sum of a and b = 15
Difference of a and b = -5
Product of a and b = 50

Section 3: Make Your Own Neural Network Models using PyTorch’s nn.Module.

PyTorch provides nn.Module as a base class for all neural network models. By inheriting from nn.Module, your custom model gains access to useful functionality like parameter tracking, saving and loading weights, and moving the model between CPU and GPU. To create a custom model, you define an __init__ method that sets up the layers and a forward method that specifies how data flows through those layers. The forward method gives you complete control over the computation, allowing you to implement skip connections, branching paths, or any other architecture you may need.

Code Description
class Model(nn.Module)
    ...		 Define class named Model that inherits from nn.Module.
class Model(nn.Module)
    def __init__(self):
           super().__init__()		 Define class named Model that inherits from nn.Module.
super().__init__() initializes the parent nn.Module.
class Model(nn.Module)
      def __init__(self):
           ...
           self.fc = nn.Linear(2,2)		 Add a single fully connected (fc) layer with 2 input and 2 output features to the model.
class Model(nn.Module)
      def __init__(self):
           ...
           self.fc1 = nn.Linear(1,8)
           self.fc2 = nn.Linear(8,1)		 Add two fully connected layers to the model. One with 1 input feature and 8 output features
and one with 8 input features and 1 output feature.
class Model(nn.Module)
      def __init__(self):
           ...
           self.relu = nn.ReLU()		 Add a rectified linear unit (ReLU) activation layer in addition to the fully connected layers.
class Model(nn.Module)
    def __init__(self):
           ...

    def forward(self,x):
            return self.fc(x)		 Add a method forward to the model that carries out the forward pass of the input x through the network.
class Model(nn.Module)
    def __init__(self):
           super().__init__()
           self.fc = nn.Linear(1,8)
           self.relu = nn.ReLU()

    def forward(self,x):
             out1 = self.fc(x)
             out2 = self.relu(out1)
             return out2 + x		 Add a skip connection to the forward method. A skip connection adds the input from a few (usually 2-4)
layers back to the output from the last layer.
model = Model() Create an instance of Model and assign it to a variable named model.
model.forward(x) Do a forward pass of the input tensor x through the model.

Exercises

Example: Define a class named Model that inherits from the nn.Module and is initialized with a single fully connected layer named fc1 with 1 input feature and 2 output features. Display the model to make sure that it was created correctly.

1fc stands for “fully connected” and is a common abbreviation. It means that all neurons are connected to each other from one layer to the next.

class Model(nn.Module):
    def __init__(self):
        super().__init__() # initializes nn.Module
        self.fc = nn.Linear(1,2)

Model()
Model(
  (fc): Linear(in_features=1, out_features=2, bias=True)
)

Exercise: Define a class named Model that inherits from the nn.Module and is initialized with two fully connected layers. The first layer has 2 input features and 16 output features. The second layer has 16 input features and 2 output features. Display the model to make sure that it was created correctly.

Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(2,16)
        self.fc2 = nn.Linear(16,2)

Model()
Model(
  (fc1): Linear(in_features=2, out_features=16, bias=True)
  (fc2): Linear(in_features=16, out_features=2, bias=True)
)

Exercise: Define a class named Model that inherits from the nn.Module and is initialized with two fully connected layers and a rectified linear unit (ReLU) layer. The first layer has 6 input features and 32 output features. The second layer has 32 input features and 1 output feature. Display the model to make sure that it was created correctly.

The output when you display it could look like this: Model(
     (fc1): Linear(in_features=6, out_features=32, bias=True)
     (relu): ReLU()
     (fc2): Linear(in_features=32, out_features=1, bias=True)
)

Note: The order in which the layers are displayed is not necessarily the same as the order in which the input is passed through the layers in the forward pass.

Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(6,32)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(32,1)

Model()
Model(
  (fc1): Linear(in_features=6, out_features=32, bias=True)
  (relu): ReLU()
  (fc2): Linear(in_features=32, out_features=1, bias=True)
)

Example: Define a class named Model that inherits from the nn.Module and is initialized with a two fully connected layers and a ReLU layer. The first fc layer should have 1 input feature and 8 output features. The second fc layer should have 8 input features and 1 output feature. Add a forward method to the class that can be used to pass input through the network. The ReLU layer should come between the fully connected layers in the forward pass.

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(1,8)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(8,1)

    def forward(self, x):
        out1 = self.fc1(x)
        out2 = self.relu(out1)
        out3 = self.fc2(out2)
        return out3

Run the cell with the code to pass the feature x through the network using the forward method. The output will just be random numbers because the model is not trained to do anything yet.

x = torch.linspace(0,10,11).unsqueeze(1)
Model().forward(x)
tensor([[-0.3215],
        [-0.5453],
        [-0.8199],
        [-1.0968],
        [-1.3736],
        [-1.6505],
        [-1.9273],
        [-2.2042],
        [-2.4810],
        [-2.7579],
        [-3.0347]], grad_fn=<AddmmBackward0>)

Exercise: Add a forward method to the class defined below. The ReLU layer should come after the fully connected layer in the forward pass.

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc = nn.Linear(1,2)
        self.relu = nn.ReLU()
Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc = nn.Linear(1,2)
        self.relu = nn.ReLU()

    def forward(self, x):
        out = self.fc(x)
        out = self.relu(out)
        return out

Run the cell below with the code to pass the feature x through the network using the forward method. The output will just be random numbers because the model is not trained to do anything yet.

x = torch.linspace(0,10,11).unsqueeze(1)
Model().forward(x)
tensor([[ 0.3975,  0.0000],
        [ 1.3697,  0.0000],
        [ 2.3419,  0.3074],
        [ 3.3141,  0.7993],
        [ 4.2864,  1.2912],
        [ 5.2586,  1.7831],
        [ 6.2308,  2.2750],
        [ 7.2031,  2.7669],
        [ 8.1753,  3.2588],
        [ 9.1475,  3.7507],
        [10.1198,  4.2426]], grad_fn=<ReluBackward0>)

Exercise: Add a forward method to the class defined below. The ReLU layer should come first - before the fully connected layers - in the forward pass.

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(11,2)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(2,11)
Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(11,2)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(2,11)

    def forward(self, x):
        out = self.relu(x)
        out = self.fc1(out)
        out = self.fc2(out)
        return out

Run the cell below with the code to pass the feature x through the network using the forward method. The output will just be random numbers because the model is not trained to do anything yet.

x = torch.linspace(0,10,11)
Model().forward(x)
tensor([ 3.7801, -1.6181, -2.8800,  0.9999, -5.2839, -4.2738,  1.7210, -2.4233,
        -1.1656, -0.2904, -2.1246], grad_fn=<ViewBackward0>)

Exercise: Add a forward method to the class defined below. The ReLU layer should come between the fully connected layers and the Sigmoid layer should come last in the forward pass.

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(1,2)
        self.fc2 = nn.Linear(2,1)
        self.sigmoid = nn.Sigmoid()
        self.relu = nn.ReLU()
Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(1,2)
        self.fc2 = nn.Linear(2,1)
        self.sigmoid = nn.Sigmoid()
        self.relu = nn.ReLU()

    def forward(self, x):
        out1 = self.fc1(x)
        out2 = self.relu(out1)
        out3 = self.fc2(out2)
        out4 = self.sigmoid(out3)
        return out4

Run the cell below with the code to pass the feature x through the network using the forward method. The output will just be random numbers because the model is not trained to do anything yet, but they should all be between 0 and 1.

x = torch.linspace(0,10,11).unsqueeze(1)
Model().forward(x)
tensor([[0.3894],
        [0.3894],
        [0.3894],
        [0.3894],
        [0.3894],
        [0.3864],
        [0.3819],
        [0.3774],
        [0.3729],
        [0.3685],
        [0.3640]], grad_fn=<SigmoidBackward0>)

Extra Challenge: Add a forward method to the class defined below. The ReLU layer should come between the fully connected layers and the input x should be added to the output from the last fully connected layer. This is called a skip connection and is a way to deal with the problem of vanishing gradients.

Solution
class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(11,2)
        self.fc2 = nn.Linear(2,11)
        self.relu = nn.ReLU()

    def forward(self, x):
        out1 = self.fc1(x)
        out2 = self.relu(out1)
        out3 = self.fc2(out2)
        out4 = out3 + x
        return out4

Run the cell below with the code to pass the feature x through the network using the forward method. The output will just be random numbers because the model is not trained to do anything yet.

x = torch.linspace(0,10,11)
Model().forward(x)
tensor([1.8418, 1.4410, 2.1237, 1.5466, 1.6795, 2.0865, 3.3609, 4.1521, 8.1130,
        8.3930, 9.3397], grad_fn=<AddBackward0>)

Section 4: Visualize the Computational Graph with torchviz

When building neural networks, it can be helpful to visualize the computational graph that PyTorch constructs during the forward pass. The torchviz library provides a simple way to generate these visualizations, showing how tensors flow through operations and how gradients will propagate during backpropagation. This is particularly useful for verifying that your model architecture is correct, especially when working with skip connections or other non-sequential elements.

Code Description
output = model(x) Pass input x through the model to get an output tensor.
make_dot(output) Create a visualization of the computational graph for output.
make_dot(output, params=dict(model.named_parameters())) Create a visualization that labels model parameters by name.
make_dot(output).render("graph", format="png") Save the visualization as a PNG file named graph.png.
dot = make_dot(output)
dot.graph_attr['rankdir'] = 'LR'		 Change the graph direction to left to right (horizontal) instead of top to bottom.

Exercises

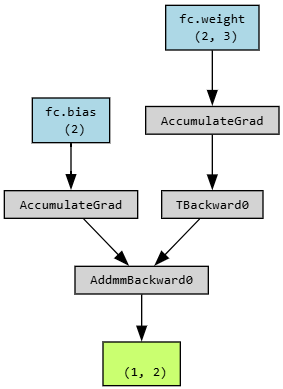

Example: Visualize the computational graph of a simple model with one linear layer. First, define the model, pass an input through it, then use make_dot to visualize how the output was computed. (Remove the semi-colon on the line with make_dot to display the image.)

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc = nn.Linear(3, 2)

    def forward(self, x):
        return self.fc(x)
model = Model()
x = torch.randn(1, 3)
output = model(x)

make_dot(output, params=dict(model.named_parameters()));
Image("img/example_make_dot.png")

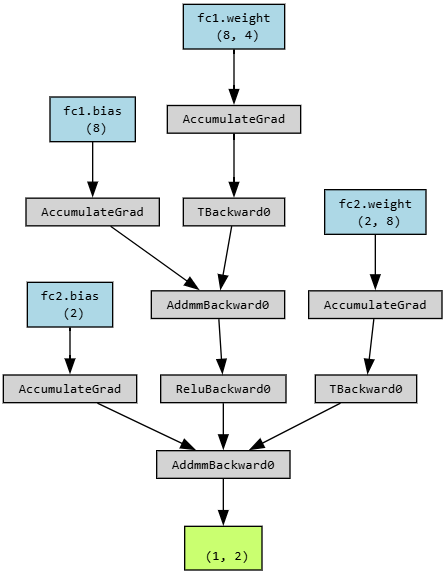

Exercise: Visualize the computational graph of a the model defined below, which has two linear layers and a ReLU activation between them.

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(4, 8)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(8, 2)

    def forward(self, x):
        out = self.fc1(x)
        out = self.relu(out)
        out = self.fc2(out)
        return out
Solution
model = Model()
x = torch.randn(1, 4)
output = model(x)

make_dot(output, params=dict(model.named_parameters()));
Image("img/exercise1_make_dot.png")

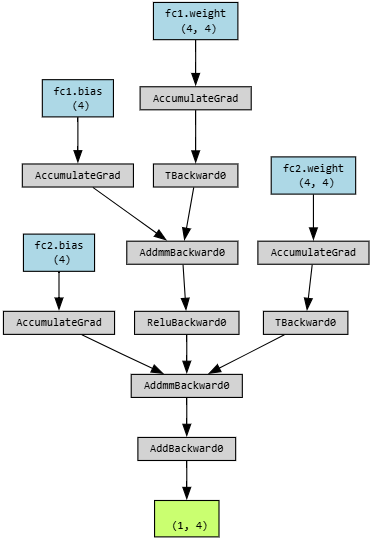

Exercise: Visualize a model with a skip connection. Compare the graph to the previous exercise. Where do you think the skip connection appears in the visualization?

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(4, 4)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(4, 4)

    def forward(self, x):
        out = self.fc1(x)
        out = self.relu(out)
        out = self.fc2(out)
        return out + x  # skip connection
Solution
model = Model()
x = torch.randn(1, 4)
output = model(x)

make_dot(output, params=dict(model.named_parameters()));
Image("img/exercise2_make_dot.png")
