Binary Population Codes

Import Packages

import numpy as np
import matplotlib.pyplot as plt
import itertools

In state space analysis, we often work with binary representations of spike trains. A binary representation means that we only care about whether or not a neuron fired in a given bin. In NumPy, we can compare the array against a value (e.g. X >= 1) to get a boolean array that is True (1) where that condition is met and False (0) otherwise. We can also combine such arrays to find points where both arrays are True (e.g. X1 & X2) or where at least one of them is True. In this section you are going to practice working with such binary spike train representations.

Code Reference

Exercises

Please fill in the blank cells with working code, according to each exercise below.

Note: “Example” exercises already have the solutions, and will help show how the code is used for the exercises that follow.

Setup: We create synthetic data: 3 neurons, 1000 time bins of 10 ms each (= 10 s recording). Neurons 1 and 2 share a weak common input, making them slightly correlated. counts is an array of bins x neurons, where each entry is the number of spikes.

np.random.seed(42)
T = 1000
counts = np.zeros((T, 3), dtype=int)
counts[:, 0] = np.random.poisson(0.20, T)   # ~20 Hz
counts[:, 1] = np.random.poisson(0.25, T)   # ~25 Hz
counts[:, 2] = np.random.poisson(0.15, T)   # ~15 Hz
common = np.random.poisson(0.05, T)         # shared input to neurons 1 and 2
counts[:, 1] += common
counts[:, 2] += common

print(f"Data shape: {counts.shape}  (time bins x neurons)")
print(f"Mean spike counts per bin: {counts.mean(axis=0).round(3)}")

Data shape: (1000, 3)  (time bins x neurons)
Mean spike counts per bin: [0.201 0.285 0.186]

Example: Convert counts to a binary array that is 1 for every bin and neuron where at least one spike was observed. Sum X to count the total number of bins with spikes observed.

X = (counts >= 1)
X.sum()

np.int64(599)

Exercise: Convert counts to a binary array that is 1 for every bin and neuron where at least two spikes was observed. Sum X to count the total number of bins with spikes observed.

X = (counts >= 2)
X.sum()

np.int64(68)

Exercise: Convert the counts for neuron one (i.e. counts[:,0]) to a binary array and compute the number of bins where that neuron fired.

X = (counts[:, 0] >= 1)
X.sum()

np.int64(175)

Exercise: Convert the counts for neuron two (i.e. counts[:,1]) to a binary array and compute the number of bins where that neuron fired.

X = (counts[:, 1] >= 1)
X.sum()

np.int64(256)

Example: Create a binary array that is 1 only when the bin contained a spike in neuron 1 AND neuron 2 and sum to count the number of bins where both neurons fired.

X1 = (counts[:, 0] >= 1)
X2 = (counts[:, 1] >= 1)

X = (X1 & X2)
X.sum()

np.int64(33)

Exercise: Create a binary array that is 1 only when the bin contained a spike in neuron 2 AND neuron 3. Doe these neurons fire together more often?

X1 = (counts[:, 1] >= 1)
X2 = (counts[:, 2] >= 1)

X = X1 & X2
X.sum()

np.int64(61)

Example: Get the number of trials where neurons in X1 OR X2 are active and divide by the length of X to get the fraction of bins where any of the two neurons fired.

(X1 | X2).sum() / len(X)

np.float64(0.363)

Exercise: Using the approach from above, get the fraction of bins where any of the three neurons fired.

X1 = (counts[:, 0] >= 1)
X2 = (counts[:, 1] >= 1)
X3 = (counts[:, 2] >= 1)

(X1 | X2 | X3).sum() /len(X)

np.float64(0.484)

Exercise: Subtract the number of bins where any neuron fired from the total number of bins to calculate the fraction of bins where all neurons are silent.

(len(X) - (X1 | X2 | X3).sum()) / len(X)

np.float64(0.516)

Instead of combining individual binary spike trains we can also treat each bin as a binary word: a vector of 0s and 1s indicating which neurons fired. A neuron’s entry is 1 if it fired at least once in that bin, otherwise 0. With N = 3 neurons there are $2^3 = 8$ possible words: [0,0,0], [1,0,0], …, [1,1,1]. The probability distribution over these 8 words is the central object the Ising model is designed to fit.

In this section you are going to compute the probability for the different binary words in the data and finally represent them in a bar chart.

Code Reference

Exercises

Example: Compute the probability for the occurrence of the binary word [0, 0, 0] (i.e all neurons are silent).

X = (counts >= 1).astype(int)
word = [0, 0, 0]

word_count = np.all(X == word, axis=1).sum()
word_prob = word_count / len(X)

word_prob

np.float64(0.516)

Exercise: Compute the probability for the occurrence of the word [1, 1, 1] (i.e. all neurons are firing).

word = [1, 1, 1]

word_count = np.all(X == word, axis=1).sum()
word_prob = word_count / len(X)

word_prob

np.float64(0.006)

Exercise: Compute the probability for the binary word that represents neuron 1 and 3 are firing.

word = [1, 0, 1]

word_count = np.all(X == word, axis=1).sum()
word_prob = word_count / len(X)

word_prob

np.float64(0.021)

Exercise: The code below computes all possible binary words. Convert the word_counts to a probability and run the last cell to plot them as a bar chart.

all_words = np.array(list(itertools.product([0, 1], repeat=3)))  # shape (8, 3)
labels = [str(np.array(w)) for w in all_words]
word_counts = np.array([np.all(X == w, axis=1).sum() for w in all_words])

word_probabilities = word_counts / len(X)

plt.bar(labels, word_probabilities)
plt.xlabel('Word [n0, n1, n2]')
plt.ylabel('Empirical probability');

The Ising model is fitted to statistics measured from the binary spike data. For each neuron, we first compute its firing rate: the fraction of time bins in which that neuron fired. Then we compute pairwise co-firing rates: the fraction of time bins in which two neurons fired together.

These quantities are called expectation parameters and are usually written as $\eta$. For three neurons, we use:

where $\eta_i = P(X_i = 1)$ is the firing rate of neuron $i$, and $\eta_{ij} = P(X_i = 1, X_j = 1)$ is the co-firing rate of neurons $i$ and $j$.

In this section, you will compute these values directly from the binary spike matrix X.

Code Reference

Exercises

Create a binary representation of the spike counts and convert it to integers. This allows us to combine the arrays with multiplication.

X = (counts >= 1).astype(int)

Exercise: Compute the three marginal firing rates $\eta_i$ from X (i.e. the mean along the first axis). Do they match the rates you would expect from the setup cell?

eta_marginal = X.mean(axis=0)
eta_marginal

array([0.175, 0.256, 0.168])

Example: Compute the pairwise rate $\eta_{ij}$ for neurons 1 and 2.

eta_pair = (X[:, 0] * X[:,1]).mean()
eta_pair

np.float64(0.033)

Exercise: Compute the pairwise rate $\eta_{ij}$ for neurons 2 and 3.

eta_pair = (X[:, 1] * X[:,2]).mean()
eta_pair

np.float64(0.061)

Example: Compute the pairwise rate $\eta_{ij}$ for all three pairs.

pairs = [(0, 1), (0, 2), (1, 2)]
eta_pair = np.array([(X[:, i] * X[:, j]).mean() for i, j in pairs])
eta_pair

array([0.033, 0.027, 0.061])

Exericse: Using the same pattern as above compute $\eta_{ij}$ under the assumption that the neurons are independent (Hint: compute $\eta_{ij}$ under the independence assumption for neurons 1 and 2 as eta_marginal[0] * eta_marginal[1]).

pairs = [(0, 1), (0, 2), (1, 2)]
eta_ind = np.array([eta_marginal[i] * eta_marginal[j] for i, j in pairs])
eta_ind

array([0.0448  , 0.0294  , 0.043008])

Exercise: Subtract the $\eta_{ij}$ values under the independence assumption from the actually observed values of $\eta_{ij}$ to see how the observations are deviating from the assumption.

eta_pair - eta_ind

array([-0.0118  , -0.0024  ,  0.017992])

The Ising model assigns a probability to each binary word $\mathbf{x}$ by computing an energy (or also called score) and normalizing. The energy of a word $\mathbf{x} = [x_0, x_1, x_2]$ is the dot product $\theta \cdot f(\mathbf{x})$, where $f(\mathbf{x})$ records which neurons fired and which pairs co-fired:

The first three entries say which neurons were active; the last three say which pairs co-fired. The parameter vector $\theta = [\theta_0, \theta_1, \theta_2, \theta_{01}, \theta_{02}, \theta_{12}]$ weights each entry: a large positive $\theta_i$ makes neuron $i$ fire often; a large positive $\theta_{ij}$ makes the pair $(i, j)$ co-fire often.

To turn energies into probabilities we exponentiate and divide by the partition function $Z$, which sums over all 8 words so the probabilities add up to 1:

Notice that by design $f(\mathbf{x})$ has the same structure as $\eta$ from the section above. At the fitted parameters, the model’s expected $f(\mathbf{x})$ matches the empirical $\eta$ exactly.

Code Reference

Exercises

Example: Compute $f(\mathbf{x})$ for the word $[1, 0, 1]$ (neurons 1 and 3 fired; neuron 2 was silent).

The formula gives:

The pair $(0, 2)$ co-fired (both active), so its entry is 1. The other pairs include at least one silent neuron, so their entries are 0.

x = np.array([1, 0, 1])
fx = np.array([x[0], x[1], x[2], x[0]*x[1], x[0]*x[2], x[1]*x[2]])
print('Word:  ', x)
print('f(x):  ', fx)

Word:   [1 0 1]
f(x):   [1 0 1 0 1 0]

Exercise: Compute $f(\mathbf{x})$ for the word $[0, 1, 1]$ (neurons 2 and 3 fired; neuron 1 was silent).

x = np.array([0, 1, 1])
fx = np.array([x[0], x[1], x[2], x[0]*x[1], x[0]*x[2], x[1]*x[2]])
print('Word:  ', x)
print('f(x):  ', fx)

Word:   [0 1 1]
f(x):   [0 1 1 0 0 1]

Demo: Now build $F$ (the sufficient statistic) for all 8 words at once. Using all_words from Section 1, construct an (8, 6) array where each row is [x0, x1, x2, x0*x1, x0*x2, x1*x2].

all_words = np.array(list(itertools.product([0, 1], repeat=3)))  # shape (8, 3)

F = np.column_stack([
    all_words[:, 0],
    all_words[:, 1],
    all_words[:, 2],
    all_words[:, 0] * all_words[:, 1],
    all_words[:, 0] * all_words[:, 2],
    all_words[:, 1] * all_words[:, 2],
])

print('F shape:', F.shape)
print('F =\n', F)

F shape: (8, 6)
F =
 [[0 0 0 0 0 0]
 [0 0 1 0 0 0]
 [0 1 0 0 0 0]
 [0 1 1 0 0 1]
 [1 0 0 0 0 0]
 [1 0 1 0 1 0]
 [1 1 0 1 0 0]
 [1 1 1 1 1 1]]

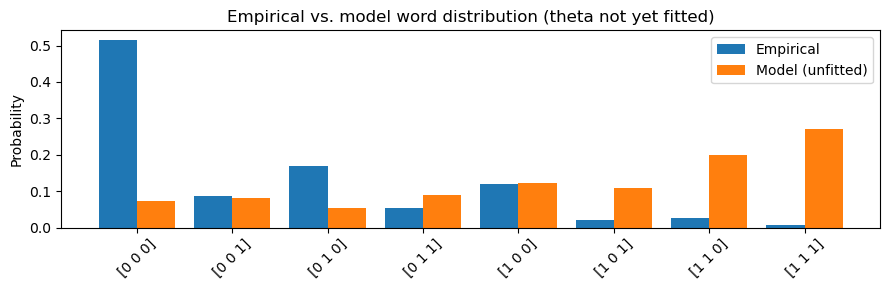

Demo: Use F from the example above and the theta given in the cell below to compute the Ising model probabilities $P(\mathbf{x})$ for all 8 words. Verify that the probabilities sum to 1, then plot p_emp and p_model side by side as a bar chart.

In the live sessions, we will see how the EM algorithm finds the theta that makes p_model match p_emp.

theta = np.array([0.5, -0.3, 0.1, 0.8, -0.2, 0.4])  # [biases, couplings] — not yet fitted

energies = F @ theta
Z = np.exp(energies).sum()
p_model = np.exp(energies) / Z
print('Sum of p_model:', p_model.sum().round(6))

# Plot empirical vs model
x_pos = np.arange(8)
width = 0.4
plt.figure(figsize=(9, 3))
plt.bar(x_pos - width/2, word_probabilities,   width, label='Empirical')
plt.bar(x_pos + width/2, p_model, width, label='Model (unfitted)')
plt.xticks(x_pos, labels, rotation=45)
plt.ylabel('Probability')
plt.title('Empirical vs. model word distribution (theta not yet fitted)')
plt.legend()
plt.tight_layout()
plt.show()

Sum of p_model: 1.0
