Spike Time Analysis with Pandas and Matplotlib

Authors

Dr. Nicholas Del Grosso | Dr. Sangeetha Nandakumar | Dr. Ole Bialas | Dr. Atle E. Rimehaug

Download Materials

In this notebook, we will be focusing on the spike timing of neurons from the Steinmetz et al, 2019 paper. With the rich dataset that they collected during their experiments many analyses are possible that can link the timing of spikes to behavioral or experimental events.

Analysis Goals

We will visualize spiking events, examine their relationship with key experimental variables, and compare activity patterns across distinct brain regions.

Learning Goals

We will be using the Xarray Python package to load the data which is stored in netCDF format (i.e. .nc extension), as well as the Pandas and matplotlib libraries for analysis and visualization.

Setup

Import Libraries

import xarray as xr
import pandas as pd
import matplotlib.pyplot as plt
import owncloud
from pathlib import Path

Download the dataset

Path('data').mkdir(exist_ok=True, parents=True)

owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/gBtjQ4TaXGEPyao', folder_password="ibots").get_file('/', f'data/steinmetz_2017-01-08_Muller.nc')

True

Section 1: Spike Timing Data as Pandas DataFrame

In this section we’ll load the spike timing data as a Pandas DataFrame and explore some of the properties of the data to get a better understanding of it. As you will see later, each spike is characterised by 4 pieces of information:

spike_id: The identifier for that spike
spike_time: The time at which the spike occurred
spike_cell: The cell to which the spike belongs
spike_trial: The trial in which the spike occurred

Code	Description
`dset.to_dataframe()`	Convert an Xarray dataset to a Pandas DataFrame.
`df.reset_index()`	Reset the index of a DataFrame.
`df[df['column_B'] == 42]`	Filter a DataFrame where the values of `column_B` are 42.
`df['column_A'].nunique()`	Count the number of unique values in `column_A` of a DataFrame.
`df.groupby('column_B')['column_A'].nunique()`	Group a DataFrame according to values of `column_B` and count the number of unique values in `column_A`.
`df.max()`	Find the maximum value of a DataFrame.
`df.min()`	Find the minimum value of a DataFrame.
`df.idxmax()`	Find the index where the maximum value occurs in a DataFrame.
`df.idxmin()`	Find the index where the minimum value occurs in a DataFrame.
`plt.hist(data_values)`	Plot a histogram of `data_values` using Matplotlib.

Run the cell below to load and display the dataset using Xarray.

Exercises

dset = xr.load_dataset('data/steinmetz_2017-01-08_Muller.nc')
dset

<xarray.Dataset> Size: 124MB
Dimensions:             (trial: 261, time: 250, cell: 1268,
                         waveform_component: 3, sample: 82, probe: 384,
                         brain_area_lfp: 5, spike_id: 1836009)
Coordinates:
  * trial               (trial) int32 1kB 1 2 3 4 5 6 ... 257 258 259 260 261
  * time                (time) float64 2kB 0.01 0.02 0.03 0.04 ... 2.48 2.49 2.5
  * cell                (cell) int32 5kB 1 2 3 4 5 ... 1264 1265 1266 1267 1268
  * waveform_component  (waveform_component) int32 12B 1 2 3
  * probe               (probe) int32 2kB 1 2 3 4 5 6 ... 380 381 382 383 384
  * brain_area_lfp      (brain_area_lfp) <U5 100B 'CA1' 'DG' 'LP' 'PO' 'VISam'
  * spike_id            (spike_id) int32 7MB 1 2 3 4 ... 1836007 1836008 1836009
Dimensions without coordinates: sample
Data variables: (12/31)
    contrast_left       (trial) int8 261B 50 0 100 0 50 0 ... 100 0 100 0 100 0
    contrast_right      (trial) int8 261B 0 50 25 100 50 50 ... 100 50 100 25 25
    gocue               (trial) float64 2kB 0.9828 0.902 1.114 ... nan nan nan
    stim_onset          (trial) float64 2kB 0.5 0.5 0.5 0.5 ... 0.5 0.5 0.5 0.5
    feedback_type       (trial) float64 2kB 1.0 1.0 1.0 1.0 ... nan nan nan nan
    feedback_time       (trial) float64 2kB 1.272 1.104 1.402 ... nan nan nan
    ...                  ...
    waveform_w          (cell, sample, waveform_component) float32 1MB 0.0 .....
    waveform_u          (cell, waveform_component, probe) float32 6MB 0.0 ......
    lfp                 (brain_area_lfp, trial, time) float64 3MB -27.6 ... 0...
    spike_time          (spike_id) float32 7MB 2.363 2.385 ... 1.651 0.5142
    spike_cell          (spike_id) uint32 7MB 1 1 1 1 1 ... 1268 1268 1268 1268
    spike_trial         (spike_id) uint32 7MB 1 1 2 2 2 ... 205 205 205 213 252
Attributes:
    session_date:  2017-01-08
    mouse:         Muller
    stim_onset:    0.5
    bin_size:      0.01

Run the cell below to make a DataFrame with spiking data ("spike_time", "spike_cell", "spike_trial")

spike_cols = ['spike_time', 'spike_cell', 'spike_trial']
df = dset[spike_cols].to_dataframe().reset_index()
df.head()

	spike_id	spike_time	spike_cell	spike_trial
0	1	2.362881	1	1
1	2	2.384915	1	1
2	3	1.450718	1	2
3	4	1.459585	1	2
4	5	1.963452	1	2

Example: How many cells spiked during trial 1?

df[df['spike_trial'] == 1]['spike_cell'].nunique()

Exercise: How many cells spiked during trial 24?

Solution

df[df['spike_trial']==24]['spike_cell'].nunique()

Exercise: How many cells spiked during the last trial?

Solution

df[df['spike_trial'] == df['spike_trial'].max()]['spike_cell'].nunique()

Exercise: How many cells spiked in each trial. Hint - use df.groupby('spike_trial').

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
n_spiking_cells

spike_trial
1      860
2      839
3      809
4      879
5      836
      ...
257    889
258    914
259    890
260    954
261    963
Name: spike_cell, Length: 261, dtype: int64

Exercise: What was the maximum number cells that spiked in a single trial?

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
n_spiking_cells.max()

Exercise: Which trial had the most spiking cells?

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
n_spiking_cells.idxmax()

Exercise: Find the trial number and the spike count where the fewest number of cells spiked

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
n_spiking_cells.idxmin(), n_spiking_cells.min()

(71, 758)

Example: Use the plt.hist() function to plot a histogram of the number of cells that spiked, across all trials.

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
plt.hist(n_spiking_cells);

Exercise: Use the plt.hist() function to plot a histogram of the number of cells that spiked, across all trials. Make the histogram with the following features:

color: black

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
plt.hist(n_spiking_cells, color="k");

Exercise: Use the plt.hist() function to plot a histogram of the number of cells that spiked, across all trials. Make the histogram with the following features:

color: black
histtype: “step”

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
plt.hist(n_spiking_cells, color="k", histtype='step');

Exercise: Use the plt.hist() function to plot a histogram of the number of cells that spiked, across all trials. Make the histogram with the following features:

color: black
histtype: “step”
linewidth: 3

Solution

n_spiking_cells = df.groupby(by='spike_trial')['spike_cell'].nunique()
plt.hist(n_spiking_cells, color="k", histtype='step', linewidth=3);

Section 2: Visualize the spiking activity using spike times

Now we’ll focus on visualizing the spike timing data, and some of their properties, using matplotlib:

Code	Description
`plt.scatter(x, y)`	Create a scatter plot of `x` vs `y`. `x` and `y` are both 1D arrays.
`plt.scatter(x, y, marker='	‘)`
`plt.scatter(x, y, s=5)`	Create a scatter plot with a specific marker size.
`plt.scatter(x, y, c=values)`	Create a scatter plot with colors based on `values`.
`plt.scatter(x, y, color='k')`	Create a scatter plot with a specific color.
`plt.scatter(x, y, linewidths=0.5)`	Create a scatter plot with a specific line width for markers.
`plt.scatter(x, y, label='text')`	Create a scatter plot with a label for the legend.
`plt.legend()`	Display a legend on the plot.
`plt.xlabel("your_text")`	Label the x-axis of the plot with specified text.
`plt.ylabel("your_text")`	Label the y-axis of the plot with specified text.
`plt.title("your_text")`	Add a title to the plot with the specified text.

Exercises

Example: Create a scatter plot to visualize spikes for a single neuron across multiple trials.

spike_cols = ['spike_time', 'spike_cell', 'spike_trial']
df = dset[spike_cols].to_dataframe().reset_index()

dd = df[df['spike_cell'] == 12]
plt.scatter(dd['spike_time'], dd['spike_trial'])
plt.xlabel('time/s')
plt.ylabel('trial number');

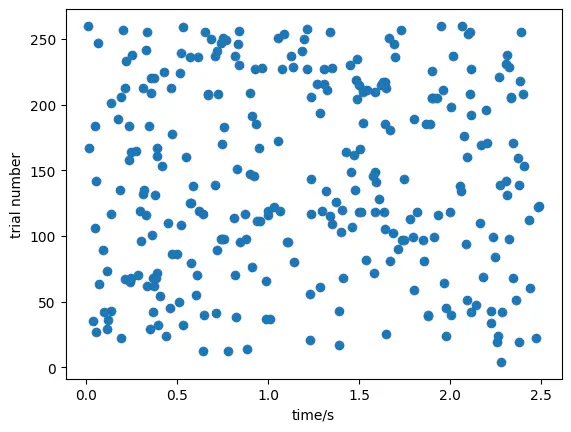

Exercise: Create a scatter plot to visualize spikes for a neuron number 11 across multiple trials.

Solution

dd = df[df['spike_cell'] == 11]
plt.scatter(dd['spike_time'], dd['spike_trial'])
plt.xlabel('time/s')
plt.ylabel('trial number');

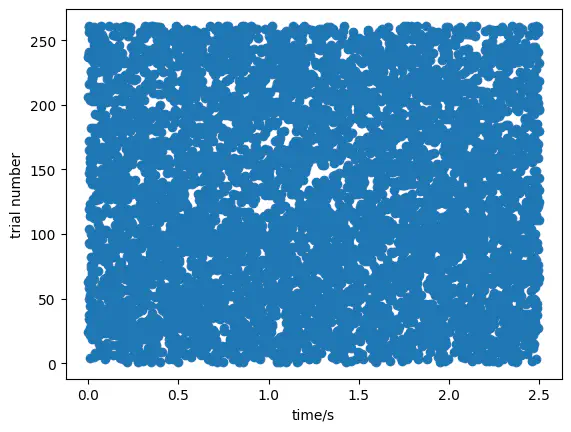

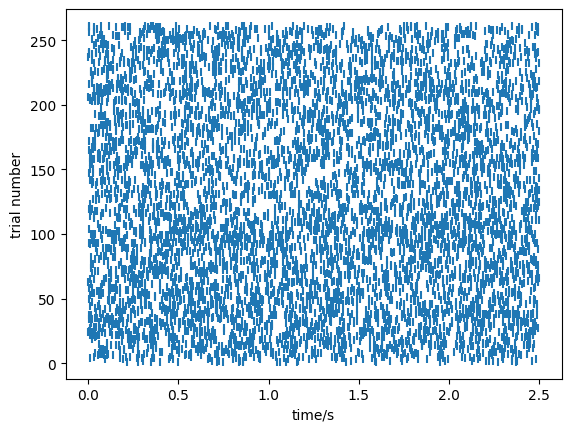

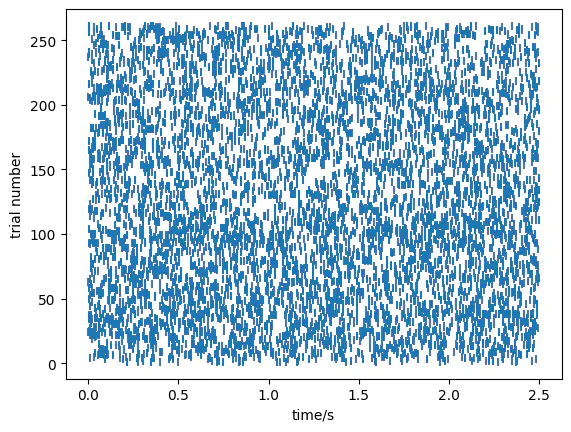

Exercise: Wow, that plot looks crowded!

To help with this, instead of a dot let’s use | as marker. This can be done by simply setting the marker argument of the plt.scatter() function.

Solution

dd = df[df.spike_cell == 11]
plt.scatter(dd['spike_time'], dd['spike_trial'], marker='|')
plt.xlabel('time/s')
plt.ylabel('trial number');

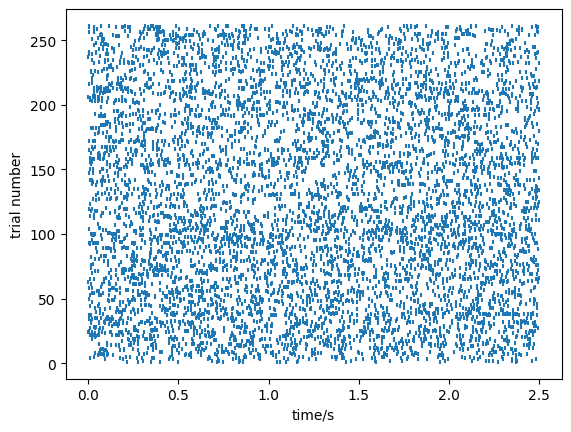

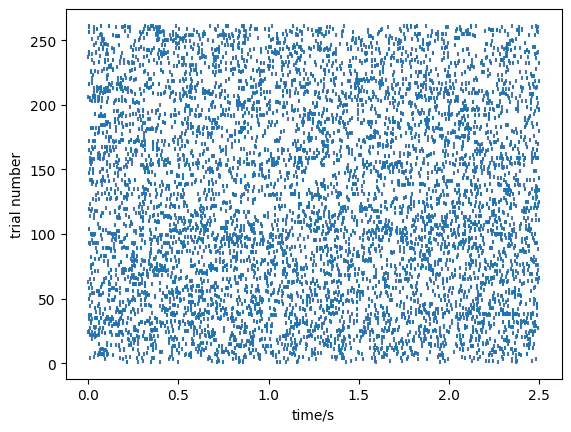

Exercise: This might still look a bit crowded. Let’s improve it further by setting the size of the marker to a smaller value. You can use s which is an argument of the plt.scatter() to specify the size.

Solution

dd = df[df.spike_cell == 11]
plt.scatter(dd['spike_time'], dd['spike_trial'], marker='|', s=5)
plt.xlabel('time/s')
plt.ylabel('trial number');

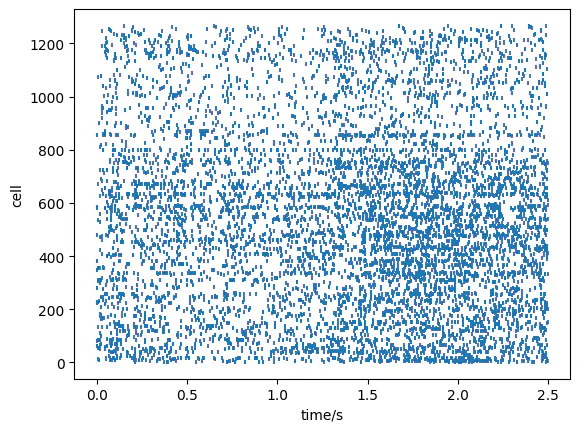

Exercise: Create a scatter plot to visualize spikes for all neurons in trial 83.

Solution

dd = df[df.spike_trial == 83]
plt.scatter(dd['spike_time'], dd['spike_cell'], marker='|', s=5);
plt.xlabel('time/s')
plt.ylabel('cell');

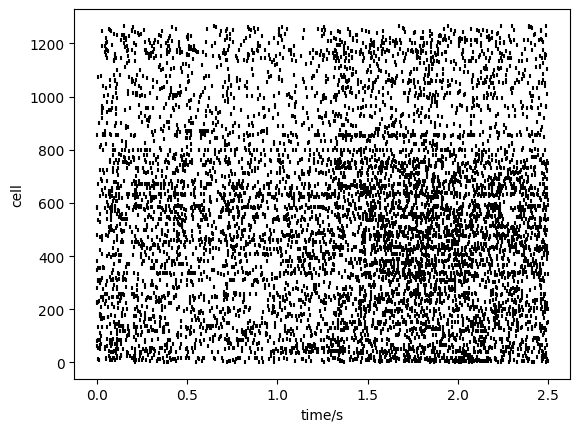

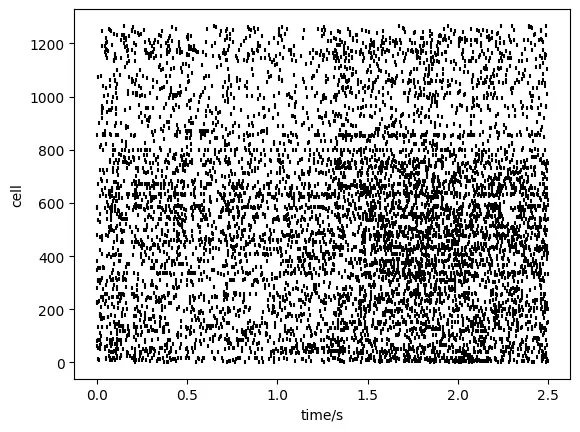

Exercise: Visualize spikes for all neurons in trial 83 using a scatter plot with the following features:

color: “black”

Color can be specified using the c argument.

Solution

dd = df[df['spike_trial'] == 83]
plt.scatter(dd['spike_time'], dd['spike_cell'], marker='|', s=5, color="k");
plt.xlabel('time/s')
plt.ylabel('cell');

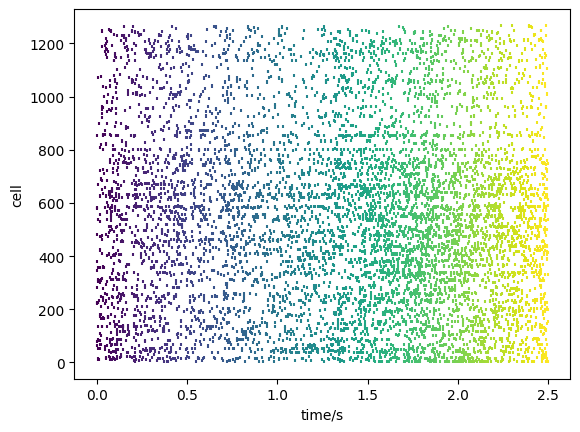

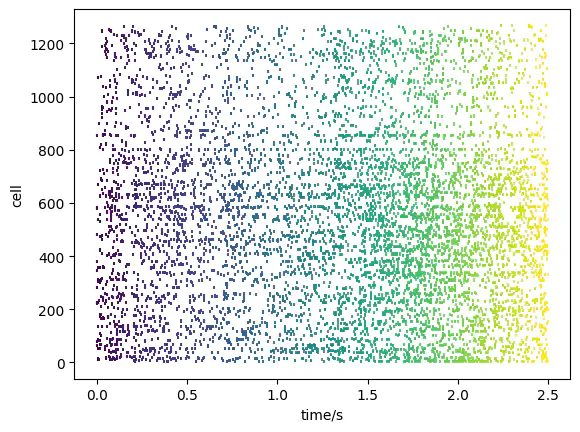

Exercise: Visualize spikes for all neurons in trial 83 using a scatter plot with the following features:

color: depends on the value of spike_time.

hint: c=dd['spike_time']

Solution

dd = df[df['spike_trial'] == 83]
plt.scatter(dd['spike_time'], dd['spike_cell'], marker='|', s=5, c=dd['spike_time']);
plt.xlabel('time/s')
plt.ylabel('cell');

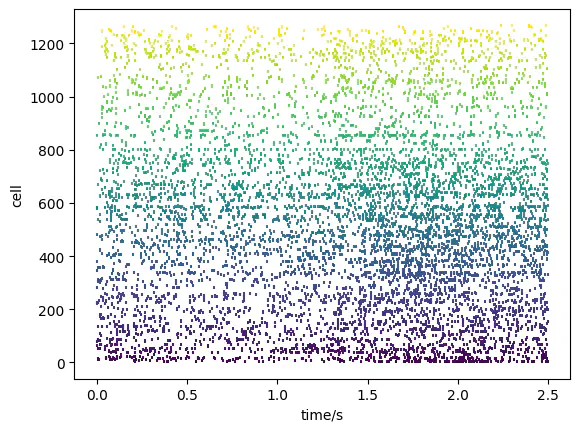

Exercise: Visualize spikes for all neurons in trial 83 using a scatter plot with the following features:

color: depends on the value of spike_cell.

Solution

dd = df[df['spike_trial'] == 83]
plt.scatter(dd['spike_time'], dd['spike_cell'], marker='|', s=5, c=dd['spike_cell']);
plt.xlabel('time/s')
plt.ylabel('cell');

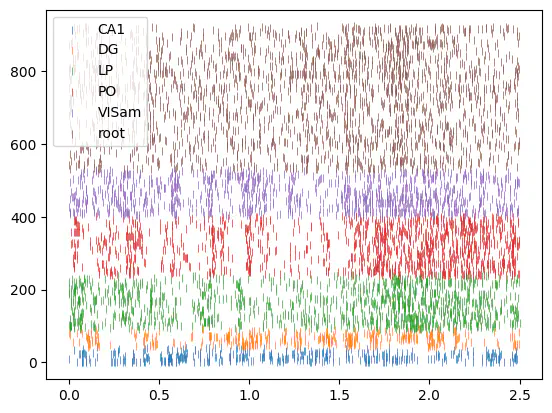

Section 3: Demo: Raster plot with spikes from multiple brain areas

Below are two examples of how you can make a raster plot with spikes from different brain areas.

Exercises

spike_cols = ['spike_time', 'spike_cell', 'spike_trial']
df = dset[spike_cols].to_dataframe().reset_index()

brain_region_df = dset["brain_area"].to_dataframe().reset_index()

spike_region_df = pd.merge(df, brain_region_df, left_on='spike_cell', right_on='cell')
spike_region_df

	spike_id	spike_time	spike_cell	spike_trial	cell	brain_area
0	1	2.362881	1	1	1	PO
1	2	2.384915	1	1	1	PO
2	3	1.450718	1	2	1	PO
3	4	1.459585	1	2	1	PO
4	5	1.963452	1	2	1	PO
...	...	...	...	...	...	...
1836004	1836005	2.240762	1268	205	1268	root
1836005	1836006	2.268195	1268	205	1268	root
1836006	1836007	2.401162	1268	205	1268	root
1836007	1836008	1.650607	1268	213	1268	root
1836008	1836009	0.514245	1268	252	1268	root

1836009 rows × 6 columns

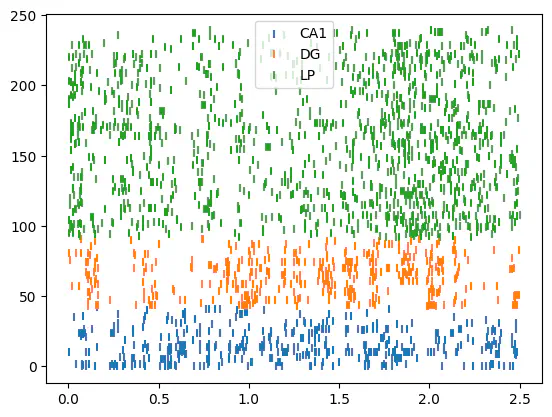

dd = spike_region_df[spike_region_df["spike_trial"] == 187]
dd = dd.sort_values(by="brain_area")
dd["ordered_index"] = dd.spike_cell.factorize()[0]

area = "CA1"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index,  marker='|', label=area)

area = "DG"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', label=area)

area = "LP"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', label=area)

plt.legend();

dd = spike_region_df[spike_region_df["spike_trial"] == 187]
dd = dd.sort_values(by="brain_area")
dd["ordered_index"] = dd.spike_cell.factorize()[0]

area = "CA1"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index,  marker='|', linewidths=0.5, label=area)

area = "DG"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', linewidths=0.5, label=area)

area = "LP"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index , marker='|', linewidths=0.5, label=area)

area = "PO"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', linewidths=0.5, label=area)

area = "VISam"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', linewidths=0.5, label=area)

area = "root"
dd_area = dd[dd["brain_area"] == area]
plt.scatter(dd_area.spike_time, dd_area.ordered_index, marker='|', linewidths=0.5, label=area)

plt.legend();

Visualize the spiking activity with firing rate plots

Raster plots are a great way to visualize spiking activity of many cells together or single cells over many trials. But often it’s also a good idea to show the average activity of a whole population of cells and/or the average activity across trials. To do that, we calculate and plot the firing rate. Below, you will use the groupby function in Pandas and the plotting functions in Matplotlib to display the firing rate and adapt the plots.

Code	Description
`series.keys()`	Get the index (keys) of a Pandas Series.
`series.values`	Get the values of a Pandas Series as a NumPy array.
`df.mean()`	Find the mean value of a DataFrame.
`df['column_name'].mean()`	Find the mean value of the `‘column_name’ column of a DataFrame.
`df.groupby('columnA')['columnB'].mean()`	Group a DataFrame according to values of `column_B` and find the mean value of the data in `column_A` given this grouping.
`plt.plot(x, y)`	Create a line plot of `x` against `y`. `x` and `y` are both 1D arrays.
`plt.plot(x, y, label='text')`	Create a line plot with a label for the legend.
`plt.plot(x, y, color='red')`	Create a line plot with a specific color.
`plt.legend()`	Display a legend on the plot.
`str(value)`	Convert a value to a string.

Run the cell below to make a DataFrame with the spike rate data.

spike_cols = ['spike_rate']
df = dset[spike_cols].to_dataframe().reset_index()
df

	cell	trial	time	spike_rate
0	1	1	0.01	0
1	1	1	0.02	0
2	1	1	0.03	0
3	1	1	0.04	0
4	1	1	0.05	0
...	...	...	...	...
82736995	1268	261	2.46	0
82736996	1268	261	2.47	0
82736997	1268	261	2.48	0
82736998	1268	261	2.49	0
82736999	1268	261	2.50	0

82737000 rows × 4 columns

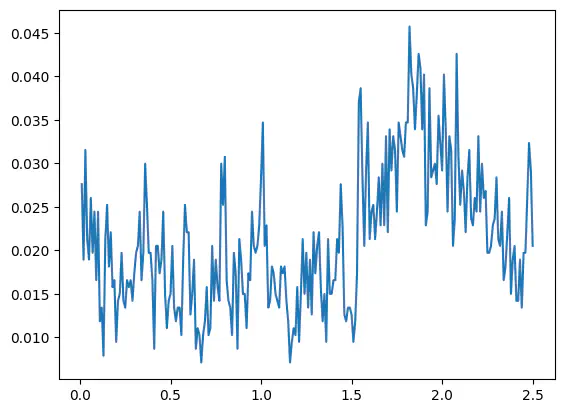

Example: Get firing rate over time in trial number 187 averaged across all cells and plot the firing rate.

dd = df[df['trial'] == 187]
rate_series = dd.groupby('time')['spike_rate'].mean()
rate_series

time
0.01    0.027603
0.02    0.018927
0.03    0.031546
0.04    0.021293
0.05    0.018927
          ...
2.46    0.019716
2.47    0.026025
2.48    0.032334
2.49    0.029180
2.50    0.020505
Name: spike_rate, Length: 250, dtype: float64

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate);

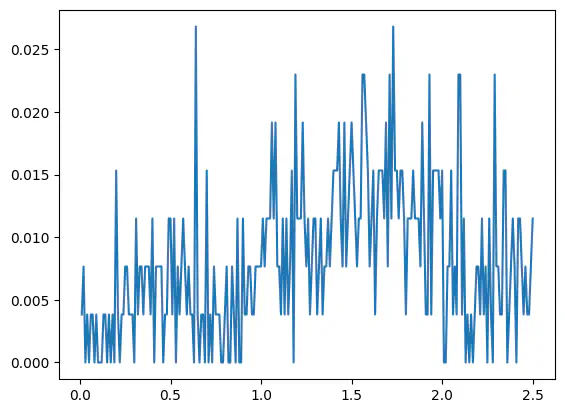

Exercise: Get average firing rate across trials in for cell number 4 and plot the firing rate

Solution

dd = df[df['cell'] == 4]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate);

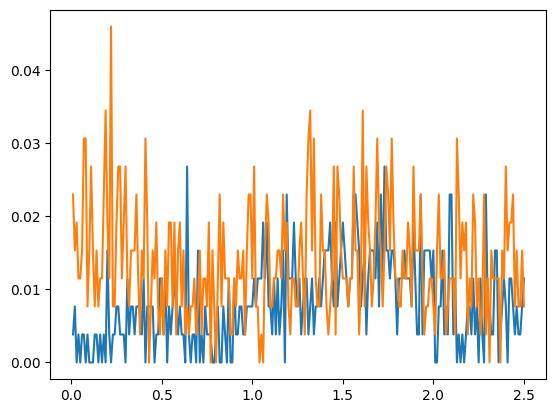

Exercise: Now let’s compare the firing rates of two different cells. Make a figure that shows the firing rate over time averaged across trials for cell number 4 and cell number 10 together in the same plot.

Solution

dd = df[df['cell'] == 4]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate)

dd = df[df['cell'] == 10]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate);

It’s best if the person viewing the plot can immediately see which firing rate belongs to which cell without having to read the code. To show that, we add the parameter label to the plot function and add the line plt.legend() in the code to tell Python to display the labels.

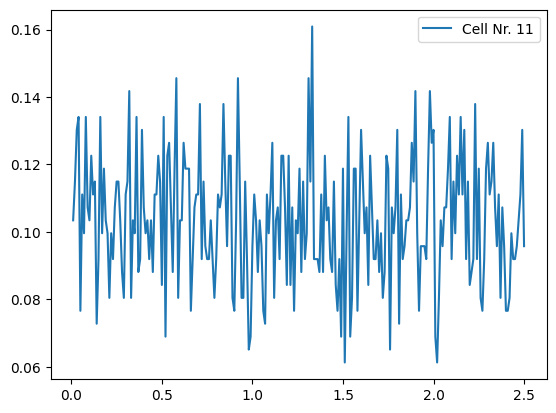

Example: Plot the firing rate for cell number 4 and make a legend where the cell number is labeled.

cell_nr = 11

dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}')

plt.legend();

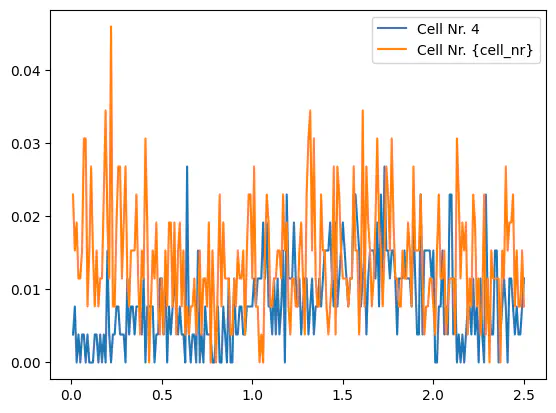

Exercise: Make the plot showing firing rates over time for both cell nr. 4 and cell nr. 10 again, but this time display labels for both cells. (Tip: you only need to use the plt.legend() function once to make the legend, even though you have multiple labels.)

Solution

cell_nr = 4
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}')


cell_nr = 10
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values
plt.plot(time, rate, label = 'Cell Nr. {cell_nr}')

plt.legend();

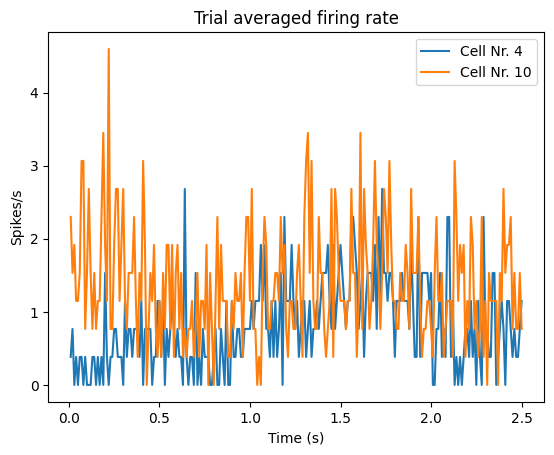

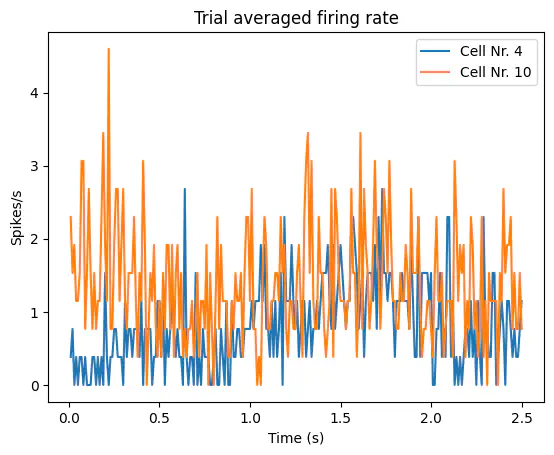

Exercise: Make the plot with the firing rate over time for cell number 4 and 10 again, but this time put labels on the x- and y-axis and add a title to the plot. Remember to include the unit in the label. Hint: The rate is typically given in Hz or spikes per second, but since the time bins are 0.01 seconds, it’s currently given in spikes per 1/100th of a second. To get it in spikes/second, simply multiply the rate with 100 before plotting (it can also be done inside the plot function if you don’t want to change the scale of the variable).

Solution

cell_nr = 4
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values*1E2
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}')

cell_nr = 10
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values*1E2
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}')

plt.xlabel('Time (s)')
plt.ylabel('Spikes/s')
plt.title('Trial averaged firing rate')

plt.legend();

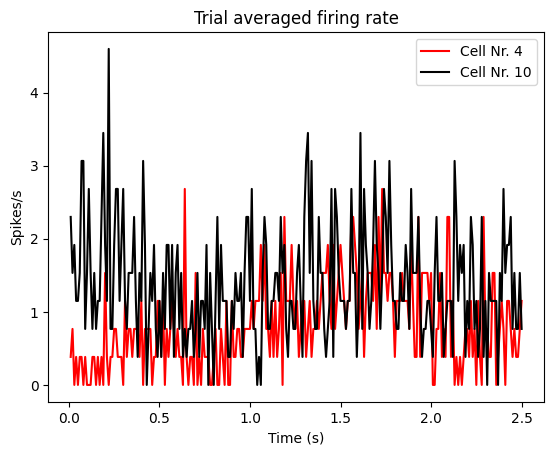

Exercise: Make the same plot with trial averaged firing rates over time for cell number 4 and 10, but change the color of the line for each cell to one of your choosing.

Solution

cell_nr = 4
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values*1E2
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}', color = 'red')

cell_nr = 10
dd = df[df['cell'] == cell_nr]
rate_series = dd.groupby('time')['spike_rate'].mean()

time = rate_series.keys()
rate = rate_series.values*1E2
plt.plot(time, rate, label = f'Cell Nr. {cell_nr}', color = 'black')

plt.xlabel('Time (s)')
plt.ylabel('Spikes/s')
plt.title('Trial averaged firing rate')

plt.legend();
