Generating Signals with Scipy and Plotting with Matplotlib

Import Libraries

import xarray as xr
import matplotlib.pyplot as plt
import numpy as np
from scipy.fft import fft, fftfreq
from scipy.signal import square, sawtooth, chirp

Signal analysis is key to uncovering patterns in time series data like EEG or LFP recordings. And to get a better understanding of the signals we are working with, it’s important to visualize them clearly. Here, we will work with different generated signals and make figures that display those signals in a way that makes the plots easy to read.

In this notebook, we will focus on generating various types of signals using Python’s Numpy and Scipy packages as well as Python’s built-in functions and plot them with Matplotlib.

Periodic waveforms play a vital role in neuroscience as models for rhythmic stimuli and neural oscillations. By generating such waveforms we can, for instance, simulate neural activity that exhibits periodic behavior in response to visual stimuli, such as flashing lights or gradual intensity changes.

This section provides a hands-on introduction to creating and visualizing periodic waveforms using the scipy.signal module. Through a series of exercises, we’ll explore the characteristics of square and sawtooth waves at various frequencies. We will also explore generating chirp (a chirp is a signal in which the frequency increases (‘up-chirp’) or decreases (‘down-chirp’) with time). We will use the same chirp method to create cosine waves too!

Exercises

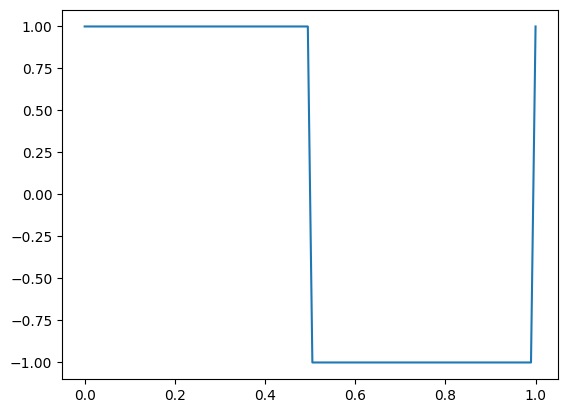

Example: Create a 1 Hz square wave sampled 100 times for 1 second.

f = 1 # Hz
t = np.linspace(0, 1, 100)
w = square(2 * np.pi * f * t)
plt.plot(t, w)

This is a square wave of 1 Hz frequency. A frequency of n Hz means that the pattern you see above repeats n times in a second. Let’s see that happen in the following exercises.

Exercise: Create a 2 Hz square wave sampled 100 times for 1 second. How many repetitions of the pattern do you see here?

Solution

f = 2 # Hz
t = np.linspace(0, 1, 100)
w = square(2 * np.pi * f * t)
plt.plot(t, w)

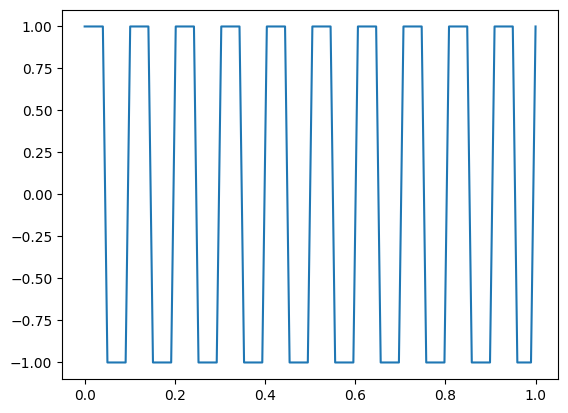

Exercise: Create a 10 Hz square wave sampled 100 times for 1 second.

Solution

f = 10 # Hz
t = np.linspace(0, 1, 100)
w = square(2 * np.pi * f * t)
plt.plot(t, w)

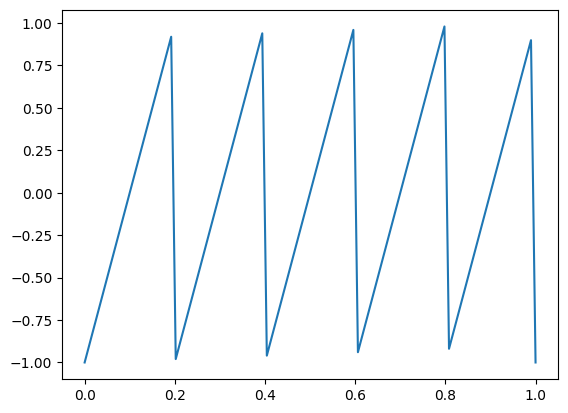

Exercise: Using the sawtooth function, create a 5 Hz sawtooth signal sampled 100 times for 1 second.

Solution

f = 5 # Hz
t = np.linspace(0, 1, 100)
w = sawtooth(2 * np.pi * f * t)
plt.plot(t, w)

Exercise: Numpy arrays are built for mathematical operations. For example, we can re-generate the signal we created before with double the magnitude simply by multiplying the signal w by $2$:

Solution

f = 5 # Hz
t = np.linspace(0, 1, 100)
w = sawtooth(2 * np.pi * f * t)
w_double_magnitude = 2 * w
plt.plot(t, w)

Exercise: Numpy package also provides many useful functions that we can use to transform our data. For instance, np.exp() or np.log().

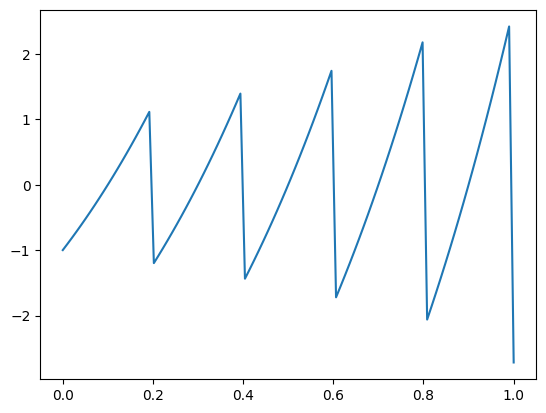

Write the code for $z = \exp(t) \cdot w$, where $w$ is the sawtooth waveform and $t$ is time. Plot the resulting $z$ over time.

Solution

f = 5 # Hz
t = np.linspace(0, 1, 100)
w = np.exp(t) * sawtooth(2 * np.pi * f * t)
plt.plot(t, w)

A chirp is a signal in which the frequency increases or decreases over time. In the context of the scipy.signal.chirp function, the signal starts at frequency f0 and linearly changes to frequency f1 by time t1. The rate of this frequency change can follow different methods; when the ’linear’ method is used, the frequency changes at a constant rate.

Here is a summary table for the examples of chirp signals:

Exercises

Example: Generate constant frequency (1Hz) signal with chirp.

t = np.linspace(0, 1, 1000)
w = chirp(t, f0=1, f1=1, t1=1)
plt.plot(t, w)

Exercise: Generate a chirp signal that starts at a frequency of 1 Hz and increases to 10 Hz over a duration of 1 second.

Solution

t = np.linspace(0, 1, 1000)
w = chirp(t, f0=1, f1=10, t1=1)
plt.plot(t, w)

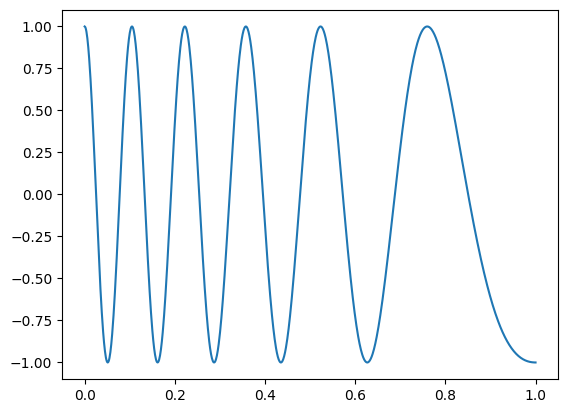

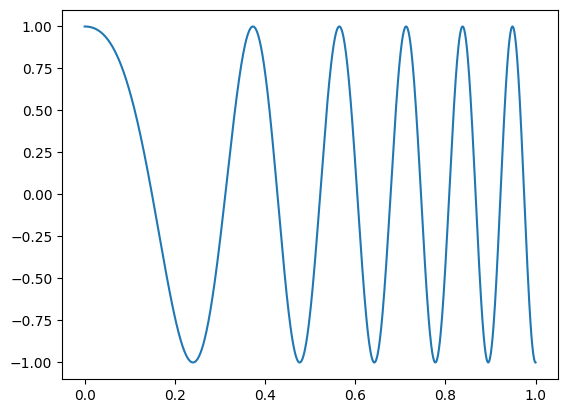

Exercise: Generate the same chirp signal as in the last exercise but with a decreasing frequency.

Solution

t = np.linspace(0, 1, 1000)
w = chirp(t, f0=10, f1=1, t1=1)
plt.plot(t, w)

What other options are available in the chirp function to control the change of frequency over time? Look up the available methods that you can use in the documentation for the chirp function.

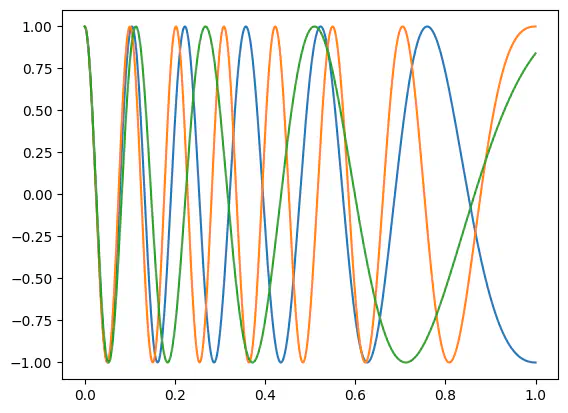

Exercise: Make different chirp signals using the different methods and plot all signals together in one plot.

Solution

t = np.linspace(0, 1, 1000)

w = chirp(t, f0=10, f1=1, t1=1)
plt.plot(t, w)

w = chirp(t, f0=10, f1=1, t1=1, method="quadratic")
plt.plot(t, w)

w = chirp(t, f0=10, f1=1, t1=1, method="logarithmic")
plt.plot(t, w)

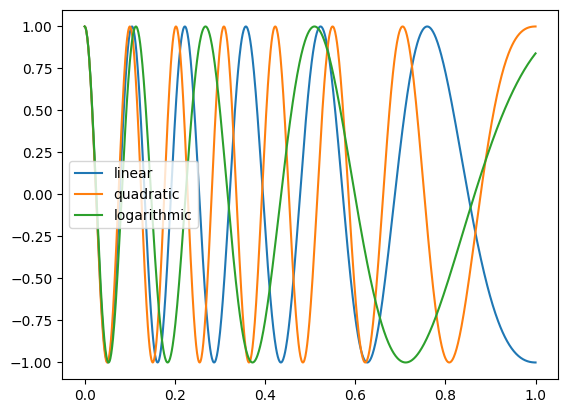

Exercise: Let’s label each line plot so it’s clear which line comes from which method. We can do this by:

1. setting the label argument of the plt.plot() function.
2. calling plt.legend() at the end to make the legend appear in the plot.

Solution

t = np.linspace(0, 1, 1000)
w = chirp(t, f0=10, f1=1, t1=1)
plt.plot(t, w, label="linear")
w = chirp(t, f0=10, f1=1, t1=1, method="quadratic")
plt.plot(t, w, label="quadratic")
w = chirp(t, f0=10, f1=1, t1=1, method="logarithmic")
plt.plot(t, w, label="logarithmic")

plt.legend()

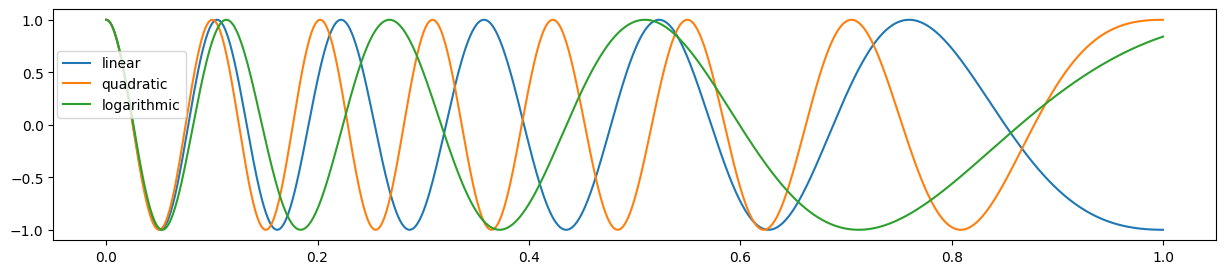

Exercise: As a final step let’s make the figure wider so we can see the difference between the lines a bit more clearly.

This is a figure-level property that we want to change. We can specify figure-level properties using the function plt.figure() which will be placed in the very beginning of the visualization code.

Here, we want to change the figure size which we can do by setting the figsize argument: plt.figure(figsize=(15, 3)). The first value specifies the width, and the second value specifies the height. Let’s try it!

Solution

plt.figure(figsize=(15, 3))

t = np.linspace(0, 1, 1000)

w = chirp(t, f0=10, f1=1, t1=1)
plt.plot(t, w, label="linear")

w = chirp(t, f0=10, f1=1, t1=1, method="quadratic")
plt.plot(t, w, label="quadratic")

w = chirp(t, f0=10, f1=1, t1=1, method="logarithmic")
plt.plot(t, w, label="logarithmic")

plt.legend(bbox_to_anchor=(0.12,0.5))

In this section, we will learn about combining multiple periodic signals together, creating more complex signals.

We will make use of matplotlib and how powerful it is for customizing plots

Exercises

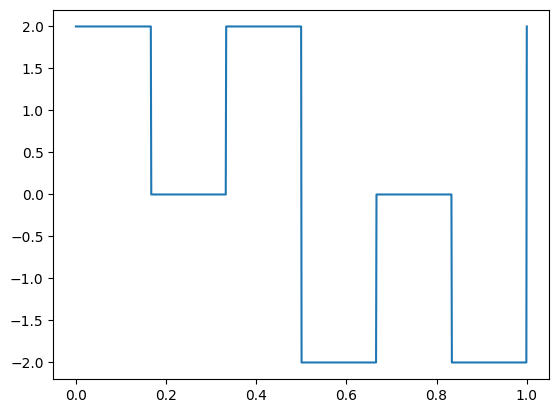

Example: Create a composite wave from two square waves

f1 = 1
f2 = 3
t = np.linspace(0, 1, 1000)
w1 = square(2 * np.pi * f1 * t)
w2 = square(2 * np.pi * f2 * t)
plt.plot(t, w1 + w2)

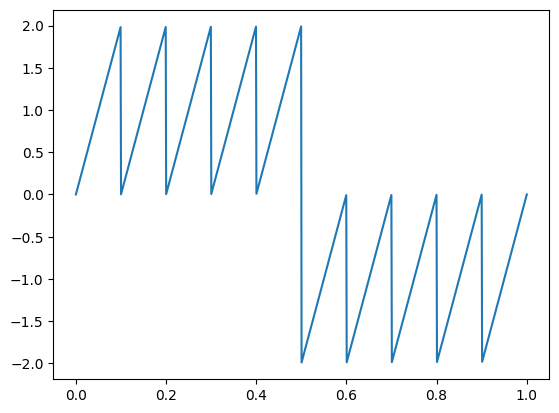

Exercise: Create composite wave made of a 10-Hz sawtooth and a 1-Hz square wave

Solution

f1 = 1.
f2 = 10.
t = np.linspace(0, 1, 1000)
w1 = square(2 * np.pi * f1 * t)
w2 = sawtooth(2 * np.pi * f2 * t)
plt.plot(t, w1 + w2)

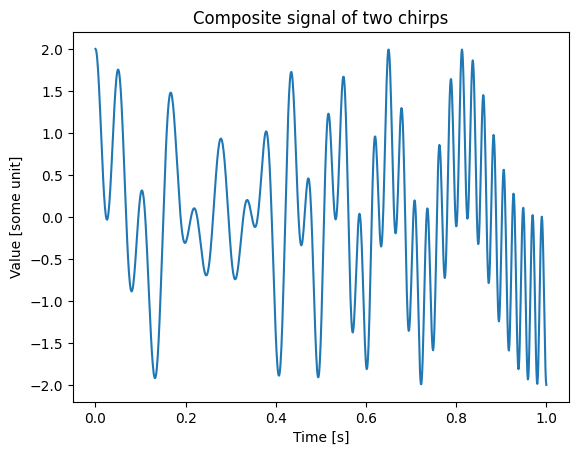

Exercise: Create a composite signal made of two chirps and add axis labels and title with legend

Solution

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)

plt.plot(t, w1+w2)

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

Exercise: Let’s learn a bit more about matplotlib and optimize this figure further.

We already specified some “axes-level” properties in the last exercise. In the following exercises, Let’s change both “figure-level” properties as well the the arguments in the plotting function to improve our plot.

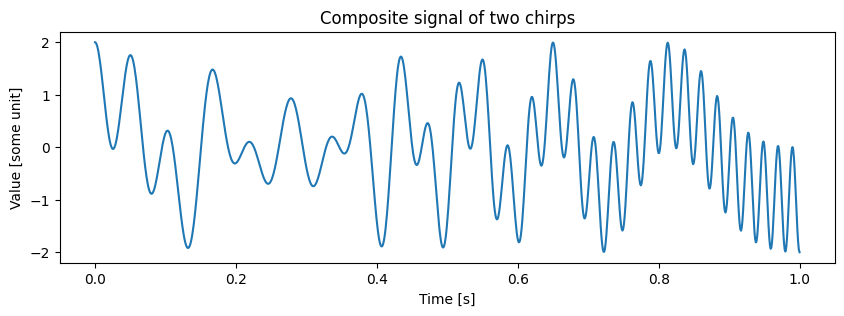

Let’s start by making the figure a bit wider as we did before.

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)

w = w1 + w2

Solution

plt.figure(figsize=(10, 3))

plt.plot(t, w)

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

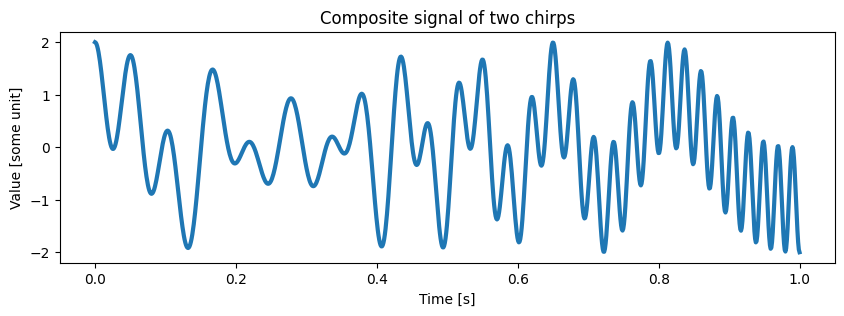

Exercise: Make the line a bit thicker by setting the linewidth argument in the plt.plot() function.

Solution

plt.figure(figsize=(10, 3))

plt.plot(t, w, linewidth=3)

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

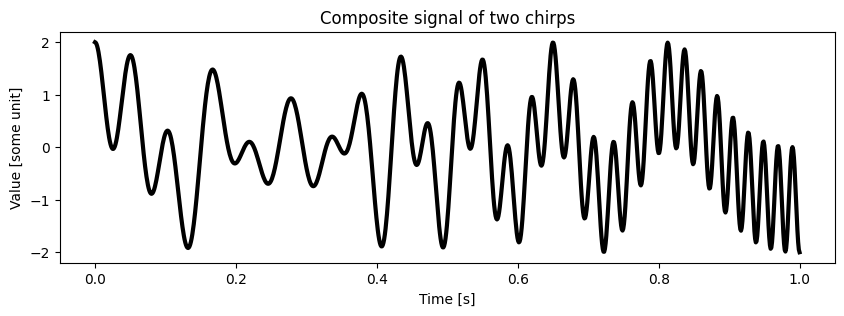

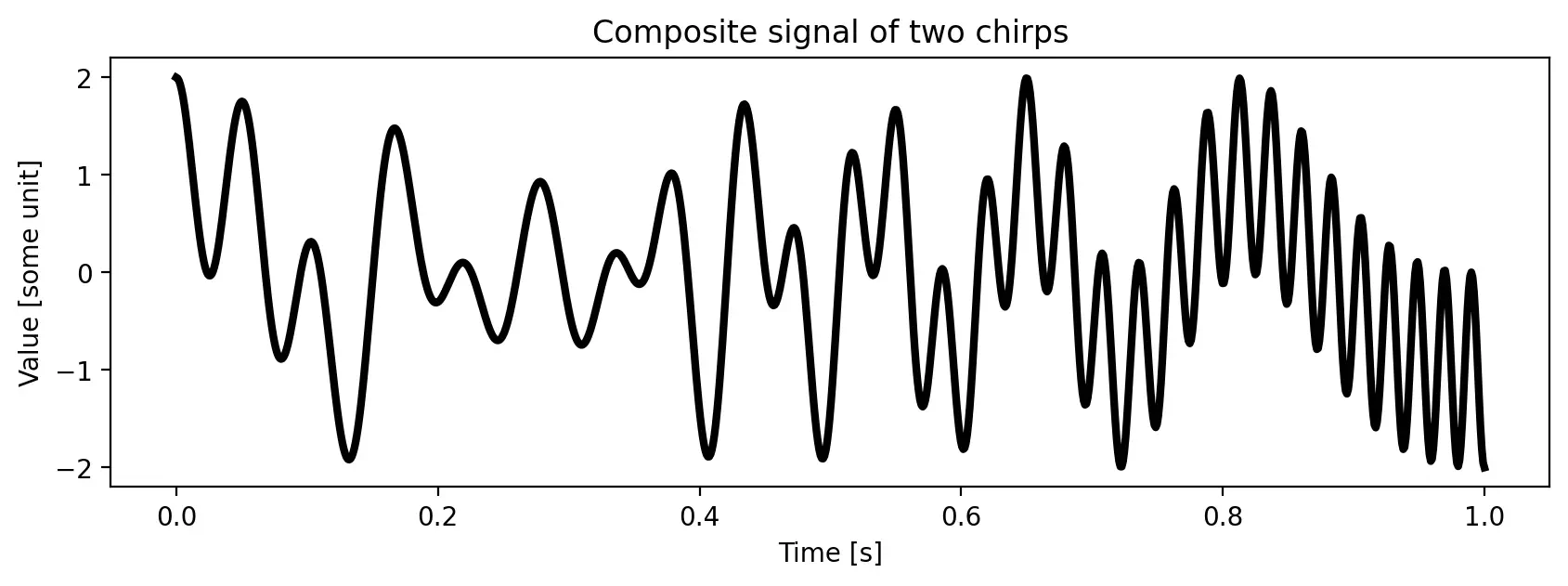

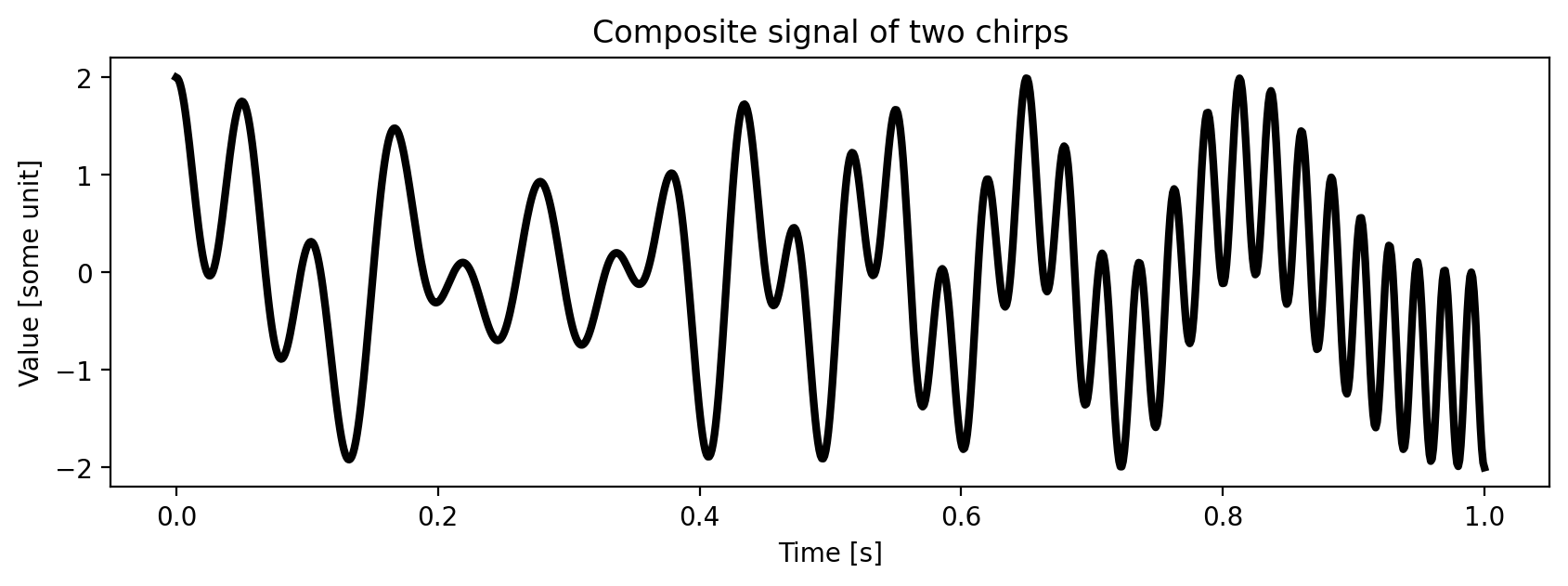

Exercise: Change the color to black by setting the color argument.

Solution

plt.figure(figsize=(10, 3))

plt.plot(t, w, linewidth=3, color="k")

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

Exercise: Make the resolution higher by setting the “figure-level” property dpi. Let’s try a dpi of 200 for instance.

Solution

plt.figure(figsize=(10, 3), dpi=200)

plt.plot(t, w, linewidth=3, color="k")

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

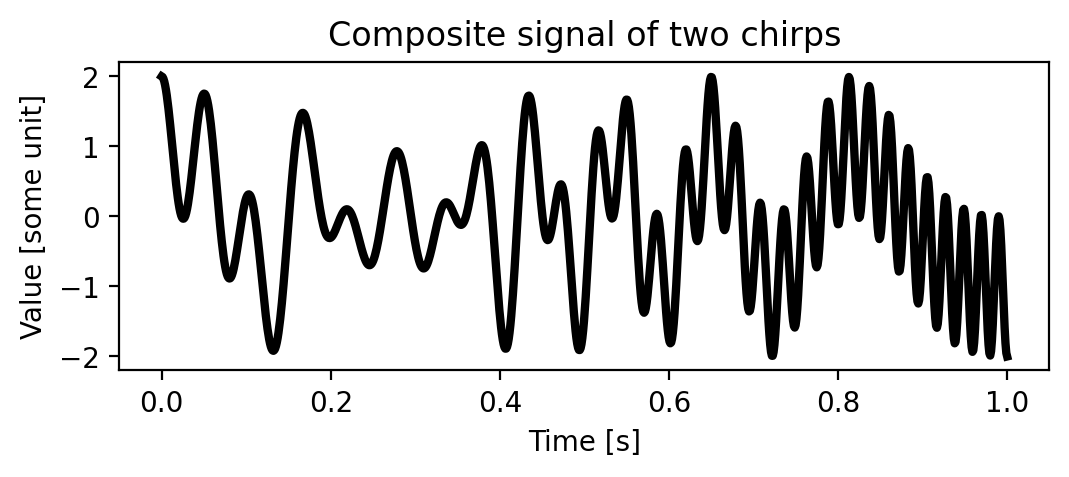

Exercise: You can play around with the figsize and dpi to adjust the font size in the figure. For instance, a higher dpi combined with a lower figsize results in bigger font size.

Solution

plt.figure(figsize=(6, 2), dpi=200)

plt.plot(t, w, linewidth=3, color="k")

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')
plt.title('Composite signal of two chirps')

Exercises

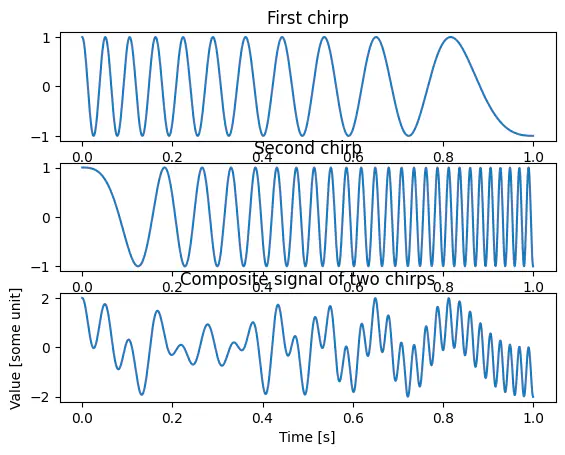

Example: Make a figure with subplots where the composite signal is plotted in the third subplot and two original signals w1 and w2 are plotted in the first and second subplot, respectively.

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)

plt.subplot(311)
plt.plot(t, w1)

plt.title('First chirp')

plt.subplot(312)
plt.plot(t, w2)

plt.title('Second chirp')

plt.subplot(313)
plt.plot(t, w1+w2)

plt.title('Composite signal of two chirps')

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')

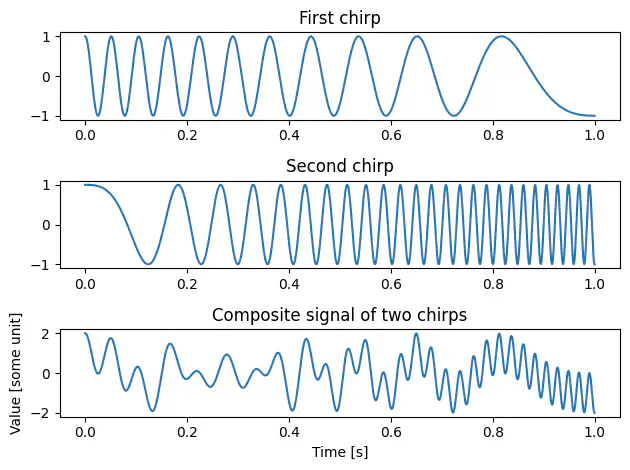

Exercise: As you can see, the different subplots partly cover one another, which is not good. Adding plt.tight_layout to the code adjusts the padding around the subplots so that they don’t overlap.

Solution

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)

plt.subplot(311)
plt.plot(t, w1)

plt.title('First chirp')

plt.subplot(312)
plt.plot(t, w2)

plt.title('Second chirp')

plt.subplot(313)
plt.plot(t, w1+w2)

plt.title('Composite signal of two chirps')

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')

plt.tight_layout()

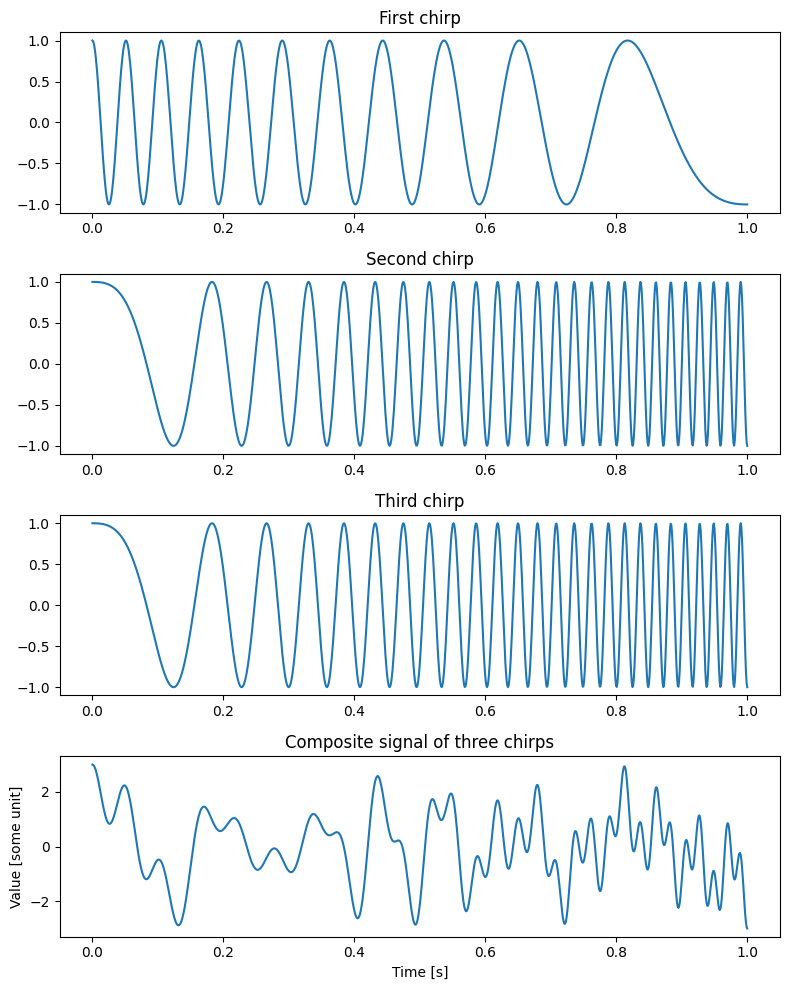

Exercise: Make a figure with 4 subplots where subplots 1 to 3 show three different signals and the 4th subplot shows the composite signal.

Solution

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)
w3 = chirp(t, f0=3, f1=20, t1=1)

plt.figure(figsize = (8,10))

plt.subplot(411)
plt.plot(t, w1)

plt.title('First chirp')

plt.subplot(412)
plt.plot(t, w2)

plt.title('Second chirp')

plt.subplot(413)
plt.plot(t, w2)

plt.title('Third chirp')

plt.subplot(414)
plt.plot(t, w1+w2+w3)

plt.title('Composite signal of three chirps')

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')

plt.tight_layout()

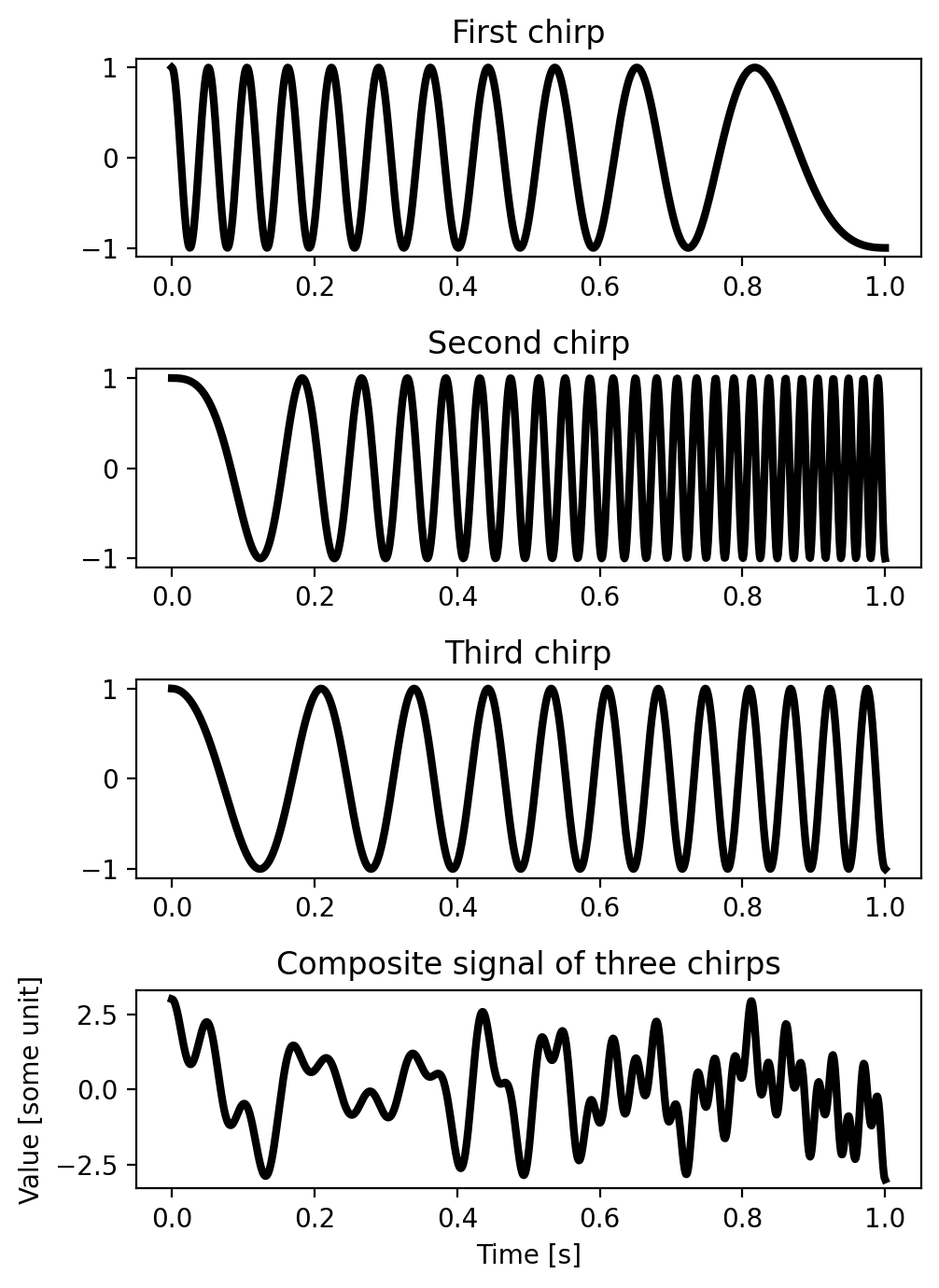

Exercise: As a final step let’s save the figure using the plt.savefig() method. You can adjust the figure size, linewidths, and color of the lines using the parameters you learned about above.

Hint: to make sure all the elements of the plot are included in the saved figure set bbox_inches="tight" in the plt.savefig() function.

Solution

t = np.linspace(0, 1, 1000)

w1 = chirp(t, f0=20, f1=1, t1=1)
w2 = chirp(t, f0=1, f1=50, t1=1)
w3 = chirp(t, f0=3, f1=20, t1=1)

plt.figure(figsize=(5, 7), dpi=200)

plt.subplot(411)
plt.plot(t, w1,  linewidth=3, color="k")

plt.title('First chirp')

plt.subplot(412)
plt.plot(t, w2,  linewidth=3, color="k")

plt.title('Second chirp')

plt.subplot(413)
plt.plot(t, w3,  linewidth=3, color="k")

plt.title('Third chirp')

plt.subplot(414)
plt.plot(t, w1+w2+w3, linewidth=3, color="k")

plt.title('Composite signal of three chirps')

plt.xlabel('Time [s]')
plt.ylabel('Value [some unit]')

plt.tight_layout()

plt.savefig("fig1.png", bbox_inches="tight")
