Visualizing LFP, Spike, and Behavioral Data

Visualizing LFP, spike, and Behavioral Data

Authors

Dr. Atle Rimehaug | Dr. Nicholas Del Grosso

Download Materials

Throughout the course, you will work with electrophysiological data that was released by the Allen institute in 2019.¹ Six Neuropixels probes recorded the extracellular potential across visual areas in 58 different mice while they were presented with a range of different visual stimuli. In this first notebook, you will get to familiarize yourself with data extracted from one mouse in the Allen dataset while learning different tools and methods to visualize and explore the data.

The dataset used for this course is from a single mouse and contains the following:

Extracellular potentials (ECP) and local field potentials (LFP) recorded in primary visual cortex (V1)
Spikes from neurons recorded in V1, lateral geniculate nucleus (LGN) in the thalamus, and the lateromedial (LM) area of the visual cortex.
Behavioral data: Average running speed and average pupil size in each trial.
Meta data

The mouse was presented with a full-field flash (a white screen) lasting 250 ms at 1000 ms after trial start in every trial.

Run the cells below to download and load the dataset. You should see a table displaying the content of the dataset after it is loaded.

¹Siegle, J. H., Jia, X., Durand, S., Gale, S., Bennett, C., Graddis, N., … & Koch, C. (2021). Survey of spiking in the mouse visual system reveals functional hierarchy. Nature, 592(7852), 86-92. doi: https://doi.org/10.1038/s41586-020-03171-x

Setup

Import Libraries

import xarray as xr
import numpy as np
from matplotlib import colors
import matplotlib.pyplot as plt

Download Dataset

import owncloud

owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/M56DCkpyCJ9FRoi', folder_password="ibots"
).get_file('/', 'dataset_session_754312389.nc')

True

Section 1: Accessing and Plotting Spike and LFP Data

In this first section, you will get some practice accessing data from different trials, cells, and channels and plotting it.

Code	Description
`data[1]`	Get data on index 1 of the first dimension in 3D data array.
`data[:, 0]`	Get data on index 0 of the second dimension in 3D data array.
`data[:, :, 5]`	Get data on index 5 of the third dimension in 3D data array.
`data[0, 3]`	Get data on index 0 of the first dimesnion and index 3 of the second dimension in 3D data array.
`data[6, 2, 7]`	Get the single element on index 6 of the first dimension, index 2 of the second dimension, and index 7 of the third dimension in a 3D data array.
`np.mean(data, axis = (dim_num))` or `data.mean(axis = dim_num)`	Calculate the average of the data across the `dim_num` dimension of the array.
`np.shape(data)` or `data.shape`	Gives you the dimensions of the data. The output for `data` containing 20 channels on the first dimension, 50 trials, and 1000 time points would be (20,50,1000). `data.shape[2]` would give you the number of the third dimension (1000 in this example).
`plt.plot(x, y)`	Plot y values against x values.
`plt.plot(data)`	Plot (1D) data. The ticks on the x-axis will correspond to the indices in `data` and the y-axis gives the values of the data at each index.

Run the code cell below to load and display the content of the dataset.

Load dataset

Run cells below to load dataset

Exercises

dataset = xr.load_dataset('dataset_session_754312389.nc')
dataset

<xarray.Dataset> Size: 225MB
Dimensions:                 (channel_depth: 23, trial_nr: 75, time_lfp: 1875,
                             time_csd: 1875, time_whole_rec_lfp: 373124,
                             time_whole_rec_ecp: 373124, unit_id_LGN: 27,
                             time_spikes: 1500, unit_id_V1: 91, unit_id_LM: 13,
                             stimulus_start_times: 75, stimulus_stop_times: 75,
                             channel_id: 23)
Coordinates: (12/13)
  * channel_depth           (channel_depth) int64 184B 0 -40 -80 ... -840 -880
  * trial_nr                (trial_nr) int32 300B 0 1 2 3 4 5 ... 70 71 72 73 74
  * time_lfp                (time_lfp) float64 15kB -1e+03 -999.2 ... 499.2
  * time_csd                (time_csd) float64 15kB -1e+03 -999.2 ... 499.2
  * time_whole_rec_lfp      (time_whole_rec_lfp) float64 3MB 1.286e+06 ... 1....
  * time_whole_rec_ecp      (time_whole_rec_ecp) float64 3MB 1.286e+06 ... 1....
    ...                      ...
  * time_spikes             (time_spikes) float64 12kB -999.5 -998.5 ... 499.5
  * unit_id_V1              (unit_id_V1) int32 364B 951795075 ... 951798053
  * unit_id_LM              (unit_id_LM) int32 52B 951791074 ... 951792163
  * stimulus_start_times    (stimulus_start_times) float64 600B 1.29e+06 ... ...
  * stimulus_stop_times     (stimulus_stop_times) float64 600B 1.29e+06 ... 1...
  * channel_id              (channel_id) int32 92B 850144538 ... 850144362
Data variables:
    lfp_V1                  (channel_depth, trial_nr, time_lfp) float64 26MB ...
    csd_V1                  (channel_depth, trial_nr, time_csd) float64 26MB ...
    lfp_whole_recording_V1  (channel_depth, time_whole_rec_lfp) float64 69MB ...
    ecp_whole_recording_V1  (channel_depth, time_whole_rec_ecp) float64 69MB ...
    spike_counts_LGN        (unit_id_LGN, trial_nr, time_spikes) int16 6MB 0 ...
    spike_counts_V1         (unit_id_V1, trial_nr, time_spikes) int16 20MB 0 ...
    spike_counts_LM         (unit_id_LM, trial_nr, time_spikes) int16 3MB 0 ....
    pupil_width             (trial_nr) float64 600B 39.12 40.53 ... 46.57 44.31
    run_speed               (trial_nr) float64 600B 1.155 1.597 ... 1.251 1.711
Attributes:
    time_unit:                  millisecond
    lfp_unit:                   Volt
    channel_depth_unit:         micrometer
    note_channel_depth:         Measured in distance from electrode closest t...
    sampling_frequency_lfp:     1250
    sampling_frequency_spikes:  1000
    sampling_frequency_unit:    Hz
    stimulus_onset:             1000
    stimulus_offset:            1250

Example: Extract the spike count data from LGN and put it in a variable named spike_counts_LGN. Display this variable.

You should see an array with a lot of zeros (indicating no spikes at that time point) and some 1’s (indicating a spike at that time point) as well as information about the number of units (that is, neurons), trials and time in each trial.

spike_counts_LGN = dataset['spike_counts_LGN']
spike_counts_LGN

<xarray.DataArray 'spike_counts_LGN' (unit_id_LGN: 27, trial_nr: 75,
                                      time_spikes: 1500)> Size: 6MB
array([[[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
...
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 1, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]]], dtype=int16)
Coordinates:
  * trial_nr     (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 68 69 70 71 72 73 74
  * unit_id_LGN  (unit_id_LGN) int32 108B 951782498 951782516 ... 951798528
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5

Exercise: Extract the spike count data for V1 and put it in a variable named spike_counts_V1. Display this variable.

Hint: Look at the table where the whole dataset is diplayed above at the beginning of this section if you’re not sure what to put inside the brackets after dataset to get the V1 spike data.

Solution

spike_counts_V1 = dataset['spike_counts_V1']
spike_counts_V1

<xarray.DataArray 'spike_counts_V1' (unit_id_V1: 91, trial_nr: 75,
                                     time_spikes: 1500)> Size: 20MB
array([[[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 1, ..., 0, 0, 0],
        ...,
...
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]]], dtype=int16)
Coordinates:
  * trial_nr     (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 68 69 70 71 72 73 74
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5
  * unit_id_V1   (unit_id_V1) int32 364B 951795075 951795086 ... 951798053

Exercise: Extract the spike count data from LM and put it in a variable named spike_counts_LM. Display this variable.

Solution

spike_counts_LM = dataset['spike_counts_LM']
spike_counts_LM

<xarray.DataArray 'spike_counts_LM' (unit_id_LM: 13, trial_nr: 75,
                                     time_spikes: 1500)> Size: 3MB
array([[[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
...
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 1],
        ...,
        [0, 0, 0, ..., 0, 1, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]],
       [[0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        ...,
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0],
        [0, 0, 0, ..., 0, 0, 0]]], dtype=int16)
Coordinates:
  * trial_nr     (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 68 69 70 71 72 73 74
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5
  * unit_id_LM   (unit_id_LM) int32 52B 951791074 951791093 ... 951792163

Exercise: Get the shape (dimensions) of the spike count data for LGN. This shows you how many neurons and trials there are and how long each trial is. The number of neurons is on the first dimension, number of trials on the second, and the time is on the third dimension. Check that this matches what you see when you displayed spike_counts_LGN above.

Hint: Check the reference table at the start of the section to determine which function to use.

Solution

np.shape(spike_counts_LGN)

(27, 75, 1500)

Exercise: Get the shape (dimensions) of the spike count data from V1. Are there more neurons recorded in V1 or in LGN?

Solution

np.shape(spike_counts_V1)

(91, 75, 1500)

Exercise: Get the shape (dimensions) of the spike count data from LM. How many neurons are recorded in LM?

Solution

np.shape(spike_counts_LM)

(13, 75, 1500)

Example: Get and display the spike counts for the first cell (index 0) in LGN.

icell = 0
spike_counts_LGN[icell]

<xarray.DataArray 'spike_counts_LGN' (trial_nr: 75, time_spikes: 1500)> Size: 225kB
array([[0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0]], dtype=int16)
Coordinates:
  * trial_nr     (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 68 69 70 71 72 73 74
    unit_id_LGN  int32 4B 951782498
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5

Exercise: Get and display the spike counts for the first cell (index 0) in V1.

Solution

icell = 0
spike_counts_V1[icell]

<xarray.DataArray 'spike_counts_V1' (trial_nr: 75, time_spikes: 1500)> Size: 225kB
array([[0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0]], dtype=int16)
Coordinates:
  * trial_nr     (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 68 69 70 71 72 73 74
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5
    unit_id_V1   int32 4B 951795075

Example: Get and display the spike counts for the third trial (index 2) in LGN.

NB: Remember that the trials are on the second dimension. If it still says “unit_id_LGN” but “trial_nr” is gone in the first line that’s displayed, you’ve done it correctly. You can also check that the number of trials is gone from the dimensions with the shape function.

itrial = 2
spike_counts_LGN[:, itrial]

<xarray.DataArray 'spike_counts_LGN' (unit_id_LGN: 27, time_spikes: 1500)> Size: 81kB
array([[0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0]], dtype=int16)
Coordinates:
    trial_nr     int32 4B 2
  * unit_id_LGN  (unit_id_LGN) int32 108B 951782498 951782516 ... 951798528
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5

Exercise: Get and display the spike counts for the first cell and the third trial in LGN.

Solution

icell = 0
itrial = 2
spike_counts_LGN[icell, itrial]

<xarray.DataArray 'spike_counts_LGN' (time_spikes: 1500)> Size: 3kB
array([0, 0, 0, ..., 0, 0, 0], dtype=int16)
Coordinates:
    trial_nr     int32 4B 2
    unit_id_LGN  int32 4B 951782498
  * time_spikes  (time_spikes) float64 12kB -999.5 -998.5 -997.5 ... 498.5 499.5

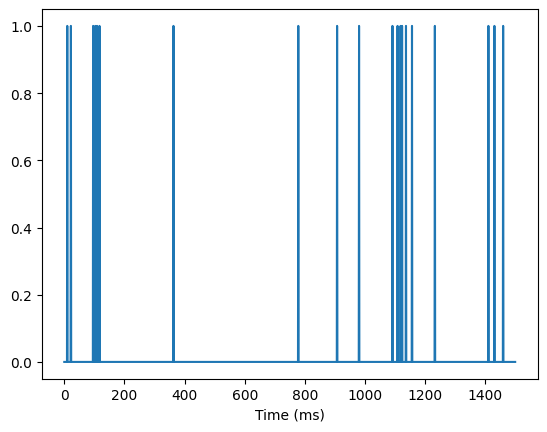

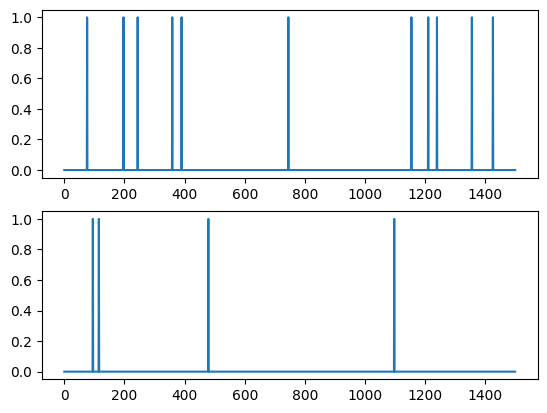

Example: Plot the spikes in the first cell and the third trial in LGN.

icell = 0
itrial = 0
plt.plot(spike_counts_LGN[icell,itrial])
plt.xlabel('Time (ms)')

Exercise: Plot the spikes in the last trial from the cell at index 3 in V1.

Solution

icell = 3
itrial = -1
plt.plot(spike_counts_V1[icell,itrial])
plt.xlabel('Time (ms)')

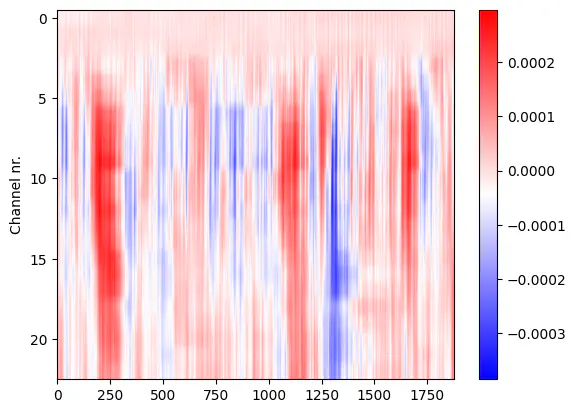

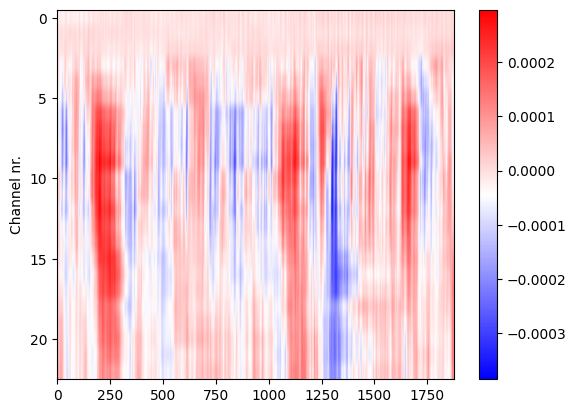

Exercise: Run the cell below to extract the LFP data recorded in V1 from the dataset and put it in a variable called lfp_V1. (No need to add or change anything in the code.)

Solution

lfp = dataset['lfp_V1']
lfp

<xarray.DataArray 'lfp_V1' (channel_depth: 23, trial_nr: 75, time_lfp: 1875)> Size: 26MB
array([[[-8.51569421e-06, -1.15631923e-05, -3.76924291e-07, ...,
         -2.17654367e-06,  1.68119712e-07, -6.94200500e-06],
        [ 2.81771330e-08,  6.29403676e-06,  9.98029865e-06, ...,
          1.01304291e-05,  5.93295341e-06,  1.72969475e-05],
        [-1.27271427e-06, -3.68783112e-06, -4.46340366e-06, ...,
          3.65666426e-06,  2.96670978e-06,  1.24568597e-06],
        ...,
        [ 4.70565253e-06,  1.94317598e-06,  1.20455675e-06, ...,
          4.07503496e-06,  7.65054254e-06,  3.91673831e-06],
        [ 8.38144661e-07,  2.28123812e-06,  3.70896321e-06, ...,
          1.34013793e-05,  1.15462596e-05,  8.42411093e-06],
        [ 7.32479652e-06,  1.07711181e-06,  7.00885884e-06, ...,
          1.92065863e-05,  1.92065863e-05,  1.92065863e-05]],
       [[ 3.91952787e-06,  1.70056905e-06,  5.97275690e-06, ...,
          4.06974274e-06,  4.04094749e-06, -4.68055730e-06],
        [-4.10311367e-06,  5.00856269e-06,  6.20500275e-06, ...,
          8.75868311e-06,  5.69604080e-06,  8.57744575e-06],
        [ 1.09646506e-06,  1.62070262e-06,  1.10953040e-07, ...,
          1.01990671e-05, -8.36754580e-06, -1.43387447e-05],
...
        [-6.46738552e-06, -1.19701456e-05, -2.41882630e-05, ...,
         -2.31175915e-05, -2.37374262e-05, -7.53926446e-06],
        [ 2.91850049e-05,  2.81713398e-05,  5.17618757e-05, ...,
          4.44764295e-05,  4.08778688e-05,  3.83233192e-05],
        [-1.80642354e-05, -1.06068608e-05, -3.71177368e-06, ...,
          1.48063260e-05,  1.48063260e-05,  1.48063260e-05]],
       [[ 4.42062699e-05,  5.99208645e-05,  7.60618853e-05, ...,
          9.85508013e-05,  8.87923195e-05,  8.02998878e-05],
        [-6.30930699e-06,  2.14882295e-05,  5.40961203e-06, ...,
         -6.18517313e-05, -8.49961217e-05, -7.07025406e-05],
        [ 1.32347041e-04,  9.66830285e-05,  9.77152893e-05, ...,
         -3.68393584e-05, -2.08663734e-05, -1.27901811e-05],
        ...,
        [ 7.59530363e-07, -9.00525049e-06, -1.95382678e-05, ...,
         -2.78150664e-05, -1.46349189e-05,  3.65395950e-06],
        [ 3.22381374e-05,  3.90163375e-05,  6.39709157e-05, ...,
          5.17422904e-05,  4.94353600e-05,  3.90770304e-05],
        [-2.50190016e-05, -1.82145705e-05, -1.97245214e-05, ...,
          6.13148062e-06,  6.13148062e-06,  6.13148062e-06]]])
Coordinates:
  * channel_depth  (channel_depth) int64 184B 0 -40 -80 -120 ... -800 -840 -880
  * trial_nr       (trial_nr) int32 300B 0 1 2 3 4 5 6 ... 68 69 70 71 72 73 74
  * time_lfp       (time_lfp) float64 15kB -1e+03 -999.2 -998.4 ... 498.4 499.2

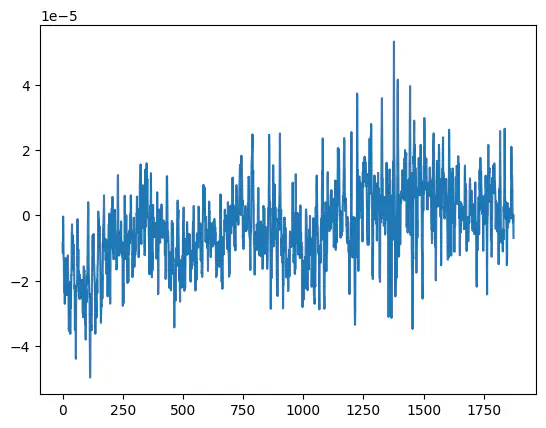

Exercise: Plot of the LFP trace from the first channel in the first trial. Hint: Channels are on the first dimension and trials are on the second dimension.

Solution

ichannel = 0
itrial = 0

plt.plot(lfp[ichannel, itrial])

Comment on last plot: The ticks on the x-axis in this plot will not match the ticks on the x-axis in the plot of spikes above because the spike data and the LFP are sampled at different frequencies. The sampling frequency of the spike data is 1000 Hz while for the LFP it’s 1250 Hz, so the ticklabels are not in milliseconds in the LFP plot.

Section 2: Making 2D Colormap Plots of the LFP Using imshow and pcolormesh

Code	Description
`plt.imshow(data, aspect = 'auto',` `cmap = 'name_colormap',` `norm=colors.TwoSlopeNorm(vcenter=0))`	Plots a multidimensional array as an image. `aspect` sets the aspect ratio of the axes. `cmap` sets the colormap.
`plt.pcolormesh(x, y, C,` `cmap = 'name_colormap')`	Make a 2D colormap of values in a 2D array (C) against x and y values. The optional parameters `cmap` defines the colormap .
`plt.colorbar()`	Adds colorbar to 2D colormap plot.
`np.mean(data, axis = (dim_num))` or `data.mean(axis = dim_num)`	Calculate the average of the data across the `dim_num` dimension of the array.

Run the cell below to extract the lfp data recorded in V1, the sampling frequency of the LFP, and the coordinates (depth) of the channels on the probe in V1 from the dataset.

Exercises

lfp = dataset['lfp_V1']
channels_depth = dataset['channel_depth']
sampling_frequency_lfp = dataset.sampling_frequency_lfp
lfp

<xarray.DataArray 'lfp_V1' (channel_depth: 23, trial_nr: 75, time_lfp: 1875)> Size: 26MB
array([[[-8.51569421e-06, -1.15631923e-05, -3.76924291e-07, ...,
         -2.17654367e-06,  1.68119712e-07, -6.94200500e-06],
        [ 2.81771330e-08,  6.29403676e-06,  9.98029865e-06, ...,
          1.01304291e-05,  5.93295341e-06,  1.72969475e-05],
        [-1.27271427e-06, -3.68783112e-06, -4.46340366e-06, ...,
          3.65666426e-06,  2.96670978e-06,  1.24568597e-06],
        ...,
        [ 4.70565253e-06,  1.94317598e-06,  1.20455675e-06, ...,
          4.07503496e-06,  7.65054254e-06,  3.91673831e-06],
        [ 8.38144661e-07,  2.28123812e-06,  3.70896321e-06, ...,
          1.34013793e-05,  1.15462596e-05,  8.42411093e-06],
        [ 7.32479652e-06,  1.07711181e-06,  7.00885884e-06, ...,
          1.92065863e-05,  1.92065863e-05,  1.92065863e-05]],
       [[ 3.91952787e-06,  1.70056905e-06,  5.97275690e-06, ...,
          4.06974274e-06,  4.04094749e-06, -4.68055730e-06],
        [-4.10311367e-06,  5.00856269e-06,  6.20500275e-06, ...,
          8.75868311e-06,  5.69604080e-06,  8.57744575e-06],
        [ 1.09646506e-06,  1.62070262e-06,  1.10953040e-07, ...,
          1.01990671e-05, -8.36754580e-06, -1.43387447e-05],
...
        [-6.46738552e-06, -1.19701456e-05, -2.41882630e-05, ...,
         -2.31175915e-05, -2.37374262e-05, -7.53926446e-06],
        [ 2.91850049e-05,  2.81713398e-05,  5.17618757e-05, ...,
          4.44764295e-05,  4.08778688e-05,  3.83233192e-05],
        [-1.80642354e-05, -1.06068608e-05, -3.71177368e-06, ...,
          1.48063260e-05,  1.48063260e-05,  1.48063260e-05]],
       [[ 4.42062699e-05,  5.99208645e-05,  7.60618853e-05, ...,
          9.85508013e-05,  8.87923195e-05,  8.02998878e-05],
        [-6.30930699e-06,  2.14882295e-05,  5.40961203e-06, ...,
         -6.18517313e-05, -8.49961217e-05, -7.07025406e-05],
        [ 1.32347041e-04,  9.66830285e-05,  9.77152893e-05, ...,
         -3.68393584e-05, -2.08663734e-05, -1.27901811e-05],
        ...,
        [ 7.59530363e-07, -9.00525049e-06, -1.95382678e-05, ...,
         -2.78150664e-05, -1.46349189e-05,  3.65395950e-06],
        [ 3.22381374e-05,  3.90163375e-05,  6.39709157e-05, ...,
          5.17422904e-05,  4.94353600e-05,  3.90770304e-05],
        [-2.50190016e-05, -1.82145705e-05, -1.97245214e-05, ...,
          6.13148062e-06,  6.13148062e-06,  6.13148062e-06]]])
Coordinates:
  * channel_depth  (channel_depth) int64 184B 0 -40 -80 -120 ... -800 -840 -880
  * trial_nr       (trial_nr) int32 300B 0 1 2 3 4 5 6 ... 68 69 70 71 72 73 74
  * time_lfp       (time_lfp) float64 15kB -1e+03 -999.2 -998.4 ... 498.4 499.2

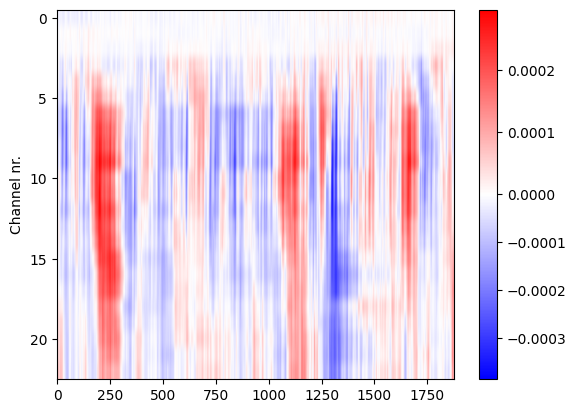

Example: Make a 2D colormap of the LFP in the trial at index 3. The channels should be on the y-axis and the time on the x-axis (though the ticklabels will still show bin number, not milliseconds).

itrial = 3
plt.imshow(lfp[:,itrial], aspect='auto', cmap='bwr')
plt.ylabel('Channel nr.')
plt.colorbar();

Exercise: Make a 2D colormap of the LFP in the first trial. The channels should be on the y-axis and the time bins on the x-axis.

Solution

itrial = 0
plt.imshow(lfp[:,itrial], aspect='auto', cmap='bwr')
plt.ylabel('Channel nr.')
plt.colorbar();

You may have noticed that 0 is not exactly at the midpoint in the colorbar above. That can be set by setting the norm parameter inside the imshow function equal to colors.TwoSlopeNorm(vcenter = 0).

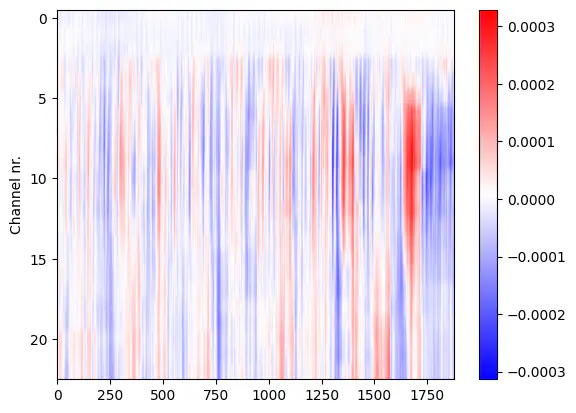

Exercise: Make a 2D colormap of the LFP in the first trial again, but this time, ensure that the midpoint of the colorbar is exactly at 0. Hint: Look at the reference table at the top of the section.

Solution

itrial = 0
plt.imshow(lfp[:,itrial], aspect='auto', cmap='bwr', norm=colors.TwoSlopeNorm(vcenter=0))
plt.ylabel('Channel nr.')
plt.colorbar();

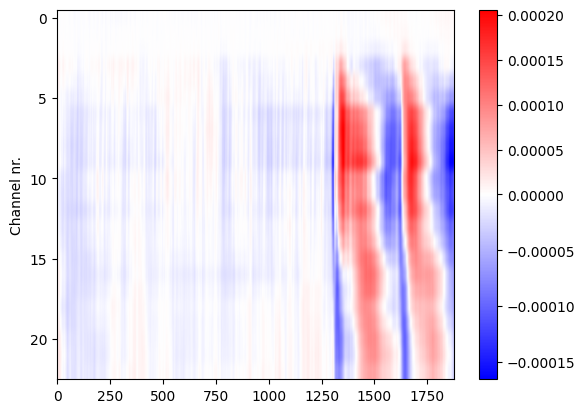

Exercise: Calculate the trial averaged LFP and make a 2D colormap of it. Remember that the trials are on the second dimension (axis = 1) when you compute the trial average (useful example code: np.mean(data, axis = 1)).

The stimulus onset is 1000 ms after the trial start, which will be at the x-tick 1250 in this plot because of the sampling frequency. Do you notice any changes in the magnitude of the LFP (the intensity of the colors) around this time?

Solution

itrial = 0
plt.imshow(np.mean(lfp, axis = 1), aspect='auto', cmap='bwr', norm=colors.TwoSlopeNorm(vcenter=0))
plt.ylabel('Channel nr.')
plt.colorbar();

Exercise: The lfp data has a coordinate time_lfp, which contains the time points at which the LFP was sampled. The time points are given relative to the onset of the stimulus, so -1000 in the first element of the array with means that it’s 1000 milliseconds before stimulus onset. Run the cell below the get these time points from the lfp_trials variable. (No need to change or add anything in the code.)

Solution

time_lfp = lfp.time_lfp
time_lfp

<xarray.DataArray 'time_lfp' (time_lfp: 1875)> Size: 15kB
array([-1000. ,  -999.2,  -998.4, ...,   497.6,   498.4,   499.2])
Coordinates:
  * time_lfp  (time_lfp) float64 15kB -1e+03 -999.2 -998.4 ... 497.6 498.4 499.2

xarray.DataArray

'time_lfp'

time_lfp: 1875

-1e+03 -999.2 -998.4 -997.6 -996.8 ... 496.0 496.8 497.6 498.4 499.2
```
array([-1000. ,  -999.2,  -998.4, ...,   497.6,   498.4,   499.2])
```
Coordinates: (1)
- time_lfp
  (time_lfp)
  float64
  -1e+03 -999.2 ... 498.4 499.2
```
array([-1000. ,  -999.2,  -998.4, ...,   497.6,   498.4,   499.2])
```

Indexes: (1)

time_lfp

PandasIndex

PandasIndex(Index([           -1000.0, -999.1999999999999,             -998.4,
       -997.5999999999999,             -996.8, -995.9999999999999,
       -995.1999999999998, -994.3999999999999, -993.5999999999998,
       -992.7999999999998,
       ...
       492.00000000004263, 492.80000000004276,  493.6000000000429,
        494.4000000000428, 495.20000000004273, 496.00000000004286,
         496.800000000043,  497.6000000000429, 498.40000000004284,
       499.20000000004296],
      dtype='float64', name='time_lfp', length=1875))

Attributes: (0)

There is another function that can be used to make 2D colormaps that can automatically set the ticklabels on the x- and y-axis to the units you want. It’s called pcolormesh, and if you, for example, pass an array containing time points as the first parameter and an array containing channel positions as the second parameter, the ticklabels on the x-axis will be in time units and the ticklabels on the y-axis will be in spatial units.

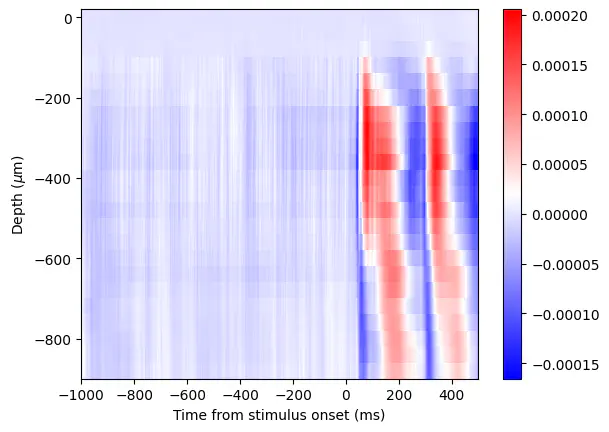

Exercise: Make a 2D colormap of the trial averaged LFP with time on the x-axis and channel depth on the y-axis using plt.pcolormesh.

Solution

lfp_trial_avg = np.mean(lfp, axis = 1)

plt.pcolormesh(time_lfp, channels_depth, lfp_trial_avg, cmap = 'bwr')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

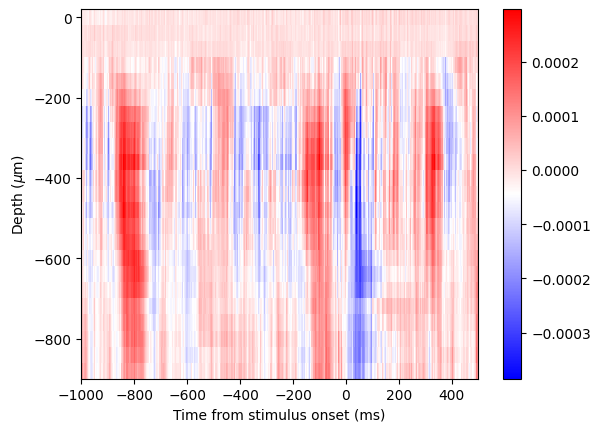

Exercise: Make a 2D colormap of the LFP in the first trial with time from stimulus onset on the x-axis and channel depth on the y-axis using plt.pcolormesh.

Solution

plt.pcolormesh(time_lfp, channels_depth, lfp[:,itrial], cmap = 'bwr')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

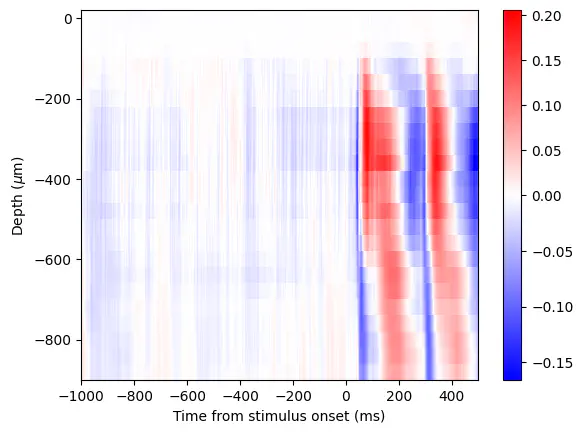

Exercise: Plot the trial averaged LFP with plt.pcolormesh again but multiply the LFP with a 1000 before you plot it so that its unit is millivolt. Include a colorbar and make sure that the midpoint is at 0. Check that the scale of the colorbar is now (approximately) -0.2 to 0.2.

Solution

lfp_trial_avg = np.mean(lfp, axis = 1)

plt.pcolormesh(time_lfp, channels_depth, lfp_trial_avg*1000, cmap = 'bwr', norm=colors.TwoSlopeNorm(vcenter=0))
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

Section 3: Selecting and Plotting Time Windows of Data

We’re often interested in looking more closely at the data in specific periods of a trial or recording period. To select the data from those periods, it’s practical to use logical indexing, or masks with boolean values, in other words, to filter a data array for the parts we want to focus on.

Code	Description
`mask = x<=1`	Create a `mask` that is `True` where `x` is smaller than or equal to `1` and `False` otherwise
`mask = x=="k"`	Create a `mask` that is `True` where `x` is equal to `"k"` and `False` otherwise
`mask = x>1`	Create a `mask` that is `True` where `x` is greater than `1` and `False` otherwise
`mask = (x >= 10) &` `(x < 100)`	Create a `mask` that is `True` where `x` is greater than or equal to `10` and at the same time smaller than a `100` and `False` otherwise
`x[mask]`	Get all elements of `x` where the `mask` is `True`
`plt.plot(x, y, label="label1")`	Add the label `"label1"` to the plotted data
`plt.legend()`	Add a legend that displays the labels in the plot
`plt.xlabel("xval")`	Label the x-axis with `"xval"`
`plt.ylabel("yval")`	Label the y-axis with `"yval"`
`plt.title("titleval")`	Add a title `"yval"` to the plot

Exercises

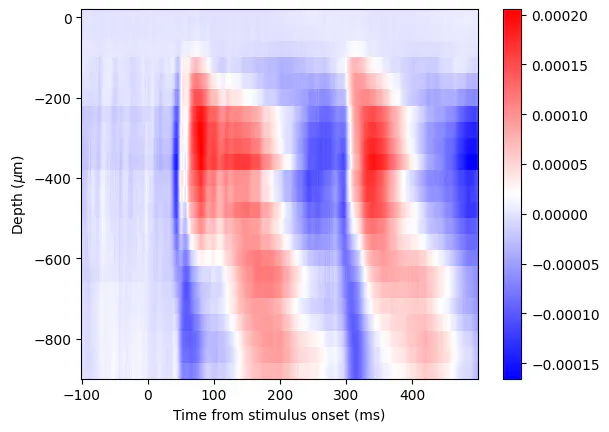

Example: Get the trial averaged LFP from 100 ms before stimulus onset and to the end of the trial and plot it with a 2D colormap.

time_window_start = -100
time_window_end = 500

mask_time_window_lfp = (time_lfp > time_window_start) & \
                        (time_lfp < time_window_end)

lfp_trial_avg_window = lfp_trial_avg[:, mask_time_window_lfp]
times_in_window = time_lfp[mask_time_window_lfp]

plt.pcolormesh(times_in_window, channels_depth, lfp_trial_avg_window, cmap='bwr')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

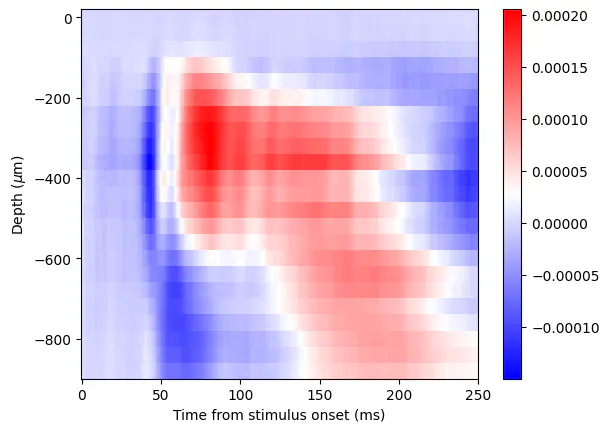

Exercise: Change the time_window_start and time_window_stop parameters in the example above to get the trial averaged LFP from stimulus onset and to the stimulus offset (which is 250 ms after onset) and plot it using the plt.pcolormesh() function.

Solution

time_window_start = 0
time_window_end = 250

mask_time_window_lfp = (time_lfp > time_window_start) & \
                        (time_lfp < time_window_end)

lfp_trial_avg_window = lfp_trial_avg[:, mask_time_window_lfp]
times_in_window = time_lfp[mask_time_window_lfp]

plt.pcolormesh(times_in_window, channels_depth, lfp_trial_avg_window, cmap='bwr')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

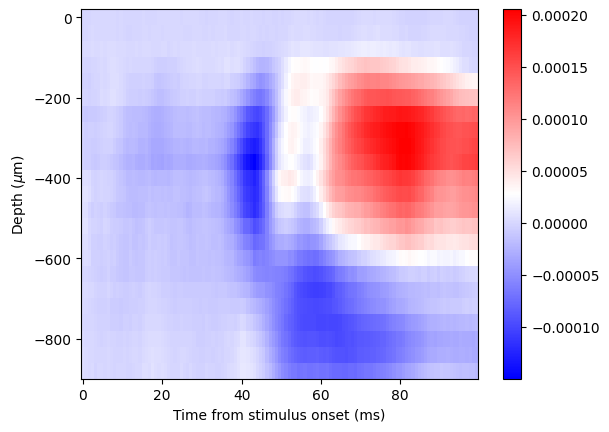

Exercise: Get the trial averaged LFP from stimulus onset to 100 ms after stimulus onset and plot it. How many milliseconds after stimulus onset does it take until you start to see a change in the LFP magnitude (look at the color intensity)?

Solution

time_window_start = 0
time_window_end = 100

mask_time_window_lfp = (time_lfp > time_window_start) & \
                        (time_lfp < time_window_end)

lfp_trial_avg_window = lfp_trial_avg[:, mask_time_window_lfp]
times_in_window = time_lfp[mask_time_window_lfp]

plt.pcolormesh(times_in_window, channels_depth, lfp_trial_avg_window, cmap='bwr')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel(r'Depth ($\mu$m)')
plt.colorbar();

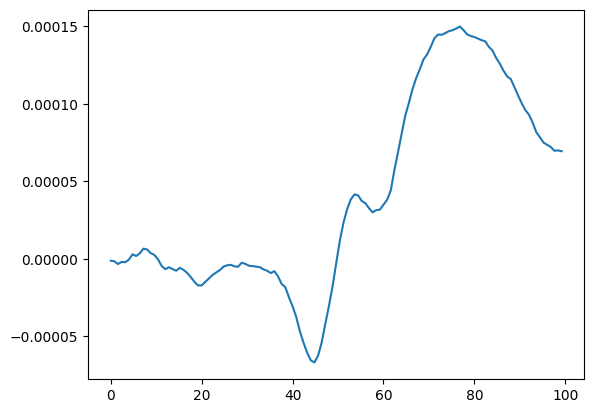

Exercise: Get the trial averaged LFP from stimulus onset to 100 ms after stimulus onset and plot the single channel trace at index 5 in a 1D plot. Hint: To create a 1D plot, use the function plt.plot().

Solution

ichan = 5
plt.plot(times_in_window, lfp_trial_avg_window[ichan]);

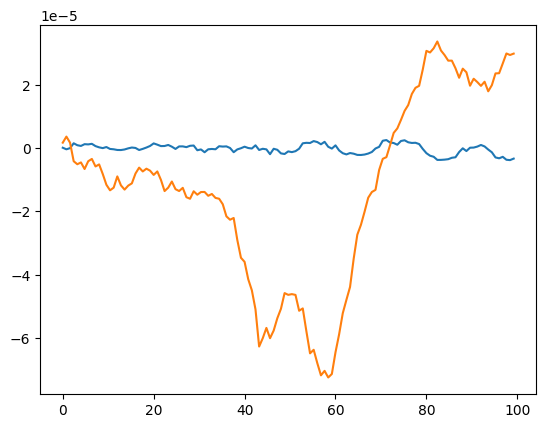

Exercise: Plot the LFP traces in the same time window for channel 0 (which is near the top of the brain) and channel 15. Do the amplitudes of the traces match what you would expect from looking at the 2D colormaps you made above?

Solution

ichan1 = 0
ichan2 = 15
plt.plot(times_in_window, lfp_trial_avg_window[ichan1])
plt.plot(times_in_window, lfp_trial_avg_window[ichan2]);

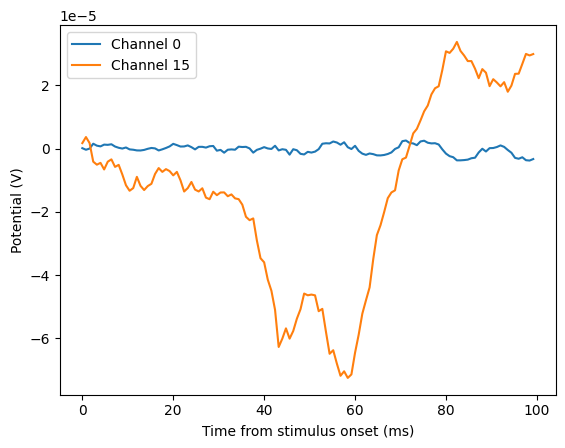

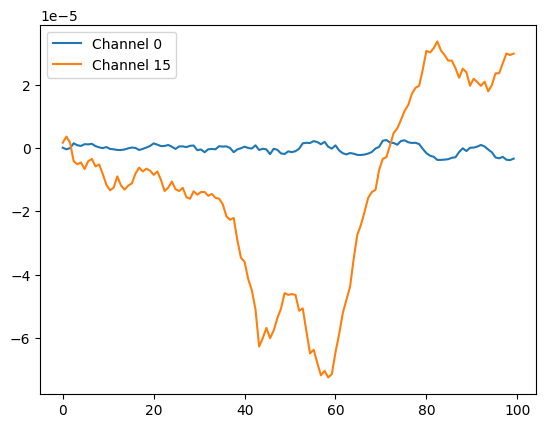

Exercise: Plot the same LFP traces but add labels to the traces and show the legend.

Solution

ichan1 = 0
ichan2 = 15
plt.plot(times_in_window, lfp_trial_avg_window[ichan1], label = 'Channel 0')
plt.plot(times_in_window, lfp_trial_avg_window[ichan2], label = 'Channel 15')
plt.legend();

Exercise: Plot the same LFP traces and add labels to the x-axis and y-axis and a title.

Solution

ichan1 = 0
ichan2 = 15
plt.plot(times_in_window, lfp_trial_avg_window[ichan1], label = 'Channel 0')
plt.plot(times_in_window, lfp_trial_avg_window[ichan2], label = 'Channel 15')
plt.xlabel('Time from stimulus onset (ms)')
plt.ylabel('Potential (V)')
plt.legend();

Section 4: Creating figures with multiple subplots and plot behavioral data

Sometimes, we want to compare LFP data from different trials or spikes from different cells. By making figures with subplots, we can easily compare the different parts of the data side by side. The subplots can be stacked on top of each other in different rows or shown next to each other in different columns. And you can combine having multiple rows and multiple columns in a grid of subplots in the same figure.

Code	Description
`fig, ax = plt.subplots(nrows, ncols)`	Tells python to create a grid of subplots with `nrows` number of rows and `ncols` number of columns. `ax` can be indexed to refer to a specific subplot, f.ex. the subplot on the first row and second column would be `ax[0,1]`.
`data.values`	Gets the data from an xarray data variable as a numpy array.

Exercise: The spike_counts_LGN variable has a coordinate time_spikes which contains the time points for the spike bins. Run the cell below the get these time points from the spike_counts_LGN variable. (The time points will be the same for the spikes in V1 and LM.)

Exercises

time_spikes = spike_counts_LGN.time_spikes

Example: Create a figure with two subplots side by side (ncols = 2) where the first subplot shows the spike count in the first trial for the first cell in LGN and the second subplot shows the spike count in the first trial for the second cell in LGN.

fig, ax = plt.subplots(ncols = 2)

ax[0].plot(spike_counts_LGN[0,0])
ax[1].plot(spike_counts_LGN[1,0]);

Exercise: Create a figure with two subplots on top of each other (nrows = 2) where the first subplot shows the spike count in the last trial for the first cell in LGN and the second subplot shows the spike count in the last trial for the second cell in LGN.

Solution

fig, ax = plt.subplots(nrows = 2)

ax[0].plot(spike_counts_LGN[0,-1])
ax[1].plot(spike_counts_LGN[1,-1]);

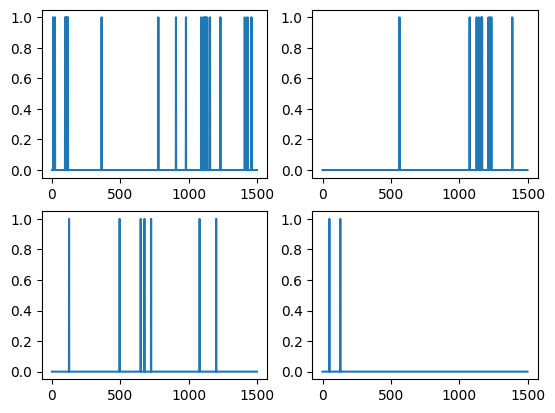

Exercise: Create a figure with four subplots - two rows and two columns (ncols = 2 and nrows = 2). Plot the spikes in trial 0 for the first four LGN cells each in their separate subplot.

Solution

fig, ax = plt.subplots(ncols=2, nrows = 2)

ax[0,0].plot(spike_counts_LGN[0,0])
ax[0,1].plot(spike_counts_LGN[1,0])
ax[1,0].plot(spike_counts_LGN[2,0])
ax[1,1].plot(spike_counts_LGN[3,0]);

Extract data

Run the two cells below to extract the behavioral data - the average running speed and the average pupil width in each trial.

avg_run_speed = dataset['run_speed']
avg_run_speed

<xarray.DataArray 'run_speed' (trial_nr: 75)> Size: 600B
array([ 1.15461545,  1.59668837,  6.056658  ,  5.15987544,  8.52760497,
       11.22847943,  4.57915849,  3.55552612,  1.21703267,  1.14123532,
        1.22313026,  1.45219009,  1.27881682,  1.28545771,  1.30252225,
        1.45938978,  1.23683681,  1.35499306,  1.24373061,  1.72814998,
        1.10057218,  1.12037113,  1.0171456 ,  1.12698213,  1.23746278,
        1.0051122 ,  1.22995347,  1.18035543,  1.33973747,  1.31655126,
        1.42316228,  1.16454631,  1.1175898 ,  1.33965127,  1.44008401,
        1.27856107,  1.08369774,  1.2852668 ,  1.22042713,  0.93635542,
        1.10224883,  1.3656531 ,  1.14346642,  1.34443297,  1.27934364,
        1.22477016,  0.89182778,  1.08752668,  1.29883034,  1.38104512,
        0.96683534,  1.19810534,  0.99052094,  0.9343001 ,  1.71404147,
        1.51968473,  1.23845685,  0.84848258,  1.59605601,  1.25635954,
        1.22987165,  1.64782276,  1.75731669,  1.67665638,  1.42473997,
        1.02886151,  5.65275275,  8.34342969,  9.03230058, 10.64468513,
        8.17371765,  1.18762197,  1.36400808,  1.25093511,  1.71061779])
Coordinates:
  * trial_nr  (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 67 68 69 70 71 72 73 74

xarray.DataArray

'run_speed'

trial_nr: 75

1.155 1.597 6.057 5.16 8.528 11.23 ... 8.174 1.188 1.364 1.251 1.711

array([ 1.15461545,  1.59668837,  6.056658  ,  5.15987544,  8.52760497,
       11.22847943,  4.57915849,  3.55552612,  1.21703267,  1.14123532,
        1.22313026,  1.45219009,  1.27881682,  1.28545771,  1.30252225,
        1.45938978,  1.23683681,  1.35499306,  1.24373061,  1.72814998,
        1.10057218,  1.12037113,  1.0171456 ,  1.12698213,  1.23746278,
        1.0051122 ,  1.22995347,  1.18035543,  1.33973747,  1.31655126,
        1.42316228,  1.16454631,  1.1175898 ,  1.33965127,  1.44008401,
        1.27856107,  1.08369774,  1.2852668 ,  1.22042713,  0.93635542,
        1.10224883,  1.3656531 ,  1.14346642,  1.34443297,  1.27934364,
        1.22477016,  0.89182778,  1.08752668,  1.29883034,  1.38104512,
        0.96683534,  1.19810534,  0.99052094,  0.9343001 ,  1.71404147,
        1.51968473,  1.23845685,  0.84848258,  1.59605601,  1.25635954,
        1.22987165,  1.64782276,  1.75731669,  1.67665638,  1.42473997,
        1.02886151,  5.65275275,  8.34342969,  9.03230058, 10.64468513,
        8.17371765,  1.18762197,  1.36400808,  1.25093511,  1.71061779])

Coordinates: (1)

trial_nr

(trial_nr)

int32

0 1 2 3 4 5 6 ... 69 70 71 72 73 74

array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
       18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
       36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
       54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71,
       72, 73, 74], dtype=int32)

Indexes: (1)

trial_nr

PandasIndex

PandasIndex(Index([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
       18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
       36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
       54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71,
       72, 73, 74],
      dtype='int32', name='trial_nr'))

Attributes: (0)

avg_pupil_width = dataset['pupil_width']
avg_pupil_width

<xarray.DataArray 'pupil_width' (trial_nr: 75)> Size: 600B
array([39.11652012, 40.53014519, 53.86896327, 50.82396045, 52.16879212,
       57.96043078, 54.92497335, 55.54967205, 43.90274746, 44.79854897,
       38.38702834, 40.71644189, 37.98256784, 35.66463223, 33.77803219,
       37.33170246, 34.40298455, 33.56487003, 34.8366242 , 34.23566353,
       37.82023369, 36.64031488, 34.90016986, 34.01127022, 34.01676223,
       33.07691675, 36.24898149, 34.31897366, 32.37205121, 32.29131936,
       31.22026173, 32.11667831, 35.9407955 , 33.83439488, 40.32179372,
       40.2773362 , 36.8416765 , 38.28154173, 32.92621992, 34.10611125,
       32.64213782, 35.34716687, 38.83240189, 41.4527341 , 40.80453453,
       34.4518716 , 33.54378434, 34.76110284, 39.39896604, 38.12986388,
       35.01399576, 36.1764032 , 36.91026669, 38.09285533, 37.47092614,
       35.08431869, 34.10750204, 33.98908271, 33.49633874, 31.95082717,
       36.40762283, 33.54301125, 30.16956358, 34.97767163, 35.73862834,
       37.5021579 , 46.90415398, 64.55582159, 65.24024526, 62.84832274,
       63.79648979, 64.1050437 , 54.12537803, 46.57182176, 44.30600894])
Coordinates:
  * trial_nr  (trial_nr) int32 300B 0 1 2 3 4 5 6 7 ... 67 68 69 70 71 72 73 74

xarray.DataArray

'pupil_width'

trial_nr: 75

39.12 40.53 53.87 50.82 52.17 57.96 ... 63.8 64.11 54.13 46.57 44.31

array([39.11652012, 40.53014519, 53.86896327, 50.82396045, 52.16879212,
       57.96043078, 54.92497335, 55.54967205, 43.90274746, 44.79854897,
       38.38702834, 40.71644189, 37.98256784, 35.66463223, 33.77803219,
       37.33170246, 34.40298455, 33.56487003, 34.8366242 , 34.23566353,
       37.82023369, 36.64031488, 34.90016986, 34.01127022, 34.01676223,
       33.07691675, 36.24898149, 34.31897366, 32.37205121, 32.29131936,
       31.22026173, 32.11667831, 35.9407955 , 33.83439488, 40.32179372,
       40.2773362 , 36.8416765 , 38.28154173, 32.92621992, 34.10611125,
       32.64213782, 35.34716687, 38.83240189, 41.4527341 , 40.80453453,
       34.4518716 , 33.54378434, 34.76110284, 39.39896604, 38.12986388,
       35.01399576, 36.1764032 , 36.91026669, 38.09285533, 37.47092614,
       35.08431869, 34.10750204, 33.98908271, 33.49633874, 31.95082717,
       36.40762283, 33.54301125, 30.16956358, 34.97767163, 35.73862834,
       37.5021579 , 46.90415398, 64.55582159, 65.24024526, 62.84832274,
       63.79648979, 64.1050437 , 54.12537803, 46.57182176, 44.30600894])

Coordinates: (1)

trial_nr

(trial_nr)

int32

0 1 2 3 4 5 6 ... 69 70 71 72 73 74

array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
       18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
       36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
       54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71,
       72, 73, 74], dtype=int32)

Indexes: (1)

trial_nr

PandasIndex

PandasIndex(Index([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
       18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
       36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
       54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71,
       72, 73, 74],
      dtype='int32', name='trial_nr'))

Attributes: (0)

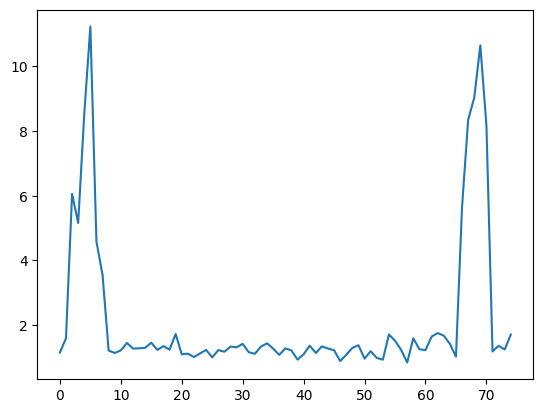

Exercise: Plot the average running speed. The x-axis will be the trial number

Solution

plt.plot(avg_run_speed);

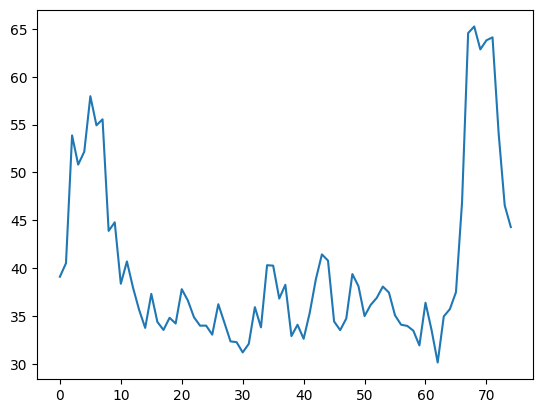

Exercise: Plot the average pupil width. Do you notice anything when you compare this plot to the plot of the running speed?

Solution

plt.plot(avg_pupil_width);

The spike counts and the LFP data are stored as xarray DataArrays. Not all functions will allow you to pass a DataArray as an argument, but they will usually accept a numpy array. You can get the data in a DataArray as a numpy array simply by typing .values behind the DataArray.

Exercise: Get the spike count data from LGN as a numpy array. You should just see an array with a bunch of zeros and maybe one or two 1’s, and nothing else.

Solution

spike_counts_LGN.values

array([[[0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0],
        ...,
        [0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0]],

       [[0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0],
        ...,
        [0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0]],

       ...,

       [[0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0],
        ...,
        [0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0]],

       [[0, 0, ..., 0, 0],
        [0, 0, ..., 0, 0],
        ...,
        [0, 1, ..., 0, 0],
        [0, 0, ..., 0, 0]]], dtype=int16)

Exercise: Get the LFP data as a numpy array.

Solution

lfp.values

array([[[-8.51569421e-06, ..., -6.94200500e-06],
        ...,
        [ 7.32479652e-06, ...,  1.92065863e-05]],

       ...,

       [[ 4.42062699e-05, ...,  8.02998878e-05],
        ...,
        [-2.50190016e-05, ...,  6.13148062e-06]]])
