Probabilistic Dimensionality Reduction with PPCA, FA, and GPFA

Import Libraries

Run the cell below to import the libraries used in this notebook.

import warnings
warnings.filterwarnings("ignore")

import numpy as np
import matplotlib.pyplot as plt
from collections import defaultdict

import quantities as pq
import neo
from elephant.gpfa import GPFA
from viziphant.rasterplot import rasterplot
from viziphant.gpfa import plot_dimensions_vs_time, plot_trajectories, plot_transform_matrix

%matplotlib inline

Download Data

Run the cell below to download the datasets used in this notebook.

import requests
from pathlib import Path

urls = ["https://uni-bonn.sciebo.de/s/izRNdytX5MB2Zm5/download",
        "https://uni-bonn.sciebo.de/s/pDZ7dBcsXGAEXoY/download"]
names = ["simulation_data.npy", "reach_data.npy"]

data_dir = Path("data")
data_dir.mkdir(exist_ok=True)

print("Downloading Data ...")
for url, name in zip(urls, names):
    fname = data_dir / name
    tmp_name = fname.with_suffix(".download")

    response = requests.get(f"{url}/download", timeout=60)
    response.raise_for_status()
    tmp_name.write_bytes(response.content)

    # Refuse to save server error pages or other non-NPY content as the dataset.
    with open(tmp_name, "rb") as file:
        magic = file.read(6)

    if magic != b"\x93NUMPY":
        tmp_name.unlink(missing_ok=True)
        raise ValueError(
            "Downloaded file is not a valid .npy file. The server may have returned an error page instead."
        )

    tmp_name.replace(fname)

print("Done!")

Downloading Data ...
Done!

Utility Functions

The cell below defines several utility functions. Call them as utils.function().

def _as_1d_loading(w):
    w = np.asarray(w).squeeze()
    if w.ndim != 1:
        raise ValueError("Projection utilities expect a single loading vector of shape (D,) or (D, 1).")
    return w

def _plot_projection(X, z_hat, w):
    """
    Parameters
    ----------
    X : Data matrix of shape (N, 2) with N samples.
    z_hat: Vector of shape (N, ) with coordinates of the data points along the projection axis.
    w: Projection direction in observed space, shape (2,).
    """
    w = _as_1d_loading(w)
    z_hat = np.asarray(z_hat).squeeze()
    N = X.shape[0]
    mu = X.mean(axis=0)
    w_unit = w / np.linalg.norm(w)
    scale = 2 * np.max(np.std(X, axis=0))
    line_pts = mu[None, :] + np.array([-1, 1])[:, None] * scale * w_unit[None, :]
    X_proj = mu[None, :] + np.outer(z_hat, w)

    plt.plot(X[:, 0], X[:, 1], 'k.', ms=10, label='Data')
    plt.plot(mu[0], mu[1], 'g.', ms=16, label='Mean')
    plt.plot(line_pts[:, 0], line_pts[:, 1], 'k-', lw=1.5, label='Subspace')
    plt.plot(X_proj[:, 0], X_proj[:, 1], 'r.', ms=10, label='Projection')
    for i in range(N):
        plt.plot([X[i, 0], X_proj[i, 0]], [X[i, 1], X_proj[i, 1]], 'r-', lw=0.8)
    plt.axis("equal")
    plt.legend(fontsize=8)

def _pca(X, K):
    """
    Parameters
    ----------
    X : Data matrix of shape (N, D) with N samples and D observed dimensions.
    K : Number of principal components to keep.

    Returns
    -------
    W : Weights of shape (D, K)
    """
    mu = X.mean(axis=0)
    Xc = X - mu
    _, _, Vh = np.linalg.svd(Xc, full_matrices=False)
    W = Vh[:K].T

    return W

def _ppca(X, K, n_iters=300, seed=10):
    """
    Parameters
    ----------
    X : Data matrix of shape (N, D) with N samples and D observed dimensions.
    K : Number of latent dimensions/components.
    n_iters: Number of expectation-maximization iterations performed.
    seed: Random seed for reproducibility

    Returns
    -------
    W : Weights of shape (D, K)
    sigma2 : Estimated noise variance.
    lls: log-likelihood per iteration.
    """
    rng = np.random.default_rng(seed)
    N, D = X.shape
    mu = X.mean(axis=0)
    Xc = X - mu
    S  = (Xc.T @ Xc) / N
    W      = rng.standard_normal((D, K)) * 0.1
    sigma2 = 1.0
    lls = []
    for _ in range(n_iters):
        M     = W.T @ W + sigma2 * np.eye(K)
        M_inv = np.linalg.inv(M)
        Ez    = Xc @ W @ M_inv.T
        Ezz   = N * sigma2 * M_inv + Ez.T @ Ez
        W_new      = (Xc.T @ Ez) @ np.linalg.inv(Ezz)
        sigma2_new = (np.trace(S) - np.trace(W_new.T @ Xc.T @ Ez) / N) / D
        W      = W_new
        sigma2 = sigma2_new
        C        = W @ W.T + sigma2 * np.eye(D)
        _, logdet = np.linalg.slogdet(C)
        C_inv    = np.linalg.inv(C)
        ll       = -0.5 * N * (D * np.log(2 * np.pi) + logdet + np.trace(C_inv @ S))
        lls.append(ll)

    return W, sigma2, lls


def _fa(X, K, n_iters=300, seed=1):
    """
    Parameters
    ----------
    X : Data matrix of shape (N, D) with N samples and D observed dimensions.
    K : Number of latent dimensions/components to keep.
    n_iters: Number of expectation-maximization iterations performed.
    seed: Random seed for reproducibility

    Returns
    -------
    W : Weights of shape (D, K)
    Psi : Vector of shape (D,) with the noise variance for each observed dimension.
    lls: log-likelihood per iteration.
    """
    rng = np.random.default_rng(seed)
    N, D = X.shape
    mu = X.mean(axis=0)
    Xc = X - mu
    S  = (Xc.T @ Xc) / N
    W   = rng.standard_normal((D, K)) * 0.1
    Psi = np.ones(D)
    lls = []
    for _ in range(n_iters):
        # E-step
        Psi_inv = 1.0 / Psi                              # (D,)
        PsiW    = Psi_inv[:, None] * W                   # (D, K): Psi^{-1} W
        M       = W.T @ PsiW + np.eye(K)                 # (K, K)
        M_inv   = np.linalg.inv(M)
        Ez      = Xc @ PsiW @ M_inv.T                    # (N, K)
        Ezz     = N * M_inv + Ez.T @ Ez                  # (K, K): no sigma2 factor
        # M-step for W
        W_new   = (Xc.T @ Ez) @ np.linalg.inv(Ezz)      # (D, K)
        # M-step for Psi
        EzXc    = (Ez.T @ Xc) / N                        # (K, D)
        Psi_new = np.diag(S) - np.sum(W_new * EzXc.T, axis=1)  # (D,)
        Psi_new = np.maximum(Psi_new, 1e-6)
        W   = W_new
        Psi = Psi_new
        # Log-likelihood
        C         = W @ W.T + np.diag(Psi)
        _, logdet = np.linalg.slogdet(C)
        C_inv     = np.linalg.inv(C)
        ll        = -0.5 * N * (D * np.log(2 * np.pi) + logdet + np.trace(C_inv @ S))
        lls.append(ll)
    return W, Psi, lls

def _project_pca(X, w):
    w = _as_1d_loading(w)
    X_c = X - X.mean(axis=0)
    z = X_c @ w
    return z

def _project_ppca(X, w, sigma2):
    w = _as_1d_loading(w)
    X_c = X - X.mean(axis=0)
    M = w.T @ w + sigma2
    z = (X_c @ w) / M
    return z

def _project_fa(X, w, Psi):
    w = _as_1d_loading(w)
    X_c = X - X.mean(axis=0)
    Psi_inv = 1.0 / Psi
    Psiw = Psi_inv * w
    M_fa = w.T @ Psiw + 1
    z = (X_c @ Psiw) / M_fa
    return z

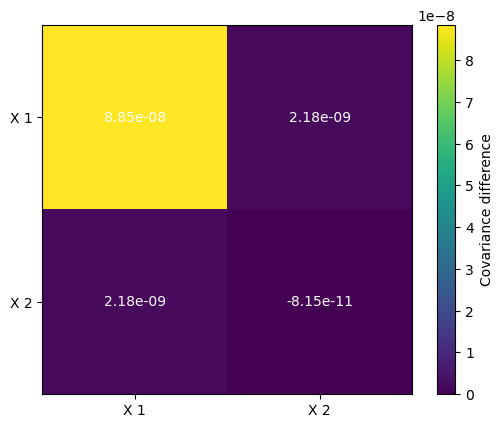

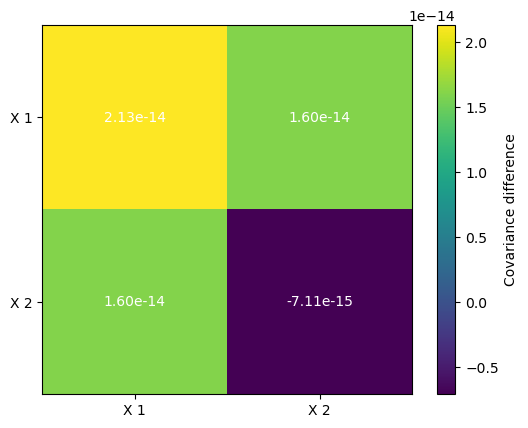

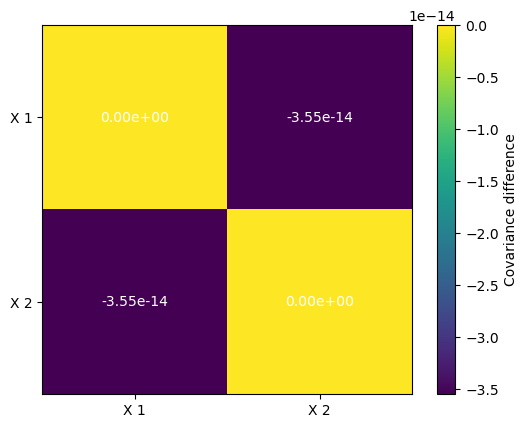

def _compare_covariance(X, W, noise_variance):

    X_c = X - X .mean(axis=0)
    cov_sample = (X_c.T @ X_c) / len(X)
    if np.ndim(noise_variance) == 0: # sigma2
        noise_cov = noise_variance * np.eye(X.shape[1])
    else: # Psi
        noise_cov = np.diag(noise_variance)
    cov_model   = W @ W.T + noise_cov

    diff = cov_sample - cov_model

    im = plt.imshow(diff)
    plt.colorbar(im, label='Covariance difference')
    plt.xticks(range(X.shape[1]), [f'X {i+1}' for i in range(X.shape[1])])
    plt.yticks(range(X.shape[1]), [f'X {i+1}' for i in range(X.shape[1])])

    for i in range(X.shape[1]):
        for j in range(X.shape[1]):
            plt.text(j, i, f'{diff[i, j]:.2e}', ha='center', va='center', color='white')

class utils:
    as_1d_loading = _as_1d_loading
    plot_projection = _plot_projection
    pca = _pca
    ppca = _ppca
    fa = _fa
    project_pca = _project_pca
    project_ppca = _project_ppca
    project_fa = _project_fa
    compare_covariance = _compare_covariance

PCA finds low-dimensional structure by looking for directions that explain as much variance as possible, but it does not include an explicit noise model. Probabilistic PCA (PPCA) and factor analysis (FA) address this by modeling each observation as a low-dimensional latent variable projected into observed space plus noise:

Here, $x_n$ is the observed spike count in trial $n$, $z_n$ is a low-dimensional latent variable that captures shared structure, $W$ is the loading matrix, and $\epsilon_n$ captures private variability that is not explained by the latent state.

The key difference between these methods lies in the noise model. PPCA assumes isotropic noise, meaning every observed dimension has the same private noise variance. FA instead allows the noise variance to differ across observed dimensions.

In this section, you will compare PCA, PPCA, and FA on a small simulated dataset with 8 two-dimensional data points and visualize how each model represents the data.

Code Reference

Exercises

Please fill in the blank cells with working code, according to each exercise below.

Note: “Example” exercises already have the solutions, and will help show how the code is used for the exercises that follow.

Run the cell below to load the data X and visualize it in a scatterplot.

X = np.load('data/simulation_data.npy')
plt.scatter(X[:, 0], X[:, 1], color='black');

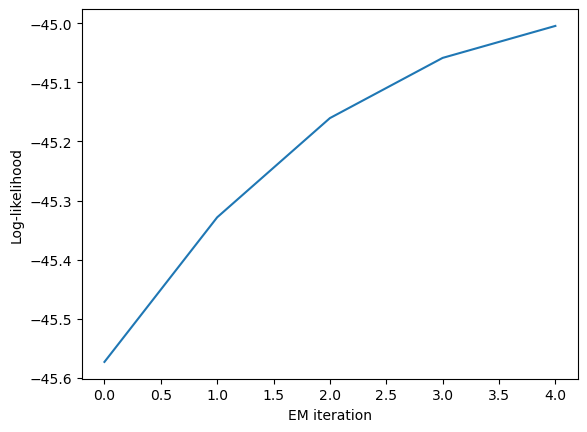

Example: Compute PPCA with K=1 components on the data X for n_iters=5 iterations to get the weights W_ppca, the noise variance sigma2 and the log-likelihood lls_ppca. Plot the log-likelihood to check if the model converged.

W_ppca, sigma2, lls_ppca = utils.ppca(X, K=1, n_iters=5)

plt.plot(lls_ppca)
plt.xlabel('EM iteration')
plt.ylabel('Log-likelihood');

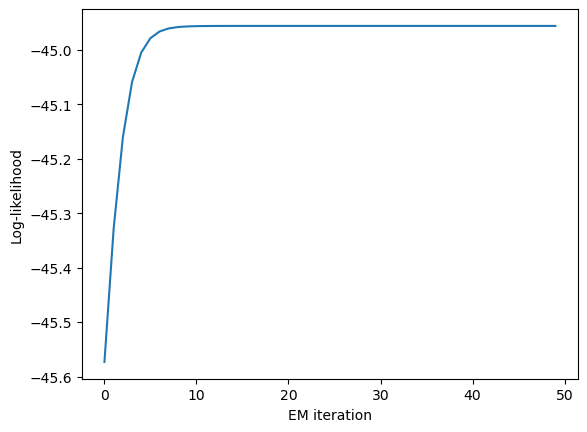

Exercise: In the prior example, the log-likelihood did not plateau, indicating that the model did not converge. Increase the number of iterations so that the model converges.

Solution

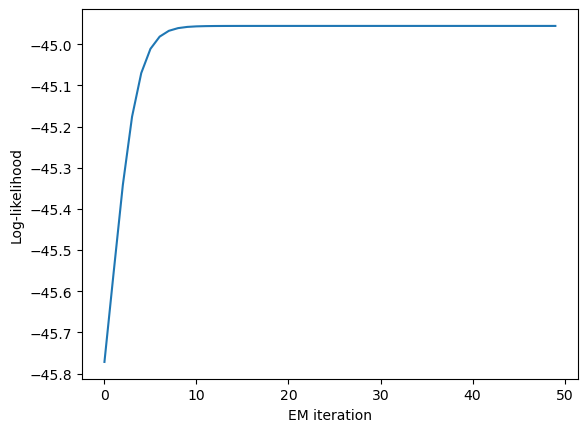

W_ppca, sigma2, lls_ppca = utils.ppca(X, K=1, n_iters=50)

plt.plot(lls_ppca)
plt.xlabel('EM iteration')
plt.ylabel('Log-likelihood');

Exercise: Compute FA with K=1 components on the data X to get the weights W_fa, the noise variance Psi and the log-likelihood lls_fa. Plot the log-likelihood to check if the model converged.

Solution

W_fa, Psi, lls_fa = utils.fa(X, K=1, n_iters=50)

plt.plot(lls_fa)
plt.xlabel('EM iteration')
plt.ylabel('Log-likelihood');

Now that you fitted the PPCA and FA models we are going to visualize their outputs and compare them to regular PCA. The cell below computes PCA with K=1 component to get the weights W_pca.

W_pca = utils.pca(X, K=1)

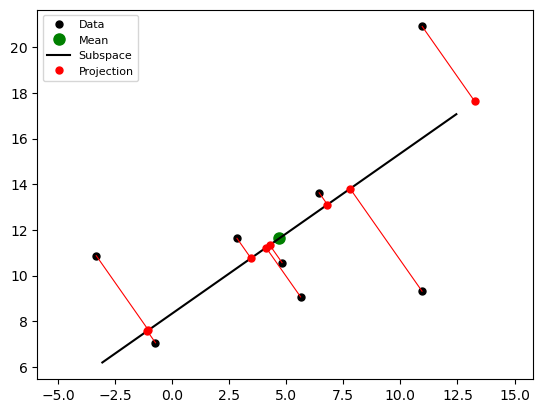

Example: Project the data X onto the first PCA direction to obtain the latent coordinates Z_pca. Then plot the projection of the data onto this latent dimension.

In the plot, the black line shows the first PCA direction, the black dots are the original data points, and the red dots are their projections onto that direction. The further a red dot lies from the mean along the black line, the larger that data point’s latent coordinate, or PCA score, on the component.

Z_pca = utils.project_pca(X, W_pca)
utils.plot_projection(X, Z_pca, W_pca)

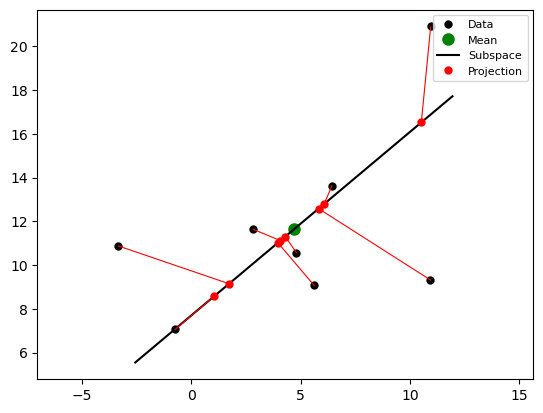

Exercise: Project the data X onto the first PPCA direction to obtain the latent coordinates Z_ppca. Then plot the projection of the data onto this latent dimension (Hint: utils.project_ppca takes 3 inputs: the data X, the PPCA weights W_ppca and the noise variance sigma2).

Solution

Z_ppca = utils.project_ppca(X, W_ppca, sigma2)
utils.plot_projection(X, Z_ppca, W_ppca)

Note how the red connection lines are NOT orthogonal to the subspace in PPCA. Each point is pulled towards the subspace, but the pull is not purely perpendicular — it accounts for uncertainty in the latent variable (the Bayesian shrinkage effect).

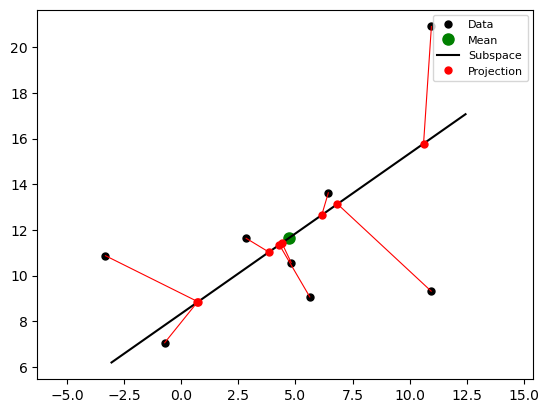

Exercise: Project the data X onto the first FA direction to obtain the latent coordinates Z_fa. Then plot the projection of the data onto this latent dimension.

Solution

Z_fa = utils.project_fa(X, W_fa, Psi)
utils.plot_projection(X, Z_fa, W_fa)

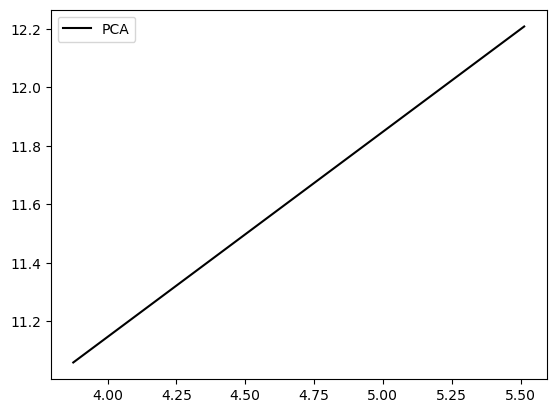

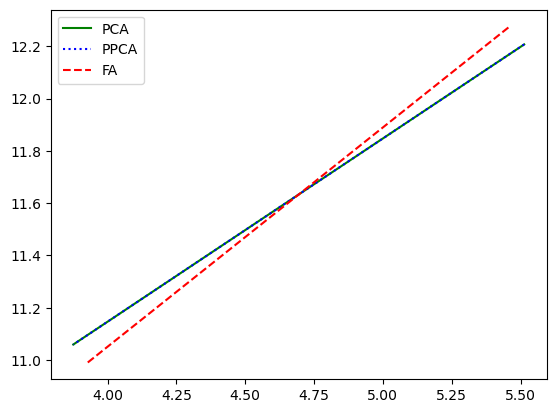

Exercise: The projection plots for FA and PPCA look very similar. We can plot the latent dimensions together so we can better compare them. The code below plots the first direction for PCA. Add the first dimensions for PPCA and FA to the same plot and compare them (Hint: use different color and linestyle to differentiate overlaying lines).

mu = X.mean(axis=0)

w = W_pca[:,0] / np.linalg.norm(W_pca[:,0]) # scaled 1st PCA direction
line  = mu + np.array([-w, w]) # line coordinates

plt.plot(line[:, 0],  line[:, 1],  color='black', linestyle='-', label='PCA')
plt.legend();

Solution

for W, name, color, linestyle in zip(
    [W_pca, W_ppca, W_fa],
    ["PCA", "PPCA", "FA"],
    ["green", "blue", "red"],
    ["-", ":", "--" ]):
    w = W[:,0] / np.linalg.norm(W[:,0])
    line = mu + np.array([-w, w])
    plt.plot(line [:,0], line[:,1], color=color, linestyle=linestyle, label=name)
plt.legend();

PPCA and FA are generative models, so once we estimate their parameters we can sample new latent variables and noise to generate synthetic observations. To generate data, we sample latent variables from a standard normal distribution:

where $I_K$ is the $K \times K$ identity matrix. We also sample noise using the model’s estimated variance $\sigma^2$ (for PPCA) or $\Psi$ (for FA):

Using the estimated weights, we then map the latent variables into observed space and add the mean offset and noise:

In this section, you will generate new data from the PPCA and FA models and compare the samples to the original dataset. For sampling latent variables and noise, you will use NumPy’s random number generator (np.random.default_rng) with a fixed seed for reproducibility.

Code Reference

Exercise

First, we compute the PPCA to obtain the model weights W_ppca and estimated noise variance sigma2. We also need the mean of the data mu. From these parameters, we can generate new data.

W_ppca, sigma2, _ = utils.ppca(X, K=1)
mu = X.mean(axis=0)

Example: Sample latent variables Z of shape (10, 1) from a standard normal distribution and noise of shape (10, 2) using the estimated standard deviation. Print the mean of both.

rng = np.random.default_rng(1)
Z = rng.normal(0, 1, size=(10, 1))
noise = rng.normal(0, np.sqrt(sigma2), size=(10, 2))

Z.mean(), noise.mean()

(np.float64(0.22490823808597696), np.float64(-0.6338291973863355))

Exercise: Draw 100 samples for Z and noise and print their mean again. The larger the sample, the closer the mean should be to 0.

rng = np.random.default_rng(1)
Z = rng.normal(0, 1, size=(100, 1))
noise = rng.normal(0, np.sqrt(sigma2), size=(100, 2))

Z.mean(), noise.mean()

(np.float64(-0.07361212127294708), np.float64(-0.3514948090525209))

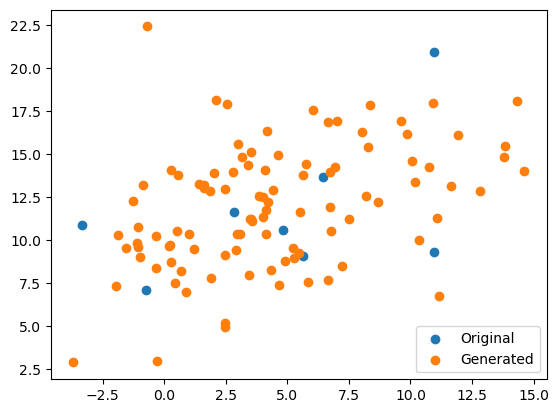

Exercise: Complete the code below that generates the new data X_gen by adding the mean and noise to the projected latent variables and plot the generated data together with the original data.

X_gen = Z @ W_ppca.T +  # add mu and noise

plt.scatter(X[:, 0], X[:, 1], label='Original')
plt.scatter(X_gen[:, 0], X_gen[:, 1], label='Generated')
plt.legend();

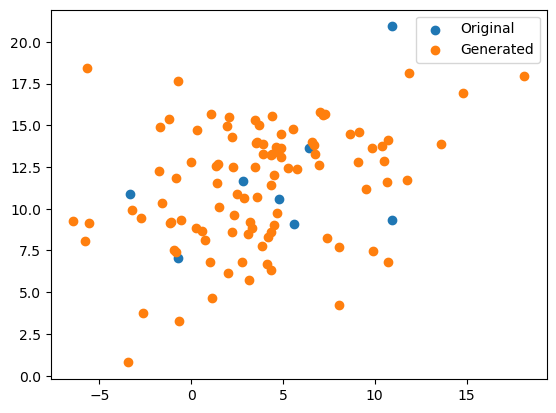

Solution

X_gen = Z @ W_ppca.T + mu + noise

plt.scatter(X[:, 0], X[:, 1], label='Original')
plt.scatter(X_gen[:, 0], X_gen[:, 1], label='Generated')
plt.legend();

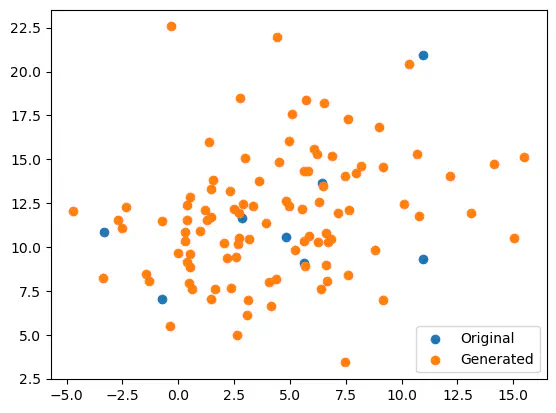

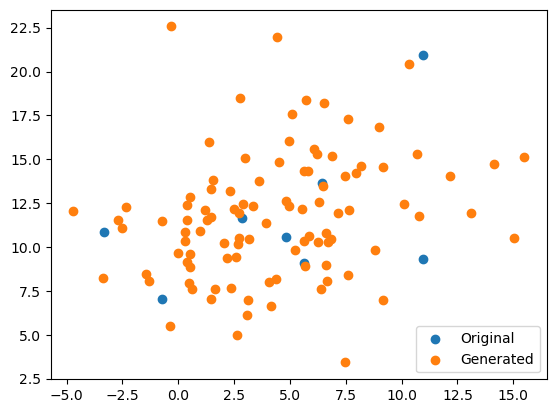

Exercise: The code below recomputes PPCA but with K=2 components. Generate 100 new data points using the estimated weights W_ppca and noise sigma2 (Hint: adjust the dimensions of the latent variable Z so they match W_ppca).

W_ppca, sigma2, _ = utils.ppca(X, K=2)

Solution

rng = np.random.default_rng(1)
Z = rng.normal(0, 1, size=(100, 2))
noise = rng.normal(0, np.sqrt(sigma2), size=(100, 2))

X_gen = Z @ W_ppca.T + mu + noise

plt.scatter(X[:, 0], X[:, 1], label='Original')
plt.scatter(X_gen[:, 0], X_gen[:, 1], label='Generated')
plt.legend();

Exercise: Compute FA with K=1 components on X and generate 100 new data points from the estimated parameters (Hint: generating new data from FA works exactly the same as for PPCA, you just use the noise term Psi instead of sigma2).

Solution

W_fa, Psi, _ = utils.fa(X, K=1)

rng = np.random.default_rng(1)
Z = rng.normal(0, 1, size=(100, 1))
noise = rng.normal(0, np.sqrt(Psi), size=(100, 2))

X_gen = Z @ W_fa.T + mu + noise

plt.scatter(X[:, 0], X[:, 1], label='Original')
plt.scatter(X_gen[:, 0], X_gen[:, 1], label='Generated')
plt.legend();

PPCA and FA differ in how they model noise. PPCA uses a single shared variance term $\sigma^2$:

This means the noise is isotropic, with the same variance along every observed dimension. FA instead models noise with a diagonal covariance:

where $\Psi = \operatorname{diag}(\psi_1, \ldots, \psi_D)$ allows each observed dimension to have its own noise variance. To see why this matters, we will add extra noise to one observed dimension and compare how well PPCA and FA recover the covariance structure of the data. We will also inspect the estimated weights and noise terms directly.

In this section, we will work with data generated from PPCA in the previous section, which gives us more samples and therefore more stable covariance estimates. A new utility function will compare the data covariance matrix to the model covariance matrix.

Code Reference

Exercises

First, we compute PPCA with K=2 components and then generate 1000 new samples from the model. This gives us a lot of data to work with.

W_ppca, sigma2, _ = utils.ppca(X, K=2)
mu = X.mean(axis=0)

rng = np.random.default_rng(1)
Z = rng.normal(0, 1, size=(1000, 2))
noise = rng.normal(0, np.sqrt(sigma2), size=(1000, 2))

X_gen = Z @ W_ppca.T + mu + noise
X_gen.shape

(1000, 2)

Example: Compute PPCA with K=1 components and then compare the data and model covariance matrices. Under isotropic noise, PPCA should approximate the covariance matrix well.

W_ppca, sigma2, _ = utils.ppca(X_gen, K=1)
utils.compare_covariance(X_gen, W_ppca, sigma2)

Example: Print the estimated noise variance and the weights.

print("Noise variance: ", sigma2)
print("Weights: \n", W_ppca)

Noise variance:  9.098796307732007
Weights:
 [[-3.66881483]
 [-2.42184076]]

Now we add noise to the first dimension of our data. Let’s see how this affects the results from PPCA!

rng = np.random.default_rng(1)
X_noisy = X_gen.copy()
X_noisy[:, 0] += rng.normal(0, 20, size=len(X_noisy))

Exercise: Compute PPCA on X_noisy and compare the covariance matrices. How does the difference between the matrices compare to the previous example (Hint: a positive value indicates that the model underestimates the variance/covariance)?

Solution

W_ppca, sigma2, _ = utils.ppca(X_noisy, K=1)
utils.compare_covariance(X_noisy, W_ppca, sigma2)

Exercise: Even though the non-isotropic noise increased the error, the absolute difference was still very small. This is because PPCA can absorb the added non-isotropic variance into the model weights. To check this, print the estimated noise and model weights. If the weights are absorbing the added variance we should see an increase in the first dimension where noise was added.

print("Noise variance: ", sigma2)
print("Weights: \n", W_ppca)

Noise variance:  14.72787048345117
Weights:
 [[-19.79369474]
 [ -0.4860437 ]]

Exercise: Now compute FA on X_noisy and compare the covariance matrices. How does the result compare to PPCA?

Solution

W_fa, Psi, _ = utils.fa(X_noisy, K=1)
utils.compare_covariance(X_noisy, W_fa, Psi)

Exercise: Print the estimated weights and noise variance $\Psi$. The first element of $\Psi$ should reflect the increased noise in the dimension where noise was added.

print("Noise variance: ", Psi)
print("Weights: \n", W_fa)

Noise variance:  [305.28425075  14.04983131]
Weights:
 [[10.06150939]
 [ 0.95617867]]

FA explains each observation with a low-dimensional latent variable, but it treats observations as independent. Neural activity during a trial has temporal structure: activity in neighboring time bins should usually be related. Gaussian Process Factor Analysis (GPFA) extends FA by placing a Gaussian process prior on the latent state, so the latent variables form smooth trajectories through time.

The observation model is still factor-analysis-like:

The new part is that each latent dimension evolves smoothly over time according to a Gaussian process. This lets GPFA estimate single-trial neural trajectories rather than one static latent coordinate per trial.

In this section, we use a reach-to-grasp dataset with four behavioral conditions: precision grip or side grip, each at low or high force. The goal is not to write data-wrangling code from scratch, but to use GPFA outputs to ask conceptual questions: which latent dimensions separate conditions, whether trajectories differ in shape or amplitude, and how individual neurons contribute to condition-separating latent dimensions.

Code Reference

Exercises

First, we load the data and print the number of neurons, trials as well as the different conditions. There are two experimental variables that are being varied: grip type (PG: precision grip, SG: side grip) and grip force (LF: low force, HF: high force).

data = np.load('data/reach_data.npy', allow_pickle=True).item()

spiketrains_raw = data['spiketrains']   # object array: trials x neurons
conditions = data['conditions']         # condition label per trial, e.g. 'PGLF'
T_STOP = float(data['t_stop'])          # trial window in ms

n_trials, n_neurons = spiketrains_raw.shape

print(f'Trials: {n_trials}   Neurons: {n_neurons}   Window: {T_STOP:.0f} ms')
for name in np.unique(conditions):
    print(f'{name}: {(conditions == name).sum()} trials')

Trials: 142   Neurons: 105   Window: 500 ms
PGHF: 36 trials
PGLF: 35 trials
SGHF: 36 trials
SGLF: 35 trials

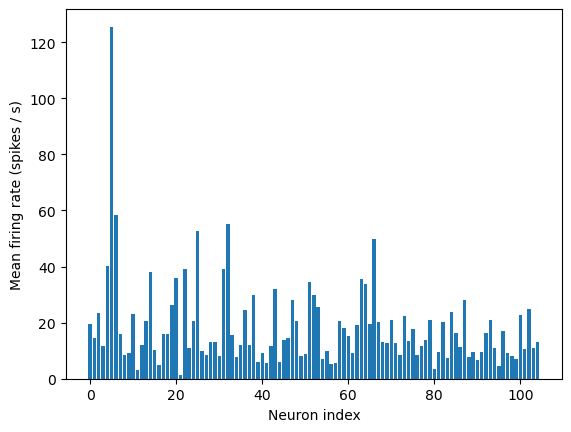

We can also take a look at the average firing rates of the individual neurons. Some neurons fire much more than others, but high firing rate alone does not tell us which neurons contribute to differences between experimental conditions. Later, we will use the GPFA loading matrix to connect condition-separating latent dimensions back to individual neurons.

BIN_MS = 20.0
bin_edges = np.arange(0, T_STOP + BIN_MS, BIN_MS)
n_bins = len(bin_edges) - 1

counts = np.zeros((n_trials, n_neurons, n_bins))

for trial in range(n_trials):
    for neuron in range(n_neurons):
        times = spiketrains_raw[trial, neuron]
        if times is not None:
            counts[trial, neuron], _ = np.histogram(times, bins=bin_edges)

mean_rate = counts.mean(axis=(0, 2)) * (1000 / BIN_MS)

plt.bar(np.arange(n_neurons), mean_rate)
plt.xlabel('Neuron index')
plt.ylabel('Mean firing rate (spikes / s)');

Finally, we need to prepare the data for analysis. The GPFA implementation expects the data to be stored in neo.SpikeTrain objects, so the cell below prepares a list of spiketrains and creates a raster plot for the first trial. It also creates the trial_grouping_dict, which stores which trials belong to which condition. Now we are ready to apply GPFA.

spiketrains = []
for trial in range(n_trials):
    trial_spiketrains = []
    for neuron in range(n_neurons):
        times = spiketrains_raw[trial, neuron]
        times = times if (times is not None and len(times) > 0) else np.array([])
        trial_spiketrains.append(neo.SpikeTrain(times * pq.ms, t_stop=T_STOP * pq.ms))
    spiketrains.append(trial_spiketrains)

trial_grouping_dict = defaultdict(list)
for trial_idx, name in enumerate(conditions):
    trial_grouping_dict[name].append(trial_idx)

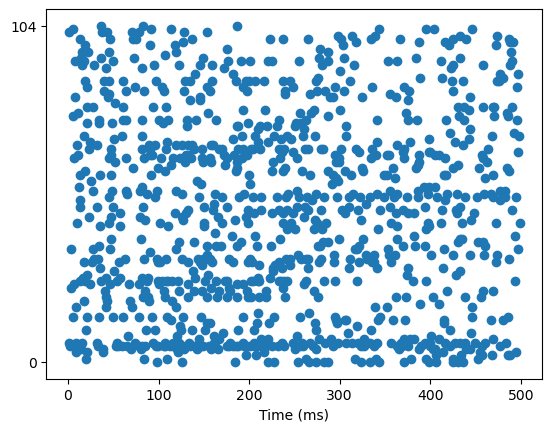

rasterplot(spiketrains[0]);

Example: Fit a 4-dimensional GPFA model to spiketrains with a 50 ms bin_size.

np.random.seed(1)
gpfa = GPFA(bin_size=50 * pq.ms, x_dim=4)
returned = gpfa.fit_transform(spiketrains)

Initializing parameters using factor analysis...

Fitting GPFA model...

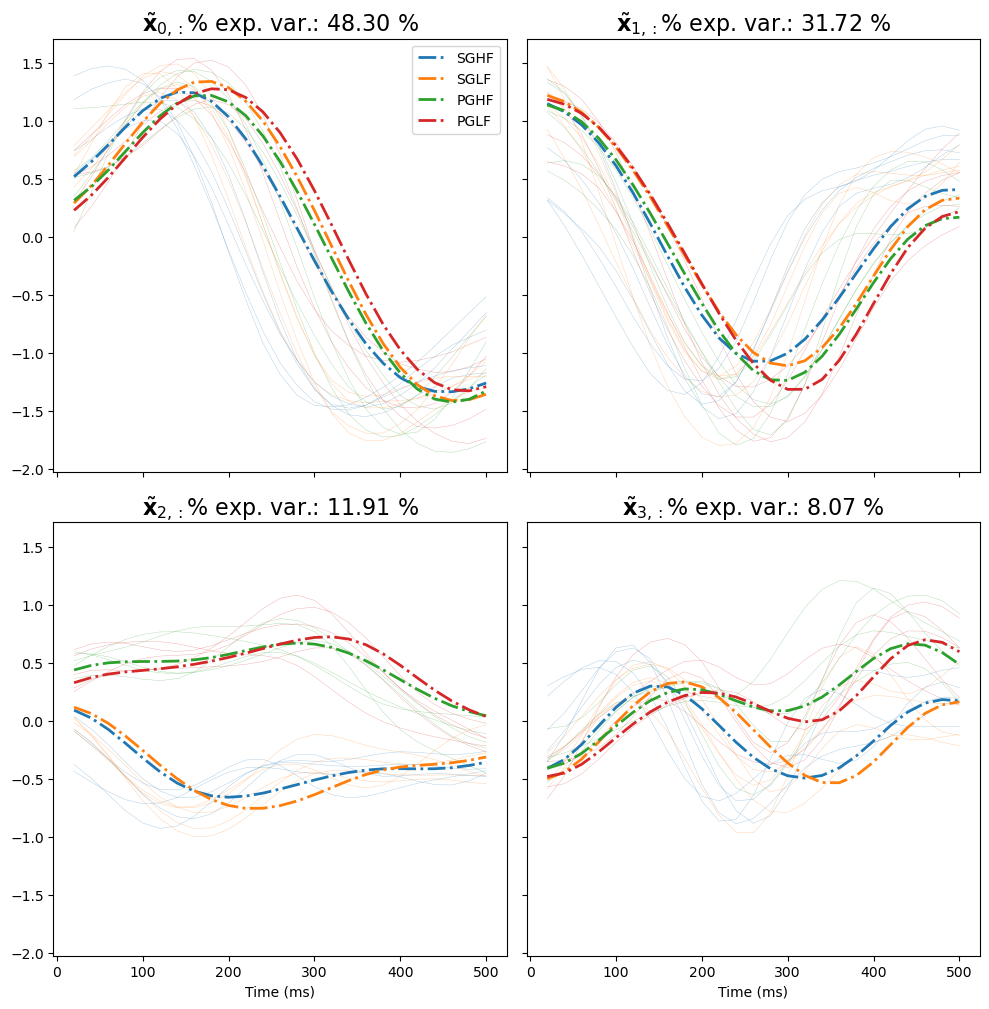

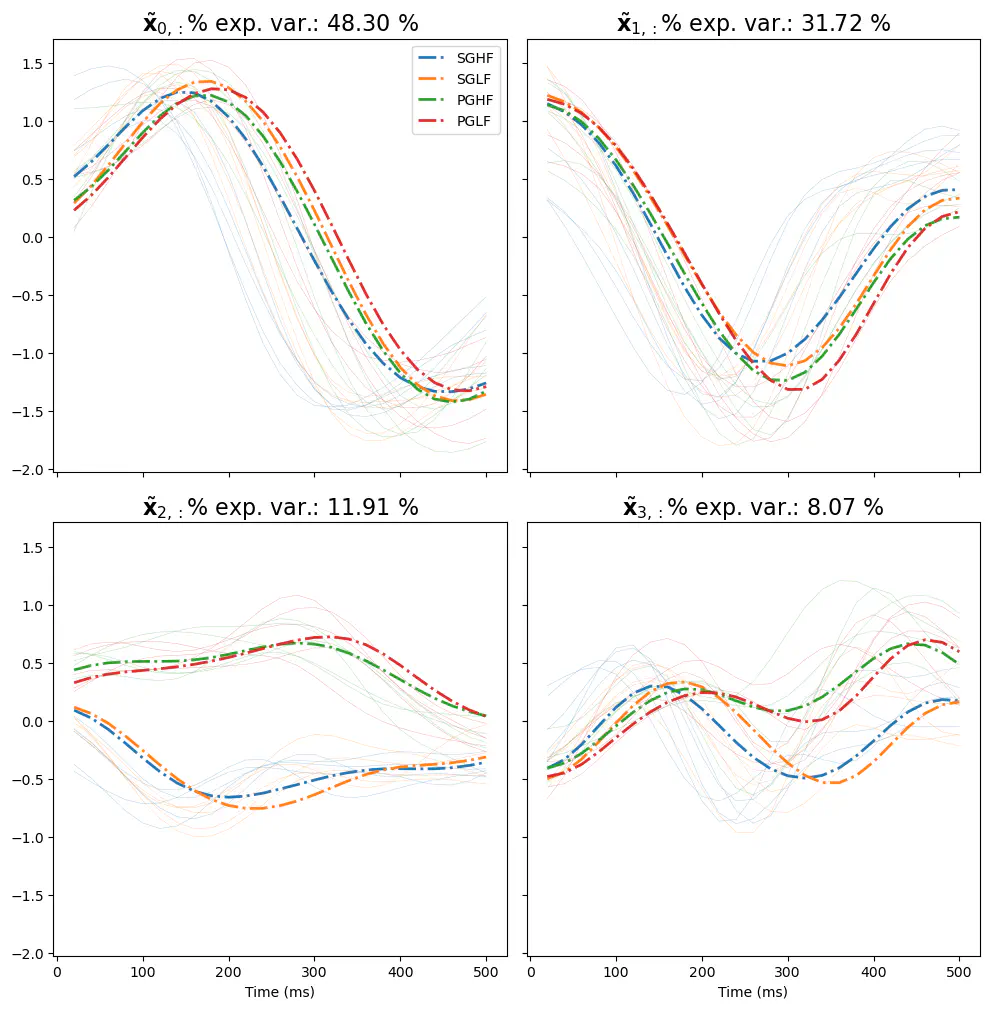

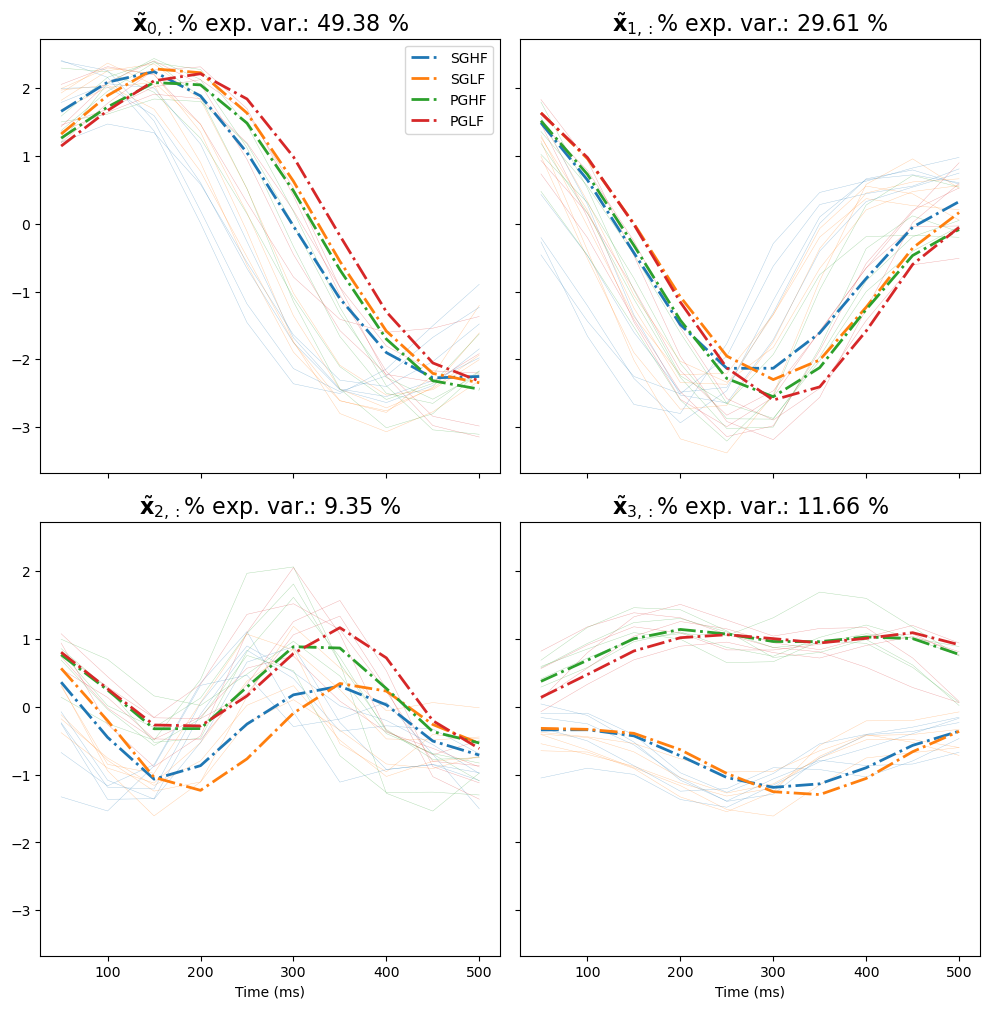

Example: Plot the GPFA components. The curves show how the latent coordinates for each component change across time. Each subplot’s title indicates how much variance in the shared activity is explained by that component.

plot_dimensions_vs_time(
    returned,
    gpfa,
    trial_grouping_dict=trial_grouping_dict,
    plot_group_averages=True);

Exercise: The 50 ms time bins in the previous example are fairly coarse. Reduce the bin size to 20 ms, fit GPFA again, and plot the latent dimensions across time.

Solution

np.random.seed(1)
gpfa = GPFA(bin_size=20 * pq.ms, x_dim=4)
returned = gpfa.fit_transform(spiketrains)
plot_dimensions_vs_time(returned, gpfa, trial_grouping_dict=trial_grouping_dict, plot_group_averages=True);

Initializing parameters using factor analysis...

Fitting GPFA model...

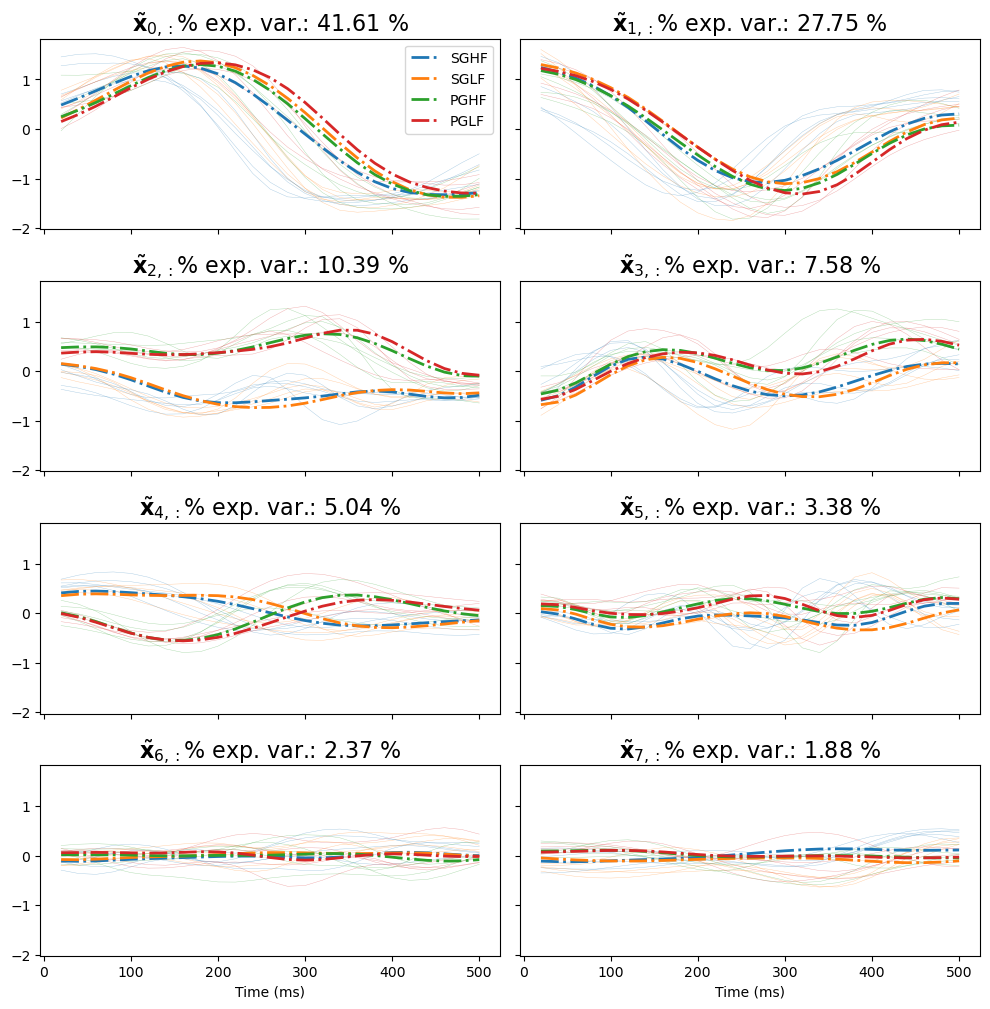

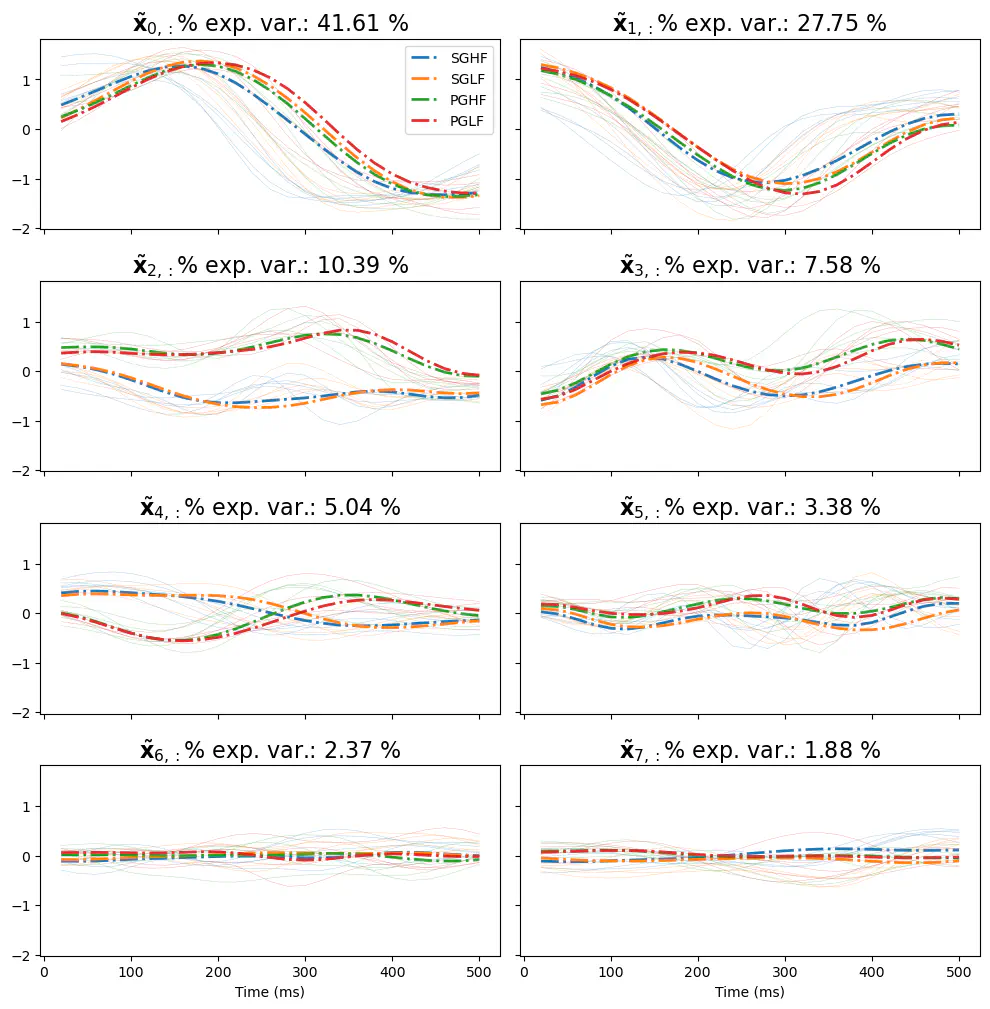

Exercise: Fit GPFA again but increase the number of dimensions to 8. This will take longer to compute. Plot the latent coordinates across time and compare how much shared variance is captured by the additional dimensions.

Solution

np.random.seed(1)
gpfa = GPFA(bin_size=20 * pq.ms, x_dim=8)
returned = gpfa.fit_transform(spiketrains)
plot_dimensions_vs_time(returned, gpfa, trial_grouping_dict=trial_grouping_dict, plot_group_averages=True);

Initializing parameters using factor analysis...

Fitting GPFA model...

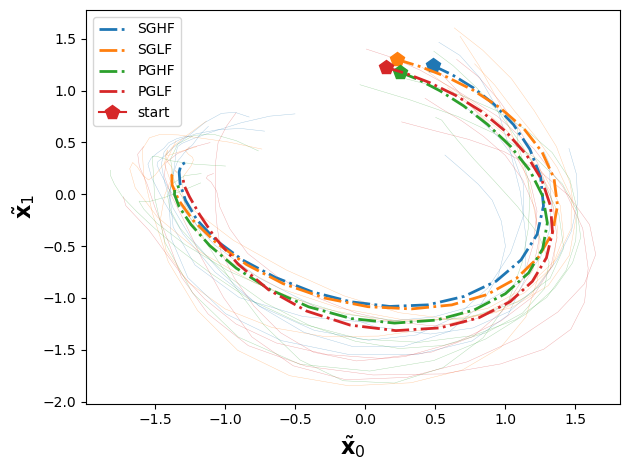

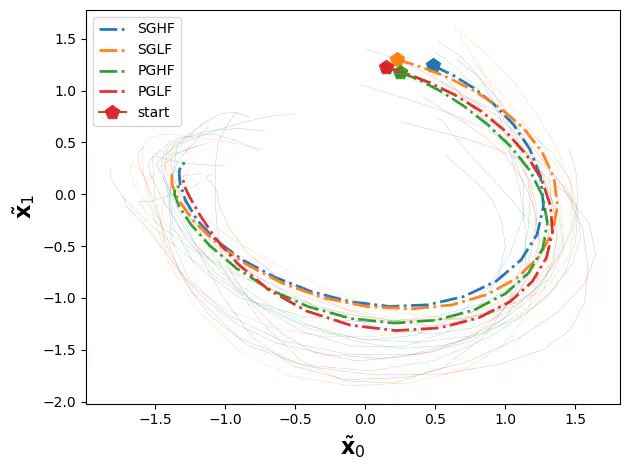

Example: Plot condition-averaged neural trajectories in two latent dimensions. A trajectory plot shows how the population state moves through latent space during the trial.

plot_trajectories(
    returned, gpfa,
    dimensions=[0, 1],
    trial_grouping_dict=trial_grouping_dict,
    plot_group_averages=True);

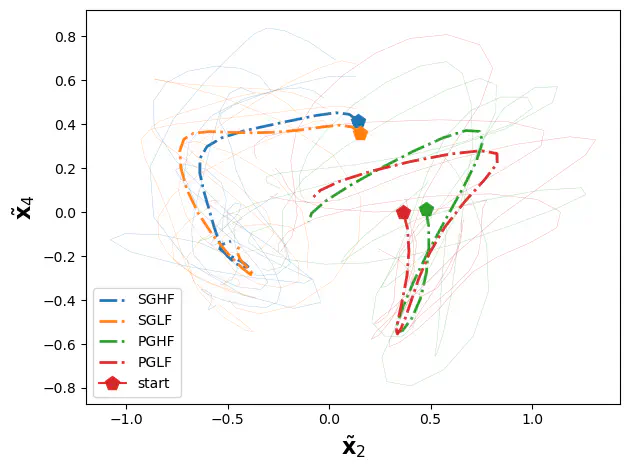

Exercise: In the previous example, we could not see a difference between experimental conditions in the selected dimensions. Look at the plot of the individual components and identify two that differ across conditions then plot the trajectories for those dimensions.

Solution

plot_trajectories(
    returned, gpfa,
    dimensions=[2, 4],
    trial_grouping_dict=trial_grouping_dict,
    plot_group_averages=True);

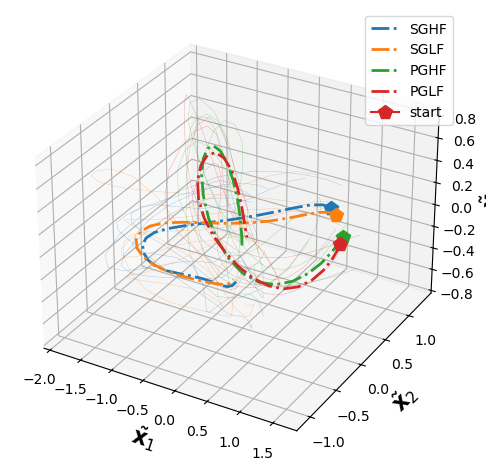

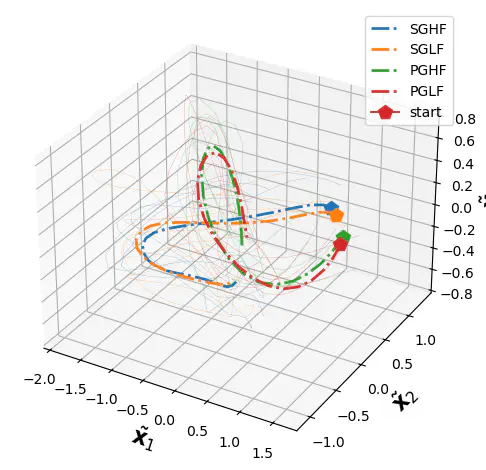

Exercise: Add a third dimension to the trajectory plot. Does the neural activity encode grip type (PG/SG) or grip force (LF/HF)?

Solution

plot_trajectories(
    returned, gpfa,
    dimensions=[1, 2, 4],
    trial_grouping_dict=trial_grouping_dict,
    plot_group_averages=True);

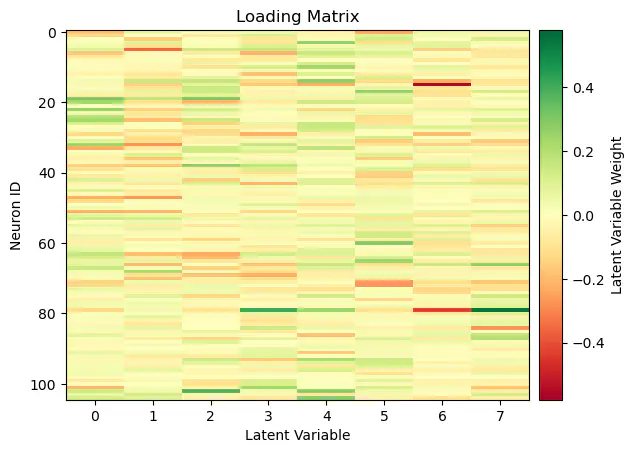

The loading matrix shows how strongly each neuron contributes to each plotted latent dimension. This is useful after identifying a latent dimension that separates conditions: we can select neurons with large positive or negative weights on that dimension and inspect their firing rates across conditions.

plot_transform_matrix(gpfa.params_estimated['Corth']);

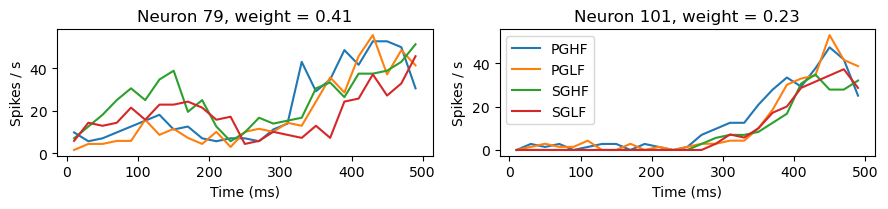

Exercise: The code below selects one latent_dim, finds the n_top neurons with the largest absolute weights along this dimension, and plots their average PSTHs. Vary latent_dim and n_top to look for neurons whose activity differs between experimental conditions.

latent_dim = 3
n_top = 2

Corth = gpfa.params_estimated['Corth']
weights = Corth[:, latent_dim]
top_neurons = np.argsort(np.abs(weights))[-n_top:][::-1]

print('Selected neurons:', top_neurons)
print('Weights:', weights[top_neurons])

time = bin_edges[:-1] + BIN_MS / 2
rate_scale = 1000 / BIN_MS
n_cols = 2
n_rows = int(np.ceil(n_top / n_cols))

fig, axes = plt.subplots(n_rows, n_cols, figsize=(9, 2.2 * n_rows), sharex=True)
axes = np.atleast_1d(axes).ravel()

for ax, neuron in zip(axes, top_neurons):
    for condition in np.unique(conditions):
        trial_idx = conditions == condition
        ax.plot(time, counts[trial_idx, neuron, :].mean(axis=0) * rate_scale, label=condition)

    ax.set_title(f'Neuron {neuron}, weight = {weights[neuron]:.2f}')
    ax.set_ylabel('Spikes / s')
    ax.set_xlabel('Time (ms)')

axes[1].legend()
plt.tight_layout()

Selected neurons: [ 79 101]
Weights: [0.40599052 0.23340289]

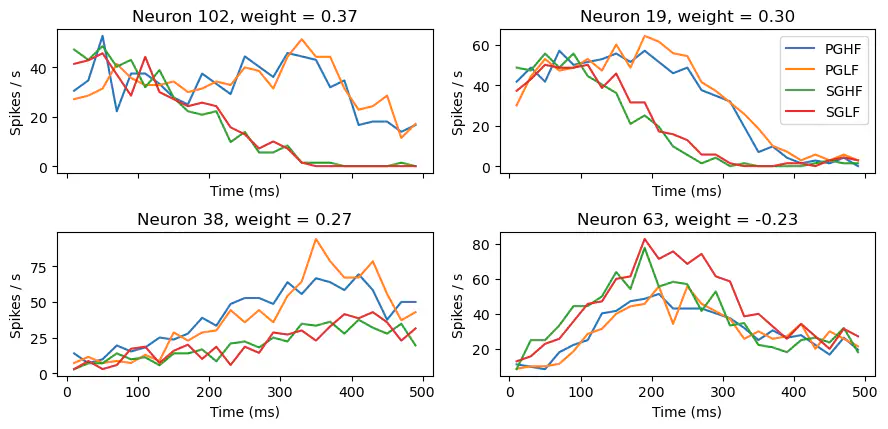

Solution

latent_dim = 2
n_top = 4

Corth = gpfa.params_estimated['Corth']
weights = Corth[:, latent_dim]
top_neurons = np.argsort(np.abs(weights))[-n_top:][::-1]

print('Selected neurons:', top_neurons)
print('Weights:', weights[top_neurons])

time = bin_edges[:-1] + BIN_MS / 2
rate_scale = 1000 / BIN_MS
n_cols = 2
n_rows = int(np.ceil(n_top / n_cols))

fig, axes = plt.subplots(n_rows, n_cols, figsize=(9, 2.2 * n_rows), sharex=True)
axes = np.atleast_1d(axes).ravel()

for ax, neuron in zip(axes, top_neurons):
    for condition in np.unique(conditions):
        trial_idx = conditions == condition
        ax.plot(time, counts[trial_idx, neuron, :].mean(axis=0) * rate_scale, label=condition)

    ax.set_title(f'Neuron {neuron}, weight = {weights[neuron]:.2f}')
    ax.set_ylabel('Spikes / s')
    ax.set_xlabel('Time (ms)')

axes[1].legend()
plt.tight_layout()

Selected neurons: [102  19  38  63]
Weights: [ 0.37235354  0.29516306  0.27056291 -0.2278554 ]

Reflection: The PCA → PPCA → FA → GPFA Ladder

Each step adds expressiveness:

• PPCA gives PCA a proper likelihood, enabling model comparison.
• FA accounts for heterogeneous firing rates, making the subspace more robust.
• GPFA adds temporal smoothing, giving smooth single-trial trajectories.

The trajectory visualizations make it possible to ask whether precision grip and side grip activate the same neural subspace, and whether high- and low-force conditions differ in geometry or only in amplitude — the questions that motivated Yu’s original work on GPFA.

PPCA

The generative model of PPCA assumes a $K$-dimensional latent variable $\mathbf{z}_n$, sampled from a standard normal distribution, and noise $\boldsymbol{\epsilon}_n$ sampled from a normal distribution with variance $\sigma^2$ in each of the $D$ observed dimensions (with $K \ll D$):

After random initialization, PPCA estimates the loading matrix $W$ and the noise variance $\sigma^2$ in an iterative procedure that consists of two steps:

• First, the E-step estimates the posterior distribution of the latent variable for each data point, $P(\mathbf{z}_n \mid \mathbf{x}_n)$, given the current model parameters $W$ and $\sigma^2$:

• Then, the M-step updates $W$ and $\sigma^2$ using the inferred latent variables:

The steps are repeated until the log-likelihood, which describes the probability of the observed data under the model, reaches a plateau.

FA

FA extends PPCA by replacing the isotropic noise $\sigma^2 I$ with a diagonal matrix $\Psi$.

• The E-step uses $\Psi^{-1}$ instead of $(1/\sigma^2)$:

  $$\mathbf{M}_{FA} = W^\top \Psi^{-1} W + I_K, \quad E[z] = M_{FA}^{-1} W^\top \Psi^{-1} X_c^\top, \quad E_{zz} = N M_{FA}^{-1} + E_z^\top E_z$$

• The M-step adds the updating of $\Psi$ as the diagonal of the residual covariance:

  $$\Psi_{\text{new}} = \text{diag}(S) - \text{diag}(W_{\text{new}} \bar{E}_z^\top)$$
