Epoching Continuous EEG and Computing Event-Related Potentials

Background

EEG recordings are typically accompanied by a record of experimental events — such as stimulus onsets, response times, or condition markers — that are needed to relate the neural signal to the experiment. In systems that use a dedicated stimulus channel, these events are encoded as brief pulses whose amplitude encodes the event type as an integer code. MNE reads these codes using mne.find_events(), which returns an $N \times 3$ array where each row represents one event: the first column is the sample index at which the event occurred, the second column is the previous value of the stimulus channel (usually 0 and can be ignored), and the third column is the event code. To make the integer codes more interpretable, MNE uses an event_id dictionary that maps descriptive string labels to integer codes (e.g. {"auditory/left": 1}). This dictionary is used throughout MNE to select specific event types when creating epochs or plots.

Exercises

In this section, you are going to read events from the stimulus channel of the EEG recording, visualize them and assign labels to the event codes. You are also going to merge events of the same type (e.g. left and right auditory stimuli) into a single event. Here are the code snippets required for solving the exercises:

Events can be encoded in dedicated stimulus channels of the EEG. The code below plots a single EEG channel along with the stimulus channel "STI 014". The latter contains impulses whose height encodes the type of event.

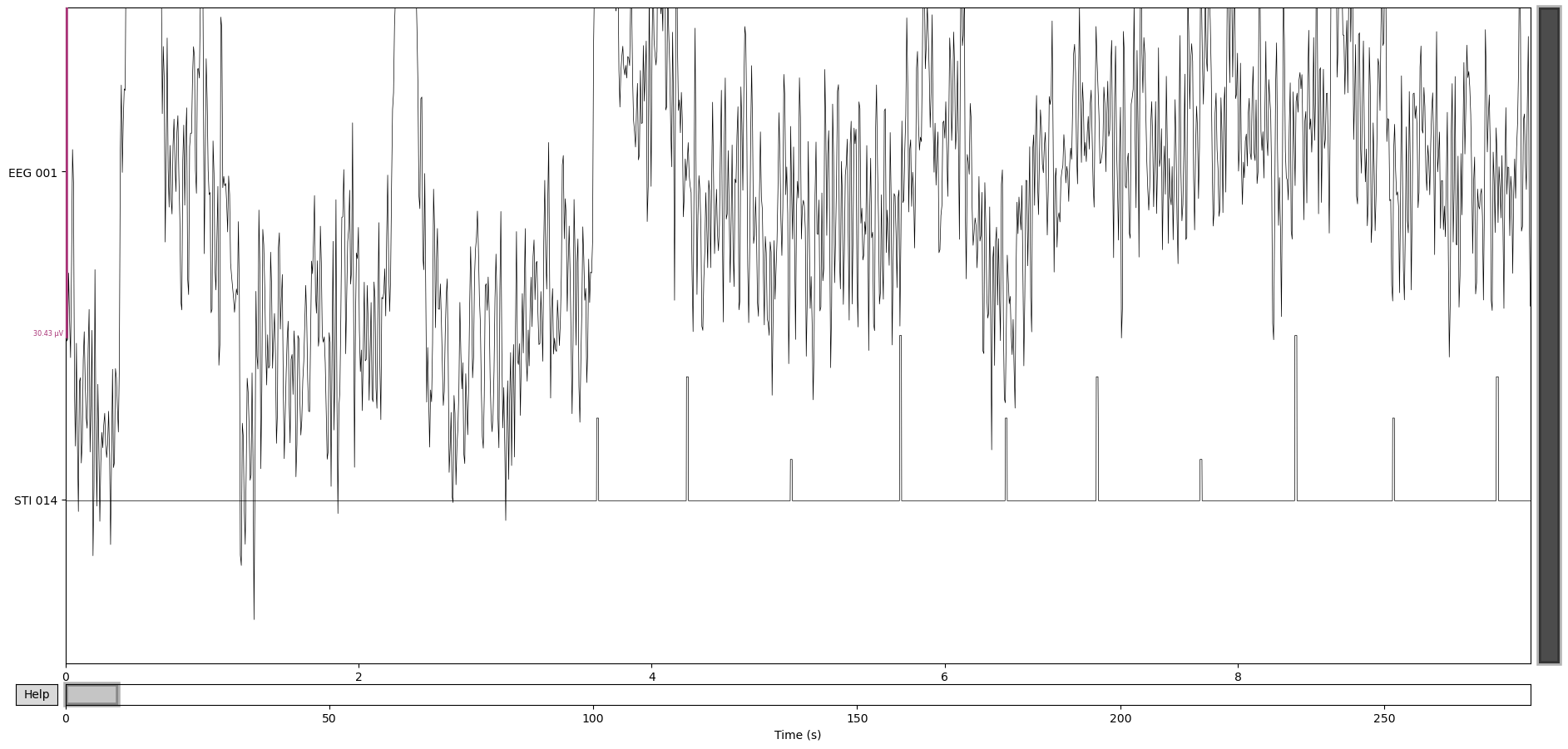

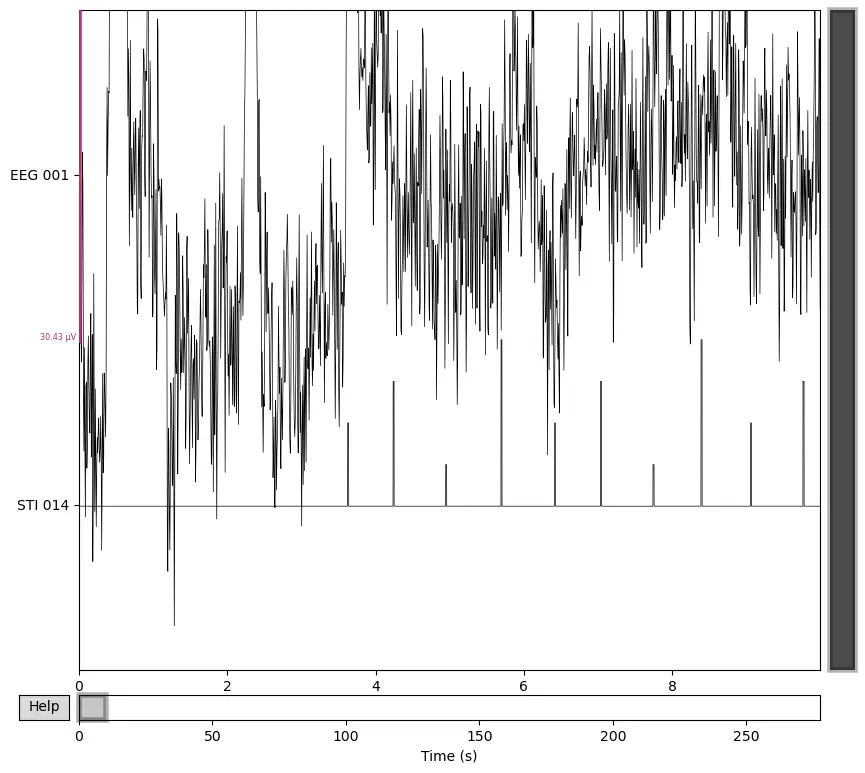

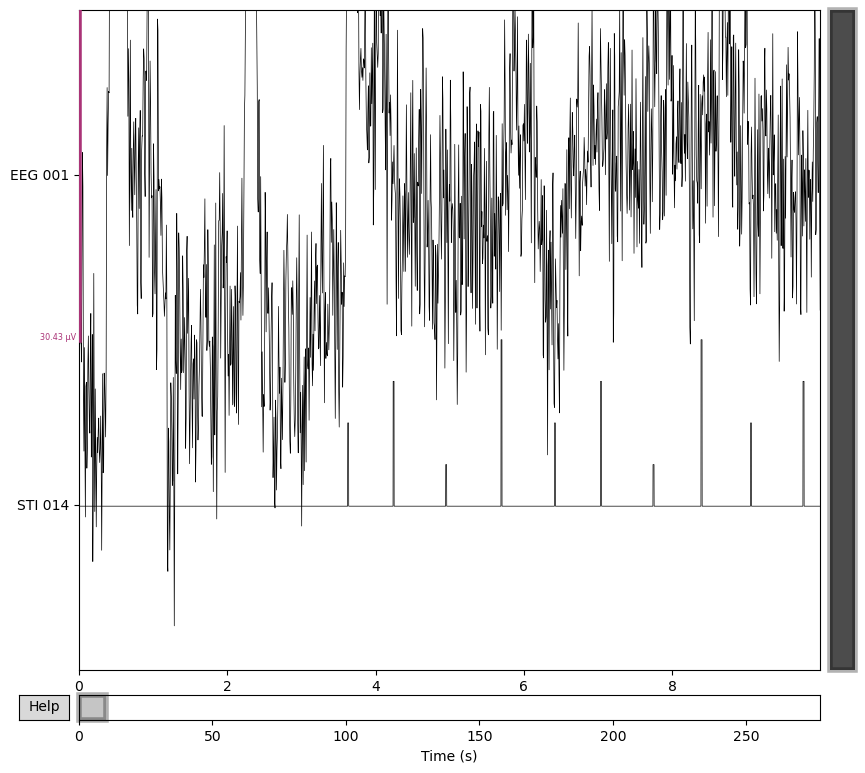

raw.plot(picks=["EEG 001", "STI 014"], scalings="auto");

Exercise: Use mne.find_events() to read the events from the stimulus channel of raw and print the first 10 events. The first column is the sample where the event occurred, the last column is the event code (the middle column is the value of the stimulus channel before the event and can usually be ignored).

events = mne.find_events(raw)
events[:10]

Finding events on: STI 014
320 events found on stim channel STI 014
Event IDs: [ 1  2  3  4  5 32]

array([[27977,     0,     2],
       [28345,     0,     3],
       [28771,     0,     1],
       [29219,     0,     4],
       [29652,     0,     2],
       [30025,     0,     3],
       [30450,     0,     1],
       [30839,     0,     4],
       [31240,     0,     2],
       [31665,     0,     3]])

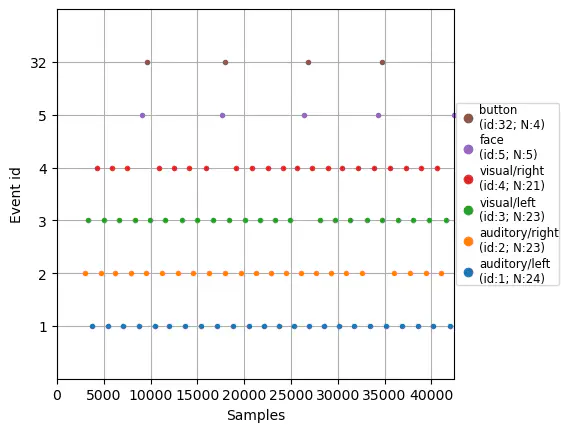

Example: Use mne.viz.plot_events() to plot the first 100 entries of events. Set first_samp=25000 because the first part of the recording does not contain any events.

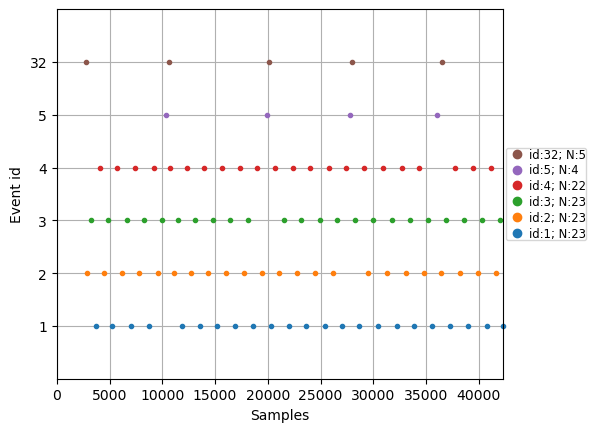

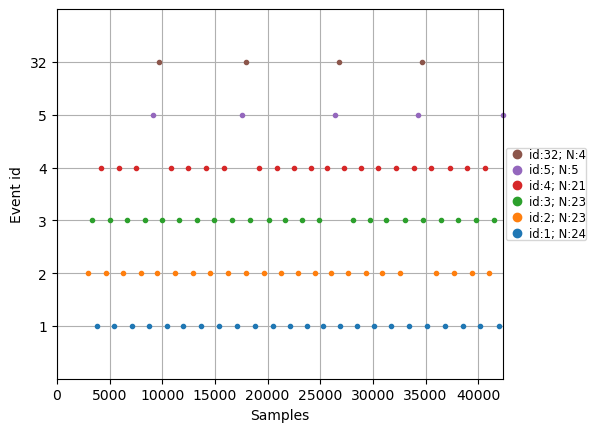

mne.viz.plot_events(events[:100], first_samp=25000);

Exercise: Plot the next 100 entries in events and set first_samp=65000.

Solution

mne.viz.plot_events(events[100:200], first_samp=65000);

The events are encoded as integer numbers, but we can attach labels to them to describe the actual event that is represented by each number. The dictionary event_id contains descriptions of the different events in our data.

event_id = {
    "auditory/left": 1,
    "auditory/right": 2,
    "visual/left": 3,
    "visual/right": 4,
    "face": 5,
    "button": 32,
}

Exercise: Plot the first 100 entries in events again but set event_id=event_id to display the event description in the legend. Can you guess from the plot what the "button" event corresponds to?

Solution

mne.viz.plot_events(events[:100], first_samp=25000, event_id=event_id);

Example: Merge the events 3 and 4 (i.e. the left and right visual stimuli), encode the merged event with the number 34 and overwrite the existing events.

events = mne.merge_events(events, ids=[3,4], new_id=34)

Exercise: Merge the events 1 and 2 (i.e. the left and right auditory stimuli), encode the merged event with the number 12 and overwrite the existing events.

events = mne.merge_events(events, ids=[1,2], new_id=12)

Exercise: Create a new event_id dictionary with the keys "auditory" and "visual" mapped to the merged event codes 12 and 34.

event_id = {
    "auditory": 12,
    "visual": 34,
    "face": 5,
    "button": 32,
}

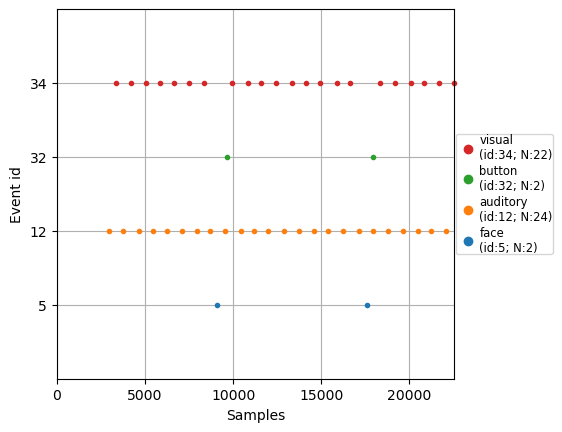

Exercise: Plot the first 50 entries in events with the new event_id.

mne.viz.plot_events(events[:50], first_samp=25000, event_id=event_id);

Background

Once the events have been identified, the continuous EEG recording can be cut into short segments called epochs, each time-locked to an event of interest. mne.Epochs takes the raw data, the events array, the event_id dictionary, and the desired time window around each event. Specific event types can be selected by indexing the Epochs object with a key from event_id (e.g. epochs["auditory"]). Averaging all epochs of the same type cancels out the random background noise and reveals the event-related potential (ERP) — the consistent, time-locked brain response.

Baseline correction removes slow amplitude drifts by subtracting the mean amplitude during a pre-stimulus reference period from the entire epoch. By default, MNE uses the interval from the start of the epoch to the event onset (time 0) as the baseline. Choosing an appropriate baseline is important: if the baseline interval contains event-related activity, it will be subtracted from the rest of the signal, introducing spurious features into the ERP.

Exercises

In the following exercises, you are going to compute epochs from the continuous raw EEG data, average them and visualize the ERP for different stimulus conditions. You are also going to play with the baseline argument to explore how selecting a baseline interval affects the resulting ERP. Here are the code snippets you’ll need:

Example: Slice the raw data into Epochs from -0.3 to 1.0 seconds relative to every event in events and plot the first 5 epochs.

epochs = mne.epochs.Epochs(raw, events, event_id=event_id, tmin=-0.3, tmax=1.0)

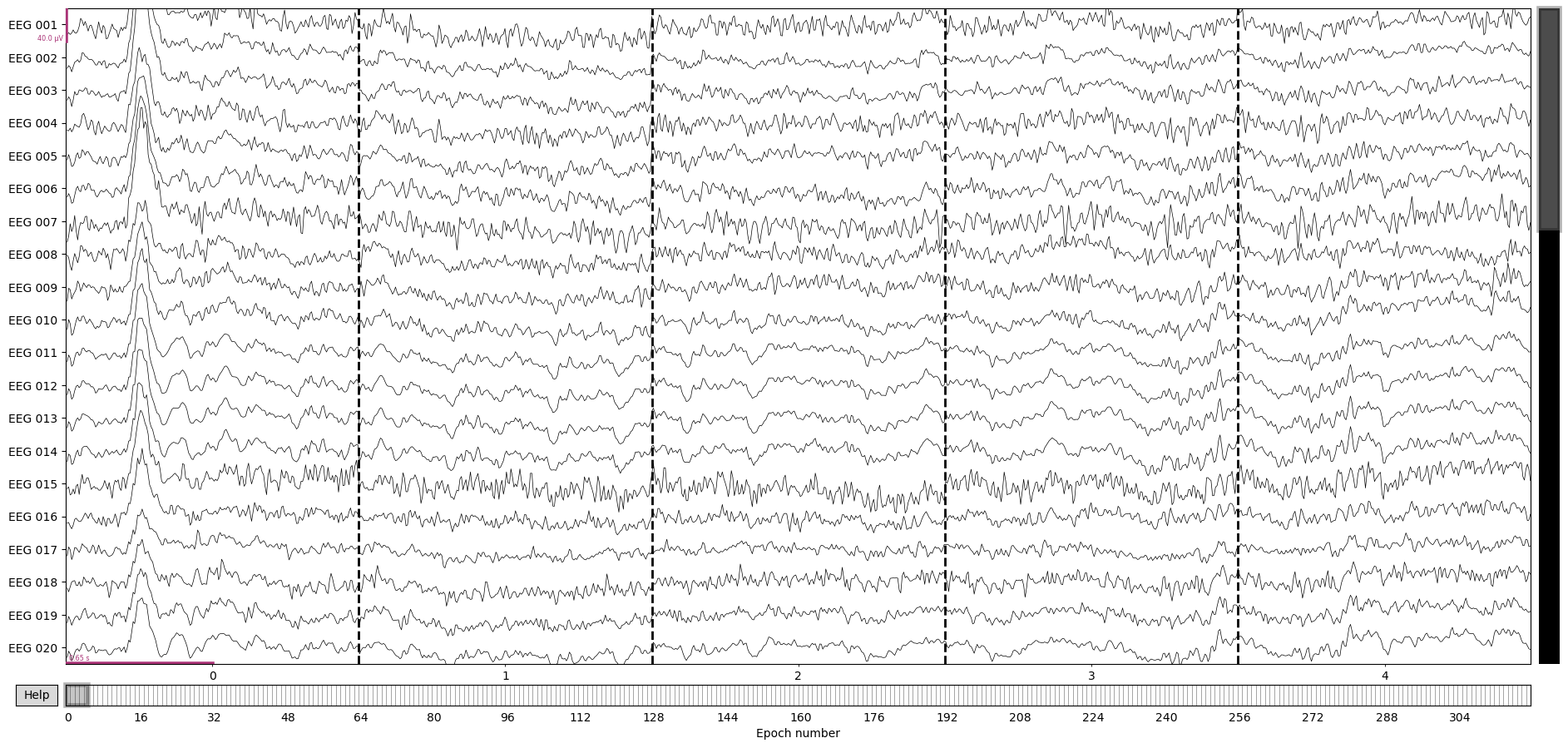

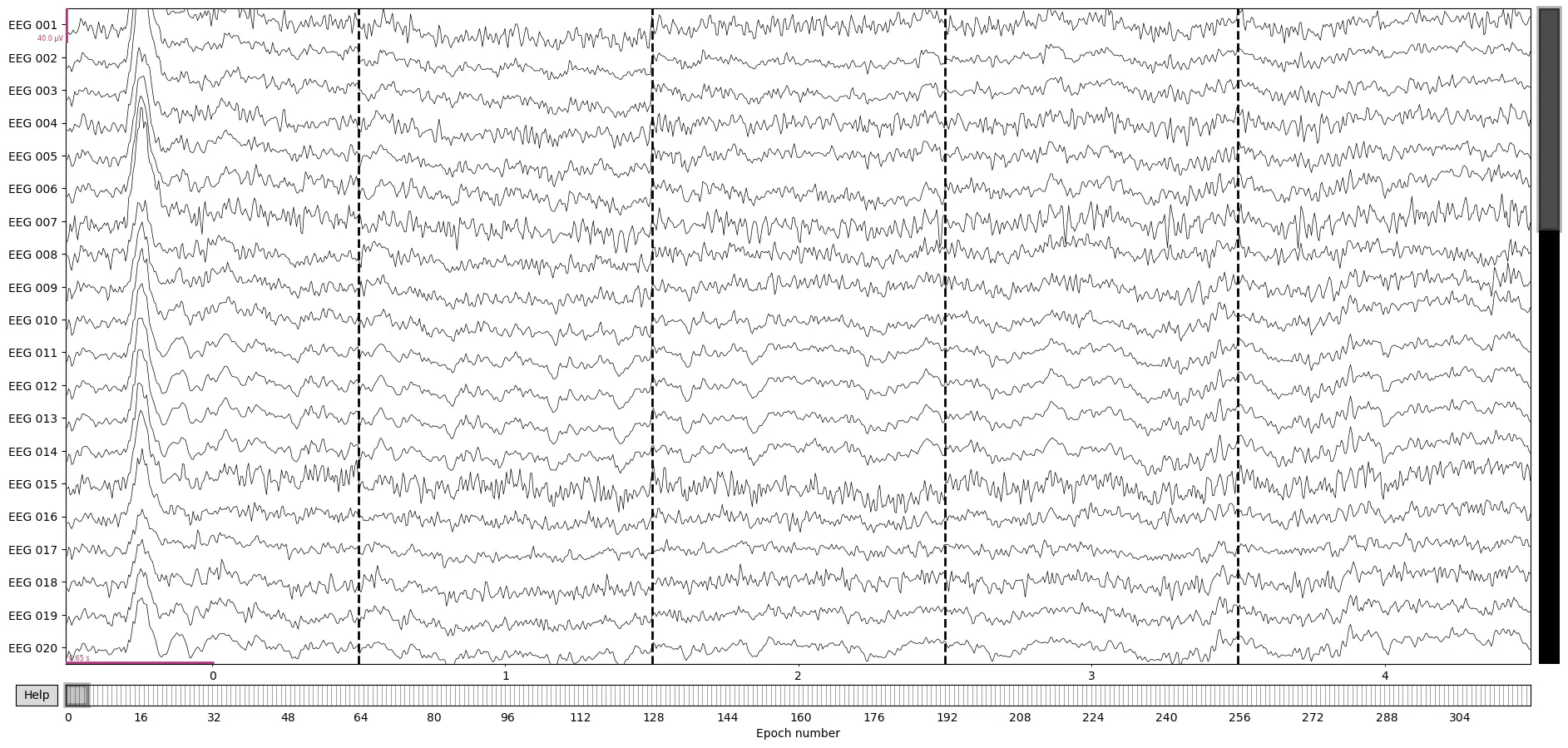

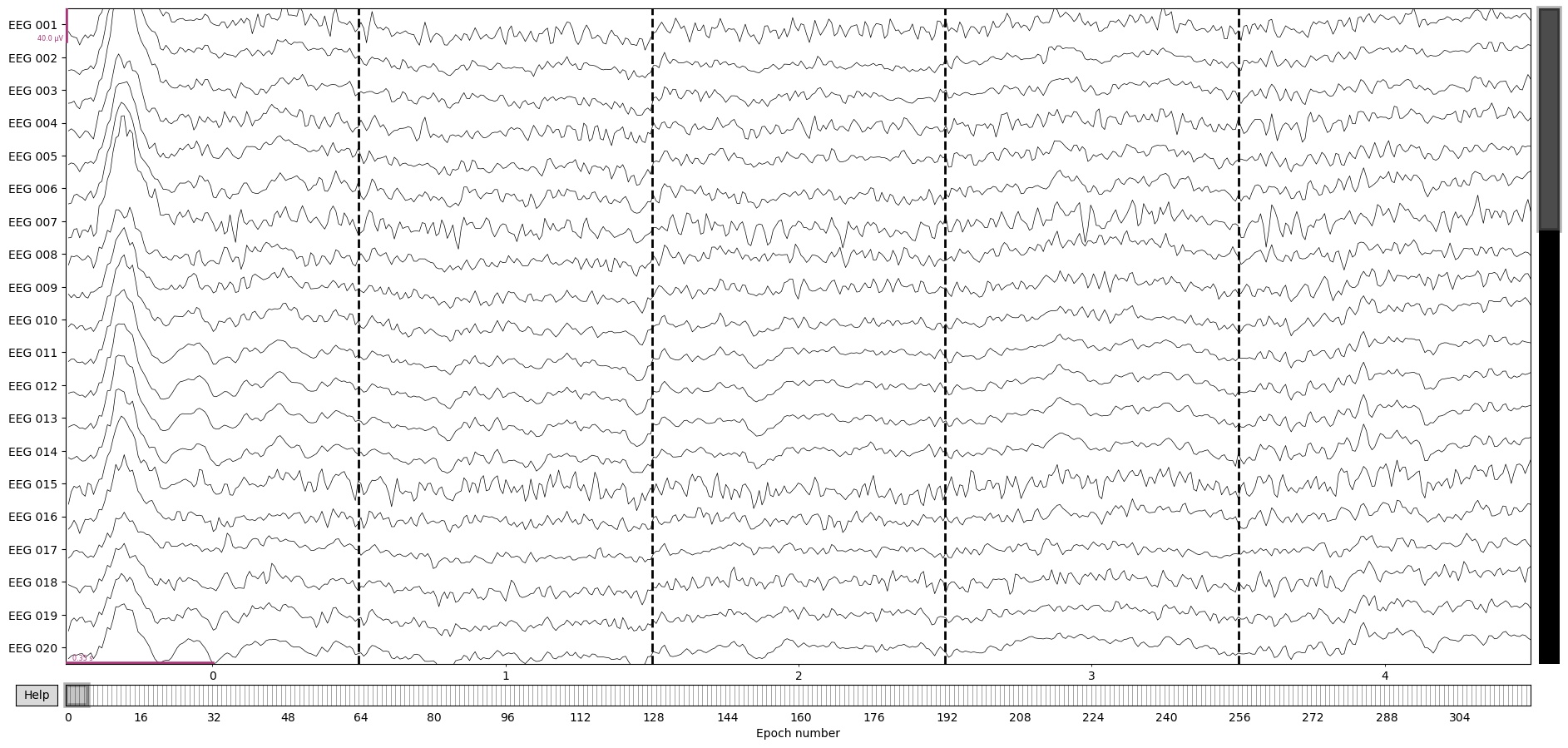

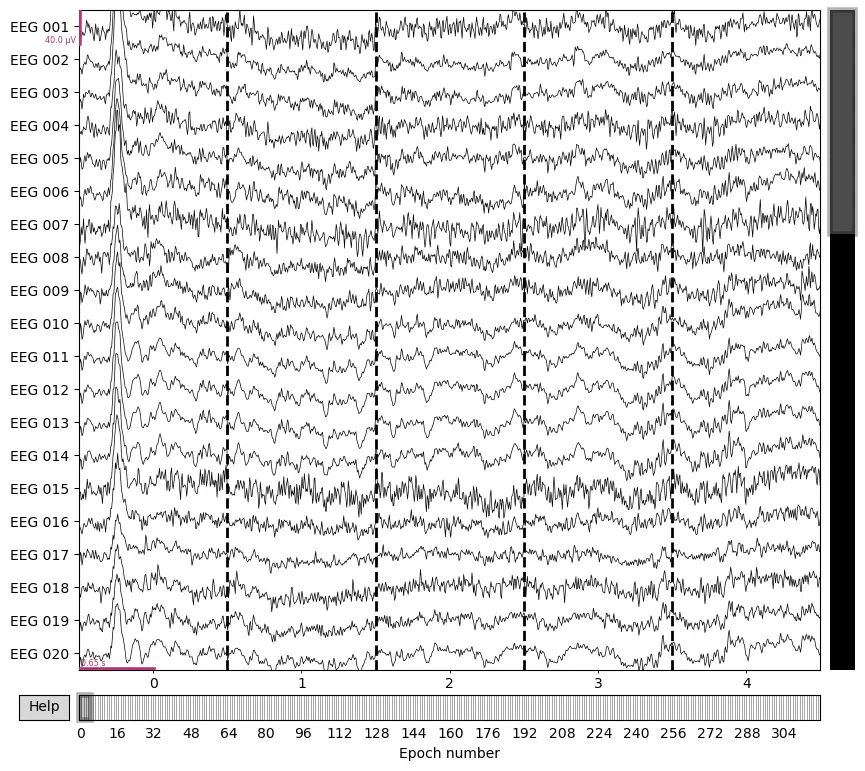

epochs.plot(n_epochs=5);

Not setting metadata
320 matching events found
Setting baseline interval to [-0.2996928197375818, 0.0] s
Applying baseline correction (mode: mean)
0 projection items activated
Using data from preloaded Raw for 320 events and 782 original time points ...
0 bad epochs dropped
Using data from preloaded Raw for 5 events and 782 original time points ...

Exercise: Slice the raw data into Epochs from -0.1 to 0.6 seconds relative to every event in events and plot the first 5 epochs.

Solution

epochs = mne.epochs.Epochs(raw, events, event_id=event_id, tmin=-0.1, tmax=0.6)

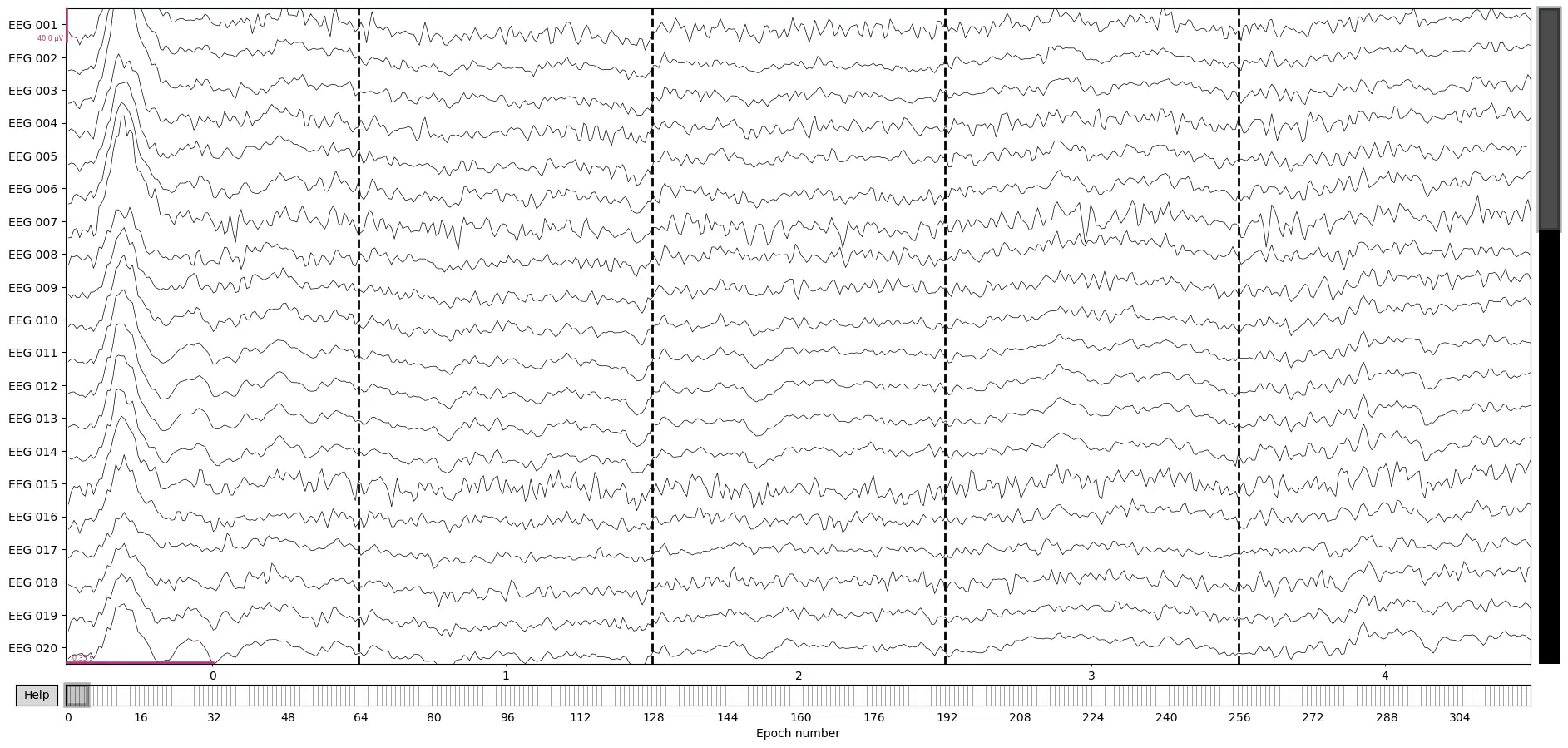

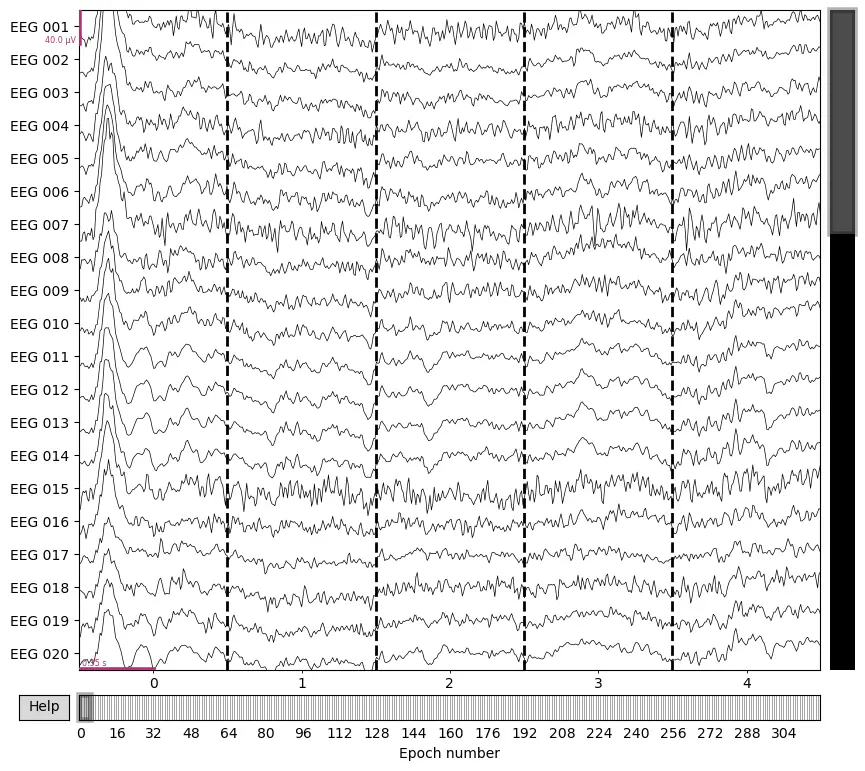

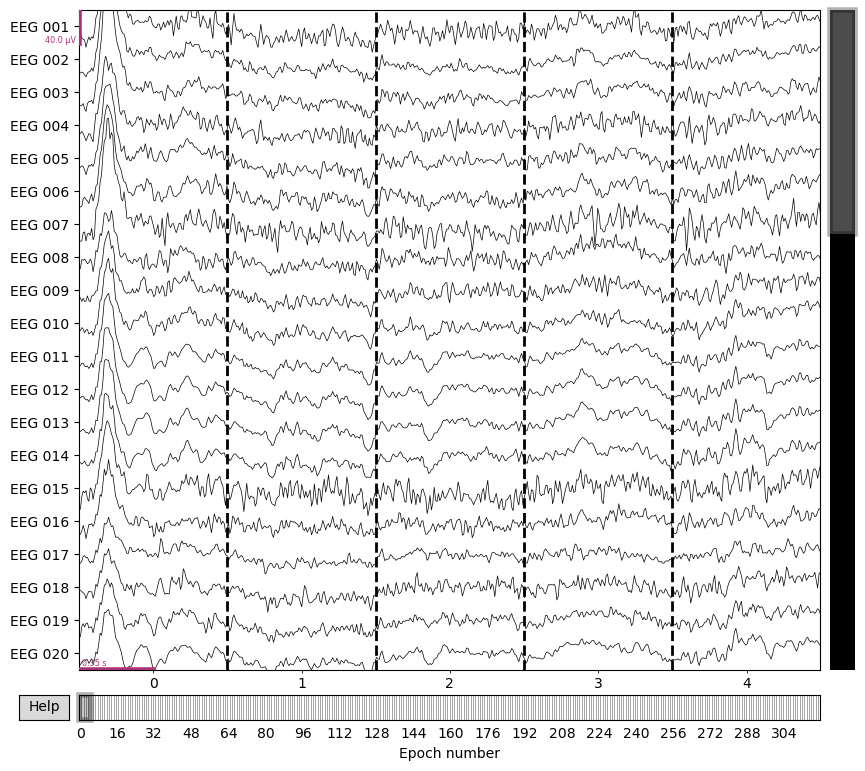

epochs.plot(n_epochs=5);

Not setting metadata
320 matching events found
Setting baseline interval to [-0.09989760657919393, 0.0] s
Applying baseline correction (mode: mean)
0 projection items activated
Using data from preloaded Raw for 320 events and 421 original time points ...
0 bad epochs dropped
Using data from preloaded Raw for 5 events and 421 original time points ...

Example: Average all "visual" epochs and .plot() the ERP. The colors represent the channel locations, shown on the scalp map in the top left corner of the plot.

erp = epochs["visual"].average()

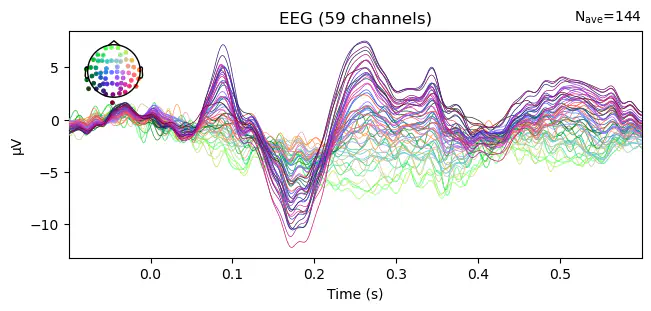

erp.plot();

Exercise: Average all "auditory" epochs and .plot() the ERP.

Solution

erp = epochs["auditory"].average()

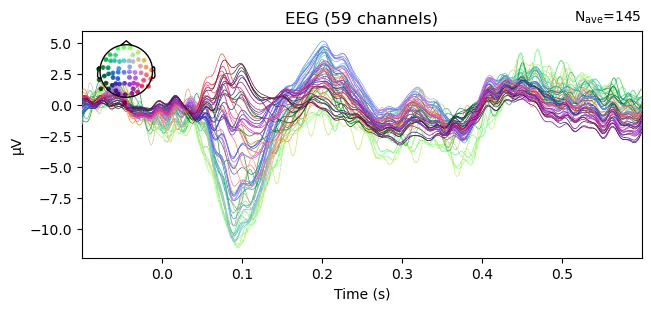

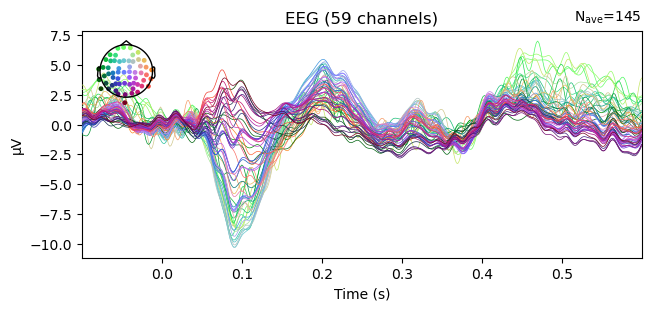

erp.plot();

Exercise: Average all "face" epochs and .plot() the ERP. Why is this average noisier than the previous ones?

Solution

erp = epochs["face"].average()

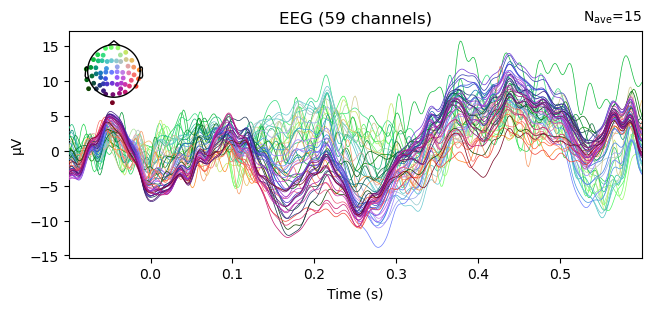

erp.plot();

Example: By default, MNE uses the interval before the event as a baseline period and subtracts it from the rest of the signal. Re-create the Epochs but explicitly set the baseline to the interval (-0.1, 0) and plot the "auditory" ERP.

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.6, baseline=(-0.1, 0))
erp = epochs["auditory"].average()

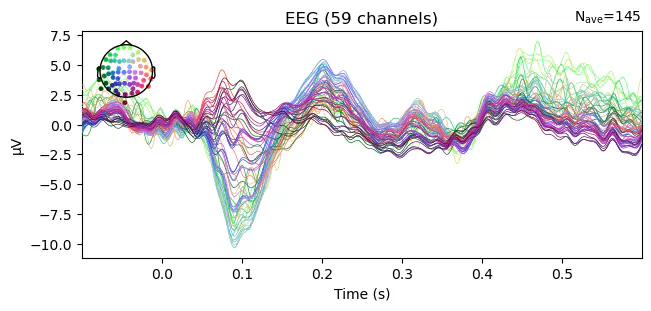

erp.plot();

Not setting metadata
320 matching events found
Applying baseline correction (mode: mean)
0 projection items activated

Exercise: Baseline correction can lead to spurious features because activity in the baseline period can be projected into the rest of the signal. To see what happens when the baseline contains event-related activity, re-create the Epochs and set the baseline interval to (0.05, 0.15). Then, plot the "auditory" ERP again.

Solution

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.6, baseline=(0.05, 0.15))

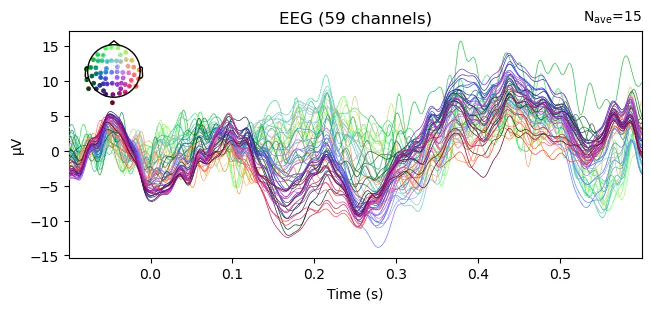

erp = epochs["auditory"].average()
erp.plot();

Not setting metadata
320 matching events found
Applying baseline correction (mode: mean)
0 projection items activated

Exercise: It’s usually a good idea to check how the data looks without a baseline. Re-create the Epochs and set the baseline argument to None. Then, plot the "auditory" ERP again.

Solution

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.6, baseline=None)
erp = epochs["auditory"].average()
erp.plot();

Not setting metadata
320 matching events found
No baseline correction applied
0 projection items activated

Background

All EEG measurements are potential differences between two points: the active electrode and a reference electrode. The choice of reference affects the amplitude and topography of the ERP — not because the underlying brain activity changes, but because all voltages are expressed relative to a different point. A useful analogy is a landscape of hills and valleys: the terrain does not change, but every elevation value changes depending on where you set the zero level.

Common reference choices include:

• Single electrode (e.g. a mastoid or vertex electrode): simple and reproducible, but biased by the activity of that channel
• Linked mastoids (average of left and right mastoid electrodes): commonly used in auditory research, reduces the bias of a single reference
• Average reference (mean of all electrodes): considered the most unbiased choice for dense arrays, as no single electrode dominates

Exercises

In this section, you are going to learn how to change the reference electrode using the .set_eeg_reference() method. To visualize the effect of different references, you are going to use the .plot_joint() method which combines the ERP time course with topographical maps that are great for visualizing the distribution of voltage across the scalp. Here are the relevant code snippets:

Run the cell below to re-create the Epochs between -0.1 and 0.5 seconds without a baseline.

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.5, baseline=None, preload=True)

Not setting metadata
320 matching events found
No baseline correction applied
0 projection items activated
Using data from preloaded Raw for 320 events and 361 original time points ...
0 bad epochs dropped

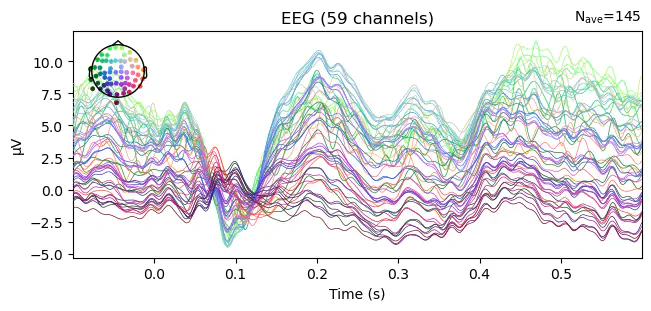

Example: Compute the "auditory" ERP and use the .plot_joint() method to visualize it along with the topographical distribution of voltage at [0.095, 0.2] seconds.

erp = epochs["auditory"].average()

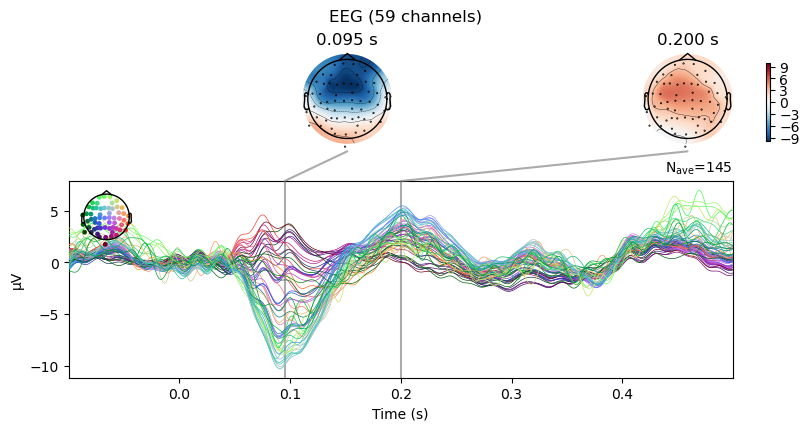

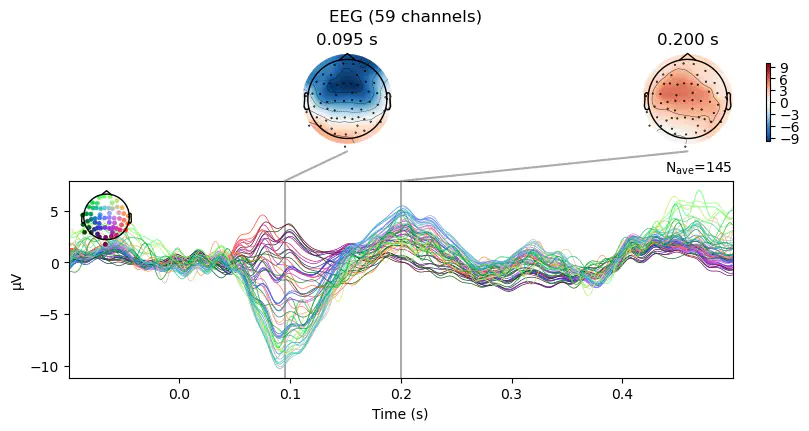

erp.plot_joint(times=[0.095, 0.2]);

No projector specified for this dataset. Please consider the method self.add_proj.

Exercise: Compute the "visual" ERP and use the .plot_joint() method to visualize it along with the topographical distribution of voltage at [0.09, 0.18, 0.26] seconds.

Solution

erp = epochs["visual"].average()

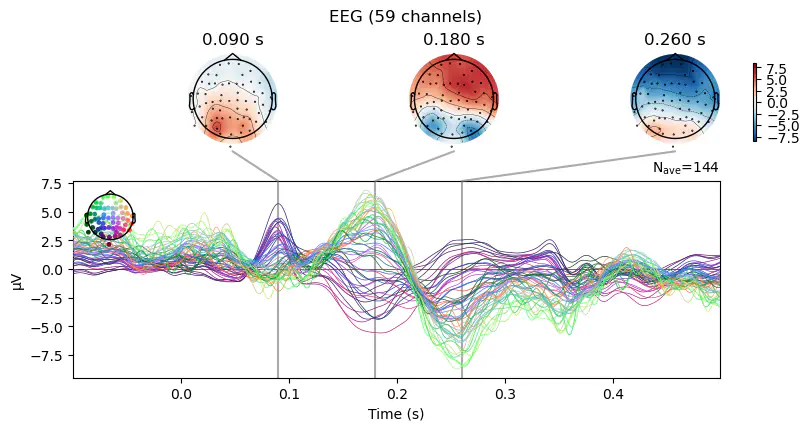

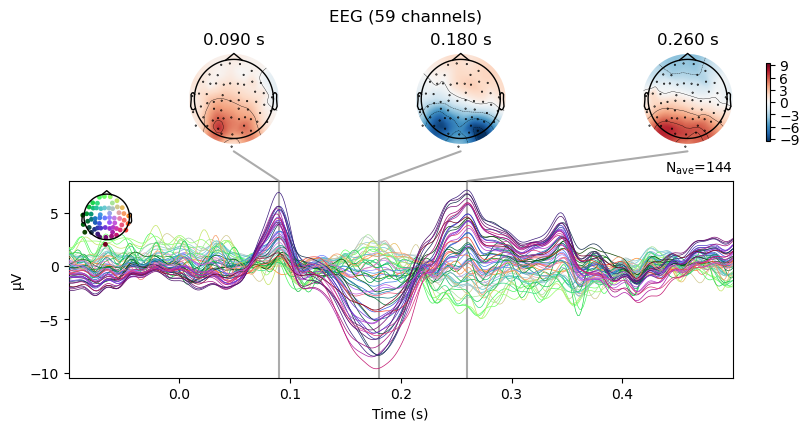

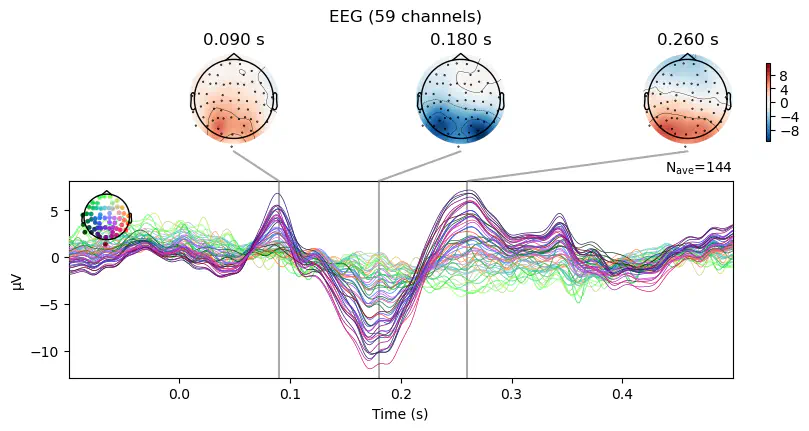

erp.plot_joint(times=[0.09, 0.18, 0.26]);

No projector specified for this dataset. Please consider the method self.add_proj.

Exercise: Use .set_eeg_reference() to reference the recording to the "average" of all channels. Then, re-compute the ERP and visualize it with .plot_joint() using the same times as before. Compare the topographical voltage distributions to the previous plot.

Solution

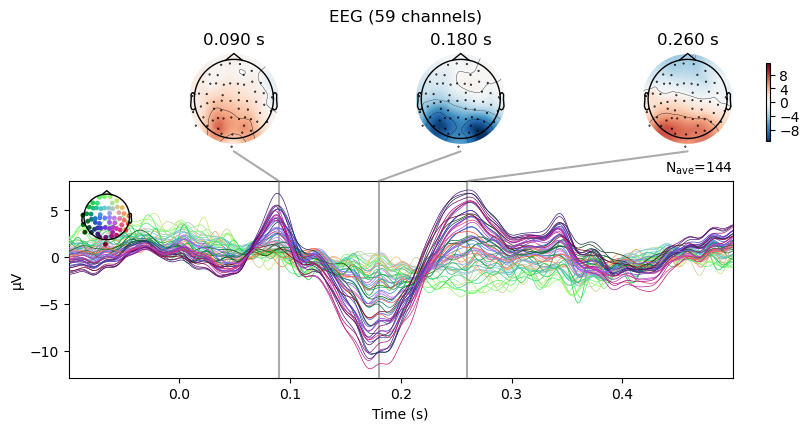

epochs.set_eeg_reference("average")
erp = epochs["visual"].average()

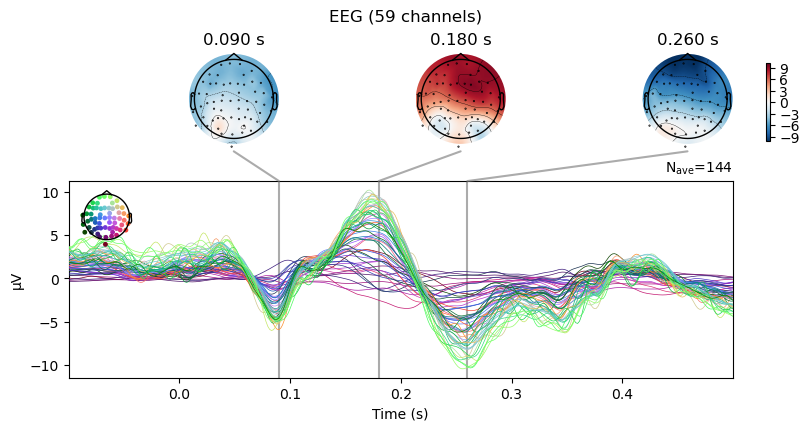

erp.plot_joint(times=[0.09, 0.18, 0.26]);

EEG channel type selected for re-referencing
Applying average reference.
Applying a custom ('EEG',) reference.
No projector specified for this dataset. Please consider the method self.add_proj.

Exercise: Use .set_eeg_reference() to reference the recording to the occipital channel "EEG 060". Then, re-compute the ERP and visualize it with .plot_joint() using the same times as before. Compare the topographical voltage distributions to the previous plot.

Solution

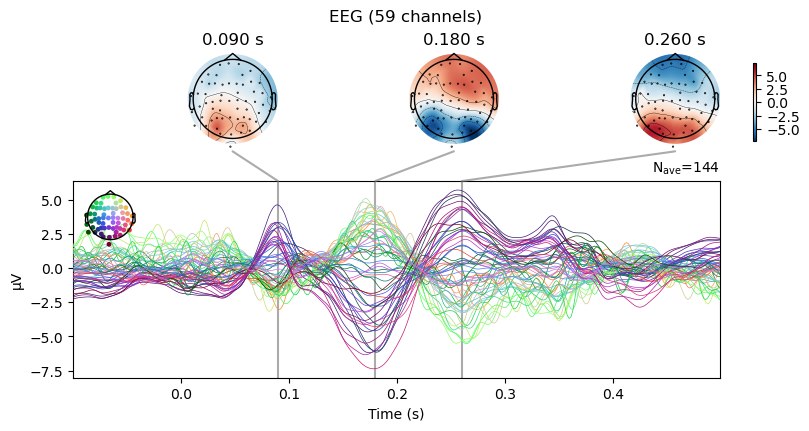

epochs.set_eeg_reference(["EEG 060"])
erp = epochs["visual"].average()
erp.plot_joint(times=[0.09, 0.18, 0.26]);

EEG channel type selected for re-referencing
Applying a custom ('EEG',) reference.
No projector specified for this dataset. Please consider the method self.add_proj.

Exercise: Use .set_eeg_reference() to reference the recording to the average of the lateral channels ["EEG 017", "EEG 024"]. Then, re-compute the ERP and visualize it with .plot_joint() using the same times as before.

Solution

epochs.set_eeg_reference(["EEG 017", "EEG 024"])
erp = epochs["visual"].average()
erp.plot_joint(times=[0.09, 0.18, 0.26]);

EEG channel type selected for re-referencing
Applying a custom ('EEG',) reference.
No projector specified for this dataset. Please consider the method self.add_proj.

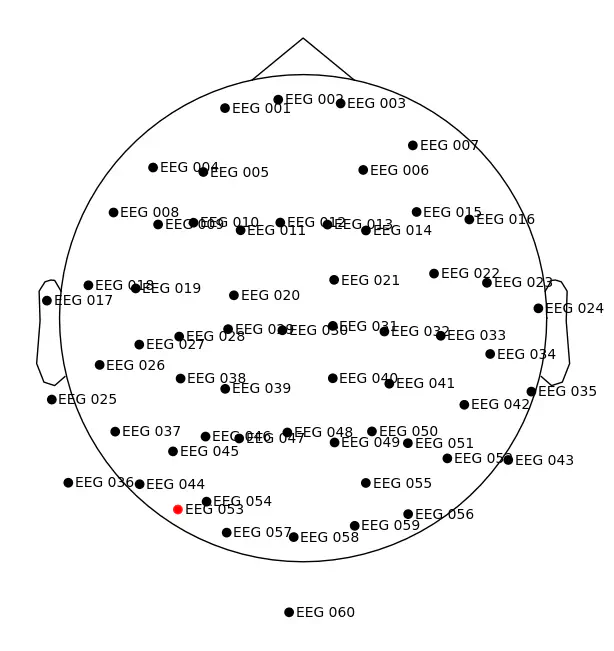

Exercise: Run the cell below to plot all EEG sensors with their names. Select a channel or a combination of channels, set them as the reference and visualize the ERP with .plot_joint(). Try to anticipate how the plot will look (for example, you could choose the channel with the largest amplitude as reference).

epochs.plot_sensors(show_names=True);

Solution

epochs.set_eeg_reference(["EEG 057", "EEG 059"])
erp = epochs["visual"].average()
erp.plot_joint(times=[0.09, 0.18, 0.26]);

EEG channel type selected for re-referencing
Applying a custom ('EEG',) reference.
No projector specified for this dataset. Please consider the method self.add_proj.

Background

EEG recordings inevitably contain epochs contaminated by artifacts — large-amplitude deflections caused by muscle activity, eye blinks, electrode pops, or other non-neural sources. Including these outlier epochs in the average distorts the ERP and should be avoided. The most common approach is amplitude-based rejection: epochs where any channel exceeds a peak-to-peak amplitude threshold are discarded. The threshold must be chosen carefully — too strict and you lose too many epochs (reducing the signal-to-noise ratio), too lenient and artifacts remain.

A related issue is bad channels — channels that produce consistently noisy data due to poor contact or hardware problems. Rather than losing many epochs because of a single problematic channel, it is better to mark it as bad and ignore it when dropping epochs based on an amplitude threshold.

Exercises

Run the cell below to re-create the Epochs from -0.1 to 0.5 seconds without baseline correction, referenced to channels ["EEG 057", "EEG 059"].

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.5, preload=True, baseline=None)
epochs.set_eeg_reference(["EEG 057", "EEG 059"]);

Not setting metadata
320 matching events found
No baseline correction applied
0 projection items activated
Using data from preloaded Raw for 320 events and 361 original time points ...
0 bad epochs dropped
EEG channel type selected for re-referencing
Applying a custom ('EEG',) reference.

Example: Plot all "visual" epochs as an image. In the top panel, every row in the image represents a single epoch. The bottom panel shows the mean across channels averaged across all epochs. Can you spot outlier epochs where the amplitude is particularly high?

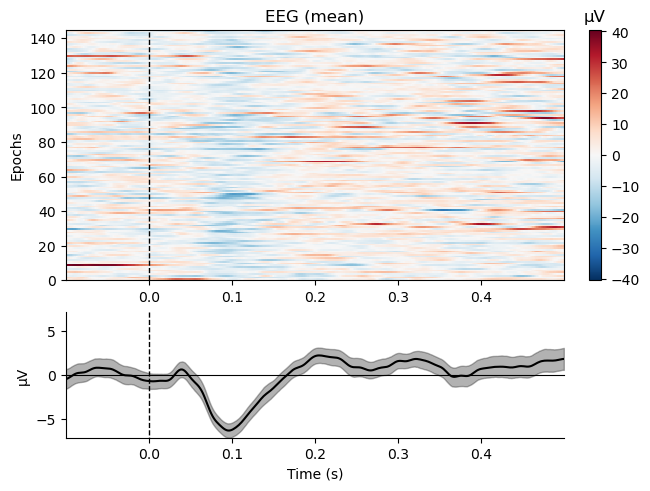

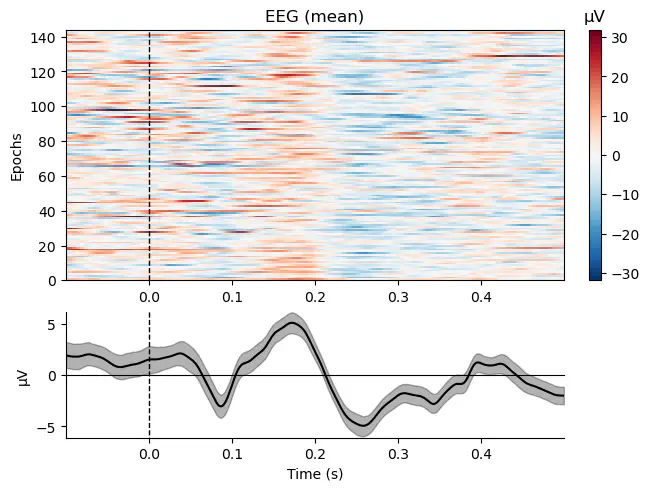

epochs["visual"].plot_image(combine="mean");

Not setting metadata
144 matching events found
No baseline correction applied
0 projection items activated
combining channels using "mean"

Exercise: Plot all "auditory" epochs as an image.

Solution

epochs["auditory"].plot_image(combine="mean");

Not setting metadata
145 matching events found
No baseline correction applied
0 projection items activated
combining channels using "mean"

Example: To remove outlier epochs, define a dictionary of reject_criteria to reject epochs with a peak-to-peak amplitude above $150\mu V$ (i.e. 150e-6 $V$). Then, copy the epochs, apply the rejection criteria and use .plot_drop_log() to see which channels are responsible for the dropped epochs.

reject_criteria = {"eeg":150e-6}
epochs_clean=epochs.copy()
epochs_clean.drop_bad(reject=reject_criteria, verbose=False)

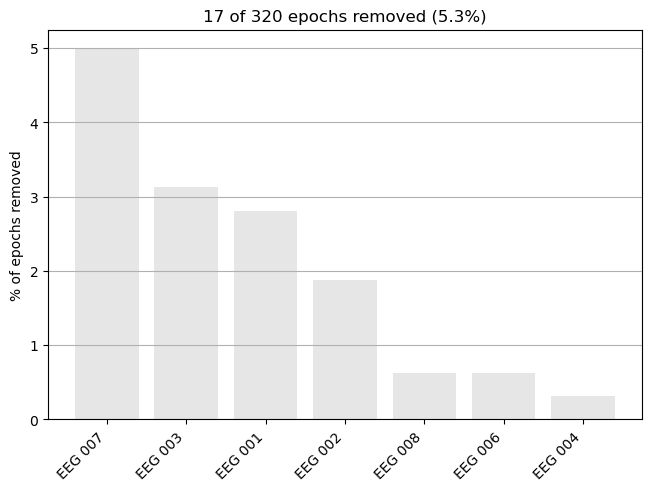

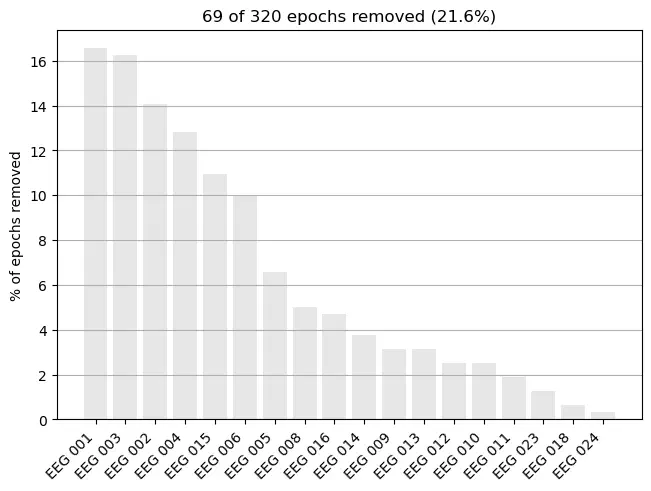

epochs_clean.plot_drop_log();

Exercise: Define a new dictionary of reject_criteria to reject epochs with a peak-to-peak amplitude above $90\mu V$, apply it to a copy of epochs and plot the drop log.

Solution

reject_criteria = {"eeg":90e-6}
epochs_clean=epochs.copy()
epochs_clean.drop_bad(reject=reject_criteria, verbose=False)
epochs_clean.plot_drop_log();

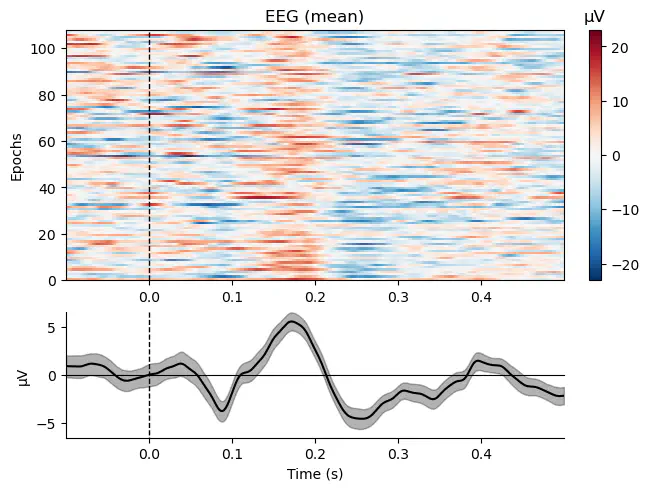

Exercise: Plot all "visual" trials as an image using the cleaned epochs. You should see fewer outliers and a cleaner average compared to the previous image plot.

Solution

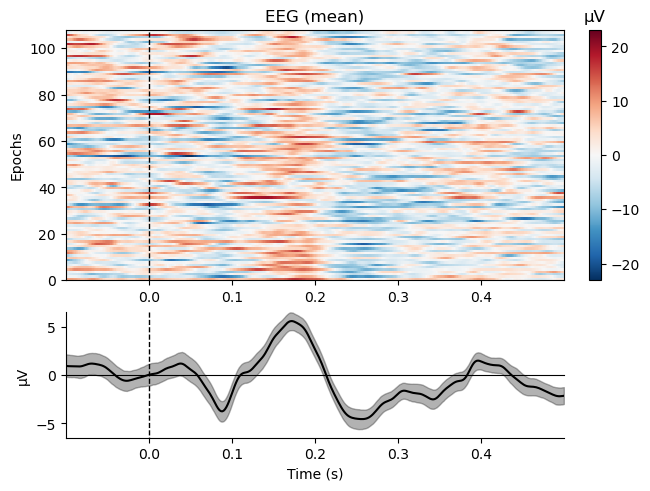

epochs_clean["visual"].plot_image(combine="mean");

Not setting metadata
108 matching events found
No baseline correction applied
0 projection items activated
combining channels using "mean"

Exercise: It seems that the channel "EEG 007" is involved in the largest number of dropped epochs. Add it to the list of bad channels to make .drop_bad() ignore it. Then, apply the same rejection criterion as before and compare the drop log to the previous exercise.

Solution

epochs.info["bads"].append("EEG 007")
epochs_clean=epochs.copy()
epochs_clean.drop_bad(reject=reject_criteria, verbose=False)

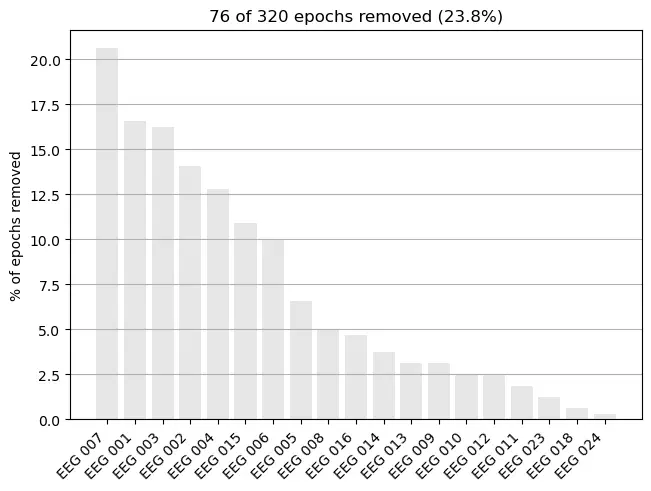

epochs_clean.plot_drop_log();

Background

As we saw in the previous section, certain channels are noisier than others, making it hard to find a rejection threshold that works across all channels. Autoreject (Jas et al., 2017) solves this by automatically estimating the optimal threshold for each channel individually using cross-validation: the data is split into folds, and candidate thresholds are scored by how well the cleaned epochs from one fold can predict the held-out epochs (using RMSE). Bayesian optimization is used to search the threshold space efficiently.

For each epoch, autoreject builds an indicator matrix of which channels exceed their threshold. If the number of bad channels is at most the interpolation limit $\rho$, those channels are interpolated from their neighbors. If more channels are bad, the entire epoch is rejected. This local repair strategy preserves more data than simple global rejection while still removing the most severely contaminated epochs.

Demo

The Autoreject algorithm has to try out many different rejection threshold values, which makes it computationally expensive. To reduce the computational cost, we can reduce the data’s sampling rate by using the decim parameter of the Epochs class. Here, setting decim=4 will only keep every 4th sample, reducing the sampling rate from 600 Hz to 150 Hz. Also, we’ll only focus on the "auditory" epochs.

epochs = mne.epochs.Epochs(raw, events, event_id, tmin=-0.1, tmax=0.5, preload=True, baseline=None, decim=4)
epochs = epochs["auditory"]

Not setting metadata
320 matching events found
No baseline correction applied
0 projection items activated
Using data from preloaded Raw for 320 events and 361 original time points (prior to decimation) ...
0 bad epochs dropped

First, we import the module and create an instance of the AutoReject class. Then we apply the .fit_transform() method to our epochs which finds and applies channel-specific rejection thresholds. This method returns a cleaned version of the epochs as well as a rejection log if return_log=True. This may take a while …

from autoreject import AutoReject

ar = AutoReject(verbose=False)
epochs_clean, reject_log = ar.fit_transform(epochs, return_log=True)

Dropped 29 epochs: 0, 8, 29, 31, 38, 39, 40, 50, 55, 56, 68, 69, 76, 82, 83, 88, 90, 93, 94, 95, 96, 97, 118, 119, 123, 127, 129, 132, 136

The drop log shows us what the algorithm actually did. Each row is one channel and each column is one epoch. Channels marked blue have been interpolated in the given epoch, and epochs marked red have been dropped.

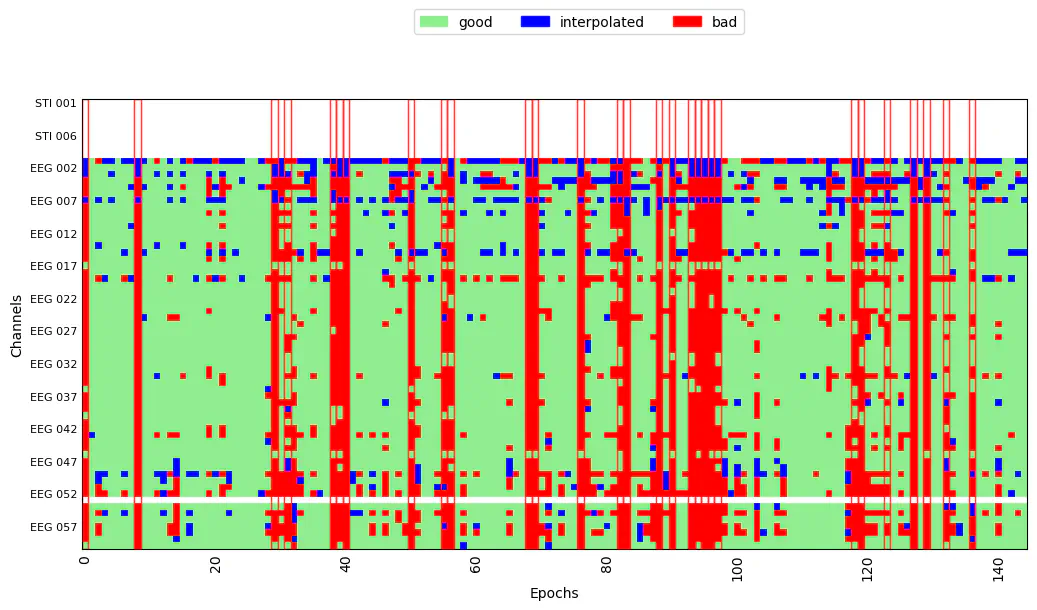

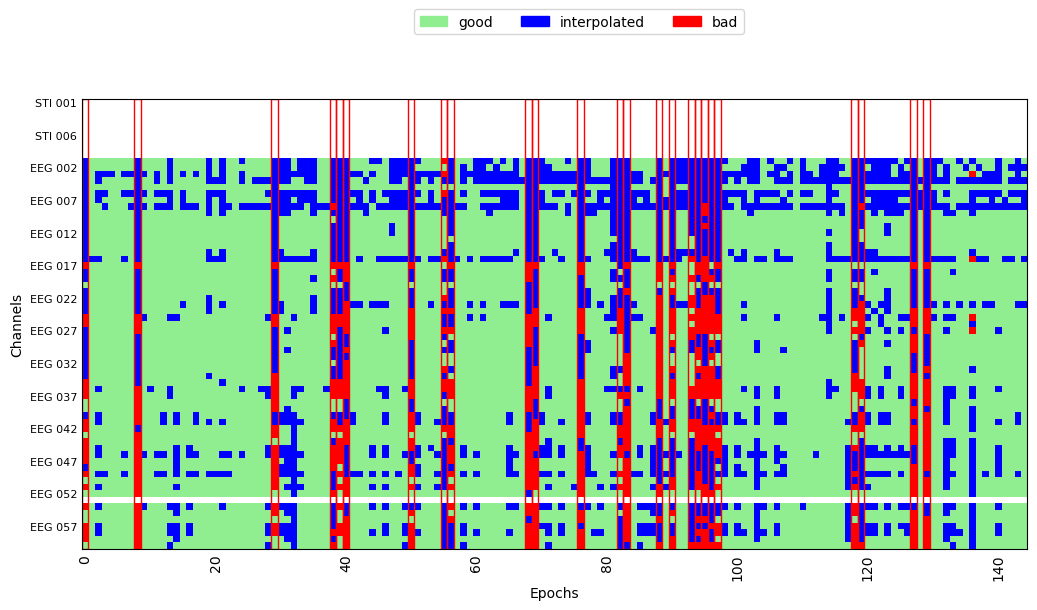

reject_log.plot(orientation='horizontal');

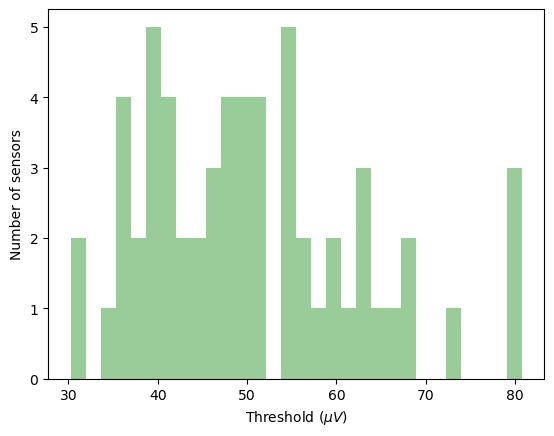

We can also plot the distribution of channel rejection thresholds. Most channels cluster around the same value, but there are a few channels with particularly high thresholds.

plt.hist(1e6 * np.array(list(ar.threshes_.values())), 30,
         color='g', alpha=0.4)
plt.xlabel('Threshold ($\mu V$)')
plt.ylabel('Number of sensors')
plt.show()
