Estimating and Modeling Receptive Field Maps

Setup

Import Libraries

Import the modules required for this notebook

import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
from scipy.ndimage import gaussian_filter
from scipy.optimize import curve_fit
import scipy.ndimage as ndi
import seaborn as sns

Utility Functions

Define the functions required for this notebook

# | code-fold: true
class utils:
    @staticmethod
    def gaussian_2d(xy, b, x0, y0, s_x, s_y, a):
        x, y = xy
        gaussian = (
            b * np.exp(-((x - x0) ** 2 / (2 * s_x**2) + (y - y0) ** 2 / (2 * s_y**2)))
            + a
        )
        return gaussian

    @staticmethod
    def fit_gaussian_2d(rf):

        rf[:] = ndi.gaussian_filter(rf, sigma=1)
        x = rf.columns.astype(float).values
        y = rf.index.astype(float).values
        Z = rf.values
        X, Y = np.meshgrid(x, y)
        xy = np.vstack((X.ravel(), Y.ravel()))  # shape = (2, N)
        z = Z.ravel()
        # initia guesses
        max_w = 80
        lb = [0, x.min(), y.min(), 1e-2, 1e-2, -np.inf]
        ub = [np.inf, x.max(), y.max(), max_w, max_w, np.inf]

        # simple initial guess:
        if z.sum() <= 0:  # no signal (all zeros or negative)
            idx = np.argmax(z)
            yi, xi = np.unravel_index(idx, rf.shape)
            x0 = X[yi, xi]  # peak in x
            y0 = Y[yi, xi]  # peak in y
        else:
            x0 = np.sum(X * rf.values) / z.sum()  # center-of-mass in x
            y0 = np.sum(Y * rf.values) / z.sum()  # center-of-mass in y
        b0 = z.max() - z.min()  # amplitude
        a0 = z.min()  # offset (baseline)
        s0 = max((np.ptp(x), np.ptp(y))) / 4.0  # rough width
        p0 = [b0, x0, y0, s0, s0, a0]

        popt, pcov = curve_fit(utils.gaussian_2d, xy, z, p0=p0, bounds=(lb, ub))
        return popt, xy

    @staticmethod
    def r_squared(y, y_fit):
        y = y.to_numpy().flatten()
        y_fit = y_fit.flatten()
        ss_res = np.sum((y - y_fit) ** 2)
        ss_tot = np.sum((y - np.mean(y_fit)) ** 2)
        r2 = 1 - (ss_res / ss_tot)
        if r2 < 0:
            r2 = 0
        return r2

    @staticmethod
    def get_rf_outline(popt, sigma=1):
        x0, y0, sigma_x, sigma_y = popt[1:5]
        theta = np.linspace(0, 2 * np.pi, 100)
        x = x0 + sigma * sigma_x * np.cos(theta)
        y = y0 + sigma * sigma_y * np.sin(theta)
        return x, y

Download Data

Download the data required for this notebook

import requests

url = "https://uni-bonn.sciebo.de/s/Smx83PH5Wgf7mDe"
fname = "gabor_spikes.parquet"
response = requests.get(f"{url}/download")
print("Downloading Data ...")
with open(fname, "wb") as file:
    file.write(response.content)
print("Done!")

Downloading Data ...
Done!

Section 1: Computing and Visualizing Receptive Field Maps

Many sensory systems, such as vision, somatosensation and audition exhibit perceptual maps where neurons respond to specific regions of the perceptual space - in vision this is literally the patch of the visual field; in audition it’s a band of frequencies; in somatosensation it’s a patch of skin. The fraction of perceptual space to which a neuron responds is the neuron’s receptive field. One can map a neuron’s receptive field by recordings its responses while sampling the perceptual space. In this section, we are going to explore how to compute receptive field maps for visual neurons. We are going to use recordings from a mouse that was presented with gabor patches - simple visual gratings, presented at a specific location with a specific orientation. By counting the number of spikes elicited by a Gabor patch at every position, we can estimate a receptive field map that reveals the patch of the visual field the neurons responds to.

Exercise: Load the data stored in "gabor_spikes.parquet" into a pandas data frame.

df = pd.read_parquet("gabor_spikes.parquet")

Exercise: What are the different values for "x_position", "y_position" and "orientation" in the data?

df["x_position"].unique(), df["y_position"].unique(), df["orientation"].unique()

(array([ 10.,  40., -20., -40.,   0., -30.,  20.,  30., -10.]),
 array([ 10., -40.,  30.,  20.,   0.,  40., -30., -20., -10.]),
 array([90., 45.,  0.]))

Example: Compute the average receptive field map rf for the whole recording by grouping the data by "x_position" and "y_position", getting the .size() an .unstack()ing the result to get a 2D grid.

rf = df.groupby(["y_position", "x_position"]).size().unstack()
rf

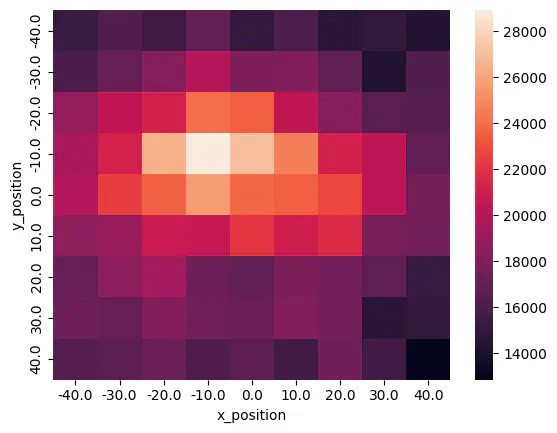

Exercise: Plot the receptive field rf with sns.heatmap.

Solution

sns.heatmap(rf)

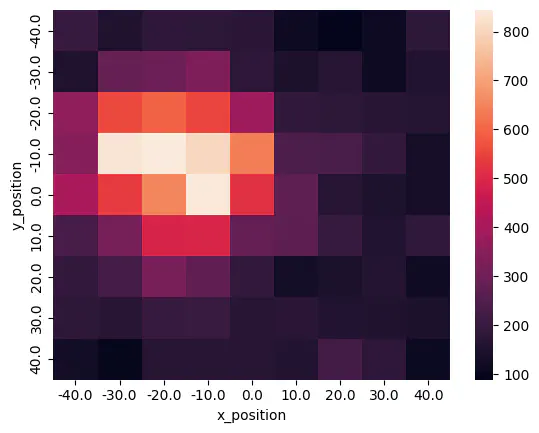

Exercise: Plot the receptive field map for unit 951028431.

Solution

unit = 951028431
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
sns.heatmap(rf)

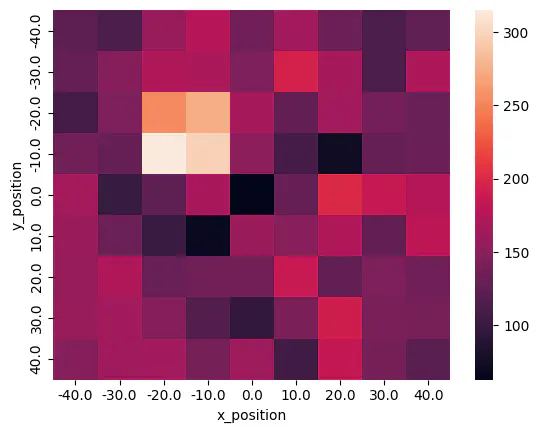

Exercise: Plot the receptive field map for unit 951027930.

Solution

unit = 951027930
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
sns.heatmap(rf)

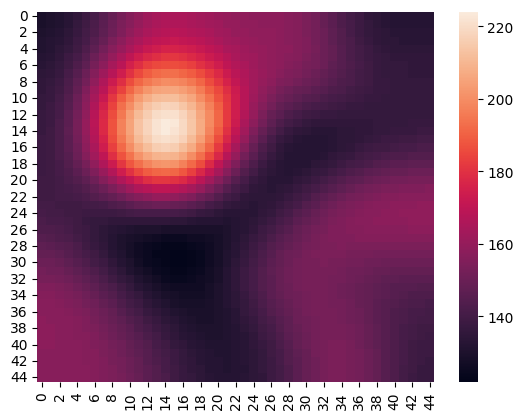

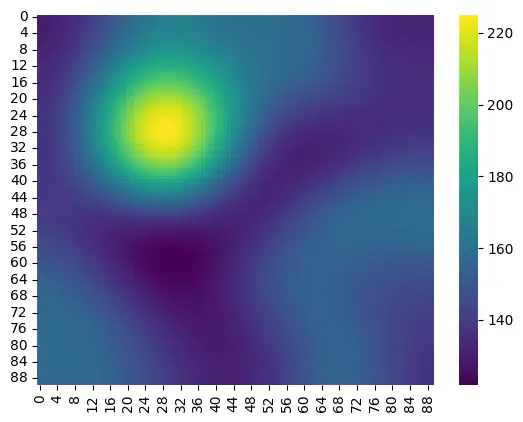

Example: Use ndi.zoom to upscale the receptive field map by a factor of zoom=5 and then use ndi.gaussian_filter to smooth the image.

rf_interp = ndi.gaussian_filter(ndi.zoom(rf, zoom=5), sigma=5)
sns.heatmap(rf_interp)

Exercise: Re-create the plot above with sigma=5.

Solution

rf_interp = ndi.gaussian_filter(ndi.zoom(rf, zoom=5), sigma=5)
sns.heatmap(rf_interp)

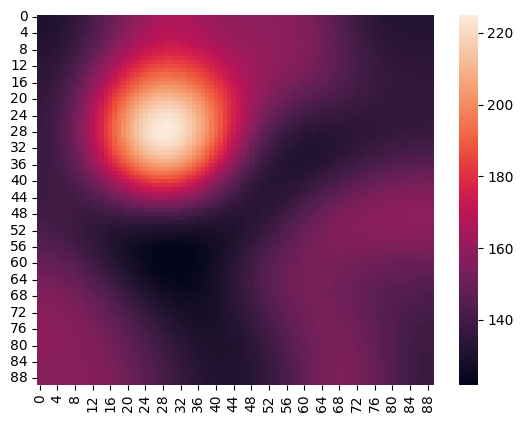

Exercise: Re-create the plot above with zoom=10 and sigma=10. What are the advantages and downsides of applying upscaling and smoothing?

Solution

rf_interp = ndi.gaussian_filter(ndi.zoom(rf, zoom=10), sigma=10)
sns.heatmap(rf_interp)

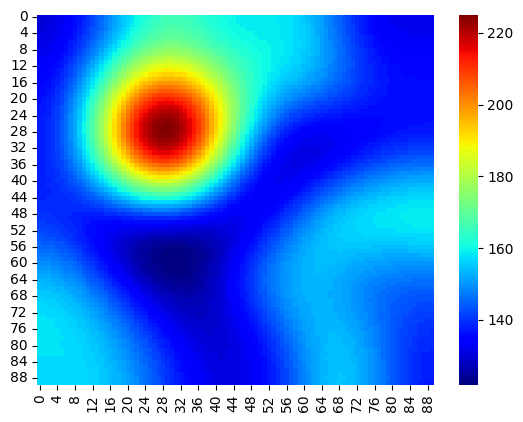

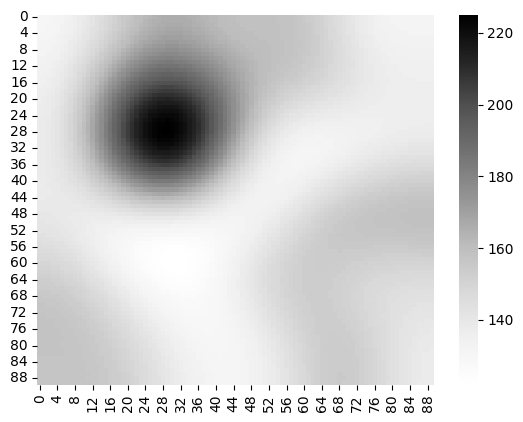

Exercise: Re-create the heatmap plot of the interpolated image but add the cmap argument. Try the values "viridis", "Greys" and "jet". Which of these is a good colormap choice for a receptive field plot?

Solution

for cmap in ["viridis", "Greys", "jet"]:
    plt.figure()
    sns.heatmap(rf_interp, cmap=cmap)

Section 2: Visualizing Receptive Fields Across Brain Areas

Now we know how to compute and visualize receptive field maps. However, modern multi-electrode recordings contain lots of neurons such that plotting and inspecting them individually is not feasible. Fortunately, seaborn provides the FacetGrid class for generating multi-plot grids which allows us to quickly visualize and compare large numbers of neurons. When instantiating a FacetGrid, we provide a data frame and the categories that make up th rows and columns of our plot. We then map a function to the data frame that performs some plotting operation and seaborn will automatically determine the correct location of the plot.

Exercises

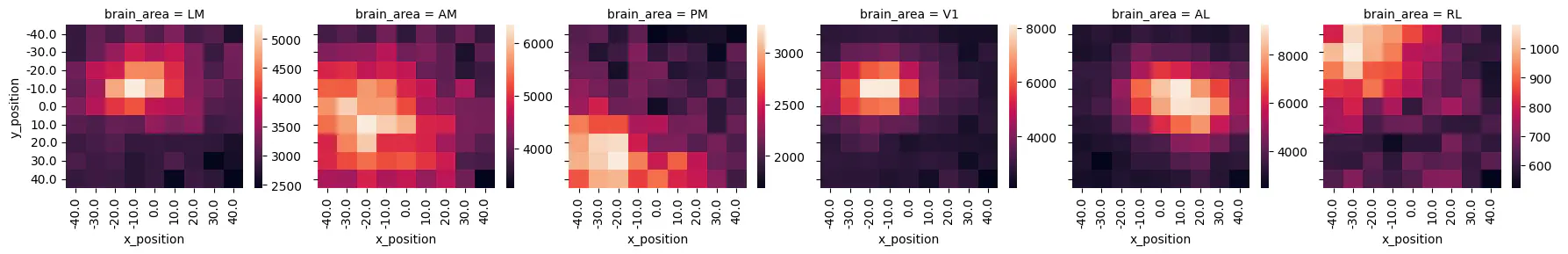

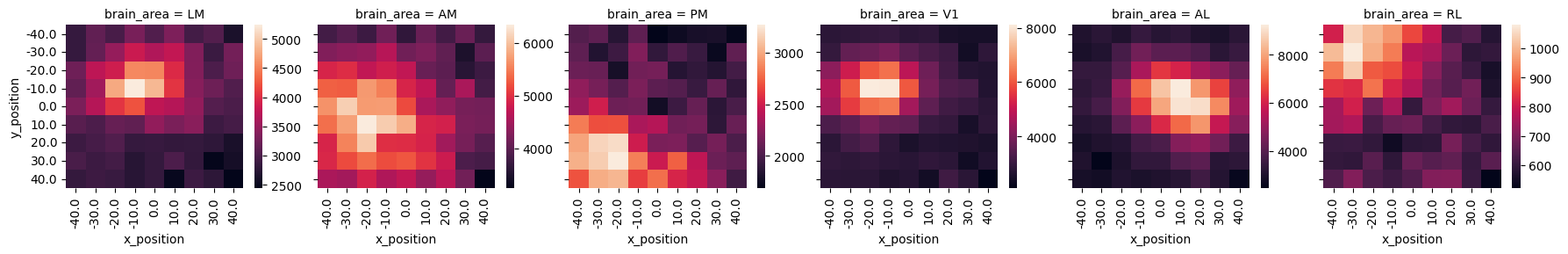

Example: Create a multi-plot grid where each column represents one "brain_area", then define a function fun that takes in a data frame data, computes the receptive field map and plots it and map that function to the grid to plot the average rf for every brain area.

def fun(data, *args, **kwargs):
    rf = data.groupby(["y_position", "x_position"]).size().unstack()
    sns.heatmap(rf)


g = sns.FacetGrid(data=df, col="brain_area")
g.map_dataframe(fun)

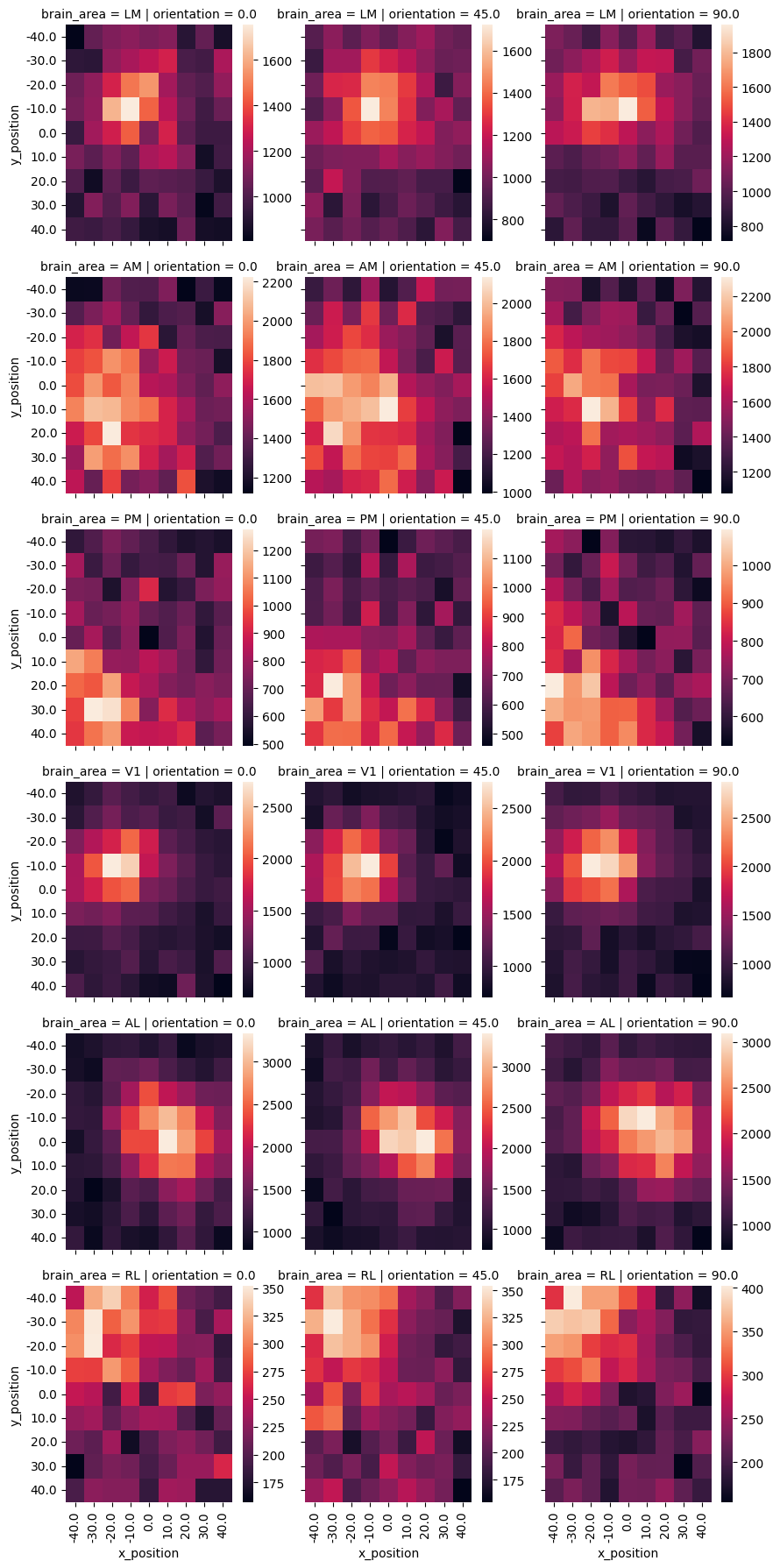

Exercise: Create a multi-plot grid where each row represents one "brain_area" and each column represents one "orientation". Then, map the function fun to the grid to draw the average receptive field map for every brain area and every stimulus orientation.

Solution

g = sns.FacetGrid(data=df, row='brain_area', col='orientation')
g.map_dataframe(fun)

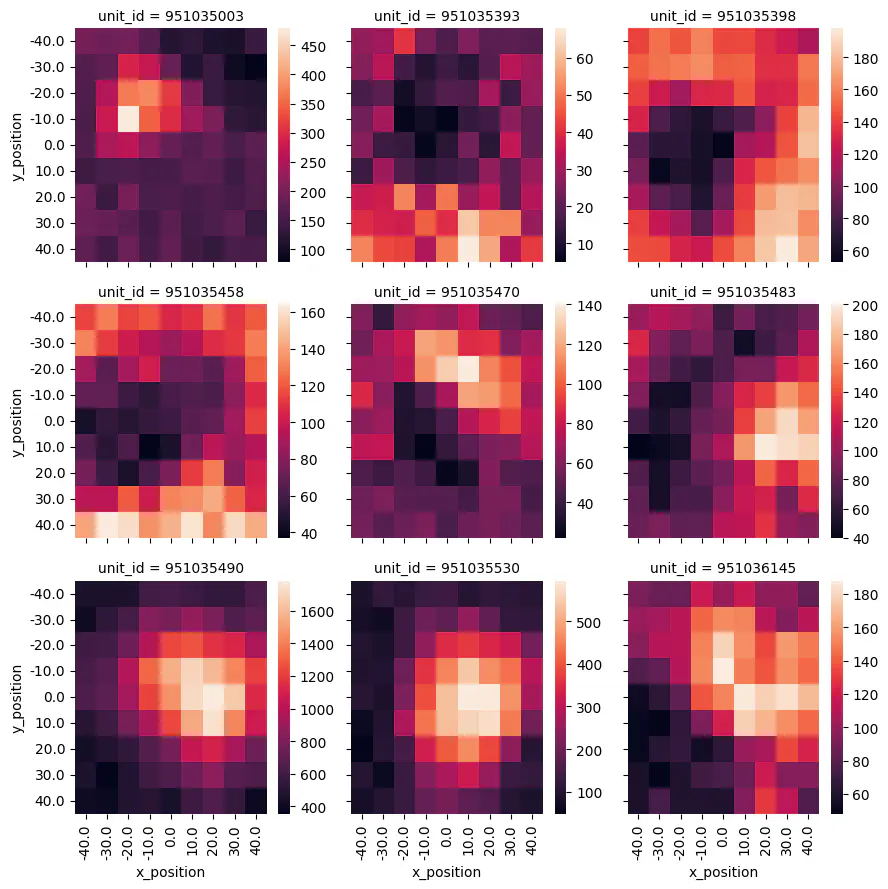

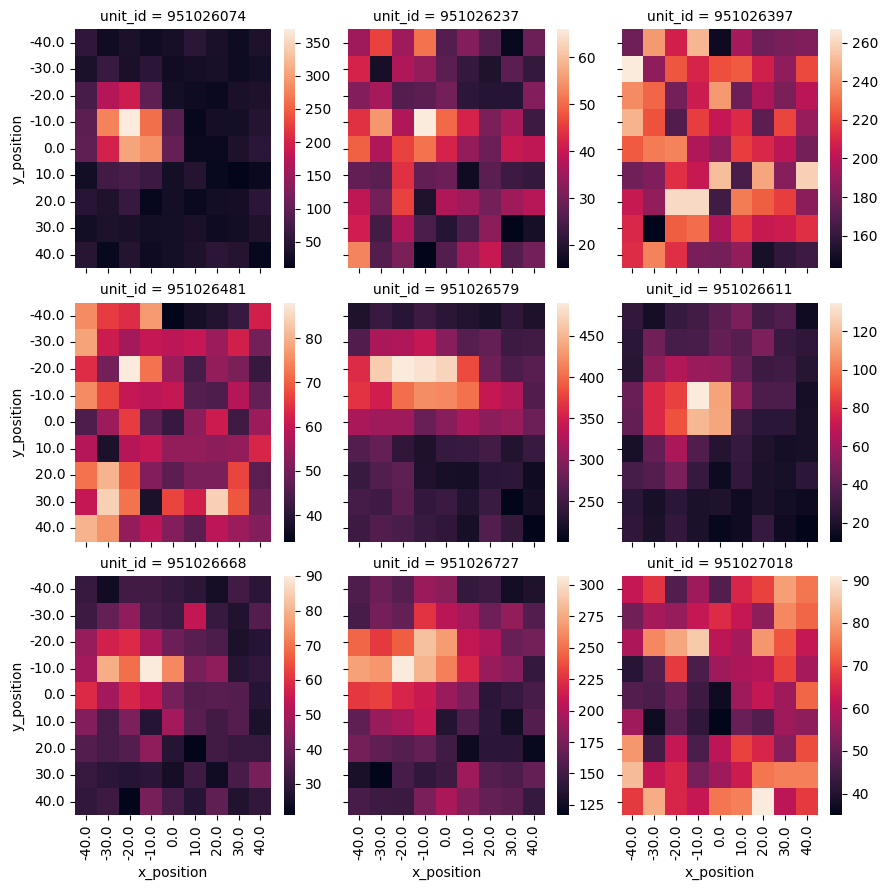

Exercise: The code below selects the first 9 unique units in the primary visual cortex "V1". Plot their receptive field maps with col="unit_id" and set col_wrap=3 to create a new row every 3 plots. How many units show a clearly visible receptive field?

units = df[df.brain_area == "V1"].unit_id.unique()[:9]
units = df[df.unit_id.isin(units)]
units

Solution

g = sns.FacetGrid(data=units, col="unit_id", col_wrap=3)
g.map_dataframe(fun)

Exercise: Plot the first 9 unique unit in the anterolateral area "AL". How do these receptive field maps look compared to the ones from "V1"?

Solution

units = df[df.brain_area == "AL"].unit_id.unique()[:9]
units = df[df.unit_id.isin(units)]
units
g = sns.FacetGrid(data=units, col="unit_id", col_wrap=3)
g.map_dataframe(fun)

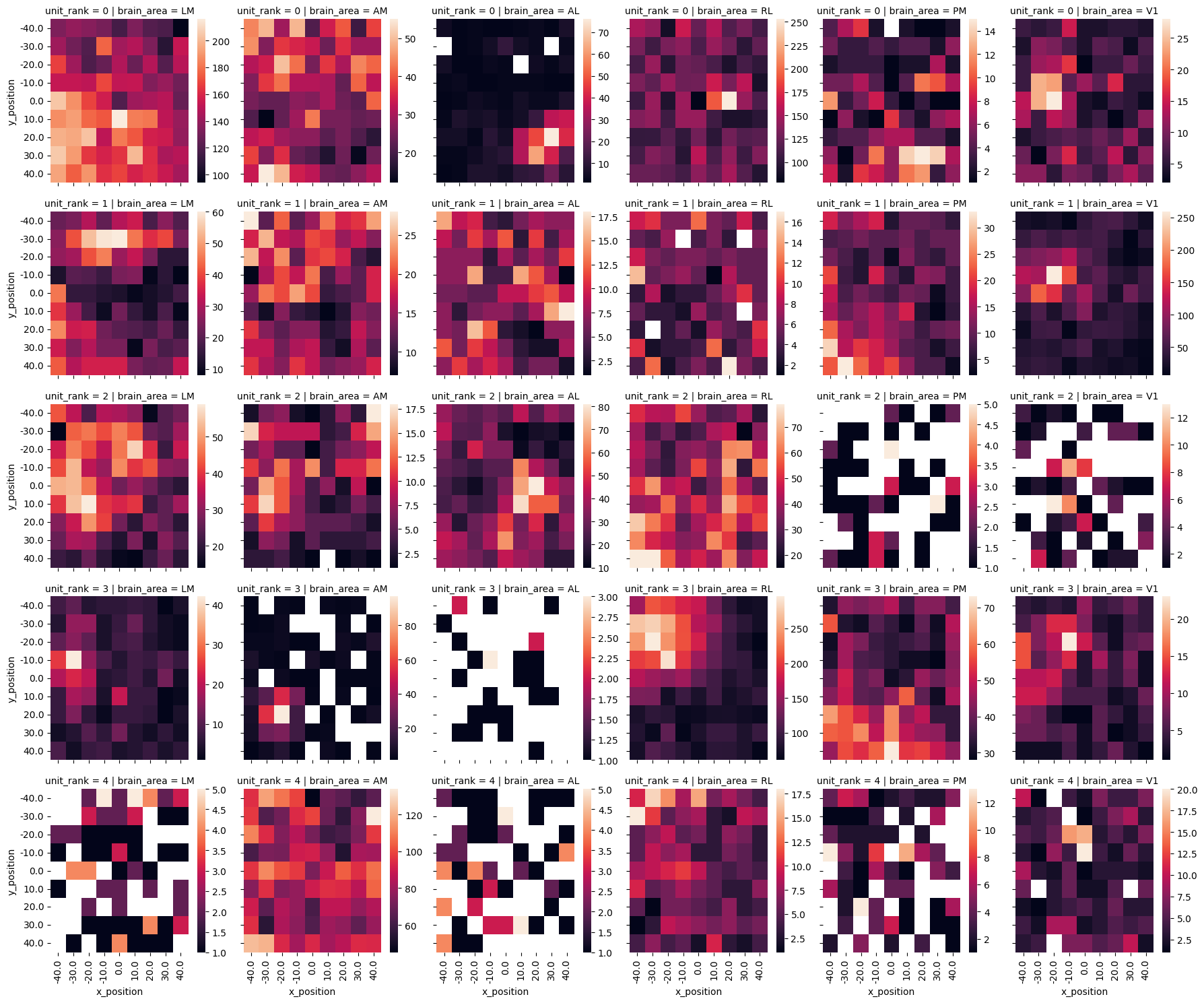

Exercise: The code below samples 5 random units from every "brain_area" and assigns a "unit_rank" to each unit per areas. Plot the receptive field maps of the units with a row for every "unit_rank" and a col for every "brain_area" (Hint: since the sampling is random, you’ll get a different plot everytime you run the cell below).

units = df[["brain_area", "unit_id"]].drop_duplicates().groupby("brain_area").sample(5)
units["unit_rank"] = units.groupby("brain_area").cumcount()
del units["brain_area"]
units = df.merge(units, on="unit_id")
units

Solution

g = sns.FacetGrid(data=units, row="unit_rank", col="brain_area")
g.map_dataframe(fun)

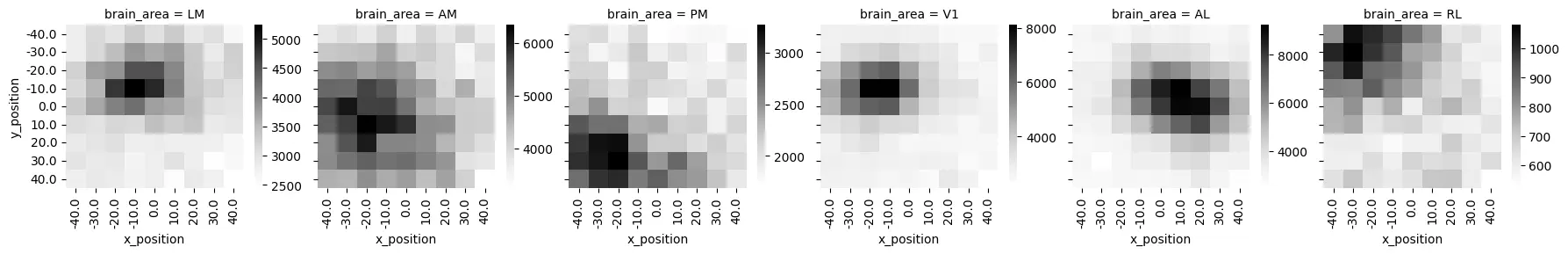

Exercise: Modify the plotting fuction fun to use cmap="Greys" and re-create the plot with the average receptive field map per area from @exm-rfs.

Solution

g = sns.FacetGrid(data=df, col="brain_area")
fun = lambda data, *args, **kwargs: sns.heatmap(
    data.groupby(["y_position", "x_position"]).size().unstack(), cmap="Greys"
)
g.map_dataframe(fun)

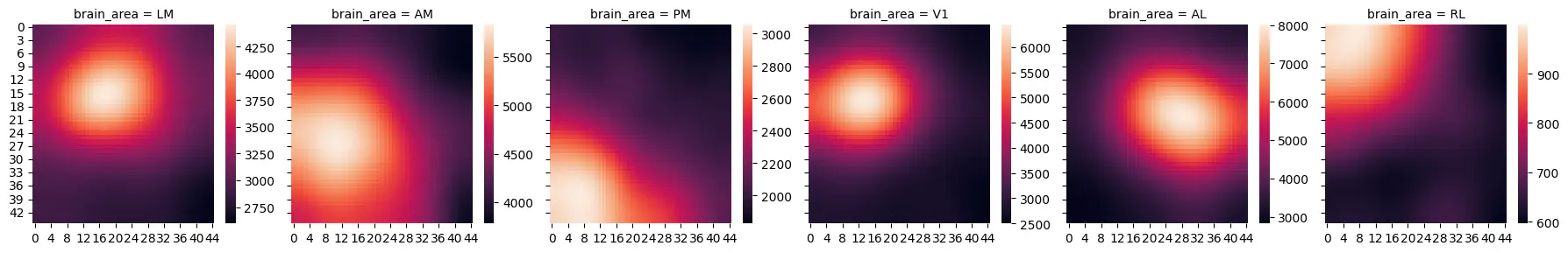

Exercise: (BONUS): modify the function fun to upscale and smooth the receptive field maps as shown in @exm-smooth. Then, re-create the plot with the average receptive field map per area.

Solution

g = sns.FacetGrid(data=df, col="brain_area")
fun = lambda data, *args, **kwargs: sns.heatmap(
    ndi.gaussian_filter(
        ndi.zoom(data.groupby(["y_position", "x_position"]).size().unstack(), zoom=5),
        sigma=5,
    )
)
g.map_dataframe(fun)

Section 3: Fitting Gaussian Models to Receptive Field Maps

In the previous section we saw that some neurons have a receptive field with a sharply localized peak while others are more spread out. Visualizing receptive field maps is a great way for getting an idea about the trends in our data but a systematic analysis and comparison of receptive fields requires us to parameterize their properties. In this section, we are going to learn how to fit a model to the receptive field map and use this model to determine the outline of the receptive field. For this we are going to use a 2-dimensional Gaussian of the form:

Which is a simple model that has a very clear interpretation because the standard deviation parameters $\sigma_x$ and $\sigma_y$ represent the width and height of the receptive field and the receptive field area is given by $\pi \sigma_x \sigma_y$.

Exercises

Example: Compute the receptive field map for unit 951028431 and fit a 2-D Gaussian to it. Then, use the optimized parameters popt and the grid of coordinates xy to generate the fitted receptive field map rf_fit and compute the coefficient of determination using utils.r_squared().

unit = 951028431
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
rf_fit = utils.gaussian_2d(xy, *popt).reshape(rf.shape)
utils.r_squared(rf, rf_fit)

0.9900711534689108

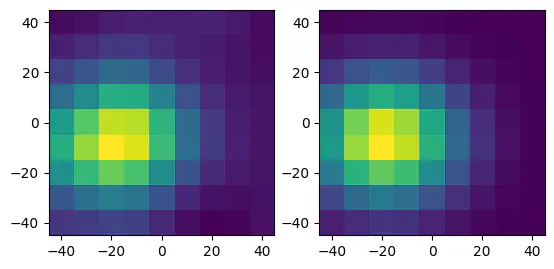

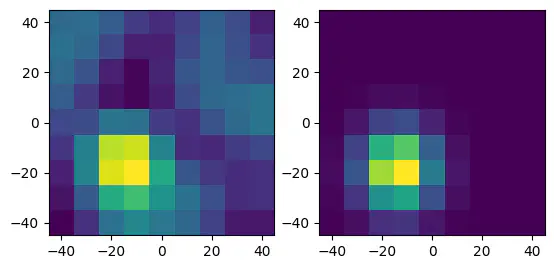

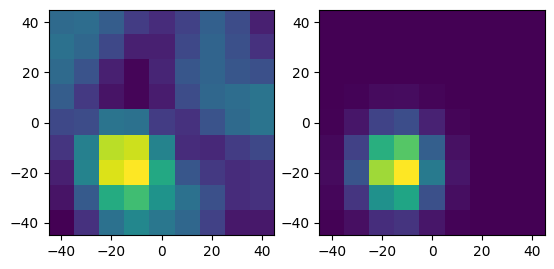

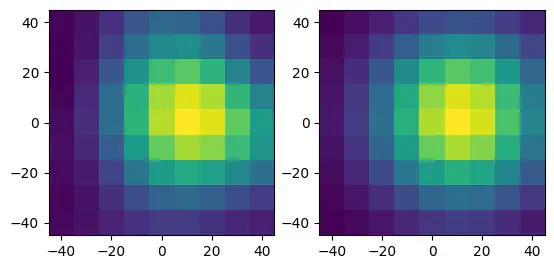

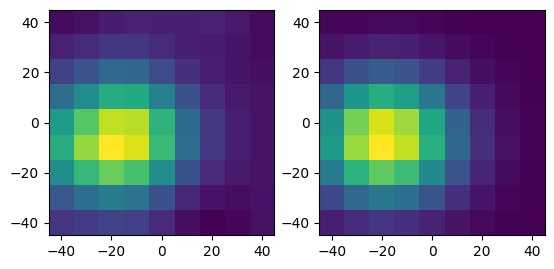

Example: Plot the estimated receptive field map rf next to the map predicted from the Gaussian model rf_fit.

plt.subplot(1, 2, 1)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.subplot(1, 2, 2)
plt.imshow(rf_fit, extent=[-45, 45, -45, 45], origin="lower")

Exercise: Compute the receptive field map for unit 951035530 and fit a 2-D Gaussian to it. Then, use the optimized parameters popt and the grid of coordinates xy to generate the fitted receptive field map rf_fit and compute the coefficient of determination using utils.r_squared().

unit = 951035530
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
rf_fit = utils.gaussian_2d(xy, *popt).reshape(rf.shape)
utils.r_squared(rf, rf_fit)

0.9768303870379813

Exercise: Plot the estimated receptive field map rf next to the map predicted from the Gaussian model rf_fit.

Solution

plt.subplot(1, 2, 1)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.subplot(1, 2, 2)
plt.imshow(rf_fit, extent=[-45, 45, -45, 45], origin="lower")

Exercise: Compute the receptive field map for unit 951031429, fit a 2-D Gaussian and compute utils.r_squared(). What does the value of $R^2$ tell you about how well the model fits the data?

unit = 951031429
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
rf_fit = utils.gaussian_2d(xy, *popt).reshape(rf.shape)
utils.r_squared(rf, rf_fit)

0.3406504472679678

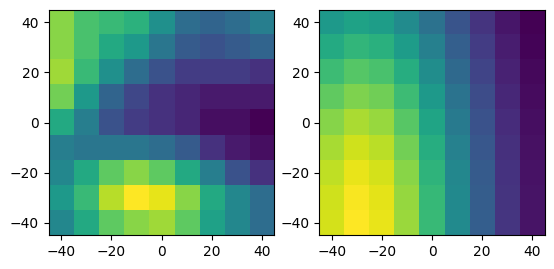

Exercise: Plot the estimated receptive field map rf next to the map predicted from the Gaussian model rf_fit. Do you think a 2D Gaussian is a good description of this data?

Solution

plt.subplot(1, 2, 1)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.subplot(1, 2, 2)
plt.imshow(rf_fit, extent=[-45, 45, -45, 45], origin="lower")

Exercise: Compute the receptive field map for unit 951031429, fit a 2-D Gaussian and compute utils.r_squared(). Would you consider the model a good fit based on th evalue of $R^2$?

unit = 951027930
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
rf_fit = utils.gaussian_2d(xy, *popt).reshape(rf.shape)
utils.r_squared(rf, rf_fit)

0.7524017409338184

Exercise: Plot the estimated receptive field map rf next to the map predicted from the Gaussian model rf_fit. Do you think a 2D Gaussian is a good description of this data?

Solution

plt.subplot(1, 2, 1)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.subplot(1, 2, 2)
plt.imshow(rf_fit, extent=[-45, 45, -45, 45], origin="lower")

Example: Fit a model to the receptive field map of unit 951028431 and get width and height as the standard deviation of the 2D Gaussian in x (sigma_x) and y (sigma_y). Print the width, height and area of the receptive field.

unit = 951028431
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
sigma_x, sigma_y = popt[3:5]

print("RF width: ", np.abs(sigma_x), "degree")
print("RF height: ", np.abs(sigma_y), "degree")
print("RF area: ", np.pi * np.abs(sigma_x) * np.abs(sigma_y), "degree^2")

RF width:  19.425092453344845 degree
RF height:  17.008349896630815 degree
RF area:  1037.9469302129273 degree^2

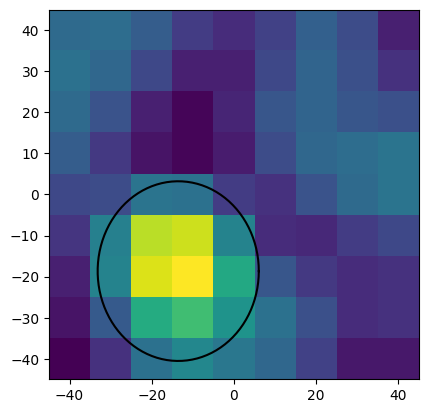

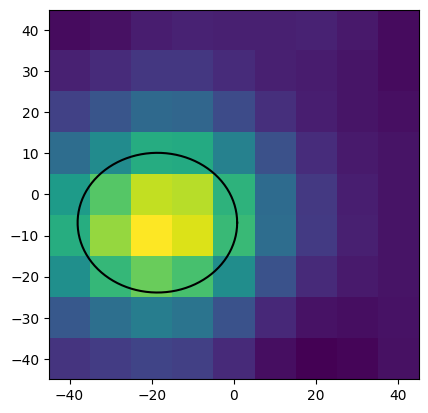

Example: Get the x, y coordinates that for the outline of the receptive field model at sigma=1 and plot it together with the receptive field map.

x, y = utils.get_rf_outline(popt)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.plot(x, y, color="black")

Exercise: Fit a model to the receptive field map of unit 951035530 and get width and height as the standard deviation of the 2D Gaussian in x (sigma_x) and y (sigma_y). Print the width, height and area of the receptive field.

unit = 951035530
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
sigma_x, sigma_y = popt[3:5]

print("RF width: ", np.abs(sigma_x), "degree")
print("RF height: ", np.abs(sigma_y), "degree")
print("RF area: ", np.pi * np.abs(sigma_x) * np.abs(sigma_y), "degree^2")

RF width:  22.766644963654752 degree
RF height:  23.213361183171127 degree
RF area:  1660.3014088139057 degree^2

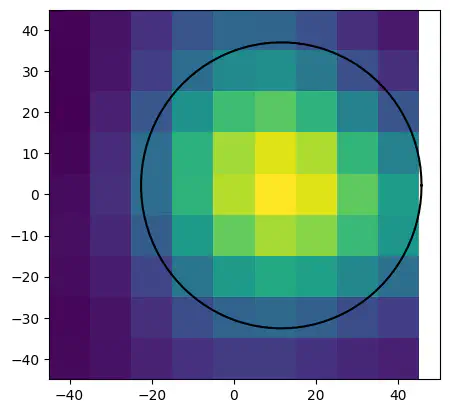

Exercise: Get the x, y coordinates that for the outline of the receptive field model at sigma=1.5 and plot it together with the receptive field map.

Solution

x, y = utils.get_rf_outline(popt, sigma=1.5)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.plot(x, y, color="black")

Exercise: Fit a model to the receptive field map of unit 951027930 and get width and height as the standard deviation of the 2D Gaussian in x (sigma_x) and y (sigma_y). Print the width,V height and area of the receptive field.

unit = 951027930
rf = df[df.unit_id == unit].groupby(["y_position", "x_position"]).size().unstack()
popt, xy = utils.fit_gaussian_2d(rf)
sigma_x, sigma_y = popt[3:5]

print("RF width: ", np.abs(sigma_x), "degree")
print("RF height: ", np.abs(sigma_y), "degree")
print("RF area: ", np.pi * np.abs(sigma_x) * np.abs(sigma_y), "degree^2")

RF width:  9.810489267106812 degree
RF height:  10.93898562444587 degree
RF area:  337.1456738220744 degree^2

Exercise: Get the x, y coordinates that for the outline of the receptive field model at sigma=2 (encompasses about 95% of the model’s probability mass) and plot it together with the receptive field map.

Solution

x, y = utils.get_rf_outline(popt, sigma=2)
plt.imshow(rf, extent=[-45, 45, -45, 45], origin="lower")
plt.plot(x, y, color="black")

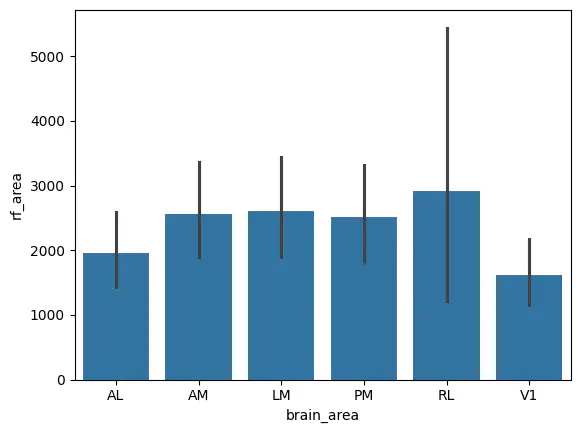

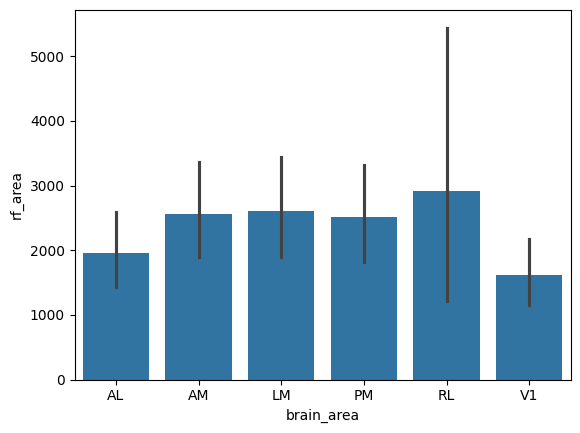

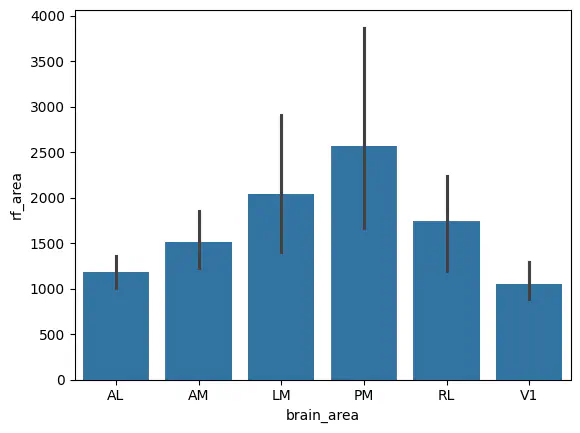

Section 4: Comparing Receptive Fields Across Visual Areas

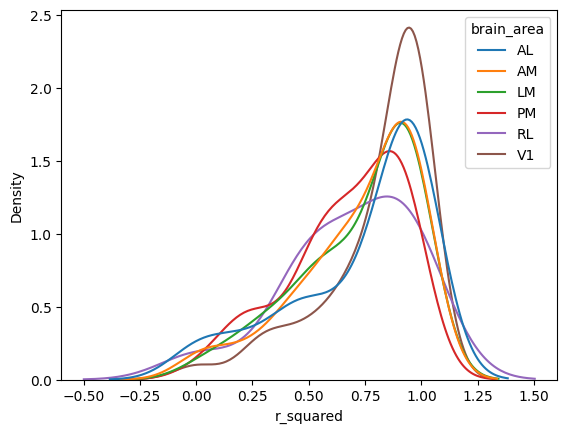

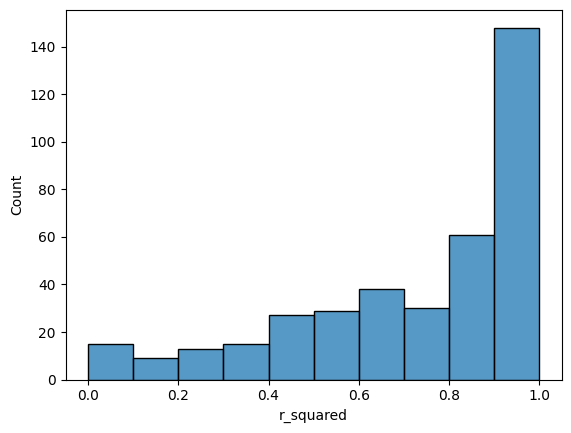

Now, we can use the 2D Gaussian to model every unit in our recording and use the estimated parameters to compare the receptive field fits and sizes across the different visual areas. We know that, as you ascend the hierarchy of the visual system, receptive fields do not only get larger but also become more complex. Thus, our simple 2D Gaussian may be a worse fit for the receptive fields in higher visual areas. To keep things simple, we can focus our analysis on those neurons that are well described by the Gaussian model (as indicated by a high value of $R^2$).

The cell below defines the function fit_one_unit() that combines the analysis steps from the previous sections: it computes the receptive field map, fits a 2D gaussian and returns r_squared as well as sigma_x and sigma_y. This function is applied to every unit to obtain a table that contains the statistical properties of every neuron’s receptive field. Run the code to generate the data frame rf_stats with the statistial properties of every neuron’s receptive field.

Exercises

def fit_one_unit(df):
    rf = df.groupby(["y_position", "x_position"]).size().unstack(fill_value=0)
    popt, xy = utils.fit_gaussian_2d(rf)
    rf_fit = utils.gaussian_2d(xy, *popt).reshape(rf.shape)
    r_squared = utils.r_squared(rf, rf_fit)
    sigma_x, sigma_y = popt[3:5]
    return pd.Series(
        [r_squared, sigma_x, sigma_y], index=["r_squared", "sigma_x", "sigma_y"]
    )


rf_stats = (
    df.groupby(["brain_area", "unit_id"])
    .apply(fit_one_unit, include_groups=False)
    .reset_index()
)
rf_stats

Exercise: Use sns.histplot to plot the distribution of "r_squared" values across all receptive field models.

Solution

sns.histplot(rf_stats, x="r_squared")

Exercise: Use sns.kdeplot to plot the distribution of "r_squared" with a hue for "brain_area" and without applying a common_norm. For which brain area is the 2D Gaussian model of the neurons’ receptive fields most accurate?

Solution

sns.kdeplot(rf_stats, x="r_squared", hue="brain_area", common_norm=False)

Exercise: Calculate the receptive field areas as np.pi * sigma_x * sigma_y and assign them to a new column "rf_area". Why do we have to take the absolute values of sigma_x and sigma_y ?

rf_stats["rf_area"] = np.pi * np.abs(rf_stats.sigma_x) * np.abs(rf_stats.sigma_y)

Exercise: Use sns.barplot with "brain_area" on the x axis and "rf_area" on the y axis. In which area are the receptive fields the smallest?

Solution

sns.barplot(rf_stats, x="brain_area", y="rf_area")

Exercise: Recreate the barplot but only include the receptive fields where the value of $R^2$ is above 0.8. How does this affect the outcome?

Solution

sns.barplot(rf_stats[rf_stats.r_squared>0.8], x="brain_area", y="rf_area")
