Relating Neural Firing to Stimuli

Setup

Import Libraries

Import the modules required for this session

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import seaborn as sns
from scipy.stats import wilcoxon
%matplotlib inline

Download Data

Download the data required for this session

import requests

urls = [
    "https://uni-bonn.sciebo.de/s/G64EkHoQkeZeoLm",
    "https://uni-bonn.sciebo.de/s/mLMkb2TwbNx3Yg6",
]
fnames = ["flash_stimuli.parquet", "flash_spikes.parquet"]

for url, fname in zip(urls, fnames):
    response = requests.get(f"{url}/download")
    print("Downloading Data ...")
    with open(fname, "wb") as file:
        file.write(response.content)
    print("Done!")

Downloading Data ...
Done!
Downloading Data ...
Done!

Section 1: Referencing Spike Times to Stimulus Presentations

In many experiments, we wish to relate neural spiking to external events, like stimuli. This requires that we can relate the timing of the spikes to the timing of the events. If both spikes and stimuli are stored in data frames, we an use pandas’ merge_asof function to merge the time information from both data frames. In this section, we are going to explore how to use pandas to compute the timing of spikes relative to stimulus onset. Then, we’ll visualize the amount of spikes ocurring right before and after a stimulus in a peri-stimulus time histogram or PSTH.

Exercise: Load the data stored in the files "flash_spikes.parquet" and "flash_stimuli.parquet" into data frames and assign them to variables called spikes and stimuli.

spikes = pd.read_parquet("flash_spikes.parquet")
stimuli = pd.read_parquet("flash_stimuli.parquet")

Example: Use pd.merge_asof() to merge the spikes and stimuli based on the "spike_time" and "start_time". In the resulting df, each spike is paired with the last stimulus that was presented before that spike.

df = pd.merge_asof(spikes, stimuli, left_on="spike_time", right_on="start_time")
df

Exercise: Subtract the stimulus .start_time column from the .spike_time column to get the spike times relative to stimulus onset. Then, print the smallest spike time in df.

df.spike_time = df.spike_time - df.start_time
df.spike_time.min()

2.332144799765956e-05

Exercise: The smallest spike time should be very close to 0. However, we would like our analysis time window to include spikes that happen before the stimulus as well. Add a new column to stimuli called "analysis_window_start" that is equal to the stimulus "start_time" minus 0.5 seconds. Print the stimuli to make sure the new column was created.

stimuli["analysis_window_start"] = stimuli["start_time"] - 0.5
stimuli

Exercise: Use pd.merge_asof() with right_on="analysis_window_start" to match each spike with the analysis window that started before it.

df = pd.merge_asof(
    spikes, stimuli, left_on="spike_time", right_on="analysis_window_start"
)
df

Exercise: Subtract the stimulus .start_time column from the .spike_time column to get the spike times relative to stimulus onset. Then, print the smallest spike time in df this value should be very close to -0.5.

df.spike_time = df.spike_time - df.start_time
df.spike_time.min()

-0.4999979524416176

Exercise: Remove all the the rows in df where the "spike_time" relative to stimulus onset is greater than 1 second and print the maximum spike time.

df = df[df.spike_time <= 1]
df.spike_time.max()

0.9999981341300099

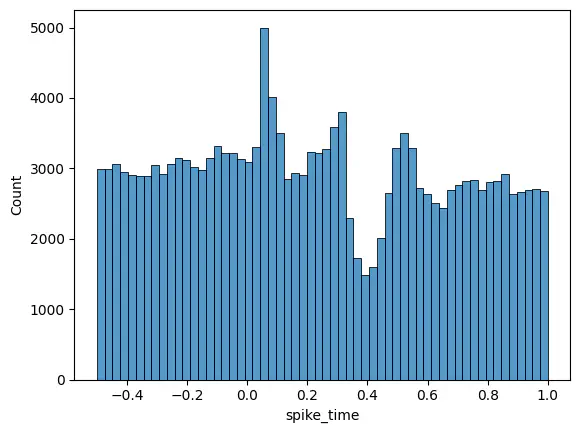

Exercise: Use sns.histplot to create a histogram of spike times relative to stimulus onset.

Solution

sns.histplot(df, x="spike_time")

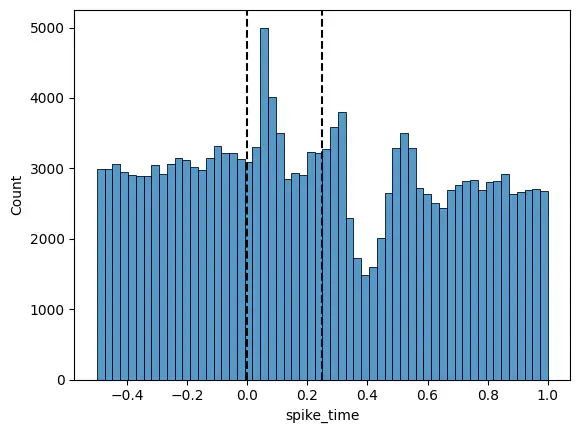

Exercise: Use sns.histplot to create a histogram of spike times and use plt.axvline() to add vertical lines that mark the stimulus onset at 0 seconds and the offset at 0.25 seconds (BONUS): try using color="black" and linestyle="--" to make them look nice). Can you see the relationship between the spiking and stimuli?

Solution

sns.histplot(df, x="spike_time")
plt.axvline(x=0, ymin=0, ymax=1, color="black", linestyle='--')
plt.axvline(x=0.25, ymin=0, ymax=1, color="black", linestyle='--')

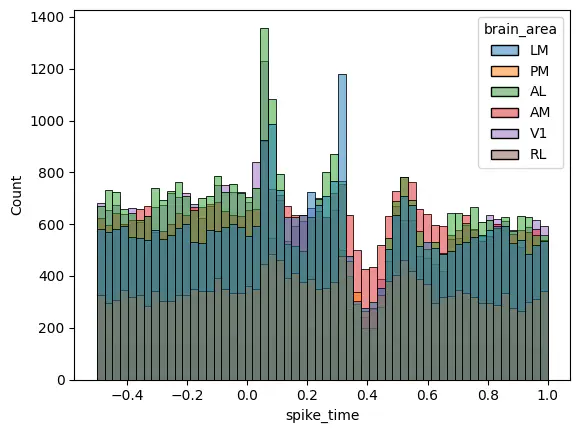

Exercise: Add a hue to the histogram that encodes the "brain_area".

Solution

sns.histplot(df, x="spike_time", hue="brain_area")

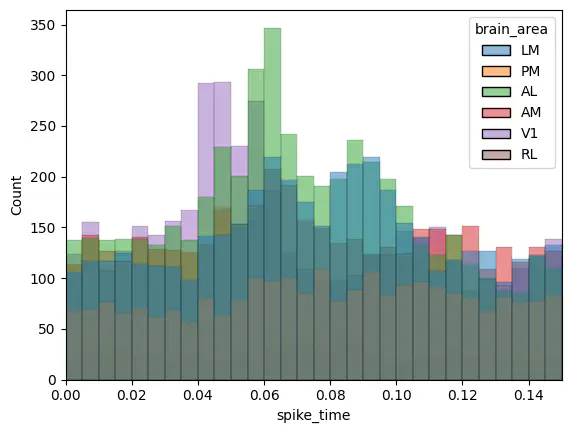

Exercise: Increate the number of bins in the histogram to improve the temporal resolution and limit the x-axis to the first 0.15 second after stimulus onset. Can you see which brain area responds first?

Solution

sns.histplot(df, x="spike_time", hue="brain_area", bins=300)
plt.xlim(0, 0.15)

(0.0, 0.15)

Section 2: Counting Spikes in Discrete Bins

Seaborn’s histplot function gives us a quick and convenient way for visualizing PSTHs. However, if we want to do further analyses on the PSTHs we need to compute and store them ourselves. In this section, we will explore how to divide our analysis into discrete bins and count the number of spikes within each bin. The bin size in an important parameter in many spiking analyses - if the bins are too small the resulting signal will be noisy but if they are too wide we lose temporal resolution.

Exercise: Use np.arange to create an array of evenly spaced bins between 0 and 1 seconds that are 0.005 seconds wide. Print the number of bins in the array.

bins = np.arange(0, 1, 0.005)
bins.shape

(200,)

Example: Group the df by "brain_area" and get the .value_counts() of the "spike_time". Then, get the .mid of each interval and store it in the "spike_time" column. Finally, rename the columns to "bin_time" and "spike_count"

psth = df.groupby(["brain_area"]).spike_time.value_counts(bins=bins).reset_index()
psth.spike_time = psth.spike_time.array.mid
psth.columns = ["brain_area", "bin_time", "spike_count"]
psth

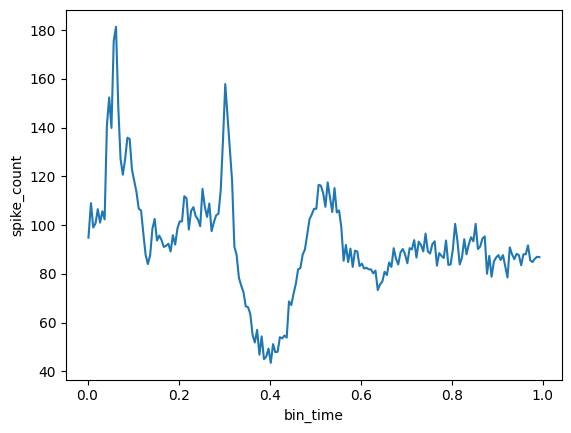

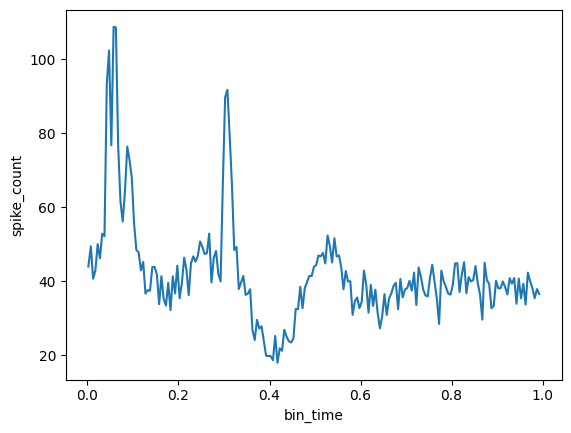

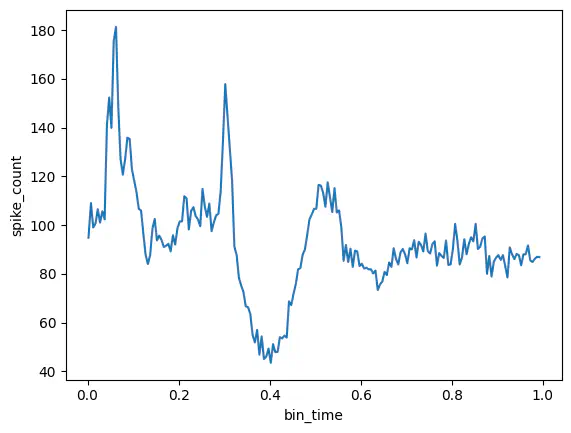

Exercise: Create an sns.lineplot to plot y="spike_count" across x="bin_time" (Hint: if this takes too long, you can set errorbar=None to speed up computation).

Solution

sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None)

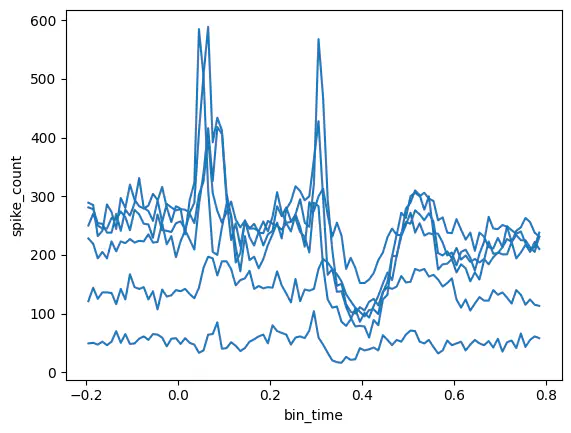

Exercise: Use sns.lineplot with estimator="std" to plot the standard deviation of the "spike_count" across "bin_time".

Solution

sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None, estimator="std")

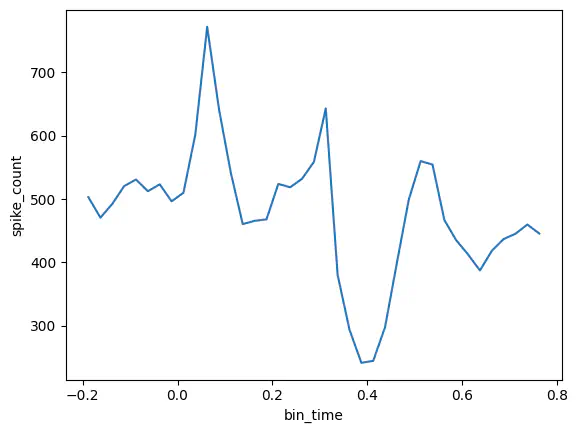

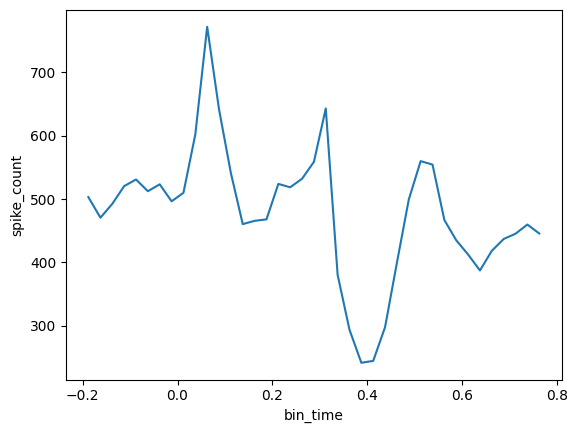

Exercise: Create new bins between -0.2 and 0.8 seconds with a width of 0.025 seconds. Them compute the psth as shown in @exm-bin and plot the "spike_count" across "bin_time".

Solution

bins = np.arange(-0.2, 0.8, 0.025)
psth = df.groupby(["brain_area"]).spike_time.value_counts(bins=bins).reset_index()
psth.spike_time = psth.spike_time.array.mid
psth.columns = ["brain_area", "bin_time", "spike_count"]
sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None)

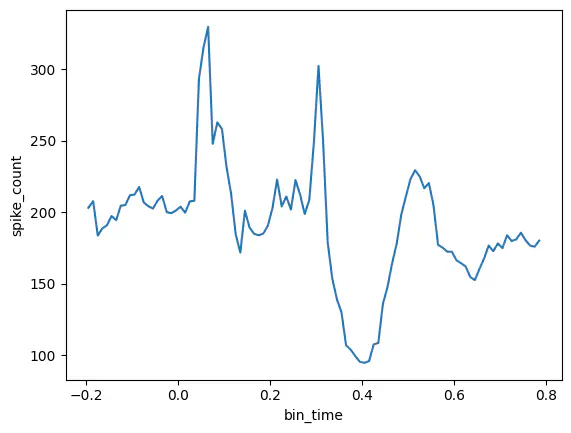

Exercise: Reduce the bin width to a value that you think is appropriate, then re-compute the psth and plot it again.

Solution

bins = np.arange(-0.2, 0.8, 0.01)
psth = df.groupby(["brain_area"]).spike_time.value_counts(bins=bins).reset_index()
psth.spike_time = psth.spike_time.array.mid
psth.columns = ["brain_area", "bin_time", "spike_count"]
sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None)

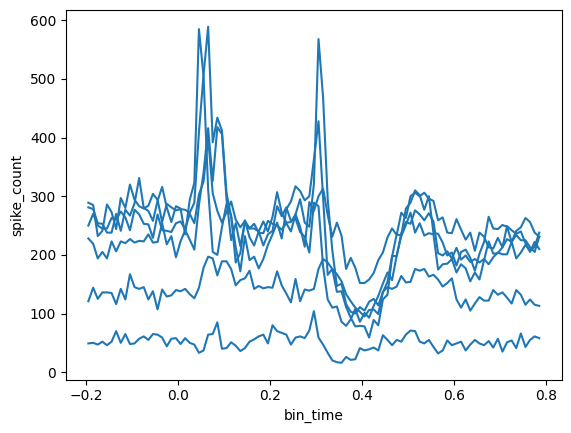

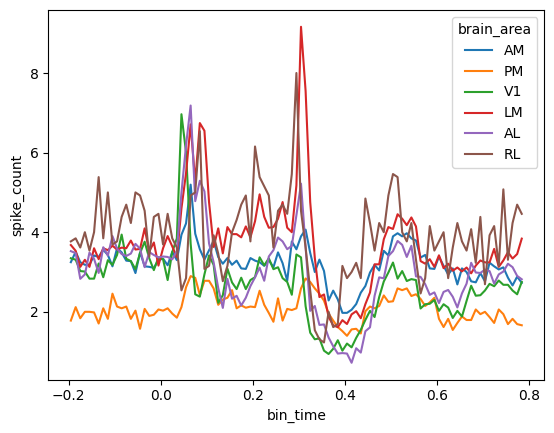

Exercise: Use sns.lineplot to plot the PSTH for each brain_area separately by setting units="brain_area" and estimator=None.

Solution

sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None, estimator=None, units="brain_area")

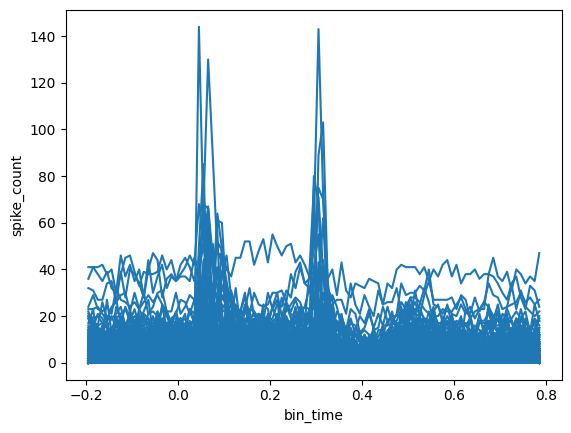

Exercise: Re-calculate the psth as shown in @exm-bin but group the data by "unit_id" instead of "brain_area". Then create a sns.lineplot for every unit by setting estimator=None and units="unit_id" (Hint: adjust the names of the .columns).

Solution

psth = df.groupby(["unit_id"]).spike_time.value_counts(bins=bins).reset_index()
psth.spike_time = psth.spike_time.array.mid
psth.columns = ["unit_id", "bin_time", "spike_count"]
sns.lineplot(
    psth, x="bin_time", y="spike_count", errorbar=None, estimator=None, units="unit_id"
)

Exercise: Re-calculate the psth as shown in @exm-bin but group the data by "unit_id" AND "brain_area". Then create a sns.lineplot of the spike "count" across "spike_time" and add hue="brain_area".

Solution

psth = (
    df.groupby(["unit_id", "brain_area"])
    .spike_time.value_counts(bins=bins)
    .reset_index()
)
psth.spike_time = psth.spike_time.array.mid
psth.columns = ["unit_id", "brain_area", "bin_time", "spike_count"]
sns.lineplot(psth, x="bin_time", y="spike_count", errorbar=None, hue="brain_area")

Section 3: Comparing Firing Rates to a Baseline

In the previous plot, we saw that there is a large variability in the baseline firing rate between brain areas and units. This makes visualizations and statistical comparisons difficult. A common way of dealing with this is to apply a baseline correction. For this, we select a time interval and subtract the average spike count within this interval from the rest of the signal. The resulting PSTH represents the change in spiking relative to the baseline. In this section, we will learn how to select baseline intervals, compute the baseline spiking rate and correct the PSTHs.

Exercises

Example: Compute the baseline spike count for every "unit_id" in the time interval between tmin=-0.1 and tmax=0 seconds.

tmin = -0.1
tmax = 0
mask = (psth.bin_time >= tmin) & (psth.bin_time <= tmax)
baseline = psth[mask].groupby(["unit_id"]).spike_count.mean()
baseline

unit_id
951015628    0.2
951015643    0.0
951015704    0.0
951015717    1.6
951015731    0.0
            ...
951039462    2.7
951039560    0.4
951039854    0.2
951039863    0.2
951039870    8.1
Name: spike_count, Length: 386, dtype: float64

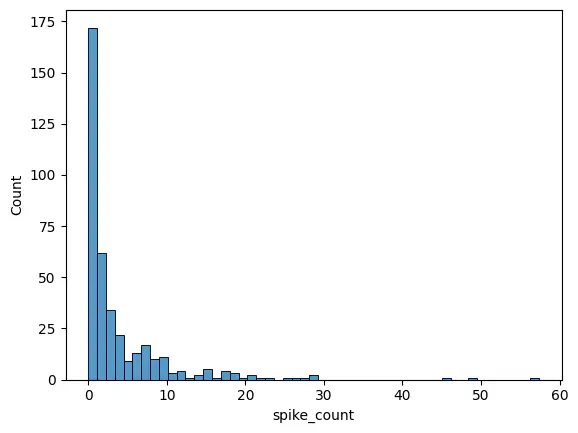

Exercise: Create a sns.histplot to visualize the distribution of the baseline spike count.

Solution

sns.histplot(baseline)

Example: .merge() the baseline into the psth data frame based on the column "unit_id". Rename it to avoid naming conflicts.

baseline.name = "baseline"
psth = psth.merge(baseline, on="unit_id")
psth

Exercise: Subtract the "baseline" from the "spike_count" and write the result to a new column called "baselined_spike_count".

psth["baselined_spike_count"] = psth.spike_count - psth.baseline

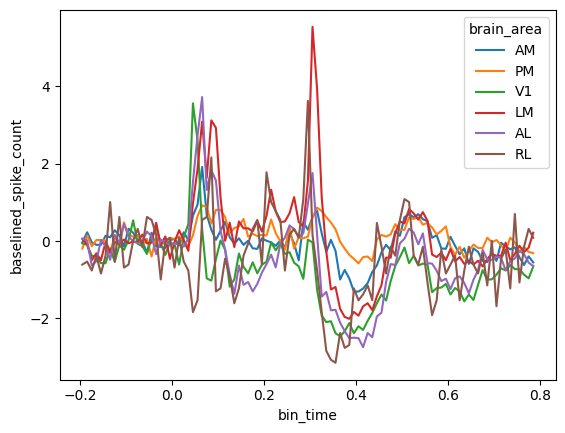

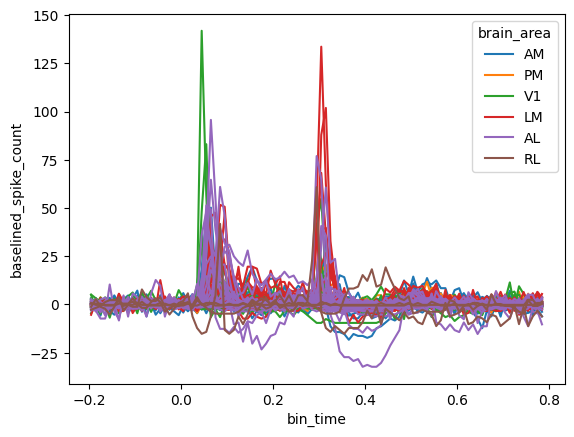

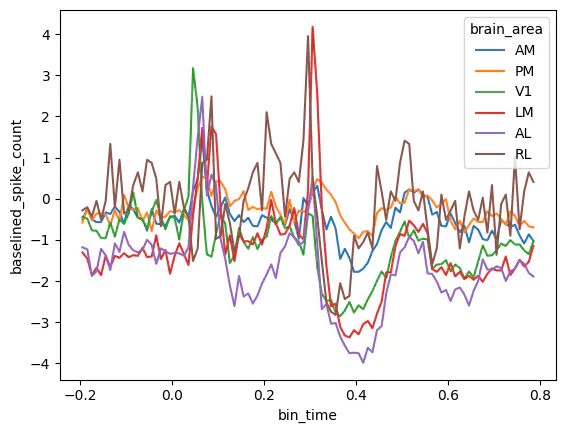

Exercise: Create an sns.lineplot of the "baselined_spike_count" across "time" (Hint: if this takes too long set errorbar=None to speed up computation).

Solution

sns.lineplot(
    psth, x="bin_time", y="baselined_spike_count", hue="brain_area", errorbar=None
)

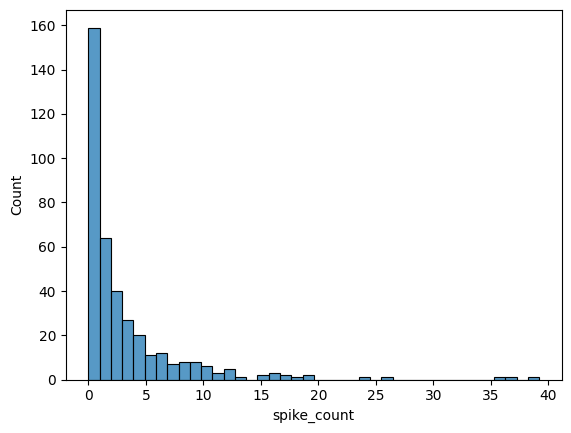

Exercise: Re-compute the baseline as shown in @exm-baseline but use the time interval from tmin=0 to tmax=0.1. Then, visualize the baseline with a sns.histplot.

Solution

tmin = 0
tmax = 0.1
mask = (psth.bin_time >= tmin) & (psth.bin_time <= tmax)
baseline = psth[mask].groupby(["unit_id"]).spike_count.mean()
sns.histplot(baseline)

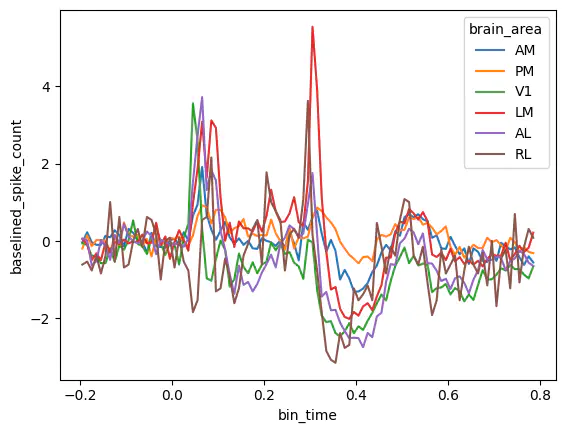

Exercise: Delete the existing "baseline" column runnign the code below, then .merge() the new baseline with psth as shown in @emx-merge. Subtract the .baseline from the .spike_count and plot the resulting "baselined_spike_count". Was this baseline interval a good choice?

del psth["baseline"]

Solution

baseline.name = "baseline"
psth = psth.merge(baseline, on="unit_id")
psth["baselined_spike_count"] = psth.spike_count - psth.baseline
sns.lineplot(
    psth, x="bin_time", y="baselined_spike_count", hue="brain_area", errorbar=None
)

Exercise: Delete the existing "baseline" column , then re-compute it using the time interval from tmin=-0.2 to tmax=0, .merge() it with the psth data frame, then compute and plot the `“baselined_spike_count”

Solution

del psth["baseline"]
tmin = -0.2
tmax = 0
mask = (psth.bin_time >= tmin) & (psth.bin_time <= tmax)
baseline = psth[mask].groupby(["unit_id"]).spike_count.mean()
baseline.name = "baseline"
psth = psth.merge(baseline, on="unit_id")
psth["baselined_spike_count"] = psth.spike_count - psth.baseline
sns.lineplot(
    psth, x="bin_time", y="baselined_spike_count", hue="brain_area", errorbar=None
)

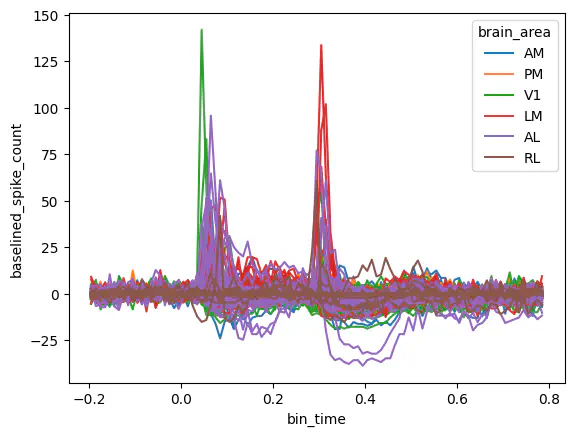

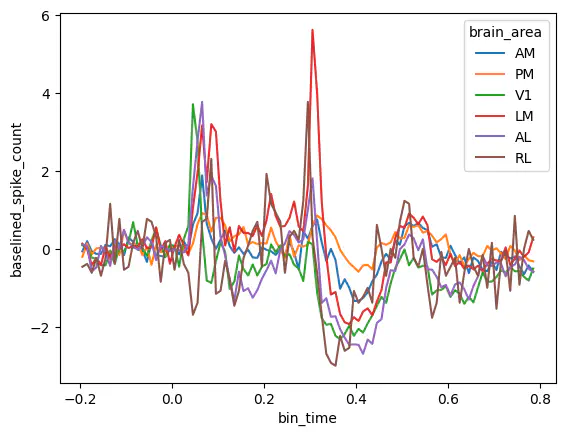

Exercise: Plot the "baselined_spike_counts" cross "bin_time" with a hue for "brain_area" but plot every "unit_id" as individual units.

Solution

sns.lineplot(
    psth, x="bin_time", y="baselined_spike_count", hue="brain_area", errorbar=None, units="unit_id", estimator=None
)

Section 4: Identifying Responsive Units

The last plot clearly showed that not all units respond to the stimulus by spiking. Some do not respond at all while others decrease their firing rate below the baseline. This can be problematic if we want to average the PSTHs to estimate the response of larger populations of neurons. To avoid distorting our average, we have to identify which units are responsive. For this purpose, we’ll normalize the PSTHs by applying the formular

The normalized PSTH describes the firing of a neuron relative to the baseline. The regularization coefficient $\epsilon$ is a small number that is added to the baseline to avoid errors for units with a baseline rate close to 0. Based on the normalized PSTH, we can define a threshold (e.g. 2 times the baseline rate) and categorize each unit above this threshold as responsive. In this section, you’ll explore normalizing the PSTHs while applying different values of $\epsilon$ and selection thresholds.

Exercise: Compute the spike count relative to the baseline by subtracting the "baseline" from the "spike_count" and dividing the result by the "baseline".

psth["relative_spiking"] = (psth.spike_count - psth.baseline) / psth.baseline
psth

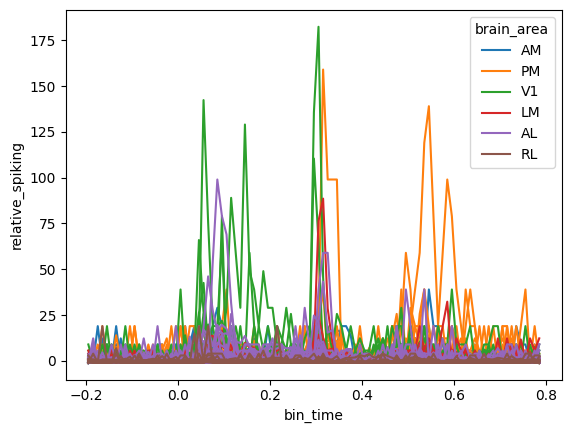

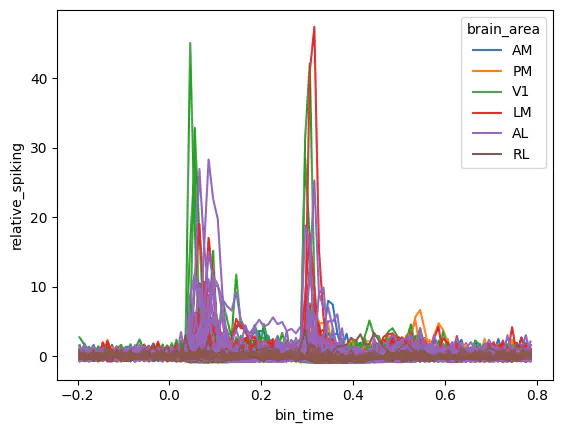

Exercise: Create a sns.lineplot with estimator=None and units="unit_id" to plot the "relative_spiking" for every unit.

Solution

sns.lineplot(
    psth,
    x="bin_time",
    y="relative_spiking",
    hue="brain_area",
    units="unit_id",
    estimator=None,
)

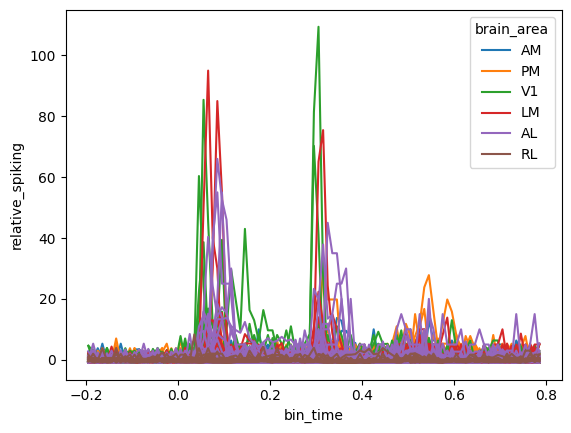

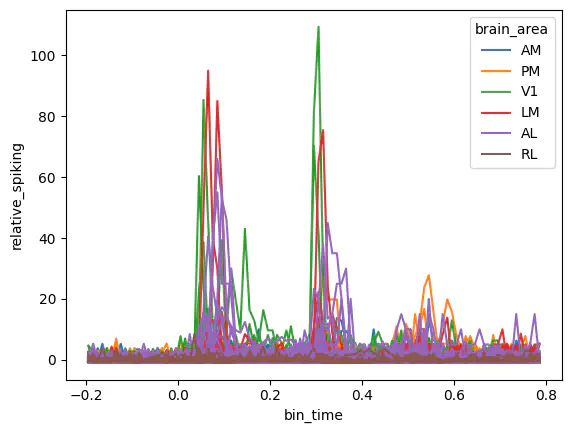

Exercise: Re-compute the "relative_spiking" but add the regularization parameter epsilon to the baseline before dividing to avoid distorting the responses of units with a very low baseline. Then, plot the "relative_spiking" across "bin_time" for each "unit_id".

epsilon = 0.2

Solution

psth["relative_spiking"] = (psth.spike_count - psth.baseline) / (
    psth.baseline + epsilon
)
sns.lineplot(
    psth,
    x="bin_time",
    y="relative_spiking",
    hue="brain_area",
    units="unit_id",
    estimator=None,
)

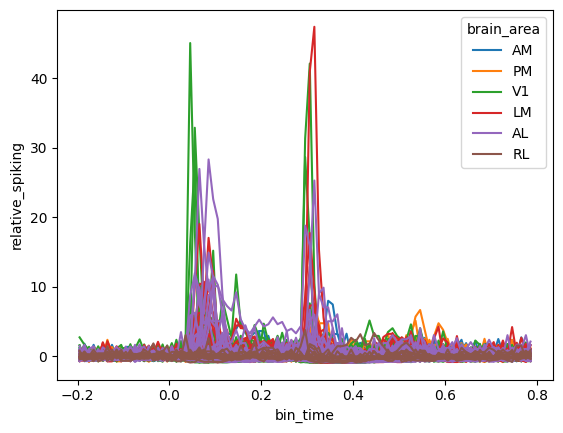

Exercise: Increase the value of epsilion, then re-compute the the values of the "relative_spiking" and plot them to see the effect of the regularization parameter.

Solution

epsilon = 1
psth["relative_spiking"] = (psth.spike_count - psth.baseline) / (
    psth.baseline + epsilon
)
psth
sns.lineplot(
    psth,
    x="bin_time",
    y="relative_spiking",
    hue="brain_area",
    units="unit_id",
    estimator=None,
)

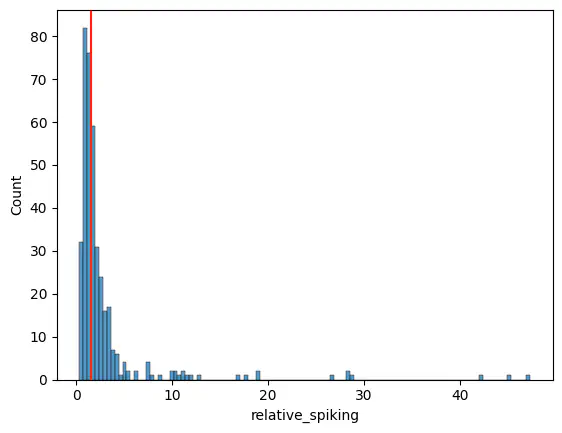

Exercise: Group the PSTHs by the "unit_id" and compute the .max() of the "relative_spiking" for each unit. Plot them in a histogram and draw a plt.axvline at the threshold defined below.

threshold = 1.5

Solution

sns.histplot(psth.groupby("unit_id").relative_spiking.max())
plt.axvline(x=threshold, ymin=0, ymax=1, color="red")

Example: Group the psth by "unit_id" and "brain_area" and compare the .max() of the "relative_spiking" to the threshold to determine if a unit "is_responsive". Then, reset the index of is_responsive and name the new column "is_responsive"

is_responsive = psth.groupby(["unit_id", "brain_area"]).relative_spiking.max() > threshold
is_responsive = is_responsive.reset_index(name="is_responsive")
is_responsive

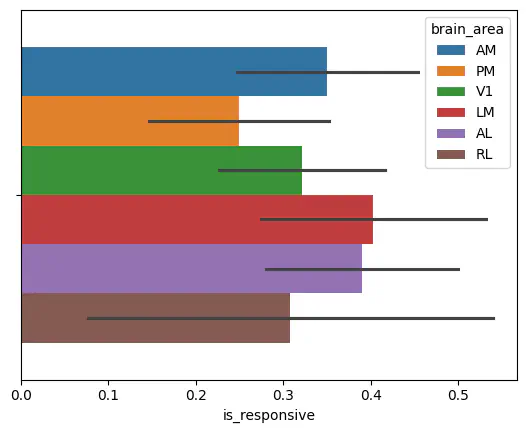

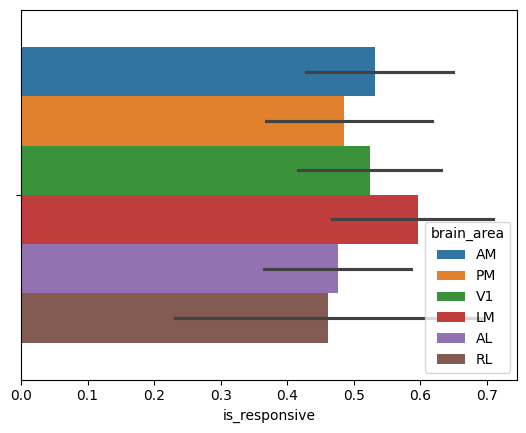

Exercise: Create a sns.barplot with x="is_responsive" and hue="brain_area" to visualize the fraction of units in each area that responds to the stimulus according to the threshold criterion.

Solution

sns.barplot(is_responsive, x="is_responsive", hue="brain_area")

Exercise: Try a different threshold value, and plot a sns.histplot of the unit’s maximum "relative_firing" together with the threshold to check how many units would be rejected by the threshold. Then re-compute the responsive units as shown in @exm-resp and plot the fraction of responsive units per area.

Solution

threshold = 2
sns.histplot(psth.groupby("unit_id").relative_spiking.max())
plt.axvline(x=threshold, ymin=0, ymax=1, color="red")
plt.figure()
is_responsive = (
    psth.groupby(["unit_id", "brain_area"]).relative_spiking.max() > threshold
)
is_responsive = is_responsive.reset_index(name="is_responsive")
sns.barplot(is_responsive, x="is_responsive", hue="brain_area")

Exercise: Merge the is_responsive data frame into the psth data frame with on=["unit_id", "brain_area"].

psth = psth.merge(is_responsive, on=["unit_id", "brain_area"])

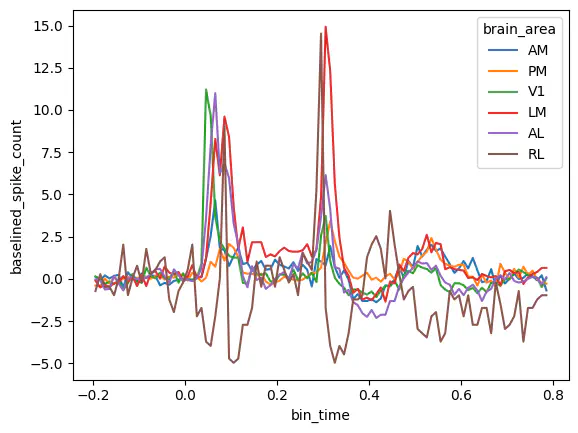

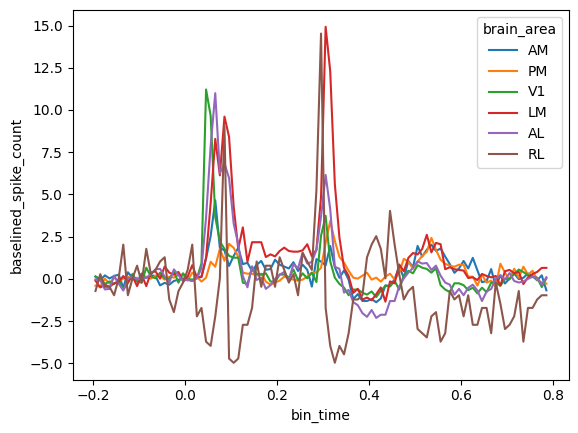

Exercise: Select only the units that are responsive (psth[psth.is_responsive]) and plot their "baselined_spike_count" across "bin_time" for each brain area.

Solution

sns.lineplot(
    psth[psth.is_responsive],
    x="bin_time",
    y="baselined_spike_count",
    hue="brain_area",
    errorbar=None,
)

Exercise: Plot the PSTH of the responsive units for each individual "unit_id".

Solution

sns.lineplot(
    psth[psth.is_responsive],
    x="bin_time",
    y="baselined_spike_count",
    hue="brain_area",
    estimator=None,
    units="unit_id",
    errorbar=None,
)
