Configuring Experiments via Command Line Interfaces

In the previous session, we learned how to use configuration files to make our experiments more reusable. However, this approach still requires us to change something when we want to change the behavior of the experiment, namely the configuration file. What if there are parameters that I want to change regularly, maybe even on every single run of the experiment (e.g. the subject ID). Always changing the config file does not seem like a good strategy for that. This is where command line interfaces (CLIs) come into play. A CLI provides an easy and convenient way to pass parameters to our program by simply typing the name of the program and, next to it, the values we want to put in. In this notebook, we will learn how to build powerful CLIs that make our programs even more reusable!

from argparse import ArgumentParser
from psychopy.event import waitKeys
from psychopy.sound import Sound
from psychopy.visual import Window

Sound(stereo=False)  # avoid bug for default `stereo` setting

Section 1: Creating an Argument Parser

An argument parser takes in arguments from the command line and feeds them into our Python program. Python has a builtin module called argparse that does this for us. Let’s assume we have a CLI program that adds two numbers. To call this program we would type in our terminal something like that python add.py 3 2, where add.py is the name of the program and 3 and 2 are the values provided to the CLI. However, it would be annoying to constantly jump between our editor and the terminal. Fortunately, argparse has a method of directly providing the args as if we were calling the program from the terminal. This gives us a convenient way for writing and testing our scripts in the same interface. In this section we are going to write CLI scripts that allow us to play different sounds using PsychoPy’s Sound class.

Exercises

Example: Make an ArgumentParser() that accepts integers for n_trials and print the parser’s help.

parser = ArgumentParser()
parser.add_argument("n_trials", type=int)
parser.print_help()

usage: ipykernel_launcher.py [-h] n_trials

positional arguments:
  n_trials

options:
  -h, --help  show this help message and exit

Example: Make args from the parser above, with args.n_trials set to 10:

args = parser.parse_args(args=["10"])
args.n_trials

10

Example: Make args from the parser above, with args.n_trials set to 18:

args = parser.parse_args(args=["18"])
args.n_trials

18

Exercise: Make an ArgumentParser() that accepts integers for n_blocks and print the parser’s help.

parser = ArgumentParser()
parser.add_argument('n_blocks', type=int)
parser.print_help()

usage: ipykernel_launcher.py [-h] n_blocks

positional arguments:
  n_blocks

options:
  -h, --help  show this help message and exit

Exercise: Make args from the parser above, with args.n_blocks set to 2:

args = parser.parse_args(args=['2'])
args.n_blocks

2

Exercise: Make args from the parser above, with args.n_blocks set to 5:

args = parser.parse_args(args=['5'])
args.n_blocks

5

Exercise: Make an ArgumentParser() that accepts strings for subject and print the parser’s help.

parser = ArgumentParser()
parser.add_argument('subject', type=str)
parser.print_help()

usage: ipykernel_launcher.py [-h] subject

positional arguments:
  subject

options:
  -h, --help  show this help message and exit

Exercise: Make args from the parser above, with args.subject set to Fred.

args = parser.parse_args(args=['Fred'])
args.subject

'Fred'

Exercise: Make args from the parser above, with args.subject set to Julia.

args = parser.parse_args(args=['Julia'])
args.subject

'Julia'

Exercise: Make an ArgumentParser that accepts integers for freq and print the parser’s help.

parser = ArgumentParser()
parser.add_argument("freq", type=int)
parser.print_help()

usage: ipykernel_launcher.py [-h] freq

positional arguments:
  freq

options:
  -h, --help  show this help message and exit

Example: Make PsychoPy play a sound at 800 Hz when args.freq is set to 800:

args = parser.parse_args(args=["800"])
sound = Sound(value=args.freq)
sound.play()
f"playing {args.freq} Hz tone ..."

Exercise: Make Psychopy play a sound at 1200 Hz when args.freq is set to 1200.

args = parser.parse_args(args=["1200"])
sound = Sound(value=args.freq)
sound.play()
f"playing {args.freq} Hz tone ..."

Exercise: Make an ArgumentParser that accepts integers for freq and floats for secs and print the parser’s help.

parser = ArgumentParser()
parser.add_argument('freq', type=int)
parser.add_argument('secs', type=float)
parser.print_help()

usage: ipykernel_launcher.py [-h] freq secs

positional arguments:
  freq
  secs

options:
  -h, --help  show this help message and exit

Exercise: Make PsychoPy play a 500 Hz tone with a duration of 1.8 seconds with args from the parser above, when args.freq set to 500 and args.secs set to 1.8.

args = parser.parse_args(args=["500", "1.8"])
sound = Sound(value=args.freq, secs=args.secs)
sound.play()
f"playing {args.freq} Hz tone for {args.secs} secs..."

Exercise: Make PsychoPy play a 4000 Hz tone with a duration of 0.25 seconds with args from the parser above, when args.freq set to 4000 and args.secs set to 0.25:

args = parser.parse_args(args=["4000", "0.25"])
sound = Sound(value=args.freq, secs=args.secs)
sound.play()
f"playing {args.freq} Hz tone for {args.secs} secs..."

Section 2: Documenting your CLI

Adding arguments to a CLI can make a program more versatile but also harder to understand. To make our program easy to use, we can provide documentation that explains what the program and the individual parameters are doing. We can also use named arguments where each value is preceded by an identifier like python add.py --num1 3 --num2 5. This makes it easier to understand what each parameter does, and it also allows us to pass in the parameters in any order. Its important to keep in mind that named arguments are optional, so our program has to be able to run without them! In this section, we are exploring some advanced CLI functions together with PsychoPy’s waitKeys functions that allows us to record responses using a keyboard.

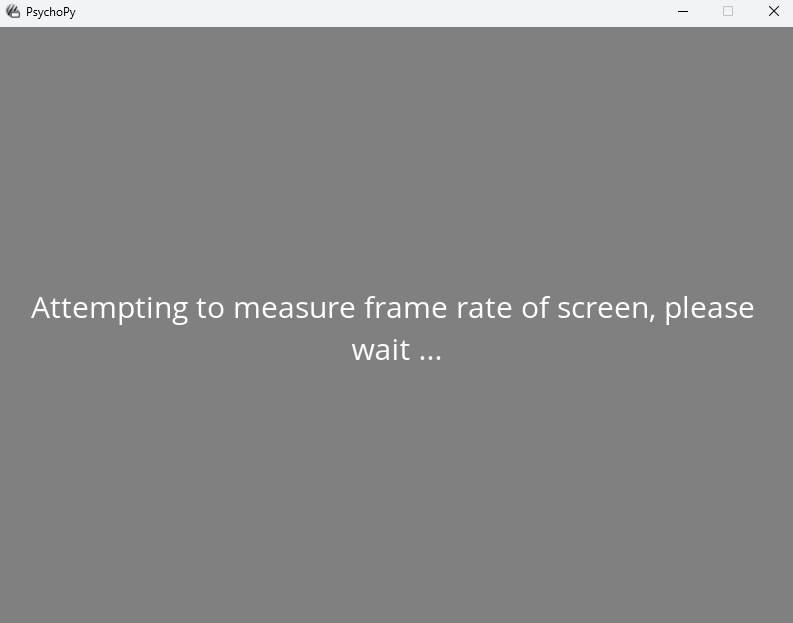

Even though we won’t show any images, we’ll still have to open a Window because PsychPy will only record keys from an active window. Everytime, we use PsychoPy’s window without actually displaying anthything, we’ll see this screen:

We can ignore this message - it just means that PsychoPy is automatically measuring the monitor’s frame rate so it can estimate how long an image is displayed.

Exercises

Example: Make an ArgumentParser() that accepts strings for --key1 and --key2 and print the parser’s help.

parser = ArgumentParser()
parser.add_argument("--key1", type=str)
parser.add_argument("--key2", type=str)
parser.print_help()

usage: ipykernel_launcher.py [-h] [--key1 KEY1] [--key2 KEY2]

options:
  -h, --help   show this help message and exit
  --key1 KEY1
  --key2 KEY2

Example: Make PsychoPy wait until the keys "q" or "p" were pressed with args from the parser above, when args.key1 is set to "q" and args.key2 set to "p" and print the recorded key.

args = parser.parse_args(args=["--key1", "q", "--key2", "p"])
with Window() as win:
    keys = waitKeys(keyList=[args.key1, args.key2])
keys

['q']

Example: Make PsychoPy wait until the "return" (or enter) key was pressed with args from the parser above, when args.key1 is set to "return" and args.key2 is not used at all.

args = parser.parse_args(args=["--key1", "return"])
with Window() as win:
    keys = waitKeys(keyList=[args.key1, args.key2])
keys

['return']

Exercise: Make an ArgumentParser() that accepts strings for --yes and --no and print the parser’s help.

parser = ArgumentParser()
parser.add_argument("--yes", type=str)
parser.add_argument("--no", type=str)
parser.print_help()

usage: ipykernel_launcher.py [-h] [--yes YES] [--no NO]

options:
  -h, --help  show this help message and exit
  --yes YES
  --no NO

Exercise: Make PsychoPy wait until the keys "y" or "n" were pressed with args from the parser above, when args.yes is set to "y" and args.no is set to "n".

args = parser.parse_args(args=["--yes", "y", "--no", "n"])
with Window() as win:
    keys = waitKeys(keyList=[args.yes, args.no])
keys

['y']

Exercise: Make PsychoPy wait until the key "space" was pressed with args from the parser above, when args.yes is set to "space" and args.no is not used at all.

args = parser.parse_args(args=["--yes", "space"])
with Window() as win:
    keys = waitKeys(keyList=[args.yes, args.no])
keys

['space']

Exercise: Make an ArgumentParser() and add the description: "This program waits until 'maxwait' has passed or the 'key' was pressed". Make the parser accept strings for "--key" and add help="Wait for this key". Also make the parser accept floats for "--maxwait" and add help="Maximum time to wait in seconds". Then, print the parser’s help

parser = ArgumentParser(
    description="This program waits until 'maxwait has passed or the `key` was pressed"
)
parser.add_argument("--key", type=str, help="Wait for this key (e.g. 'space')")
parser.add_argument("--maxwait", type=float, help="Maximum time to wait in seconds")
parser.print_help()

usage: ipykernel_launcher.py [-h] [--key KEY] [--maxwait MAXWAIT]

This program waits until 'maxwait has passed or the `key` was pressed

options:
  -h, --help         show this help message and exit
  --key KEY          Wait for this key (e.g. 'space')
  --maxwait MAXWAIT  Maximum time to wait in seconds

Exercise: Make PsychoPy wait until the key "z" was pressed or 2.5 seconds passed with args from the parser above, when args.key is set to "z" and args.maxwait is set to "2.5":

args = parser.parse_args(args=["--key", "z", "--maxwait", "2.5"])
with Window() as win:
    keys = waitKeys(keyList=[args.key], maxWait=args.maxwait)

['z']

Exercise: Make PsychoPy wait until the key "g" was pressed or 3.25 seconds passed with args from the parser above, when args.key is set to "g" and args.maxwait is set to "3.25":

args = parser.parse_args(args=["--key", "g", "--maxwait", "3.25"])
with Window() as win:
    keys = waitKeys(keyList=[args.key], maxWait=args.maxwait)

['g']

Exercise: Make an ArgumentParser() that accepts strings for "--key" and add a "--timed" flag with action="store_true" and print the parser’s help.

parser = ArgumentParser()
parser.add_argument("--key", type=str)
parser.add_argument("--timed", action="store_true")
parser.print_help()

usage: ipykernel_launcher.py [-h] [--key KEY] [--timed]

options:
  -h, --help  show this help message and exit
  --key KEY
  --timed

Exercise: Make PsychoPy wait until the key "space" was pressed with args from the parser above when args.key is set to "space" and return the time at which the key was pressed when args.timed is True.

args = parser.parse_args(args=["--key", "space", "--timed"])
with Window() as win:
    keys = waitKeys(keyList=[args.key], timeStamped=args.timed)
keys

[['space', 1386.6897800000006]]

Exercise: Make PsychoPy wait until the key "space" was pressed with args from the parser above when args.key is set to "space" and don’t return the time at which the key was pressed if the "--timed" flag was not included.

args = parser.parse_args(args=["--key", "space"])
with Window() as win:
    keys = waitKeys(keyList=[args.key], timeStamped=args.timed)
keys

['space']

Section 3: Writing a program with a command line interface

Now we know how to write CLIs, play Sounds and record Responses - Let’s create some progamms. In this section you are going to create new files to write your scripts in. Make sure that you place the files in the same folder as this notebook (4_command_line_interface), so Python will be able to find them! To run a program from the terminal, simply write ! before its name and execute the notebook cell.

IMPORTANT: By running this notebook, PsychoPy connected to your audio device. As long as this connection is activte you will not be able to run other PsychoPy programs that also need to communicate with your audio interface. Thus, before you continue, make sure that you click the Restart button at the top your VSCode editor to let go of any existing connection.

Exercise: Copy the script below into a new file called say_hi_to.py and store it in the SAME FOLDER as this notebook.

import argparse

# parse command line arguments
parser = argparse.ArgumentParser(description="A script that says hi to someone")
parser.add_argument(
    "--first",
    type=str,
    default="",
    help="First name of the person you want to say hi to",
)
parser.add_argument(
    "--last", type=str, default="", help="Last name of the person you want to say hi to"
)
parser.add_argument(
    "--shout", default=False, action="store_true", help="Use this flag to shout"
)
args = parser.parse_args()

# print message
text = "Hi " + args.first + " " + args.last + "!"
if args.shout:
    text = text.upper()
print(text)

Exercise: Call the help of the program say_hi_to.py and print its help.

!python say_hi_to.py -h

usage: say_hi_to.py [-h] [--first FIRST] [--last LAST] [--shout]

A script that says hi to someone

options:
  -h, --help     show this help message and exit
  --first FIRST  First name of the person you want to say hi to
  --last LAST    Last name of the person you want to say hi to
  --shout        Use this flag to shout

Exercise: Use say_hi_to.py to say hi to "John Doe".

!python say_hi_to.py --first John --last Doe

Hi John Doe!

Exercise: Use say_hi_to.py to --shout hi to "Bob".

!python say_hi_to.py --first Bob --shout

HI BOB !

Exercise: Create a new file called react_to_tone.py in the SAME FOLDER as this notebook. In this program, create an ArgumentParser that accepts a string argument key, an integer argument freq and a --timed flag. Make the program play a tone at the given frequency, wait fo the key and prints the value returned by waitKeys(). Make the program print the pressed key (and the timestamp if the --timed flag was included). OPTIONAL: add a description to the parser and help to the arguments. Hint: Use Sound(stereo=False) to avoid an error if you are using an output device with only one channel.

from argparse import ArgumentParser
from psychopy.event import waitKeys
from psychopy.sound import Sound
from psychopy.visual import Window

parser = ArgumentParser(
    description="Play a pure tone and wait for a key press. Optionally return the timestamp"
)
parser.add_argument("freq", type=int, help="Frequency of the tone")
parser.add_argument("key", type=str, help="Key to press")
parser.add_argument("--timed", action="store_true", help="Return a timestamp")
args = parser.parse_args()

sound = Sound(value=args.freq, stereo=False)
sound.play()
key = waitKeys(keyList=[args.key], timeStamped=args.timed)
print(key)

Exercise: Make react_to_tone.py play a 600 Hz tone and wait until y was pressed:

!python react_to_tone.py 600 y

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
2.4380 	WARNING 	Monitor specification not found. Creating a temporary one...
['y'])

Exercise: Make react_to_tone.py play a 750 Hz tone and wait until the key n was pressed and return the timestamp of the key press.

!python react_to_tone.py 750 n --timed

python: can't open file '/home/olebi/projects/new-learning-platform/notebooks/psychopy/02_making_experiments_configurable/02_command_line_interfaces/react_to_tone.py': [Errno 2] No such file or directory

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
2.4655 	WARNING 	Monitor specification not found. Creating a temporary one...
[['n', 3.8853570000001127]])

Exercise: Add an integer argument n_trials to the ArgumentParser of react_to_tone.py. Make the program play multiple tones at the given frequency in a loop with for i in range(args.n_trials). Make the program wait for the key and print out the value returned by Keyboard.waitKeys() after every tone.

from argparse import ArgumentParser
from psychopy.event import waitKeys
from psychopy.sound import Sound
from psychopy.visual import Window

Sound(stereo=False)

parser = ArgumentParser(
    description="Play a pure tone and wait for a key press. Optionally return the timestamp"
)
parser.add_argument("freq", type=int, help="Frequency of the tone in Hz")
parser.add_argument("key", type=str, help="Key to press")
parser.add_argument("n_trials", type=int, help="The number of trials")
parser.add_argument("--timed", action="store_true", help="Return a timestamp")
args = parser.parse_args()

with Window() as win:
    for i in range(args.n_trials):
        sound = Sound(value=args.freq)
        sound.play()
        key = waitKeys(keyList=[args.key], timeStamped=args.timed)
        print(key)

Exercise: Make react_to_tone.py play 3 trials with tones at 1000 Hz and wait for the space key

!python react_to_tone.py 1000 space 3

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
['space']
['space']
['space']
2.4967 	WARNING 	Monitor specification not found. Creating a temporary one...

Exercise: Make react_to_tone.py play "5" tones at "1600" Hz and wait for the "n" key

!python react_to_tone.py 1600 n 5

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
['n']
['n']
['n']
['n']
['n']
2.4661 	WARNING 	Monitor specification not found. Creating a temporary one...

Exercise: Create a new file called change_pitch.py in the SAME FOLDER as this notebook. In this program, create an ArgumentParser() that accepts integers for freq, step and n_trials. Make the program play mutliple tones using a loop with for i in range(args.n_trials). After every tone, wait until the "up" or "down" key was pressed. If the "down" key was pressed, decrease the tone frequency by step, if "up" was pressed, increase the tone frequency by step. Start at the frequency passed to the freq parameter. Hint: Keyboard.waitKeys() returns a list of keys — access the name of the pressed key as keys[0].

from argparse import ArgumentParser
from psychopy.event import waitKeys
from psychopy.sound import Sound
from psychopy.visual import Window

parser = ArgumentParser(
    description="Play a pure tone and wait for a key press. Optionally return the timestamp"
)
parser.add_argument("freq", type=int, help="Frequency of the tone in Hz")
parser.add_argument("n_trials", type=int, help="The number of trials")
parser.add_argument("step", type=int, help="Frequency step size in Hz")
args = parser.parse_args()

freq = args.freq
with Window() as win:
    for i in range(args.n_trials):
        sound = Sound(value=freq, stereo=False)
        sound.play()
        print(f"playing {freq} Hz tone ...")
        keys = waitKeys(keyList=["down", "up"])
        if keys[0] == "down":
            freq -= args.step  # decrease frequency
        else:
            freq += args.step  # increase frequency

Exercise: Make change_pitch.py play 10 trials with a starting frequency of 1200 Hz and a step size of 50 Hz.

!python change_pitch.py 1200 10 50

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
playing 1200 Hz tone ...
playing 1250 Hz tone ...
playing 1200 Hz tone ...
playing 1150 Hz tone ...
playing 1100 Hz tone ...
playing 1050 Hz tone ...
playing 1000 Hz tone ...
playing 950 Hz tone ...
playing 900 Hz tone ...
playing 950 Hz tone ...
2.6909 	WARNING 	Monitor specification not found. Creating a temporary one...

Exercise: Make change_pitch.py` play 5 tones, starting at 2100 Hz with a step size of 100 Hz

!python change_pitch.py 2100 5 100

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
playing 2100 Hz tone ...
playing 2200 Hz tone ...
playing 2100 Hz tone ...
playing 2000 Hz tone ...
playing 1900 Hz tone ...
2.2500 	WARNING 	Monitor specification not found. Creating a temporary one...

Section 4: Combining CLI and Configuration Files

Now we can combine CLIs and configuration files to get the best of both worlds: We can use CLIs to pass in parameters that we want to change all of the time and configuration files to store the parameters that we don’t want to change as often. The program that is executed below runs a pure tone audiogram to detect the hearing threshold at a given frequency, a perfect use case to combine CLIs and config files!

Exercise: Copy the script below into a new file called audiogram.py and store it in the SAME FOLDER as this notebook. Then, run the audiogram.py.

from psychopy.sound import Sound
from psychopy.visual import Window, TextStim
from psychopy.event import waitKeys

###  Define Parameters ####
FREQUENCY = 1000  # frequency of the pure tone
N_REVERSALS = 5  # number of times the staircase reverses
SECS = 0.25  # duration of the tone in seconds
KEY_YES = "y"  # key to press if the tone was heard
KEY_NO = "n"  # key to press if the tone was not head
START_VOLUME = 0.8  # starting intensity of the tone
STEP_SIZE = 0.1  # step size of the staircase

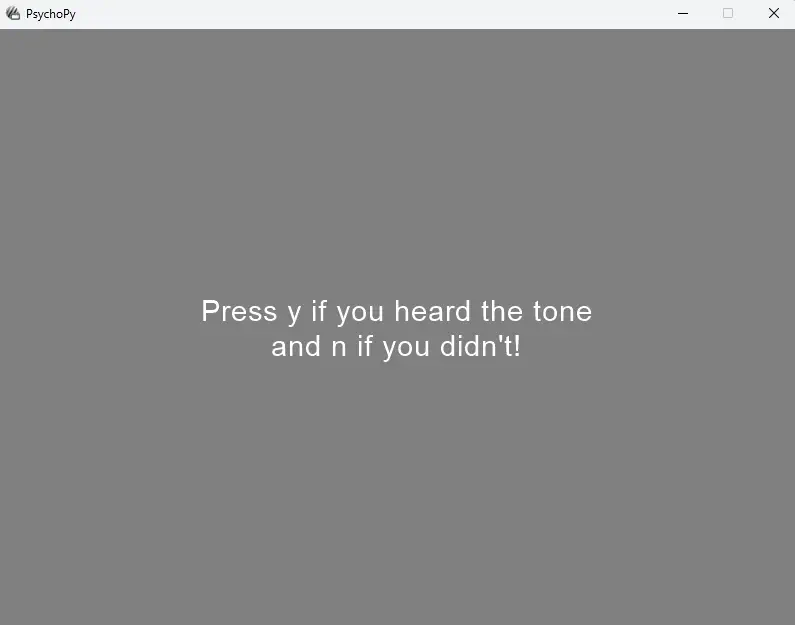

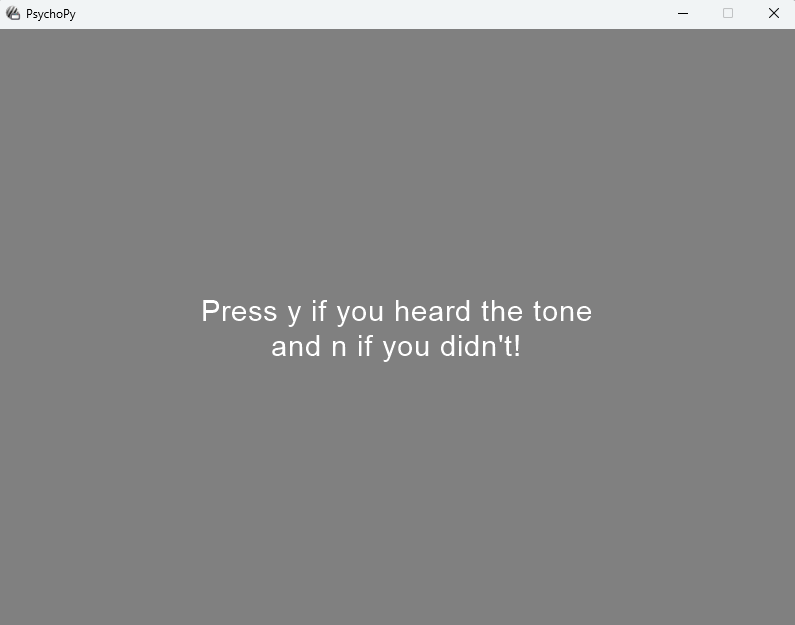

instructions = (
    "Press " + KEY_YES + " if you heard the tone and " + KEY_NO + " if you didn't!"
)
#### Run Experiment ####
with Window() as win:

    # show instructions
    text = TextStim(win, text=instructions)
    text.draw()
    win.flip()

    # create tone
    tone = Sound(value=FREQUENCY, secs=SECS, volume=START_VOLUME, stereo=False)

    # start the staircase
    reversals = []
    direction = -1  # directon of the staircae
    while len(reversals) < N_REVERSALS:
        tone.play()
        keys = waitKeys(keyList=[KEY_NO, KEY_YES])
        if keys[0] == KEY_NO:  # increase volume if key was not heard
            if direction == -1:
                direction = 1
                reversals.append(tone.volume)  # append current level
            tone.setVolume(tone.volume + STEP_SIZE)
        else:  # decrease volume if key was heard
            if direction == 1:
                direction = -1
                reversals.append(tone.volume)  # append current level
            tone.setVolume(tone.volume - STEP_SIZE)

    threshold = round(
        sum(reversals) / len(reversals), 3
    )  # compute threshold by averaging reversals
    print("The detection threshold for " + str(FREQUENCY) + " Hz is: " + str(threshold))

!python audiogram.py

Solution

pygame 2.6.1 (SDL 2.28.4, Python 3.10.16)
Hello from the pygame community. https://www.pygame.org/contribute.html
The detection threshold for 1000 Hz is: 0.04
2.3222 	WARNING 	Monitor specification not found. Creating a temporary one...

Exercise: In the beginning of the script audiogram.py, multiple parameters are defined (e.g. FREQUENCY). Create a file called audiogram_config.json that stores these parameters. Then, modify audiogram.py so that it loads audiogram_config.json and replace the parameters with the values stored in the file. Try modifying the configuration file an re-running the program!

import json
from psychopy.sound import Sound
from psychopy.visual import Window, TextStim
from psychopy.event import waitKeys

###  Import Parameters ####

with open("audiogram_config.json", "r") as f:
    params = json.load(f)

FREQUENCY = params["frequency"]  # frequency of the pure tone
N_REVERSALS = params["n_reversals"]  # number of times the staircase reverses
SECS = params["secs"]  # duration of the tone in seconds
KEY_YES = params["yes"]  # key to press if the tone was heard
KEY_NO = params["no"]  # key to press if the tone was not head
START_VOLUME = params["start_volume"]  # starting intensity of the tone
STEP_SIZE = params["step_size"]  # step size of the staircase
...

Exercise: Now add add an ArgumentParser to audiogram.py that accepts strings for config_file and use the value of args.config_file as path when loading the configuration file. Run audiogram.py using audiogram_config.json. Then, create a new configuration file and run audiogram.py with the new configuration. OPTIONAL: add a description to the parser and a help to the argument.

import json
from argparse import ArgumentParser
from psychopy.sound import Sound
from psychopy.visual import Window, TextStim
from psychopy.event import waitKeys

parser = ArgumentParser(description="Run a pure tone audiogram")
parser.add_argument("config_file", type=str, help="Path to the configuration file")
args = parser.parse_args()

###  Import Parameters ####
with open(args.config_file, "r") as f:
    params = json.load(f)

FREQUENCY = params["frequency"]  # frequency of the pure tone
N_REVERSALS = params["n_reversals"]  # number of times the staircase reverses
SECS = params["secs"]  # duration of the tone in seconds
KEY_YES = params["yes"]  # key to press if the tone was heard
KEY_NO = params["no"]  # key to press if the tone was not head
START_VOLUME = params["start_volume"]  # starting intensity of the tone
STEP_SIZE = params["step_size"]  # step size of the staircase
...

Exercise: Add an integer "frequency" argument to the parser and use this argument instead of the value stored in the configuration file to set the FREQUENCY of the tone. Then run audiogram.py twice, using the same configuration file but different tone frequencies.

import json
from argparse import ArgumentParser
from psychopy.sound import Sound
from psychopy.visual import Window, TextStim
from psychopy.event import waitKeys

parser = ArgumentParser(description="Run a pure tone audiogram")
parser.add_argument("config_file", type=str, help="Path to the configuration file")
parser.add_argument("frequency", type=int, help="Frequency of the tone in Hz")
args = parser.parse_args()

###  Import Parameters ####
with open(args.config_file, "r") as f:
    params = json.load(f)

FREQUENCY = args.frequency  # frequency of the pure tone
N_REVERSALS = params["n_reversals"]  # number of times the staircase reverses
SECS = params["secs"]  # duration of the tone in seconds
KEY_YES = params["yes"]  # key to press if the tone was heard
KEY_NO = params["no"]  # key to press if the tone was not head
START_VOLUME = params["start_volume"]  # starting intensity of the tone
STEP_SIZE = params["step_size"]  # step size of the staircase
...
