Analyzing JSON-, CSV, and Parquet data using SQL in DuckDB
SQL Queries over Data Files With DuckDB

SQL Queries over Data Files With DuckDB

Author
Dr. Nicholas Del Grosso
Open in JupyterLite Download Exercises

SQL, which stands for Structured Query Language, is a standard language used to communicate with databases. It is widely used for managing and manipulating data in databases, and is particularly good for tabular-formatted data. SQL allows you to perform tasks such as retrieving specific data from large databases, updating data, creating new tables or databases, and setting permissions on data access. It is a fundamental tool in many fields that require data management, including research, business, and software development.

DuckDB is a database management system that is designed to be easy to use and efficient. It is useful for anyone who needs to work with big datasets and wants to get results quickly, and it has bindings in a wide variety of languages (including Python and a command-line interface) . Whether you are working on research data or any large dataset, DuckDB can be a helpful tool for managing and analyzing your data. Some other properties:

  • DuckDB is an “embedded DBMS*, like SQLite, meaning that it it doesn’t need a server process to run.
  • DudckDB is a “column-store” DBMS, which makes it very fast at analytical processes like loading up a few large columns at a time. The tradeoff is that it is slower at writing transactional data, so it’s not meant to be used for writing large amounts real-time data at high speeds (for this, SQLite, MySQL, and PostGres would be popular alternatives).
  • DuckDB is unique in that it can be used directly on common tabular file types, without necessarily building a special database file and defining all the tables first.
  • DuckDB has integrations with Pandas, Polars, and PyArrow, and can both run queries on those Python variables without making any copies (high-speed!), and can convert its tables directly to those types, making it easy to integrate into most analysis pipelines.

Setup

Data Download

from tqdm import tqdm
from pathlib import Path
from webdav4.fsspec import WebdavFileSystem

# https://uni-bonn.sciebo.de/s/oZql1bk0p1AvK0w
fs = WebdavFileSystem("https://uni-bonn.sciebo.de/public.php/webdav", auth=("oZql1bk0p1AvK0w", ""))
for name in tqdm(fs.ls("/", detail=False), desc="Downloading Data to data/stenmetz"):
    if not Path(f"data/steinmetz/{name}").exists():
        fs.download(name, f"data/steinmetz/{name}", recursive=True)
Downloading Data to data/stenmetz:   0%|                                                                                                                                     | 0/37 [00:00<?, ?it/s]
Downloading Data to data/stenmetz: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 37/37 [00:00<00:00, 15015.89it/s]


Import Libraries




import numpy
import pandas as pd
from duckdb import sql
import duckdb
import seaborn as sns
















Section 1: Loading Data from DataFrames with DuckDB: the SELECT * FROM Statement with Pandas





          Code
          Description






          duckdb.sql('SELECT * FROM df')
          Load all the data from the df variable into DuckDB




          duckdb.sql('FROM df')
          A shortcut: The same as “SELECT * FROM df”




          duckdb.sql('SELECT colA, colB FROM df')
          Load only columns “colA” and “colA” from df.




          duckdb.sql('DESCRIBE SELECT * FROM df')
          Show information about each column in df.




          duckdb.sql('DESCRIBE FROM df')
          Show information about each column in df.




          duckdb.sql('SELECT ColA, ColB FROM df ORDER BY ColA')
          Order the rows by the values in ColA




          duckdb.sql('SELECT ColA as ColumnA, * FROM df ORDER BY ColA')
          Rename ColA to ColumnA and select the rest of the columns as well.




          duckdb.sql('FROM df LIMIT 3)
          Show only the first 3 rows (good for quickly previewing data)




          duckdb.sql().to_df()
          Convert the result back to a Pandas DataFrame.






Exercises




mri_sessions = pd.DataFrame({
    "SessionID": [101, 102, 103, 104, 105],
    "PatientID": ["P001", "P002", "P001", "P003", "P002"],
    "Date": ["2024-02-01", "2024-02-03", "2024-02-05", "2024-02-07", "2024-02-09"],
    "Duration": [30, 45, 30, 60, 45]
})

ca2_sessions = pd.DataFrame({
    "ExperimentID": [301, 302, 303, 304, 305],
    "AnimalModel": ["Mouse", "Rat", "Zebrafish", "Mouse", "Rat"],
    "SessionDate": ["2024-04-01", "2024-04-05", "2024-04-09", "2024-04-13", "2024-04-17"],
    "DyeUsed": ["OGB-1", "Fluo-4", "GCaMP6", "OGB-1", "Fluo-4"],
    "ImagingTechnique": ["Two-photon", "Confocal", "Light-sheet", "Two-photon", "Confocal"],
    "NumCells": [200, 150, 300, 250, 180]
})







Example: Get all columns of the mri session dataframe





sql("FROM mri_sessions")










┌───────────┬───────────┬────────────┬──────────┐
│ SessionID │ PatientID │    Date    │ Duration │
│   int64   │  varchar  │  varchar   │  int64   │
├───────────┼───────────┼────────────┼──────────┤
│       101 │ P001      │ 2024-02-01 │       30 │
│       102 │ P002      │ 2024-02-03 │       45 │
│       103 │ P001      │ 2024-02-05 │       30 │
│       104 │ P003      │ 2024-02-07 │       60 │
│       105 │ P002      │ 2024-02-09 │       45 │
└───────────┴───────────┴────────────┴──────────┘







Exercise: Get all columns of the ca2 sessions.







      Solution










sql("FROM ca2_sessions")










┌──────────────┬─────────────┬─────────────┬─────────┬──────────────────┬──────────┐
│ ExperimentID │ AnimalModel │ SessionDate │ DyeUsed │ ImagingTechnique │ NumCells │
│    int64     │   varchar   │   varchar   │ varchar │     varchar      │  int64   │
├──────────────┼─────────────┼─────────────┼─────────┼──────────────────┼──────────┤
│          301 │ Mouse       │ 2024-04-01  │ OGB-1   │ Two-photon       │      200 │
│          302 │ Rat         │ 2024-04-05  │ Fluo-4  │ Confocal         │      150 │
│          303 │ Zebrafish   │ 2024-04-09  │ GCaMP6  │ Light-sheet      │      300 │
│          304 │ Mouse       │ 2024-04-13  │ OGB-1   │ Two-photon       │      250 │
│          305 │ Rat         │ 2024-04-17  │ Fluo-4  │ Confocal         │      180 │
└──────────────┴─────────────┴─────────────┴─────────┴──────────────────┴──────────┘

















Exercise: Select only the Patient ID and Duration columns from the MRI data







      Solution










sql("Select PatientID, Date FROM mri_sessions")










┌───────────┬────────────┐
│ PatientID │    Date    │
│  varchar  │  varchar   │
├───────────┼────────────┤
│ P001      │ 2024-02-01 │
│ P002      │ 2024-02-03 │
│ P001      │ 2024-02-05 │
│ P003      │ 2024-02-07 │
│ P002      │ 2024-02-09 │
└───────────┴────────────┘

















Exercise: Select only the Experiment ID and Animal Model columns from the MRI data







      Solution










sql("SELECT ExperimentID, AnimalModel from ca2_sessions")










┌──────────────┬─────────────┐
│ ExperimentID │ AnimalModel │
│    int64     │   varchar   │
├──────────────┼─────────────┤
│          301 │ Mouse       │
│          302 │ Rat         │
│          303 │ Zebrafish   │
│          304 │ Mouse       │
│          305 │ Rat         │
└──────────────┴─────────────┘

















Exercise: Reorder the CA2 data by the number of cells counted, and convert the result back to a Pandas DataFrame:







      Solution










sql("FROM ca2_sessions ORDER BY NumCells").to_df()
















      ExperimentID
      AnimalModel
      SessionDate
      DyeUsed
      ImagingTechnique
      NumCells






      0
      302
      Rat
      2024-04-05
      Fluo-4
      Confocal
      150




      1
      305
      Rat
      2024-04-17
      Fluo-4
      Confocal
      180




      2
      301
      Mouse
      2024-04-01
      OGB-1
      Two-photon
      200




      3
      304
      Mouse
      2024-04-13
      OGB-1
      Two-photon
      250




      4
      303
      Zebrafish
      2024-04-09
      GCaMP6
      Light-sheet
      300

















Exercise: In the Ca2 data, rename the SessionDate column to be just “Date”.







      Solution










sql("SELECT SessionDate as Date, * FROM ca2_sessions")










┌────────────┬──────────────┬─────────────┬─────────────┬─────────┬──────────────────┬──────────┐
│    Date    │ ExperimentID │ AnimalModel │ SessionDate │ DyeUsed │ ImagingTechnique │ NumCells │
│  varchar   │    int64     │   varchar   │   varchar   │ varchar │     varchar      │  int64   │
├────────────┼──────────────┼─────────────┼─────────────┼─────────┼──────────────────┼──────────┤
│ 2024-04-01 │          301 │ Mouse       │ 2024-04-01  │ OGB-1   │ Two-photon       │      200 │
│ 2024-04-05 │          302 │ Rat         │ 2024-04-05  │ Fluo-4  │ Confocal         │      150 │
│ 2024-04-09 │          303 │ Zebrafish   │ 2024-04-09  │ GCaMP6  │ Light-sheet      │      300 │
│ 2024-04-13 │          304 │ Mouse       │ 2024-04-13  │ OGB-1   │ Two-photon       │      250 │
│ 2024-04-17 │          305 │ Rat         │ 2024-04-17  │ Fluo-4  │ Confocal         │      180 │
└────────────┴──────────────┴─────────────┴─────────────┴─────────┴──────────────────┴──────────┘

















Exercise: In the MRI data, load just the SessionID (renamed to be just ID) and (PatientID renamed to be Patient) columns. Sort the data by the patient ID.







      Solution










sql("SELECT SessionID as ID, PatientID as Patient FROM mri_sessions ORDER BY Patient")










┌───────┬─────────┐
│  ID   │ Patient │
│ int64 │ varchar │
├───────┼─────────┤
│   101 │ P001    │
│   103 │ P001    │
│   102 │ P002    │
│   105 │ P002    │
│   104 │ P003    │
└───────┴─────────┘


























Section 2: Loading Data with DuckDB- the SELECT * FROM Statement with Files

Now, let’s build on these queries, using DuckDB’s ability to work on






          Code
          Description






          duckdb.sql('SELECT * FROM "path/to/file.json"')
          Load the JSON file into a table.






          duckdb.sql('SELECT * FROM "path/to/file.csv"')
          Load the CSV file into a table.






          duckdb.sql('SELECT * FROM "path/to/file.parquet"')
          Load the PARQUET file into a table.






          duckdb.sql('SELECT * FROM "path/*/file.parquet"')
          Load all the “file.parquet” files into a table.




          duckdb.sql('SELECT * FROM "**/*.parquet"')
          Load all the parquet files that start with the letter “f” into a table, no matter what subfolder they are in.




          duckdb.sql('SELECT * FROM read_json("path/to/file.json", filename=true)')
          Load the “file.json” file into a table using the read_json() function directly.






For the next sections, we’ll be exploring some data from a Steinmetz et al NeuroPixel experiment, processed here into JSON files for our tabular analysis, along with some other familiar file types.


Exercises

Example: Use duckdb to read the session.json file from the session recorded on 2017-10-11.  What metadata fields were recorded on that day?





sql('FROM "data/steinmetz/*_2017-10-11_*/session.json"')










┌──────────────┬─────────┬────────────┬──────────┬─────────┐
│ session_date │  mouse  │ stim_onset │ bin_size │   id    │
│     date     │ varchar │   double   │  double  │ varchar │
├──────────────┼─────────┼────────────┼──────────┼─────────┤
│ 2017-10-11   │ Theiler │        0.5 │     0.01 │ ab16    │
└──────────────┴─────────┴────────────┴──────────┴─────────┘







Exercise: Use duckdb to read the session.json file from the session recorded on 2017-11-02.  What metadata fields were recorded on that day?







      Solution










sql('FROM "data/steinmetz/steinmetz_2017-11-02_Forssmann/session.json"')










┌──────────────┬───────────┬────────────┬──────────┬─────────┐
│ session_date │   mouse   │ stim_onset │ bin_size │   id    │
│     date     │  varchar  │   double   │  double  │ varchar │
├──────────────┼───────────┼────────────┼──────────┼─────────┤
│ 2017-11-02   │ Forssmann │        0.5 │     0.01 │ dda4    │
└──────────────┴───────────┴────────────┴──────────┴─────────┘

















Exercise: Use duckdb to read the ’trials.csv’ file recorded on 2017-11-02.  What trial variables were recorded for that session?  (Note: if you cannot see all the columns, either add "DESCRIBE" to the front of the SQL statement, or you can convert the output to a Pandas DataFrame with .to_df())







      Solution










sql('FROM "data/steinmetz/steinmetz_2017-11-02_Forssmann/trials.csv"').to_df()
















      contrast_left
      contrast_right
      gocue
      stim_onset
      feedback_type
      feedback_time
      response_type
      response_time
      reaction_type
      reaction_time
      prev_reward
      active_trials
      session_id






      0
      0
      100
      0.582163
      0.5
      1.0
      0.827766
      -1.0
      0.784573
      -1.0
      290.0
      -10.000000
      True
      dda4




      1
      0
      0
      0.484221
      0.5
      1.0
      2.320245
      0.0
      2.288648
      0.0
      inf
      -5.539448
      True
      dda4




      2
      25
      25
      0.688418
      0.5
      -1.0
      1.358262
      -1.0
      1.358262
      -1.0
      1230.0
      -4.196441
      True
      dda4




      3
      0
      0
      0.628084
      0.5
      -1.0
      0.862720
      1.0
      0.862720
      1.0
      720.0
      -2.937326
      True
      dda4




      4
      0
      0
      0.748259
      0.5
      1.0
      2.587083
      0.0
      2.554045
      0.0
      inf
      -2.342347
      True
      dda4




      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...




      359
      0
      50
      NaN
      0.5
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      False
      dda4




      360
      0
      100
      NaN
      0.5
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      False
      dda4




      361
      0
      50
      NaN
      0.5
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      False
      dda4




      362
      0
      100
      NaN
      0.5
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      False
      dda4




      363
      0
      100
      NaN
      0.5
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      NaN
      False
      dda4






364 rows × 13 columns














Exercise: Use duckdb to read all of the session.json files in the dataset.







      Solution










duckdb.sql('FROM "data/steinmetz/**/session.json"')










┌──────────────┬───────────┬────────────┬──────────┬─────────┐
│ session_date │   mouse   │ stim_onset │ bin_size │   id    │
│     date     │  varchar  │   double   │  double  │ varchar │
├──────────────┼───────────┼────────────┼──────────┼─────────┤
│ 2017-01-07   │ Muller    │        0.5 │     0.01 │ b5b6    │
│ 2017-01-08   │ Muller    │        0.5 │     0.01 │ 49bb    │
│ 2017-01-08   │ Radnitz   │        0.5 │     0.01 │ 769e    │
│ 2017-01-09   │ Muller    │        0.5 │     0.01 │ 31dc    │
│ 2017-01-09   │ Radnitz   │        0.5 │     0.01 │ 99f4    │
│ 2017-01-10   │ Radnitz   │        0.5 │     0.01 │ a400    │
│ 2017-01-11   │ Radnitz   │        0.5 │     0.01 │ 6207    │
│ 2017-01-12   │ Radnitz   │        0.5 │     0.01 │ 3e6c    │
│ 2017-05-15   │ Moniz     │        0.5 │     0.01 │ 40f7    │
│ 2017-05-16   │ Moniz     │        0.5 │     0.01 │ 2474    │
│     ·        │   ·       │         ·  │       ·  │  ·      │
│     ·        │   ·       │         ·  │       ·  │  ·      │
│     ·        │   ·       │         ·  │       ·  │  ·      │
│ 2017-12-06   │ Lederberg │        0.5 │     0.01 │ 1e77    │
│ 2017-12-06   │ Tatum     │        0.5 │     0.01 │ e7bd    │
│ 2017-12-07   │ Lederberg │        0.5 │     0.01 │ e119    │
│ 2017-12-07   │ Tatum     │        0.5 │     0.01 │ 2edb    │
│ 2017-12-08   │ Lederberg │        0.5 │     0.01 │ 0080    │
│ 2017-12-08   │ Tatum     │        0.5 │     0.01 │ 403f    │
│ 2017-12-09   │ Lederberg │        0.5 │     0.01 │ 4363    │
│ 2017-12-09   │ Tatum     │        0.5 │     0.01 │ 2115    │
│ 2017-12-10   │ Lederberg │        0.5 │     0.01 │ df5e    │
│ 2017-12-11   │ Lederberg │        0.5 │     0.01 │ ecb9    │
├──────────────┴───────────┴────────────┴──────────┴─────────┤
│ 37 rows (20 shown)                               5 columns │
└────────────────────────────────────────────────────────────┘

















Exercise: Use DuckDB to read all the trials.csv files in the dataset.







      Solution










duckdb.sql('DESCRIBE FROM "data/steinmetz/*/trials.csv"')










┌────────────────┬─────────────┬─────────┬─────────┬─────────┬─────────┐
│  column_name   │ column_type │  null   │   key   │ default │  extra  │
│    varchar     │   varchar   │ varchar │ varchar │ varchar │ varchar │
├────────────────┼─────────────┼─────────┼─────────┼─────────┼─────────┤
│ contrast_left  │ BIGINT      │ YES     │ NULL    │ NULL    │ NULL    │
│ contrast_right │ BIGINT      │ YES     │ NULL    │ NULL    │ NULL    │
│ gocue          │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ stim_onset     │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ feedback_type  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ feedback_time  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ response_type  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ response_time  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ reaction_type  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ reaction_time  │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ prev_reward    │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ active_trials  │ BOOLEAN     │ YES     │ NULL    │ NULL    │ NULL    │
│ session_id     │ VARCHAR     │ YES     │ NULL    │ NULL    │ NULL    │
├────────────────┴─────────────┴─────────┴─────────┴─────────┴─────────┤
│ 13 rows                                                    6 columns │
└──────────────────────────────────────────────────────────────────────┘

















Exercise: Use DuckDB to get all the cells that were recorded from in the dataset.







      Solution










duckdb.sql('DESCRIBE FROM "data/steinmetz/*/cells.parquet"')










┌────────────────┬─────────────┬─────────┬─────────┬─────────┬─────────┐
│  column_name   │ column_type │  null   │   key   │ default │  extra  │
│    varchar     │   varchar   │ varchar │ varchar │ varchar │ varchar │
├────────────────┼─────────────┼─────────┼─────────┼─────────┼─────────┤
│ ccf_ap         │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ ccf_dv         │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ ccf_lr         │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
│ brain_area     │ VARCHAR     │ YES     │ NULL    │ NULL    │ NULL    │
│ brain_groups   │ VARCHAR     │ YES     │ NULL    │ NULL    │ NULL    │
│ trough_to_peak │ TINYINT     │ YES     │ NULL    │ NULL    │ NULL    │
│ session_id     │ VARCHAR     │ YES     │ NULL    │ NULL    │ NULL    │
│ cell           │ INTEGER     │ YES     │ NULL    │ NULL    │ NULL    │
└────────────────┴─────────────┴─────────┴─────────┴─────────┴─────────┘

















Exercise: What variables were stored when recording lick behaviors (Tip: Use DESCRIBE at the front of the query)?







      Solution










duckdb.sql('DESCRIBE FROM "data/steinmetz/*/licks.parquet"')










┌─────────────┬─────────────┬─────────┬─────────┬─────────┬─────────┐
│ column_name │ column_type │  null   │   key   │ default │  extra  │
│   varchar   │   varchar   │ varchar │ varchar │ varchar │ varchar │
├─────────────┼─────────────┼─────────┼─────────┼─────────┼─────────┤
│ licks       │ TINYINT     │ YES     │ NULL    │ NULL    │ NULL    │
│ session_id  │ VARCHAR     │ YES     │ NULL    │ NULL    │ NULL    │
│ trial       │ INTEGER     │ YES     │ NULL    │ NULL    │ NULL    │
│ time        │ DOUBLE      │ YES     │ NULL    │ NULL    │ NULL    │
└─────────────┴─────────────┴─────────┴─────────┴─────────┴─────────┘


























Section 3: Getting Unique Values with SELECT DISTINCT

Often, we want to summarize data by finding out what unique values there are in a dataset, in order to plan out an analysis.  In SQL, the SELECT DISTINCT

 statement helps with this, and can even show distinct combinations of column values.






          Code
          Description






          SELECT * FROM my_table
          Select all the columns.




          SELECT colA, colB FROM my_table
          Select just colA and colB




          SELECT DISTINCT colA FROM my_table
          Show just the unique values of colA




          SELECT DISTINCT colA, colB FROM my_table
          Show just the unique combinations of values between colA and colB




          SELECT DISTINCT colA, colB FROM my_table ORDER BY colA
          …and order by colA




          SELECT DISTINCT colA, colB FROM my_table ORDER BY colA, colB
          …and order by colA, then colB




          SELECT DISTINCT colA, colB FROM my_table ORDER BY *
          Order the data by whatever columns are selected, in the order they appear in the table.






Exercises

Example: What mice were in the study?  Show just the unique values.





sql(
"""
SELECT DISTINCT
    mouse,
FROM
    "data/steinmetz/*/session.json"
""")










┌───────────┐
│   mouse   │
│  varchar  │
├───────────┤
│ Forssmann │
│ Richards  │
│ Lederberg │
│ NULL      │
│ Tatum     │
│ Theiler   │
│ Moniz     │
│ Radnitz   │
│ Muller    │
│ Hench     │
├───────────┤
│  10 rows  │
└───────────┘







Exercise: What unique (“distinct”) contrast levels of the left stimulus were there in this experiment?  To make it easier to read, order the rows in the resulting table.







      Solution










sql(
"""
SELECT DISTINCT
    contrast_left
FROM
    "data/steinmetz/*/trials.csv"
ORDER BY *
""")










┌───────────────┐
│ contrast_left │
│     int64     │
├───────────────┤
│             0 │
│            25 │
│            50 │
│           100 │
└───────────────┘

















Exercise: What unique (“distinct”) combinations of contrast levels between the left and right stimulus were there in this experiment?  To make it easier to read, order the rows in the resulting table.







      Solution










sql(
"""
SELECT DISTINCT
    contrast_left,
    contrast_right
FROM
    "data/steinmetz/*/trials.csv"
ORDER BY contrast_left, contrast_right
""")










┌───────────────┬────────────────┐
│ contrast_left │ contrast_right │
│     int64     │     int64      │
├───────────────┼────────────────┤
│             0 │              0 │
│             0 │             25 │
│             0 │             50 │
│             0 │            100 │
│            25 │              0 │
│            25 │             25 │
│            25 │             50 │
│            25 │            100 │
│            50 │              0 │
│            50 │             25 │
│            50 │             50 │
│            50 │            100 │
│           100 │              0 │
│           100 │             25 │
│           100 │             50 │
│           100 │            100 │
├───────────────┴────────────────┤
│ 16 rows              2 columns │
└────────────────────────────────┘

















Exercise: What were the different stimulus onset time settings used this experiment?







      Solution










sql(
"""
SELECT DISTINCT
    stim_onset
FROM
    "data/steinmetz/*/trials.csv"
""")










┌────────────┐
│ stim_onset │
│   double   │
├────────────┤
│        0.5 │
└────────────┘

















Exercise: Which general areas of the  brain (let’s use “brain_groups” here) were the cells in this study recorded from?







      Solution










sql(
"""
SELECT DISTINCT
    brain_groups
FROM
    "data/steinmetz/*/cells.parquet"
ORDER BY brain_groups
""")










┌───────────────────┐
│   brain_groups    │
│      varchar      │
├───────────────────┤
│ TT                │
│ basal ganglia     │
│ cortical subplate │
│ hippocampus       │
│ midbrain          │
│ non-visual cortex │
│ root              │
│ thalamus          │
│ visual cortex     │
└───────────────────┘

















Exercise: Which brain groups were associated with which brain areas?







      Solution










sql(
"""
SELECT DISTINCT
    brain_groups,
    brain_area
FROM
    "data/steinmetz/*/cells.parquet"
ORDER BY brain_groups
""")










┌───────────────┬────────────┐
│ brain_groups  │ brain_area │
│    varchar    │  varchar   │
├───────────────┼────────────┤
│ TT            │ TT         │
│ basal ganglia │ OT         │
│ basal ganglia │ SNr        │
│ basal ganglia │ MS         │
│ basal ganglia │ ACB        │
│ basal ganglia │ LSr        │
│ basal ganglia │ LSc        │
│ basal ganglia │ CP         │
│ basal ganglia │ GPe        │
│ basal ganglia │ LS         │
│    ·          │ ·          │
│    ·          │ ·          │
│    ·          │ ·          │
│ thalamus      │ LP         │
│ thalamus      │ SPF        │
│ thalamus      │ RT         │
│ thalamus      │ VAL        │
│ visual cortex │ VISrl      │
│ visual cortex │ VISa       │
│ visual cortex │ VISl       │
│ visual cortex │ VISp       │
│ visual cortex │ VISam      │
│ visual cortex │ VISpm      │
├───────────────┴────────────┤
│     72 rows (20 shown)     │
└────────────────────────────┘


























Section 4: Filtering Data with WHERE

Let’s Filter the data! The WHERE

 clause in SQL helps to only load up the rows that meet a specified condition:






          Code
          Description






          FROM my_table WHERE colA > 5
          Only take the rows where colA is greater than 5.




          FROM my_table WHERE colA = 'adult'
          Only take the rows where colA is “adult”.




          FROM my_table WHERE colA IS NOT NULL
          Only take the non-missing rows of colA




          FROM my_table WHERE colA LIKE 'C%'
          Only take the rows of ColA where the text starts with a “C”.






More filtering experessions can be found at these links (won’t be used in these exercises; just for reference):



Exercises

Example: Which brain areas of the brain group “thalamus” did we record cells from in this experiment?  (Tip: use single quotes ' to reference text.)





sql(
"""
SELECT DISTINCT
    brain_groups,
    brain_area
FROM
    'data/steinmetz/*/cells.parquet'
WHERE brain_groups = 'thalamus'
ORDER BY brain_groups
""")










┌──────────────┬────────────┐
│ brain_groups │ brain_area │
│   varchar    │  varchar   │
├──────────────┼────────────┤
│ thalamus     │ MG         │
│ thalamus     │ PO         │
│ thalamus     │ LGd        │
│ thalamus     │ POL        │
│ thalamus     │ VPM        │
│ thalamus     │ VPL        │
│ thalamus     │ CL         │
│ thalamus     │ TH         │
│ thalamus     │ MD         │
│ thalamus     │ LH         │
│ thalamus     │ LD         │
│ thalamus     │ LP         │
│ thalamus     │ VAL        │
│ thalamus     │ RT         │
│ thalamus     │ PT         │
│ thalamus     │ SPF        │
├──────────────┴────────────┤
│ 16 rows         2 columns │
└───────────────────────────┘







Exercise: Which brain areas recorded in this experiment start with the capital letter V?







      Solution










sql(
"""
SELECT DISTINCT
    brain_area
FROM
    "data/steinmetz/*/cells.parquet"
WHERE brain_area LIKE 'V%'
""")










┌────────────┐
│ brain_area │
│  varchar   │
├────────────┤
│ VISam      │
│ VISrl      │
│ VISl       │
│ VPL        │
│ VPM        │
│ VISa       │
│ VISpm      │
│ VISp       │
│ VAL        │
└────────────┘

















Exercise: Which brain groups recorded in this experiment end with the word "cortex"?







      Solution










sql(
"""
SELECT DISTINCT
    brain_groups
FROM '**/cells.parquet'
WHERE brain_groups LIKE '%cortex'
"""
)










┌───────────────────┐
│   brain_groups    │
│      varchar      │
├───────────────────┤
│ visual cortex     │
│ non-visual cortex │
└───────────────────┘

















Exercise: Which sessions had cell recordings in the visual cortex?







      Solution










sql(
"""
SELECT DISTINCT
    session_id
FROM
    "data/steinmetz/*/cells.parquet"
WHERE brain_groups = 'visual cortex'
""")










┌────────────┐
│ session_id │
│  varchar   │
├────────────┤
│ 8125       │
│ dda4       │
│ 403f       │
│ 49bb       │
│ 40f7       │
│ 8cbd       │
│ 2474       │
│ 99f4       │
│ e7bd       │
│ 6123       │
│ 1e77       │
│ e119       │
│ 2edb       │
│ 6207       │
│ a400       │
│ 77a8       │
│ 769e       │
│ ab16       │
│ b5b6       │
│ bba2       │
│ 03ce       │
│ 31dc       │
│ 3023       │
├────────────┤
│  23 rows   │
└────────────┘

















Exercise: Which sessions had recordings in the hippocampus?







      Solution










sql(
"""
SELECT DISTINCT
    session_id
FROM
    "data/steinmetz/*/cells.parquet"
WHERE brain_groups = 'hippocampus'
""")










┌────────────┐
│ session_id │
│  varchar   │
├────────────┤
│ 0080       │
│ ab16       │
│ 77a8       │
│ 4363       │
│ bba2       │
│ 03ce       │
│ 0834       │
│ 2115       │
│ 31dc       │
│ 40f7       │
│  ·         │
│  ·         │
│  ·         │
│ 62c0       │
│ 3023       │
│ 8125       │
│ 93c7       │
│ 49bb       │
│ dda4       │
│ e119       │
│ 6123       │
│ 2edb       │
│ 1e77       │
├────────────┤
│  27 rows   │
│ (20 shown) │
└────────────┘


























Section 5: (Demo) Plotting Data: Query, then Plot!

Most of the time, you don’t need any complex queries;  in a language like Python is that you get to use all the other Python tools!


Exercises

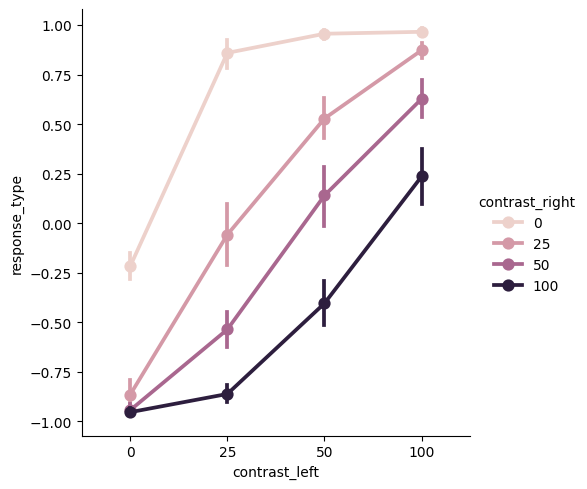

Example: Making a Statistical Plot of Trial Performance





df = duckdb.sql('FROM "**/trials.csv" WHERE active_trials = true AND response_type <> 0').to_df()
sns.catplot(data=df, x='contrast_left', hue='contrast_right', y='response_type', kind='point');

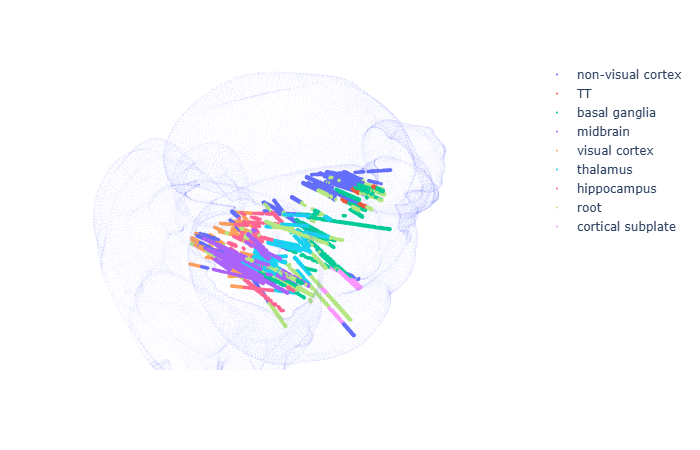

Example: Rendering a 3D point cloud of cell positions in the Allen Brain Atlas.





# %pip install plotly nbformat bg-atlasapi










import plotly.express as px
import plotly.graph_objects as go
from bg_atlasapi.bg_atlas import BrainGlobeAtlas
import duckdb










df = duckdb.sql("FROM '**/cells.parquet'").to_df()
atlas_mesh = BrainGlobeAtlas("allen_mouse_25um").mesh_from_structure('root')


fig1 = px.scatter_3d(x=atlas_mesh.points[:, 0], y=atlas_mesh.points[:, 1], z=atlas_mesh.points[:, 2], opacity=0.1).update_traces(marker=dict(size=.6))
fig2 = px.scatter_3d(x=df.ccf_ap, y=df.ccf_dv, z=df.ccf_lr, color=df.brain_groups, width=700, title="Cell CCF Coordinates").update_traces(marker=dict(size=2))
go.Figure(data=fig1.data + fig2.data, layout=fig1.layout).update_layout(scene=dict(xaxis={'visible': False}, yaxis={'visible': False}, zaxis={'visible': False}), width=700, scene_camera=dict(eye=dict(x=.75, y=.75, z=.75)))
