Scale Data to Prepare it for Model Training

Setup

Import Libraries

import pandas as pd
import matplotlib.pyplot as plt
import numpy as np

from sklearn.preprocessing import StandardScaler, MinMaxScaler, RobustScaler, OneHotEncoder, LabelEncoder
import scipy.stats as stats

import torch
import torch.nn as nn
from torch.utils.data import TensorDataset, random_split

Utility Functions

def train(model: nn.Module, features: torch.Tensor, labels: torch.Tensor, nepochs: int = 100) -> None:

    optimizer = torch.optim.Adam(model.parameters())
    loss_function = nn.CrossEntropyLoss()
    for epoch in range(nepochs):
        optimizer.zero_grad()

        output = model.forward(features)

        loss = loss_function(output, labels)

        loss.backward()

        optimizer.step()

class utils:
    train = train

Load Data

url = 'https://gist.githubusercontent.com/tijptjik/9408623/raw/b237fa5848349a14a14e5d4107dc7897c21951f5/wine.csv'
df = pd.read_csv(url)

# the data in the wine column are the labels
labels = df['Wine'].values

# the data from all other columns are the features
features = df.drop(columns='Wine').values

df

Take a look at the numbers in the columns titled Nonflavanoid.phenols and Proline in the table above. The numbers in the Nonflavanoid.phenols are smaller than 1 while the numbers in the Proline column are in the hundreds to one thousand.¹ When passing the features from this data through a neural network, the data from Proline column are going to influence the model more than the data from the Nonflavanoid.phenols column, simply because they are bigger. That can negatively impact the performance of the model as the Proline data aren’t necessarily more important just because the numbers are bigger. The weights may be adjusted during optimization of the model to compensate for this, but it’s either way going to slow down the model’s ability to learn in the beginning. To avoid this issue, it’s a good idea to make sure that the different features have the same scale, and we can do that through standardizing or normalizing the data. In this notebook, you’ll learn different techniques for standardization and normalization.

¹It’s true for the numbers that aren’t displayed as well. You can plot them in a histogram to check if you want to.

Section 1: Scaling of Data Can Improve Network Performance

There are two common approaches to scaling data: normalization and standardization. Normalization rescales values to a fixed range, typically between 0 and 1, by subtracting the minimum and dividing by the range. Standardization transforms data to have a mean of 0 and a standard deviation of 1 by subtracting the mean and dividing by the standard deviation.

Example: Normalize the proline array provided in the cell below. Assign the normalized values to a variable named norm_proline and run the cell that plots a distribution of the norm_proline to check that its lower bound is 0 and upper bound is 1.

proline = df['Proline'].values

norm_proline = (proline - proline.min())/(proline.max()-proline.min())

plt.hist(norm_proline)
plt.xlabel('Normalized Proline Values')
plt.ylabel('Nr. of samples');

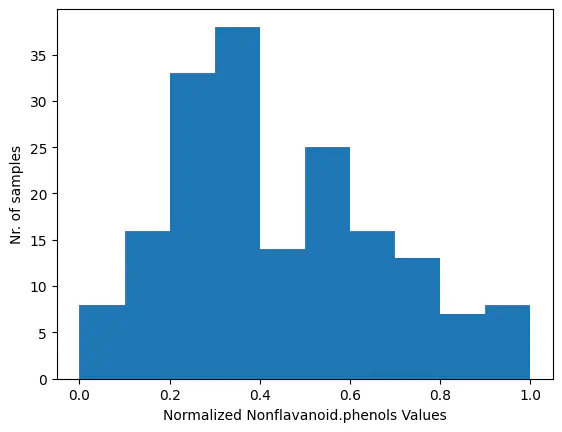

Exercise: Normalize the Nonflavanoid.phenols data, which are assigned to the variable non_ph in the cell below. Assign the normalized values to a variable named norm_non_ph and run the cell that plots a distribution of the norm_non_ph to check that its lower bound is 0 and upper bound is 1.

non_ph = df['Nonflavanoid.phenols'].values

norm_non_ph = (non_ph - non_ph.min())/(non_ph.max()-non_ph.min())

plt.hist(norm_non_ph)
plt.xlabel('Normalized Nonflavanoid.phenols Values')
plt.ylabel('Nr. of samples');

Exercise: Compute the normalized values of features provided below, which contains the data from both the Proline and the Nonflavanoid.phenols column. Assign the result to a variable named norm_features.

Hint: You need to specify the axis along which the min and the max should be calculated - e.g. axis=0.

features = df[['Proline','Nonflavanoid.phenols']].values

norm_features = (features - features.min(axis=0))/(features.max(axis=0)-features.min(axis=0))

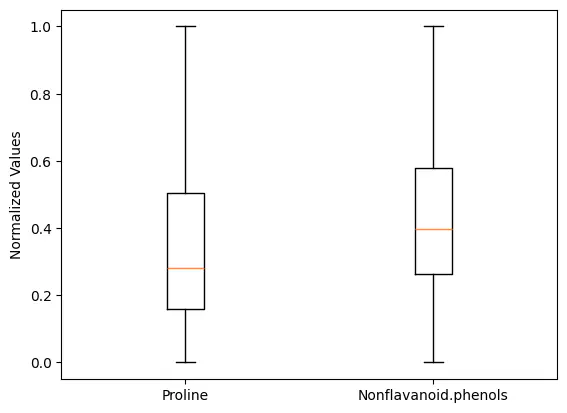

Run the cell to make a boxplot for the two features after normalization to check that they are both bounded by 0 and 1.

plt.boxplot(norm_features)
plt.xticks([1, 2], ['Proline', 'Nonflavanoid.phenols'])
plt.ylabel('Normalized Values')

Exercise: Compute the normalized values of the array features provided below, which contains the data from all columns except the Wine column. Assign the result to a variable named norm_features.

# the data from all other columns are the features
features = df.drop(columns='Wine').values

norm_features = (features - features.min(axis=0))/(features.max(axis=0)-features.min(axis=0))

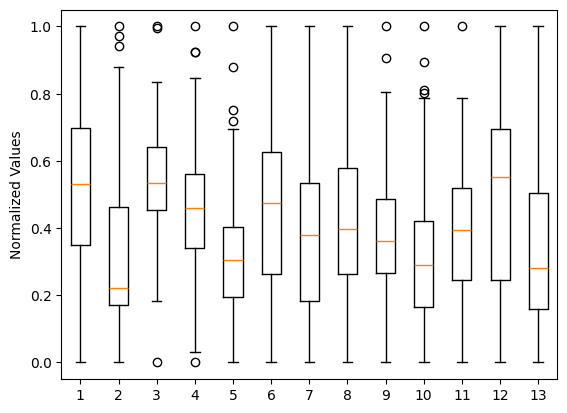

Run the cell below to make a boxplot for all features after normalization and check that all 13 features are bounded by 0 and 1.

plt.boxplot(norm_features)
plt.ylabel('Normalized Values')

Demo: Effect of Normalization on Model Performance

Run the cells below and compare the accuracy of the model when trained with the original, non-normalized data to the accuracy when trained with normalized data.

# the data from all other columns are the features
features = df.drop(columns='Wine').values

# convert to tensors (labels 0-indexed for CrossEntropyLoss)
features_tensor = torch.tensor(features, dtype=torch.float32)
labels_tensor = torch.tensor(labels - 1, dtype=torch.long)

# create dataset and split
dataset = TensorDataset(features_tensor, labels_tensor)
train_size = int(0.8 * len(dataset))
test_size = len(dataset) - train_size
train_dataset, test_dataset = random_split(dataset, [train_size, test_size],
                                            generator=torch.Generator().manual_seed(2026))

# extract tensors
features_train, labels_train = train_dataset[:]
features_test, labels_test = test_dataset[:]

Create model

n_features = features_train.shape[1]
n_classes = len(torch.unique(labels_train))

torch.manual_seed(2026)
model = nn.Sequential(
    nn.Linear(n_features, 100),
    nn.ReLU(),
    nn.Linear(100, n_classes)
)

Train model

utils.train(model, features_train, labels_train, nepochs=50)

with torch.no_grad():
    predictions = model(features_test).argmax(dim=1)
    accuracy_nonnorm = (predictions == labels_test).float().mean().item()

print(f'Accuracy without normalization = {accuracy_nonnorm:.2f}')

Accuracy without normalization = 0.61

features_norm = MinMaxScaler().fit_transform(features)

# Convert to tensor and use same split indices
features_norm_tensor = torch.tensor(features_norm, dtype=torch.float32)
features_norm_train = features_norm_tensor[train_indices]
features_norm_test = features_norm_tensor[test_indices]

n_features = features_norm_train.shape[1]
n_classes = len(torch.unique(labels_train))

mlp_norm = nn.Sequential(
    nn.Linear(n_features, 100),
    nn.ReLU(),
    nn.Linear(100, n_classes)
)

utils.train(mlp_norm, features_norm_train, labels_train, nepochs=50)

with torch.no_grad():
    predictions = mlp_norm(features_norm_test).argmax(dim=1)
    accuracy_norm = (predictions == labels_test).float().mean().item()

print(f'Accuracy with normalization = {accuracy_norm:.2f}')

Accuracy with normalization = 0.86

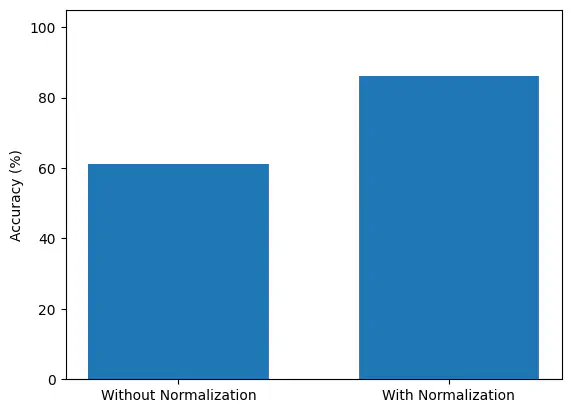

plt.bar([0,0.3], np.array([accuracy_nonnorm, accuracy_norm])*100, width=[0.2])
plt.xticks([0,0.3], labels=['Without Normalization', 'With Normalization'])
plt.ylim([0.,105])
plt.ylabel('Accuracy (%)')

The model performance improved by 25 percentage points simply by normalizing the features!

Exercise: Standardize the alcohol array provided in the cell below. Assign the standardized values to a variable named z_alcohol.

Hint: Remember that standardization is not the same as normalization.

alcohol = df['Alcohol'].values

z_alcohol = (alcohol - alcohol.mean())/alcohol.std()

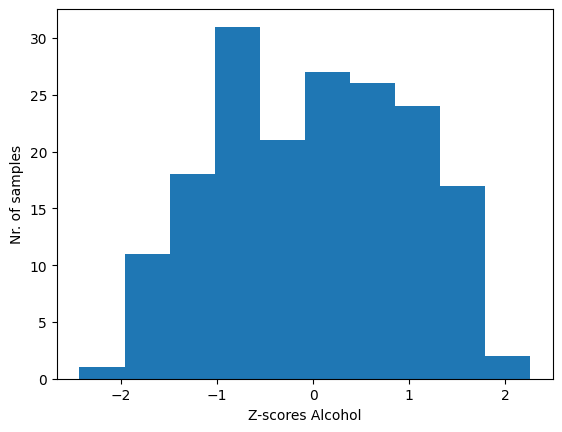

Run the cell below that plots a distribution of the z_alcohol to do a rough visual check of whether it’s a normal distribution (i.e. bell curve centered around 0) or not.

plt.hist(z_alcohol)
plt.xlabel('Z-scores Alcohol')
plt.ylabel('Nr. of samples');

Exercise: Standarize the malic array provided in the cell below. Assign the standardized values to a variable named z_malic.

malic = df['Malic.acid'].values

z_malic = (malic - malic.mean())/malic.std()

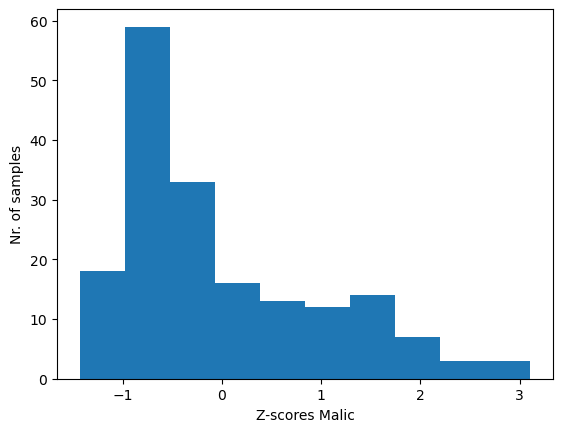

Run the cell below that plots a distribution of the z_malic to do a rough visual check of whether it’s a normal distribution (i.e. bell curve centered around 0) or not.

plt.hist(z_malic)
plt.xlabel('Z-scores Malic')
plt.ylabel('Nr. of samples');

Section 2: sklearn.preprocessing Has Functions for Scaling

The sklearn.preprocessing module provides ready made classes that handle scaling for you. These classes also remember the scaling parameters (like the minimum, maximum, mean, and standard deviation) so you can apply the same transformation to new data later or reverse the transformation to get back the original values.

Exercises

Example: Use the appropriate class from sklearn.preprocessing to normalize the proline data provided in the cell below. Assign the normalized values to a variable named norm_proline.

proline = df['Proline'].values.reshape(-1,1)

norm_proline = MinMaxScaler().fit_transform(proline)

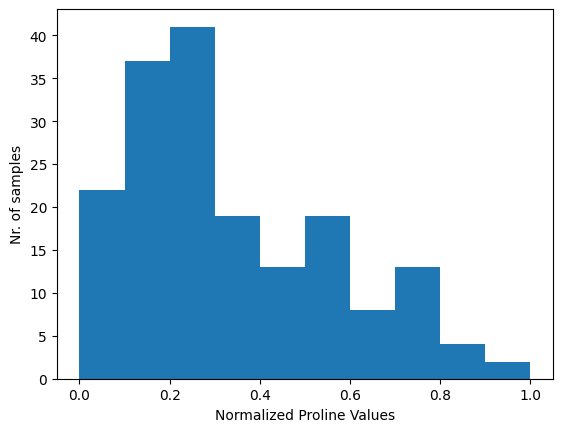

Run the cell below to plot a distribution of the norm_proline abd check that its lower bound is 0 and upper bound is 1.

plt.hist(norm_proline)
plt.xlabel('Normalized Proline Values')
plt.ylabel('Nr. of samples');

Exercise: Use the appropriate class from sklearn.preprocessing to normalize the malic data provided in the cell below. Assign the normalized values to a variable named norm_malic.

malic = df['Malic.acid'].values.reshape(-1,1)

norm_malic = MinMaxScaler().fit_transform(malic)

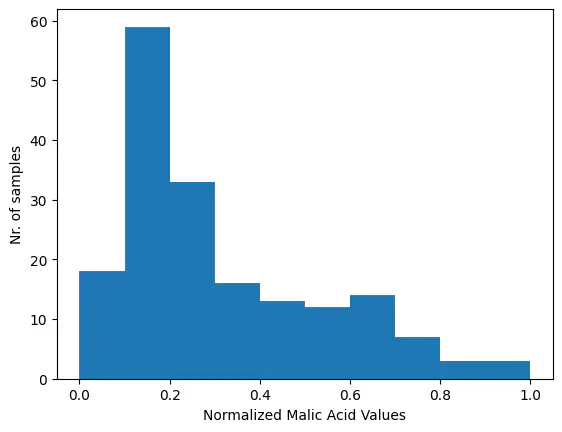

Run the cell to plot a distribution of the norm_malic and check that its lower bound is 0 and upper bound is 1.

plt.hist(norm_malic)
plt.xlabel('Normalized Malic Acid Values')
plt.ylabel('Nr. of samples');

Exercise: Use the appropriate class from sklearn.preprocessing to standardize the alcohol data provided below. The mean and standard deviation should be used to standardize. Assign the standardized values to a variable named z_alcohol.

alcohol = df['Alcohol'].values.reshape(-1,1)

z_alcohol = StandardScaler().fit_transform(alcohol)

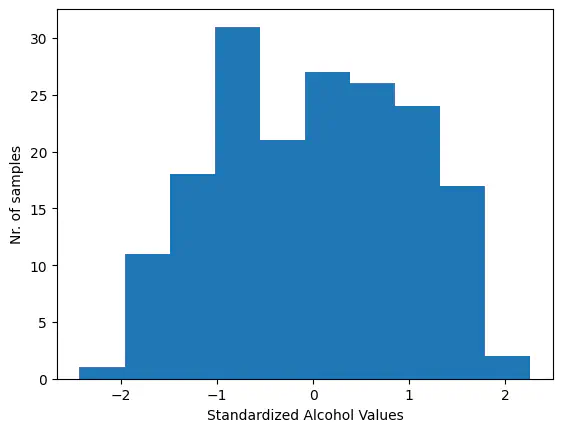

Run the cell to plot a distribution of the z_alcohol and check that its midpoint is roughly at 0.

plt.hist(z_alcohol)
plt.xlabel('Standardized Alcohol Values')
plt.ylabel('Nr. of samples');

Exercise: Use the appropriate class from sklearn.preprocessing to standardize the magnesium data provided below. The median and interquartile range should be used to standardize. Assign the normalized values to a variable named z_mg.

magnesium = df['Mg'].values.reshape(-1,1)

z_mg = RobustScaler().fit_transform(magnesium)

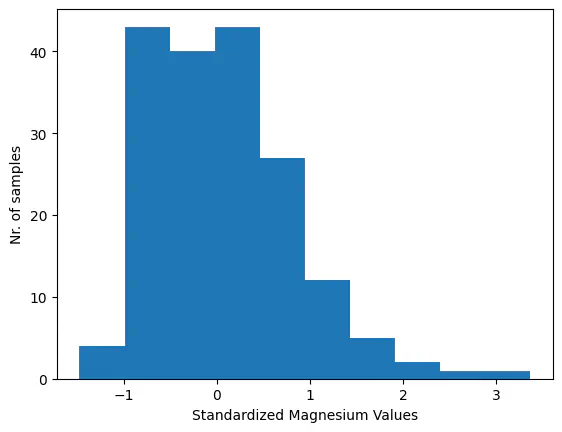

Run the cell below to plot a distribution of the z_mg and check that the peak of the distribution is roughly at 0.

plt.hist(z_mg)
plt.xlabel('Standardized Magnesium Values')
plt.ylabel('Nr. of samples');

Exercise: Use the appropriate class from sklearn.preprocessing to normalize the features variable provided below, which contains data from all columns except the Wine column. Assign the result to a variable named norm_features.

features = df.drop(columns = 'Wine')
features

norm_features = MinMaxScaler().fit_transform(features)

Run the cell to make a boxplot for all features after normalization and check that all 13 features are bounded by 0 and 1.

plt.boxplot(norm_features)
plt.ylabel('Normalized Values');

sklearn.preprocessing offers functions to get the original data back from the normalized or standardized data as well.

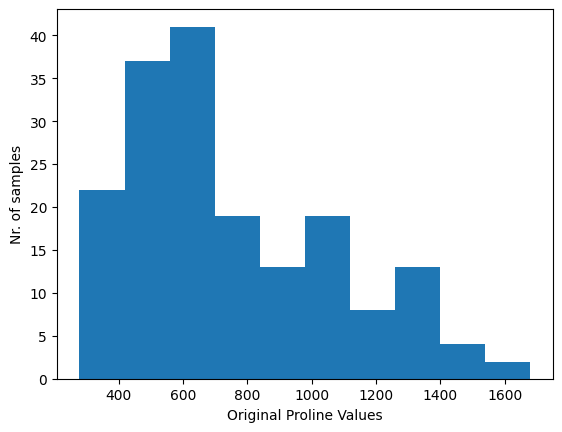

Exercise: Use the appropriate class from sklearn.preprocessing to get the original data back from the normalized proline data in norm_proline provided below.

Assign the result to a variable named proline and run the cell that plots a histogram of proline to verify that the original values have been recovered.

scaler = MinMaxScaler()
norm_proline = scaler.fit_transform(df['Proline'].values.reshape(-1,1))

proline = scaler.inverse_transform(norm_proline)

plt.hist(proline)
plt.xlabel('Original Proline Values')
plt.ylabel('Nr. of samples');

Section 3: The Type of Scaling Should be Picked Wisely

In the last exercise above, you may have observed that the standardized scores for the Malic.acid data do not (appear to) follow a normal distribution. In that case, standardization is not appropriate because standarization assumes a normal distribution. In this section, you’ll learn how to determine what kind of distribution your data have and what scaling method you should choose.

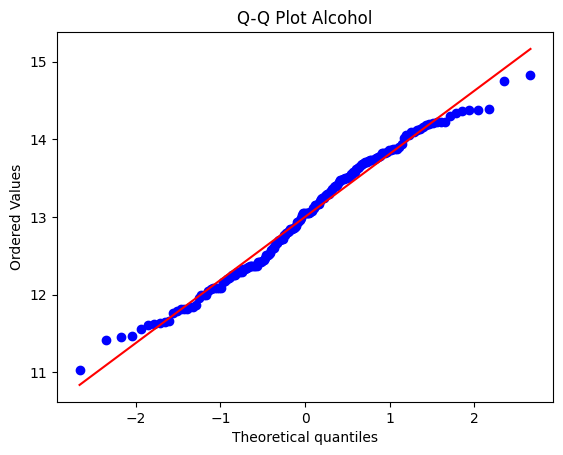

Example: Make a Q-Q plot of the data in the Alcohol column. Does the data appear to be approximately normally distributed - do the blue dots generally track the red line? Which scaling does that suggest that we should use?

alcohol = df['Alcohol'].values

stats.probplot(alcohol, dist="norm", plot=plt)
plt.title("Q-Q Plot Alcohol");

Answer: The data generally tracks the red line, which suggests that it’s normally distributed and that we can use standardization with mean and the standard deviation for the alcohol data.

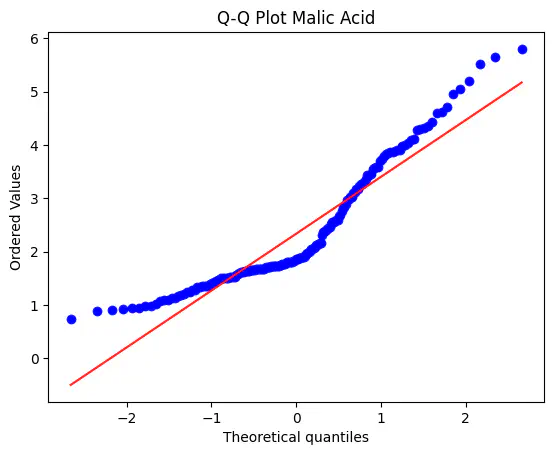

Exercise: Make a Q-Q plot of the data in the Malic.acid column. Does the data appear to be approximately normally distributed - do the blue dots generally track the red line? Which scaling does that suggest that we should use?

malic = df['Malic.acid'].values

Solution

stats.probplot(malic, dist="norm", plot=plt)

plt.title("Q-Q Plot Malic Acid");

# The data is not normally distributed and normalization should be used rather than standardization

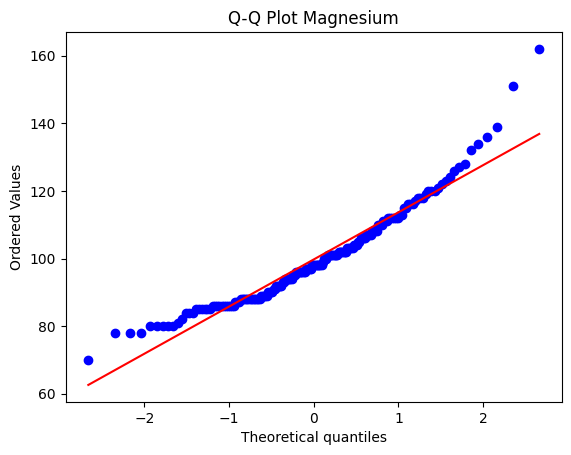

Exercise: Make a Q-Q plot of the data in the Mg column. How does it compare to the Q-Q plot for the Alcohol data?

magnesium = df['Mg'].values

Solution

stats.probplot(magnesium, dist="norm", plot=plt)

plt.title("Q-Q Plot Magnesium");

Q-Q plot is a good visual check of the distribution in addition to looking at the histogram, but it’s a good idea to use it in combination with a statistical test of normality. One such test is the Shapiro-Wilk test.

The Shapiro-Wilk test tests the null hypothesis that the sample data was drawn from a normally distributed population. If the test-statistic is close to 1 (higher than 0.95), the data is probably drawn from normal distribution. If the test-statistic is below 0.9, it’s probably not drawn from a normal distribution. Between 0.9 and 0.95 is an edge case.

Exercise: Do a Shapiro-Wilk test on the alcohol data. Print the statistic. Do the results of the test suggest that it is normally distributed? Can we scale the alcohol data using standardization?

alcohol = df['Alcohol'].values

statistic, p_value = stats.shapiro(alcohol)
statistic

# test-statistic > 0.95

np.float64(0.9818041416927711)

Exercise: Do a Shapiro-Wilk test on the malic data. Print the statistic and the p-value. Do the results of the test suggest that it is normally distributed? Which scaling should we use?

malic = df['Malic.acid'].values

statistic, p_value = stats.shapiro(malic)
statistic, p_value

# test-statistic < 0.9

(np.float64(0.8887839752895415), np.float64(2.945800703600761e-10))

Exercise: Do a Shapiro-Wilk test on the magnesium data. Print the statistic and the p-value. Do the results of the test suggest that it is normally distributed?

statistic, p_value = stats.shapiro(magnesium)
statistic, p_value
# test-statistic between 0.9 and 0.95 is an edge case

(np.float64(0.9383312109016513), np.float64(6.345693783266514e-07))

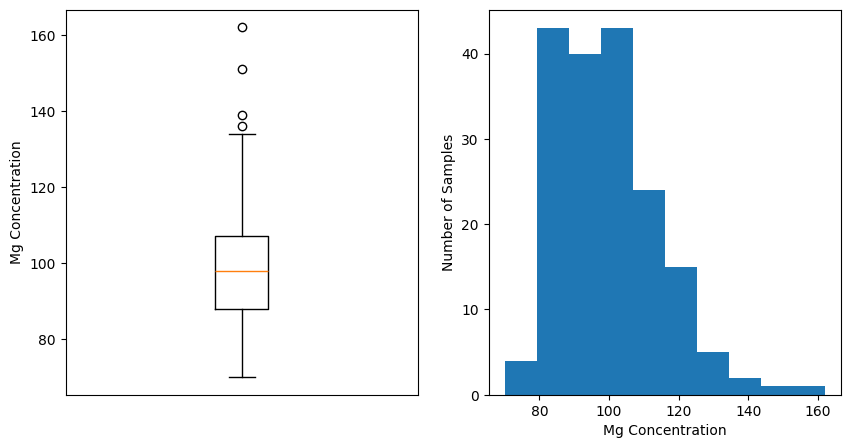

Demo: The distribution of the Mg data is an edge case. Below, the Mg data is plotted using a boxplot and a histogram. It appears to be approximately normally distributed between 75 and 125, but it’s skewed to the right and has outliers at the upper end of the distribution. In this case, using the median and interquartile range (IQR) instead of the mean and the standard deviation is a better choice if you standardize because they are less sensitive to outliers. In other words, the RobustScaler in sklearn is more appropriate than the StandardScaler.

fig, axes = plt.subplots(ncols=2, figsize = (10,5))

axes[0].boxplot(df['Mg'].values)
axes[0].set_xticks([])
axes[0].set_ylabel('Mg Concentration')
axes[1].hist(df['Mg'].values);
axes[1].set_xlabel('Mg Concentration')
axes[1].set_ylabel('Number of Samples')

Exercise: Standardize the magnesium data using the median and the Inter-quartile Range (IQR) instead of the mean and the standard deviation.

magnesium = df['Mg'].values.reshape(-1,1)

z_magnesium = RobustScaler().fit_transform(magnesium)

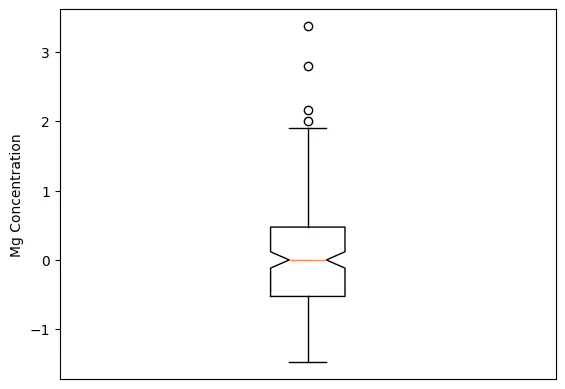

Run the cell below creating the boxplot to check that the median (the orange line at the notch) is centered (approximately) at 0.

plt.boxplot(z_magnesium, notch=True)
plt.xticks([])
plt.ylabel('Mg Concentration');

As we have seen above, some of the features in the dataset are normally distributed, some are normal distributions with outliers, some are not normally distributed. What do we do if we want to use all features in our dataset when they have different distributions? In that case, the safest choice is to use normalization (MinMaxScaler in sklearn.preprocessing), as that doesn’t violate assumptions of normality for those features that aren’t normally distributed.

Section 4: How to Handle Categorical Variables: One-hot Encoding for Features and Label Encoding

Neural networks require numerical input, but many datasets contain categorical variables (like country names, colors, or categories). This section covers how to convert categorical data into numerical format suitable for training.

Exercises

Run the cell below to generate synthetic data used in this section.

np.random.seed(2026)
country = ['France', 'France', 'Italy', 'Georgia', 'Greece', 'Spain']
wine = ['Merlot', 'Cabernet Sauvignon', 'Baralo', 'Saperavi', 'Naousa', 'Ribera del Duero']
soil_type = ['Gravel', 'Limestone', 'Chalk', 'Clay', 'Volcanic', 'Loam']
price = np.random.randint(20, 71, len(wine),)

data = {
        'Wine': wine,
        'Country': country,
        'Soil_type': soil_type,
        'Price': price
}
df = pd.DataFrame(data)
df

Example: Use LabelEncoder to create encoded target labels for the car brands below. Assign the result to a variable named car_labels.

cars = ['BMW', 'Volkswagen', 'Toyota', 'Rolls Royce', 'Saab', 'Volvo']

car_labels = LabelEncoder().fit_transform(cars)

Run the cell below to create a DataFrame of the encoded labels and the original car brands to see them side by side.

pd.DataFrame({'Car': cars, 'Encoded': car_labels})

Exercise: Use LabelEncoder to create encoded target labels for the wines data below. Assign the result to a variable named wine_labels.

wines = df['Wine']

wine_labels = LabelEncoder().fit_transform(wines)

Run the cell to create a DataFrame of the the encoded labels and the original wine names to see them side by side.

pd.DataFrame({'Wine': df['Wine'], 'Encoded': wine_labels})

Exercise: Use the OneHotEncoder to create a onehot encoding of the feature countries below. Assign the result to a variable named countries_onehot.

countries = df['Country'].values.reshape(-1,1)

countries_onehot = OneHotEncoder().fit_transform(countries)

Run the cell below to create a DataFrame of the onehot encoded countries and the original country names to see them side by side.

pd.DataFrame(np.hstack([df['Country'].values.reshape(-1,1), countries_onehot.toarray()]))

Exercise: Use OneHotEncoder to encode the soil_type column in the dataframe df. Assign the result to a variable named soil_onehot.

soil_types = df['Soil_type'].values.reshape(-1,1)

soil_onehot = OneHotEncoder().fit_transform(soil_types)

Run the cell below to create a DataFrame of the onehot encoded soil types and the original soil types to see them side by side.

pd.DataFrame(np.hstack([df['Soil_type'].values.reshape(-1,1), soil_onehot.toarray()]))

Label encoding assigns each category a unique integer (e.g., France=0, Italy=1, Spain=2). This works well for target labels but not for features because it implies an ordering (Italy > France), which doesn’t make sense here unless you want to imply that Italian wine is better than French wine.

One-hot encoding creates a binary column for each category. For a “Country” feature with France, Italy, and Spain, it creates three columns where each row has a 1 in exactly one column. This avoids implying a misleading order between categories.
