Multi-Cell Manual ROI Selection in Napari

Courses

Introduction to Calcium Imaging Analysis

ROI Selection

Authors

Dr. Sangeetha Nandakumar | Dr. Nicholas Del Grosso

Open in JupyterLite Download Exercises

Setup

Import Libraries

import tifffile as tiff
import numpy as np
import matplotlib.pyplot as plt
import napari

Download Data

import owncloud
import os

if not os.path.exists('data'):
    print('Creating directory for data')
    os.mkdir('data')

if not os.path.exists('data/cell1.tif'):
    oc = owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/RRU6CghB2O1tCFs')
    oc.get_file('/', 'data/cell1.tif');

if not os.path.exists('data/cell2.tif'):
    oc = owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/6V9seZuhhJpul1y')
    oc.get_file('/', 'data/cell2.tif');

if not os.path.exists('data/cell3.tif'):
    oc = owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/NWfGwHzF0W34sRY')
    oc.get_file('/', 'data/cell3.tif');

if not os.path.exists('data/multi_cell.tif'):
    oc = owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/FB21ECmeJgmfUqQ')
    oc.get_file('/', 'data/multi_cell.tif');

Creating directory for data

movie = tiff.imread('data/multi_cell.tif')
cell1_data = tiff.imread('data/cell1.tif')
cell2_data = tiff.imread('data/cell2.tif')
cell3_data = tiff.imread('data/cell3.tif')

Understanding calcium imaging data, where changes in fluorescence intensity serve as proxies for neural activity, is a key skill in modern neuroscience. In this notebook we walk through the process of manually selecting regions of interest (ROIs) from calcium imaging recordings using Napari, a powerful tool for interactive image analysis. Step by step we learn how to load image stacks, label individual neurons, and extract fluorescence traces that represent their activity over time.

Section 1: Loading Movies and Images on Napari

In this section, we will learn how to load images and movies of calcium imaging data on Napari

Code	Description
`napari.Viewer()`	Create a Napari viewer for visualizing multi-dimensional data, such as images or time series.
`viewer.close()`	Close the Napari viewer window.
`viewer.add_image(cell1_data, name='Cell 1')`	Add image data (`cell1_data`) to the Napari viewer with the name `'Cell 1'`.
`cell1_data[:10]`	Access the first 10 frames (or data points) from `cell1_data`.
`cell1_data[100:110]`	Access frames 100 to 109 from `cell1_data`.

Exercises

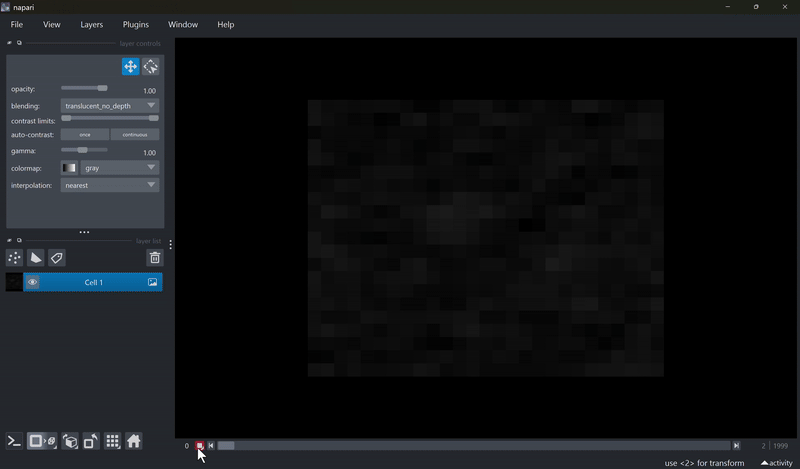

Example: Load and play frames of Cell 1. Close the viewer once you are done.

viewer = napari.Viewer()
viewer.add_image(cell1_data, name='Cell 1')

viewer.close()

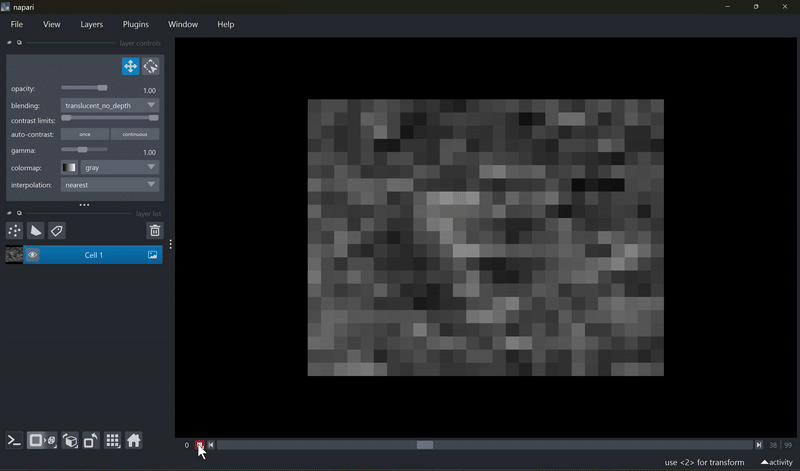

Exercise: Load and play the first 100 frames of Cell 1. Close the viewer once you are done.

Solution

viewer = napari.Viewer()
viewer.add_image(cell1_data[:100], name='Cell 1')

viewer.close()

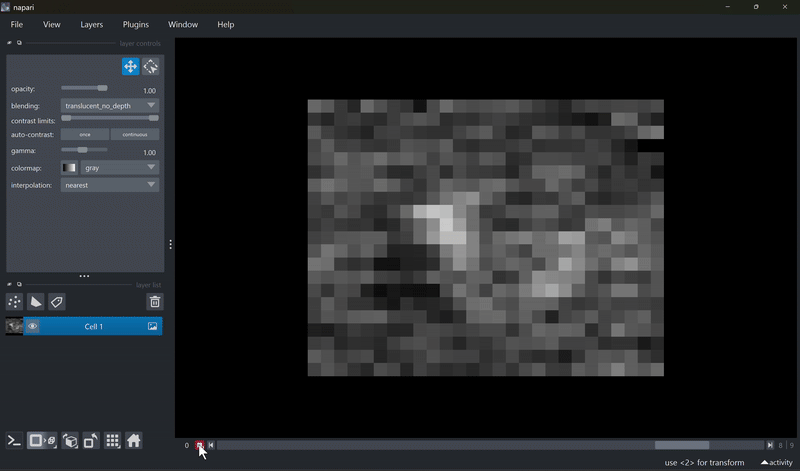

Exercise: Load and play 10 frames from 1000th frame of Cell 1. Close the viewer once you are done.

Solution

viewer = napari.Viewer()
viewer.add_image(cell1_data[1000:1010], name='Cell 1')

viewer.close()

Section 2: Labelling in napari

Labeling in Napari refers to the process of marking regions of interest (ROIs) directly on an image using a Labels layer. This is commonly used to identify structures such as individual neurons in calcium imaging data.

Code	Description
`cell1_data.mean(axis=0)`	Compute the mean of `cell1_data` across frames (`axis=0` corresponds to frames).
`cell1_data.max(axis=0)`	Compute the maximum value of `cell1_data` across frames (`axis=0` corresponds to frames).
`cell1_data.std(axis=0)`	Compute the standard deviation of `cell1_data` across frames (`axis=0` corresponds to frames).
`viewer.layers['roi'].data`	Access the data from the `roi` layer in the Napari viewer.
`mask = (rois == 1)`	Create a binary mask where the `rois` values equal `1`.
`plt.contour(mask, colors='r')`	Plot the contour of the binary mask in red, highlighting the region of interest.

Let us label single neurons in Napari using the brush tool.

Exercises

viewer = napari.Viewer()

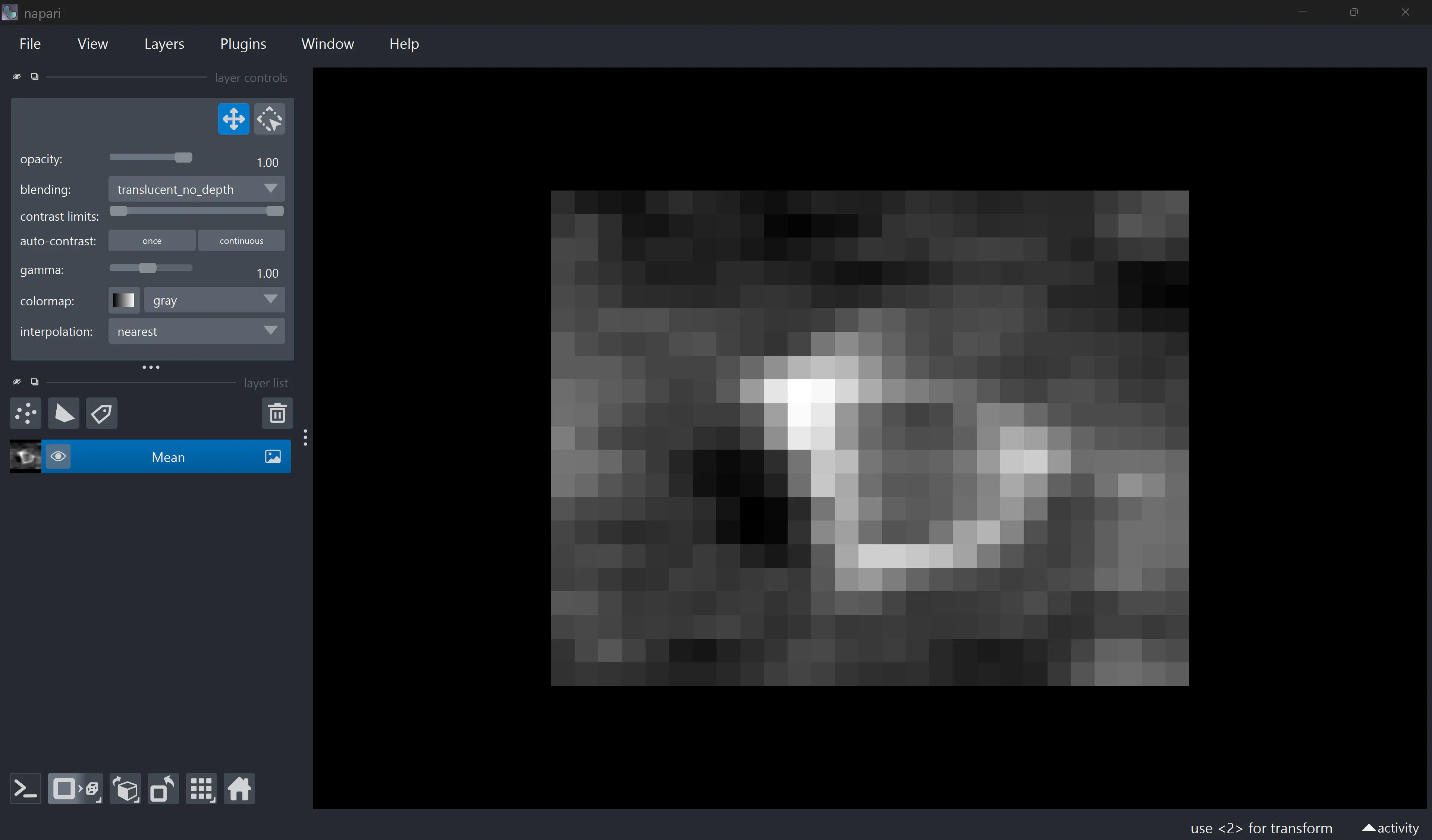

Example: Open mean projection of cell1

mean_proj = cell1_data.mean(axis=0)
viewer.add_image(mean_proj, name="Mean", colormap="gray")

Exercise: Add max projection of Cell1 to an existing napari viewer

Solution

max_proj = cell1_data.max(axis=0)
viewer.add_image(max_proj, name="Max", colormap="gray")

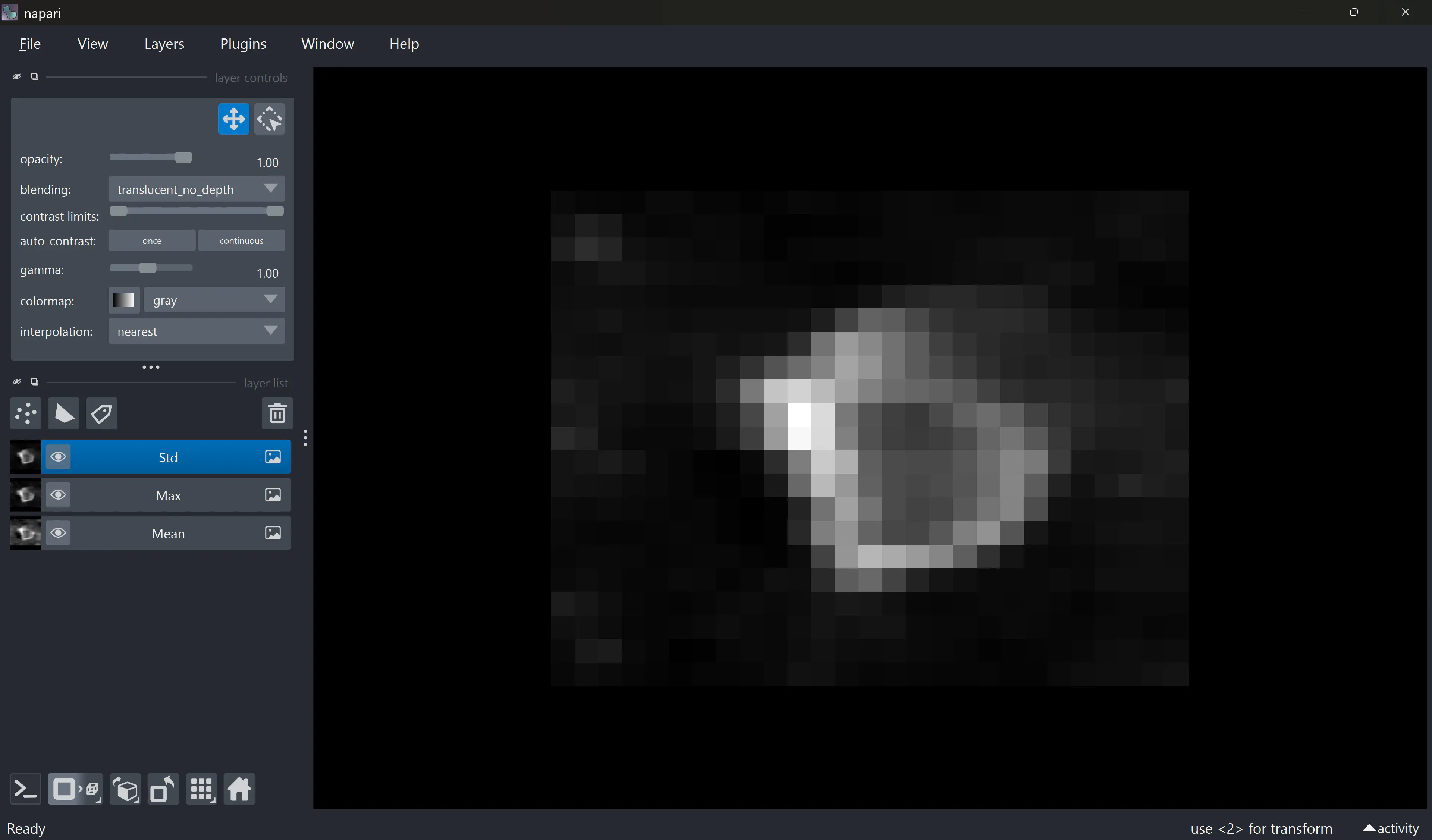

Exercise: Add std projection of Cell1 to an existing napari viewer

Solution

std_proj = cell1_data.std(axis=0)
viewer.add_image(std_proj, name="Std", colormap="gray")

Create a cell mask for Cell 1

Click on New Labels Layer and rename it as roi.
Click the brush icon or press B to select the brush tool.
Carefully paint over the cell body of the selected neuron.
OR: Use the paint bucket tool to fill enclosed regions.

We can access the layers from the jupyter notebook directly without having to first export it to another file.

Example: Access roi and plot it in the notebook.

roi = viewer.layers['roi'].data
plt.imshow(roi, cmap='Reds');

Exercise: Add/remove few pixels in napari from the roi layer. Access roi and plot here.

Solution

roi = viewer.layers['roi'].data
plt.imshow(roi, cmap='Reds');

Close viewer

viewer.close()

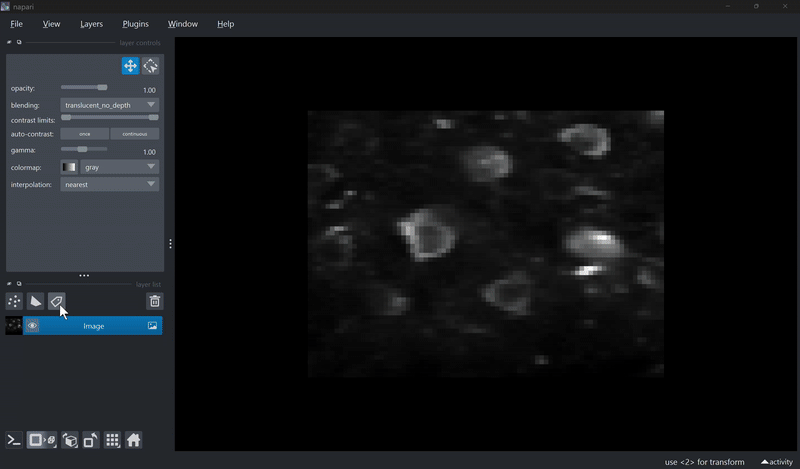

Napari can handle multiple neurons in a single Labels layer by treating neurons painted in different colors as a different neuron. In a Labels layer, each integer value corresponds to a separate labeled region. For example, pixels with value 1 may represent one neuron, 2 another neuron, and so on. The background is typically labeled with 0.

The steps to identify multiple neurons in a single layer is below.

Create a new labels layer.
Select the brush tool: Press B to switch to the brush tool, or click the brush icon in the left toolbar.
Set the brush size to small size:
- Paint a rough outline of a neuron.
- Carefully paint over the neuron body.
Move to the next label index:
- Press M to increment the label index.
- This will automatically update the label color, so the next neuron will appear in a new color.
Repeat steps 2–6 for each neuron:
- For each new neuron:
  - Paint its contour.
  - Use the fill tool to create a clean mask.
  - Press M to move to the next label index.
Review all labeled ROIs: Zoom out and visually inspect the full image.

viewer = napari.Viewer()
viewer.add_image(movie.std(axis=0))

Exercise: Label multiple neurons in the summary image added in napari in a layer named rois.

Solution

rois = viewer.layers['rois'].data

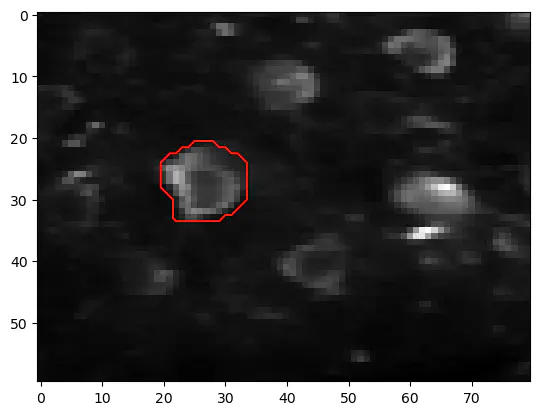

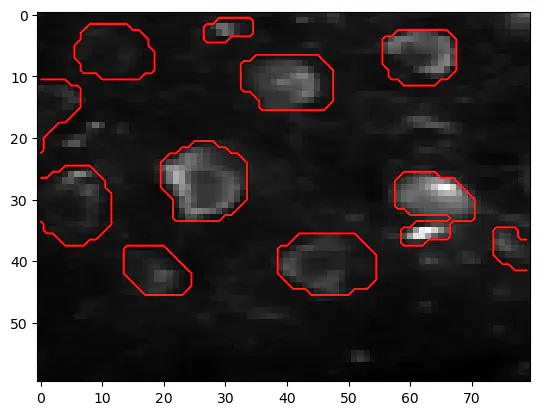

Example: Access the first neuron and plot it here.

mask = (rois == 1)
plt.imshow(movie.std(axis=0), cmap='gray')
plt.contour(mask, colors='r')

Exercise: Access second neuron and plot it here.

Solution

mask = (rois == 2)
plt.imshow(movie.std(axis=0), cmap='gray')
plt.contour(mask, colors='r')

Exercise: Access the zeroth position and plot it here.

Solution

mask = (rois == 0)
plt.imshow(movie.std(axis=0), cmap='gray')
plt.contour(mask, colors='r')

Section 3: Isolating ROI Pixels

Code	Description
`movie[:, mask].mean(axis=1)`	Compute the mean across frames for the pixels defined by the `mask` (`axis=1` corresponds to frames).
`n_frames = movie.shape[0]`	Get the number of frames in the `movie` (first dimension of the shape).
`np.zeros((2, n_frames))`	Create an array of zeros with shape `(2, n_frames)` to represent two rows of zeros, one for each frame.
`np.unique(rois)`	Get the unique values in the `rois` array, representing different regions of interest (ROIs).
`len(np.unique(rois))`	Get the number of unique ROIs by counting the unique values in `rois`.

To extract a trace for a given ROI, we must first identify which pixels it occupies in the field of view. This section focuses on converting labelled ROI data into binary masks—arrays that define the spatial footprint of each individual neuron. Using these masks, we can isolate and examine raw pixel values belonging to each ROI.

With this mask, we can easily extract the calcium trace from a specific neuron with

mask = rois == 1             # Create a boolean mask where pixels belonging to ROI 1 are True

movie[:, mask]              # Select only the ROI pixels at each time point ([frames, num_pixels_in_roi])

.mean(axis=1)               # Compute the average fluorescence across ROI pixels for each frame)

Exercises

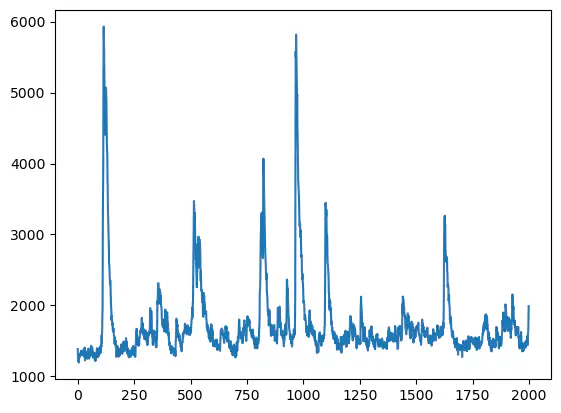

Example: Plot calcium trace from 1st neuron.

mask = rois == 1
cal_trace = movie[:, mask].mean(axis=1)
plt.plot(cal_trace)

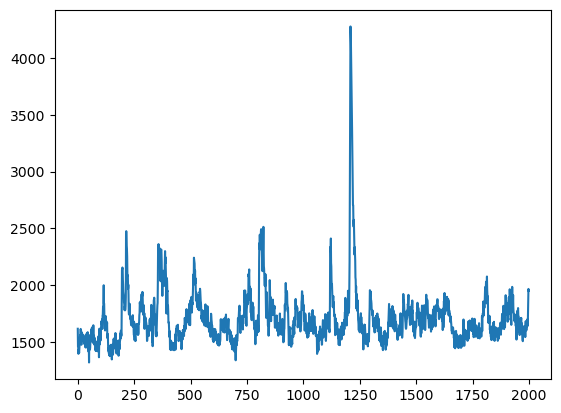

Exercise: Plot calcium trace from 2nd neuron.

Solution

mask = rois == 2
cal_trace = movie[:, mask].mean(axis=1)
plt.plot(cal_trace)

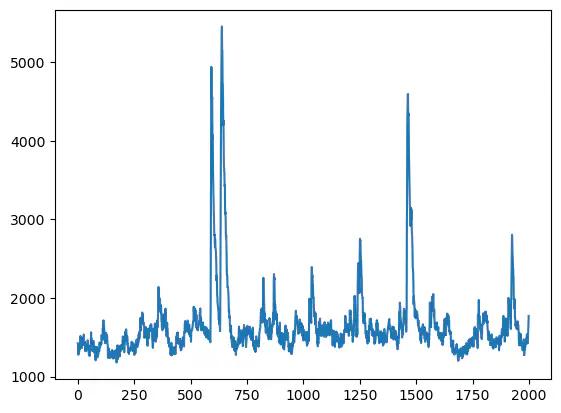

Exercise: Plot calcium trace from 3rd neuron.

Solution

mask = rois == 3
cal_trace = movie[:, mask].mean(axis=1)
plt.plot(cal_trace)

Section 4: For-Loops for Storing Multiple Calcium Traces

We usually have several neurons imaged simulataneously and they are all typically stored in a single matrix such that each row of that matrix represents calcium trace of a single neuron. In this section, we restructure the calcium traces extracted from our data into that format.

Exercises

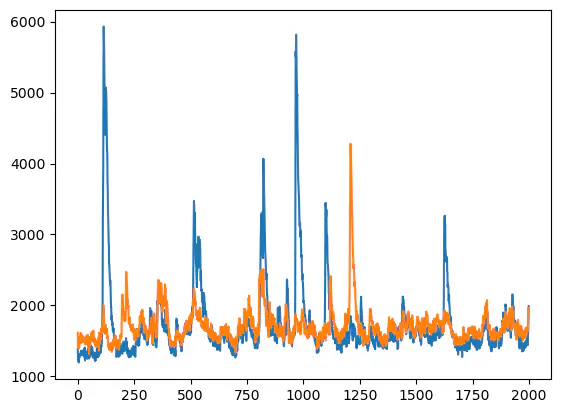

Example: Store all frames for the first two neurons in single array.

n_frames = movie.shape[0]
traces = np.zeros((2, n_frames))
traces[0] = movie[:, rois == 1].mean(axis=1)
traces[1] = movie[:, rois == 2].mean(axis=1)

plt.plot(traces[0])
plt.plot(traces[1])

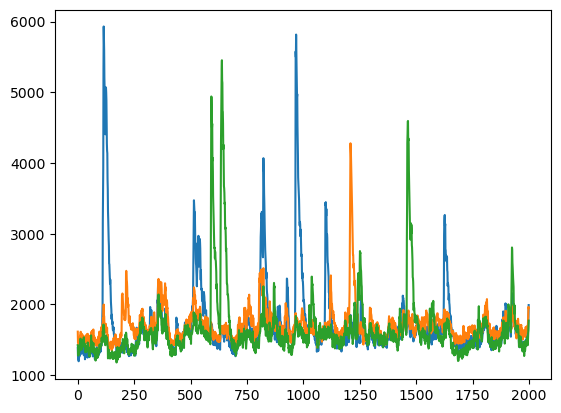

Exercise: Store all frames for the first three neurons in single array.

Solution

n_frames = movie.shape[0]
traces = np.zeros((3, n_frames))
traces[0] = movie[:, rois == 1].mean(axis=1)
traces[1] = movie[:, rois == 2].mean(axis=1)
traces[2] = movie[:, rois == 3].mean(axis=1)


plt.plot(traces[0])
plt.plot(traces[1])
plt.plot(traces[2])

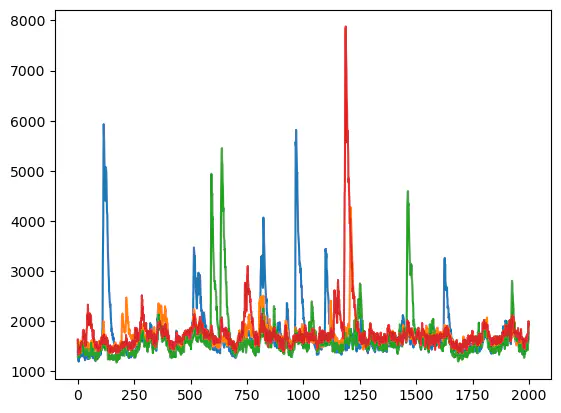

Exercise: Store all frames for the first four neurons in single array.

Solution

n_frames = movie.shape[0]
traces = np.zeros((4, n_frames))
traces[0] = movie[:, rois == 1].mean(axis=1)
traces[1] = movie[:, rois == 2].mean(axis=1)
traces[2] = movie[:, rois == 3].mean(axis=1)
traces[3] = movie[:, rois == 4].mean(axis=1)

plt.plot(traces[0])
plt.plot(traces[1])
plt.plot(traces[2])
plt.plot(traces[3])

It can be tedious to do this manually especially when we have many number of neurons. We can use for-loop to do the same for multiple rois by

traces = np.zeros((2, 2000))        # Create an empty array to store calcium traces for two ROIs (2 ROIs, 2000 frames)

for roi_num in range(1, 3):         # Loop through each ROI (1 and 2)
    mask = rois == roi_num          # Create a boolean mask for the current ROI
    trace = movie[:, mask].mean(axis=1)  # average fluorescence for the current ROI across all pixels at each time point
    traces[roi_num - 1] = trace     # Store the calcium trace for the current ROI in the 'traces' array

Example: Use for loop to fill first two rois in their respective locations in traces.

traces = np.zeros((2, 2000))

for roi_num in range(1, 3):
    mask = rois == roi_num
    trace = movie[:, mask].mean(axis=1)
    traces[roi_num - 1] = trace

plt.plot(traces[0])
plt.plot(traces[1])

Exercise: Use for loop to fill first three rois in their respective locations in traces.

Solution

traces = np.zeros((3, 2000))

for roi_num in range(1, 4):
    mask = rois == roi_num
    trace = movie[:, mask].mean(axis=1)
    traces[roi_num - 1] = trace

plt.plot(traces[0])
plt.plot(traces[1])
plt.plot(traces[2])

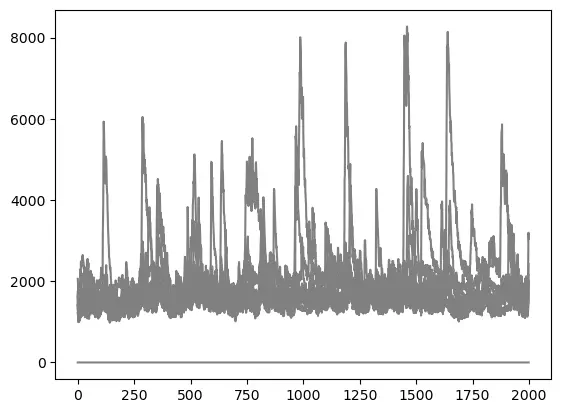

Exercise: Use for loop to fill all rois in their respective locations in traces.

Solution

np.unique(rois)

roi_nums = len(np.unique(rois))
traces = np.zeros((roi_nums, 2000))

for roi_num in range(1, roi_nums):
    mask = rois == roi_num
    trace = movie[:, mask].mean(axis=1)
    traces[roi_num - 1] = trace

for i in range(len(traces)):
    plt.plot(traces[i], color='gray');

Section 5: Interpreting and Visualizing Extracted Traces

This section introduces simple plotting tools to inspect both individual traces and full populations of neurons. Visualization helps verify the success of the extraction process, and also offers a first glimpse into the temporal structure of the data.

Exercises

Example: Plot location and trace of neuron 1.

roi_num = 1
summary_image = movie.std(axis=0)
mask = rois == roi_num

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
axes[0].imshow(summary_image, cmap='gray')
axes[0].contour(mask, colors='red', linewidths=1)

axes[1].plot(traces[roi_num-1])

plt.tight_layout()

Exercise: Plot location and trace of neuron 2.

Solution

roi_num = 2
summary_image = movie.std(axis=0)
mask = rois == roi_num

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
axes[0].imshow(summary_image, cmap='gray')
axes[0].contour(mask, colors='red', linewidths=1)

axes[1].plot(traces[roi_num-1])

plt.tight_layout()

Exercise: Plot location and trace of neuron 3.

Solution

roi_num = 3
summary_image = movie.std(axis=0)
mask = rois == roi_num

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
axes[0].imshow(summary_image, cmap='gray')
axes[0].contour(mask, colors='red', linewidths=1)

axes[1].plot(traces[roi_num-1])

plt.tight_layout()

Interactive plot

%matplotlib inline

from ipywidgets import interact, IntSlider
import ipywidgets as widgets


roi_nums = np.unique(rois)[1:]
summary_image = movie.std(axis=0)

def plot_neuron_trace(roi_idx):
    mask = rois == roi_idx

    fig, axes = plt.subplots(1, 2, figsize=(12, 4))

    axes[0].imshow(summary_image, cmap='gray')
    axes[0].contour(mask, colors='red', linewidths=1)
    axes[0].set_title(f"ROI {roi_idx} Location")
    axes[0].axis("off")

    axes[1].plot(traces[roi_idx - 1])
    axes[1].set_title(f"Fluorescence Trace (ROI {roi_idx})")
    axes[1].set_xlabel("Frame")
    axes[1].set_ylabel("Fluorescence")

    plt.tight_layout()
    plt.show()

interact(plot_neuron_trace, roi_idx=IntSlider(min=1, max=len(roi_nums), step=1, value=0));

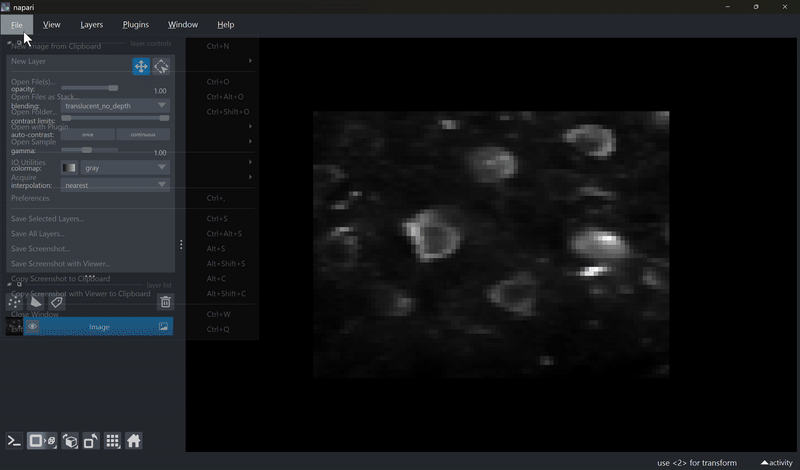

Section 6: Load Numpy Arrays as ROIs on Napari

File -> Open File(s)
Choose rois.npy file
Right click on the new layer and choose Convert to Labels
