Multi-Pixel Data Extraction to 1D Calcium Trace

Setup

Import Libraries

import tifffile
import numpy as np
import matplotlib.pyplot as plt
from skimage.morphology import dilation, disk

Download Data

import owncloud
import os

if not os.path.exists('data'):
    print('Creating directory for data')
    os.mkdir('data')

if not os.path.exists('data/single_cell.tif'):
    oc = owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/QXTKzW6UGeozcUN')
    oc.get_file('/', 'data/single_cell.tif');

Creating directory for data

data = tifffile.imread('data/single_cell.tif')

In this unit, we focus on a common task in calcium imaging: converting multi-pixel fluorescence data from a single neuron into a single 1D trace over time. While each image frame may contain dozens or hundreds of pixels representing a cell, our goal is to summarize this data into a trace that reflects the neuron’s activity.

Section 1: Identifying Active Pixels Using Thresholding

To generate a meaningful 1D trace from an image, the first step is to determine which pixels represent the cell’s signal. This involves thresholding fluorescence values to distinguish cell-related activity from background noise. Thresholding helps isolate the most relevant parts of the cell, so that analysis is based on pixels that contribute meaningful information.

Exercises

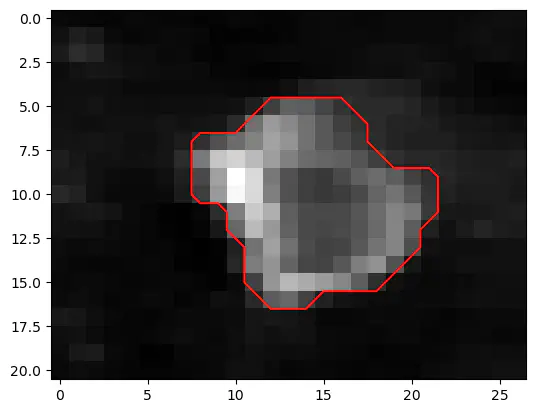

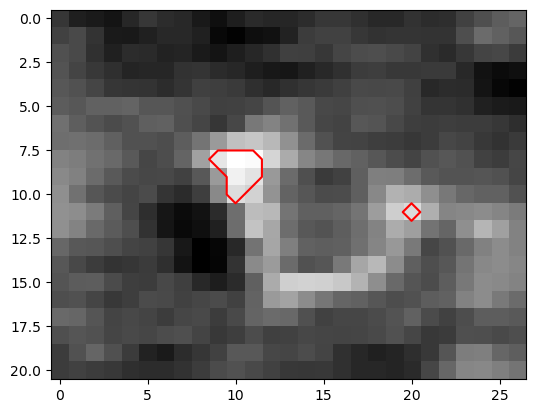

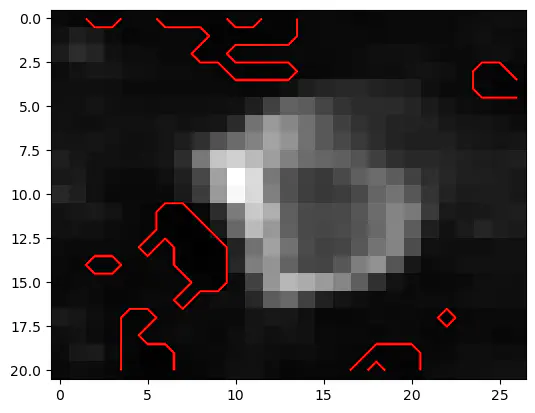

Example: Create a contour mask over regions where the standard deviation across time exceeds 1000.

projection = np.std(data, axis=0)
mask_abs = projection > 1000
plt.imshow(projection, cmap='gray')
plt.contour(mask_abs, colors='red')

Exercise: Create a contour mask over regions where the mean across time exceeds 2000.

Solution

projection = np.mean(data, axis=0)
mask_abs = projection > 2000
plt.imshow(projection, cmap='gray')
plt.contour(mask_abs, colors='red')

Exercise: Create a contour mask over regions where the median across time exceeds 2000.

Solution

projection = np.median(data, axis=0)
mask_abs = projection > 2000
plt.imshow(projection, cmap='gray')
plt.contour(mask_abs, colors='red')

Exercise: Create a contour mask over regions where the standard deviation across time exceeds 500.

Solution

projection = np.std(data, axis=0)
mask_abs = projection > 500
plt.imshow(projection, cmap='gray')
plt.contour(mask_abs, colors='red')

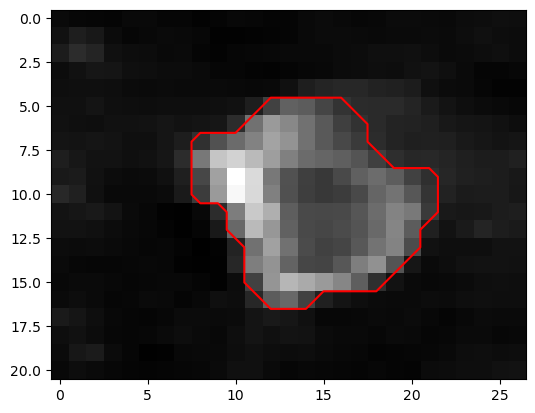

Example: Create a contour mask over regions where the standard deviation exceeds 3-Sigma threshold.

projection = np.std(data, axis=0)
threshold_val = np.mean(projection) + 3.*np.std(projection)
mask_percentile = projection > threshold_val
plt.imshow(projection, cmap='gray')
plt.contour(mask_percentile, colors='red')

Exercise: Create a contour mask over regions where the standard deviation across time is above the 10th percentile.

Solution

projection = np.std(data, axis=0)
threshold_val = np.percentile(projection, 10)
mask_percentile = projection > threshold_val
plt.imshow(projection, cmap='gray')
plt.contour(mask_percentile, colors='red')

Exercise: Create a contour mask over regions where the standard deviation across time is above the 80th percentile.

Solution

projection = np.std(data, axis=0)
threshold_val = np.percentile(projection, 80)
mask_percentile = projection > threshold_val
plt.imshow(projection, cmap='gray')
plt.contour(mask_percentile, colors='red')

Example: Show all the pixels where the below projection exceeds 1000.

projection = np.std(data, axis=0)

mask = projection > 1000
y_pixels, x_pixels = np.where(mask)
plt.imshow(projection, cmap='gray')
plt.scatter(x_pixels, y_pixels)

Exercise: Show all the pixels where the below projection is above 5th percentile.

Solution

mask = projection > np.percentile(projection, 5)
y_pixels, x_pixels = np.where(mask)
plt.imshow(projection, cmap='gray')
plt.scatter(x_pixels, y_pixels)

Exercise: Show all the pixels where the below projection is above 80th percentile.

Solution

mask = projection > np.percentile(projection, 80)
y_pixels, x_pixels = np.where(mask)
plt.imshow(projection, cmap='gray')
plt.scatter(x_pixels, y_pixels)

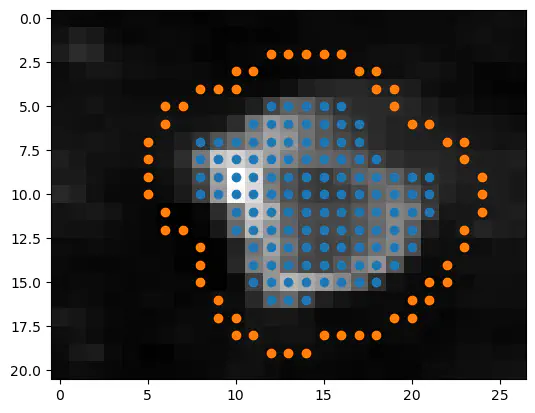

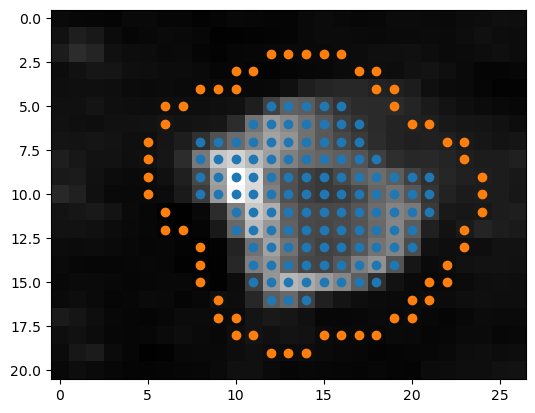

Example: Create a 1-pixel-wide neuropil ring around the cell mask and 2-pixel away.

mask = projection > 1000

outer = dilation(mask, disk(3))
inner = dilation(mask, disk(2))
npil = outer & ~inner

npil_y, npil_x = np.where(npil)
cell_y, cell_x = np.where(mask)


plt.imshow(projection, cmap='gray')
plt.scatter(cell_x, cell_y)
plt.scatter(npil_x, npil_y)

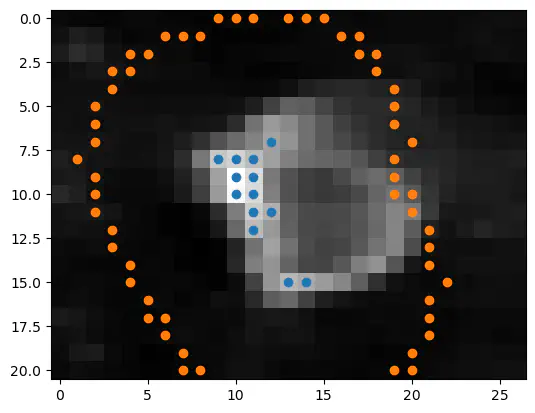

Exercise: Create a 1-pixel-wide neuropil ring 7 pixels away from the cell mask.

threshold_val = np.mean(projection) + 3.*np.std(projection)
mask = projection > threshold_val

outer = dilation(mask, disk(8))
inner = dilation(mask, disk(7))
npil = outer & ~inner

npil_y, npil_x = np.where(npil)
cell_y, cell_x = np.where(mask)


plt.imshow(projection, cmap='gray')
plt.scatter(cell_x, cell_y)
plt.scatter(npil_x, npil_y)

Exercise: Create a 3-pixel-wide neuropil ring starting 2 pixels away from the cell mask

threshold_val = np.percentile(projection, 80)
mask = projection > threshold_val

outer = dilation(mask, disk(3))
inner = dilation(mask, disk(2))
npil = outer & ~inner

npil_y, npil_x = np.where(npil)
cell_y, cell_x = np.where(mask)


plt.imshow(projection, cmap='gray')
plt.scatter(cell_x, cell_y)
plt.scatter(npil_x, npil_y)

Section 2: Extracting Pixel Time Series

Once the active pixels have been identified, the next step is to extract their fluorescence values across all time frames. Since cells often have irregular shapes, their pixels are not arranged in a rectangular block. This requires the use of advanced indexing techniques to selectively access those pixel values. In this section, we demonstrate how to use numpy’s fancy indexing to extract pixel-wise time series from a 3D calcium imaging dataset. The result is a 2D matrix where each row corresponds to a pixel and each column to a time point.

Let us use pixels from three different masks defined based on different thresholds.

Exercises

mask1 = projection > 1000

projection = np.std(data, axis=0)
threshold_val = np.mean(projection) + 3.*np.std(projection)
mask2 = projection > threshold_val

threshold_val = np.percentile(projection, 80)
mask3 = projection > threshold_val

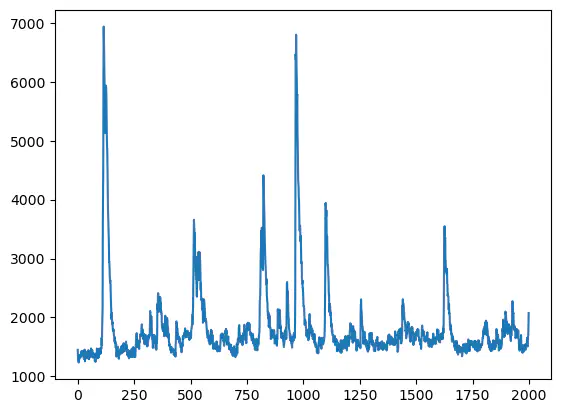

Example: Plot the time series of the first pixel inside the mask 1.

y_pixels, x_pixels = np.where(mask1)
trace = data[:, y_pixels[0], x_pixels[0]]
plt.plot(trace)

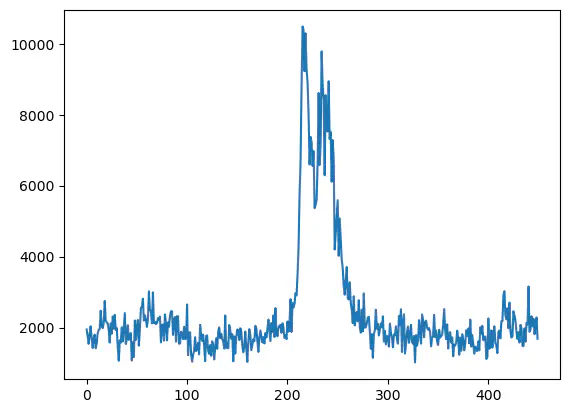

Exercise: Plot the time series (frame 300–750) of the first pixel inside the mask 2.

Solution

y_pixels, x_pixels = np.where(mask2)
trace = data[300:750, y_pixels[0], x_pixels[0]]
plt.plot(trace)

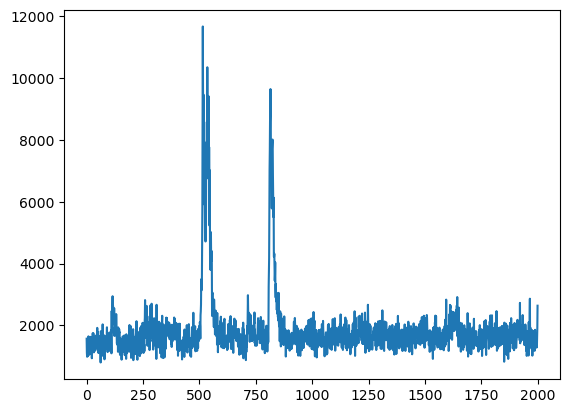

Exercise: Plot the time series of the last pixel inside the mask 3.

Solution

y_pixels, x_pixels = np.where(mask3)
trace = data[:, y_pixels[-1], x_pixels[-1]]
plt.plot(trace)

Example: How many pixel traces are extracted from mask 1?

y_pixels, x_pixels = np.where(mask1)
traces1 = data[:, y_pixels, x_pixels]
traces1.shape

(2000, 24)

Exercise: How many pixel traces are extracted from mask 2?

y_pixels, x_pixels = np.where(mask2)
traces2 = data[:, y_pixels, x_pixels]
traces2.shape

(2000, 13)

Exercise: How many pixel traces are extracted from mask 3?

y_pixels, x_pixels = np.where(mask3)
traces3 = data[:, y_pixels, x_pixels]
traces3.shape

(2000, 114)

Section 3: Averaging Pixel Values to Create a 1D Trace

With the pixel-wise fluorescence time series in hand, we now reduce this information to a single trace that summarizes the cell’s activity. This is commonly done by averaging the fluorescence across all pixels in the ROI at each time point. This section shows how to compute and visualize a mean trace using numpy.

Exercises

y_pixels, x_pixels = np.where(mask1)
cell1 = mask1.copy()

y_pixels, x_pixels = np.where(mask2)
cell2 = mask2.copy()


y_pixels, x_pixels = np.where(mask3)
cell3 = mask3.copy()

traces1, traces2, and traces3 contain the time series of all pixels defined by mask1, mask2, and mask3.

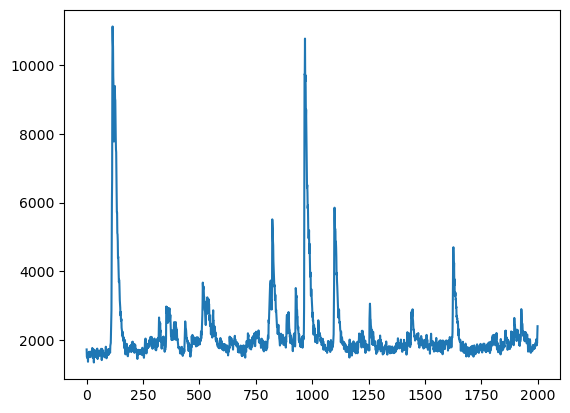

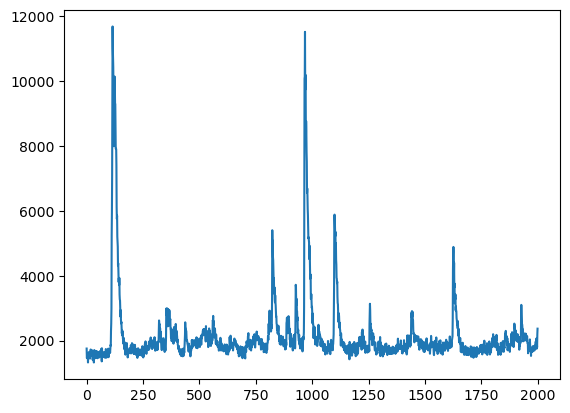

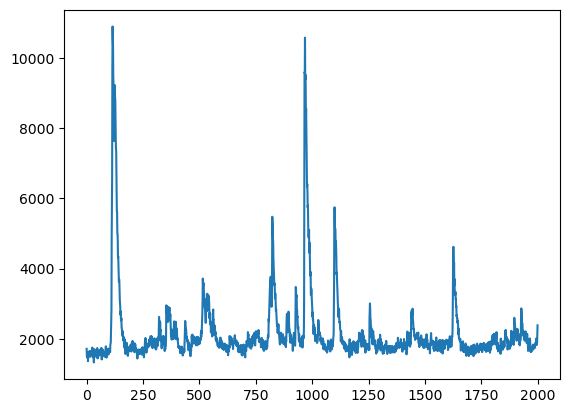

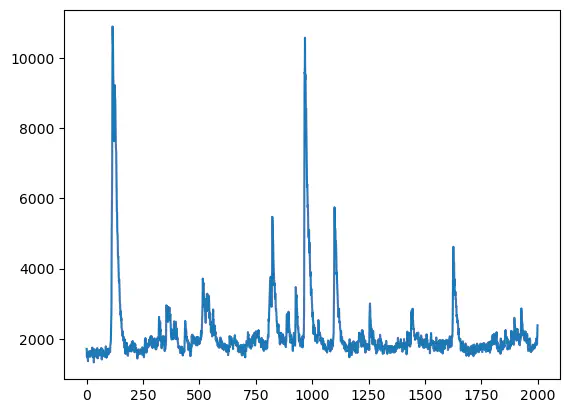

Example: Plot the mean cell trace from all pixels defined by mask 1.

avg_trace = np.mean(traces1, axis=1)
plt.plot(avg_trace)

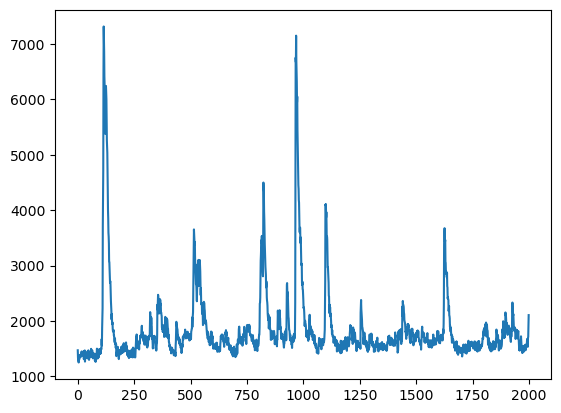

Exercise: Plot the median cell trace from all pixels defined by mask 1.

Solution

avg_trace = np.median(traces1, axis=1)
plt.plot(avg_trace)

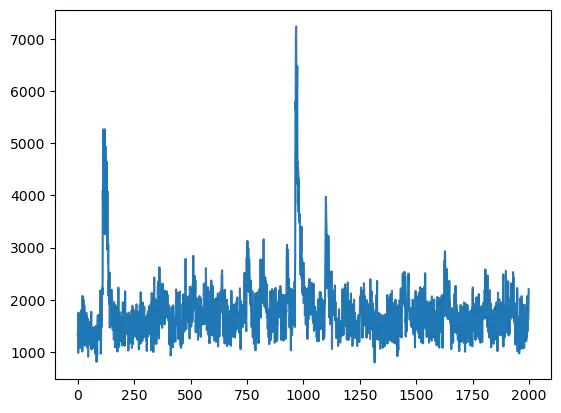

Exercise: Plot the mean cell trace from all pixels defined by mask 3.

Solution

avg_trace = np.mean(traces3, axis=1)
plt.plot(avg_trace)

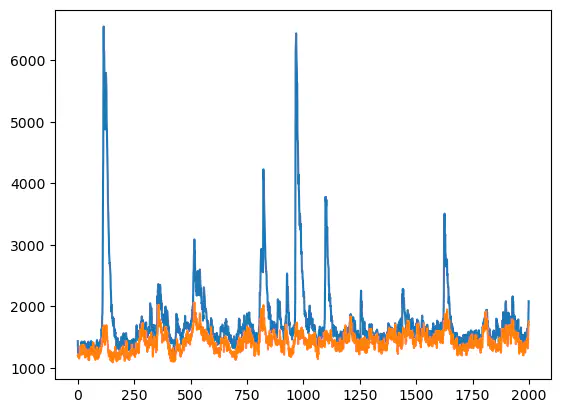

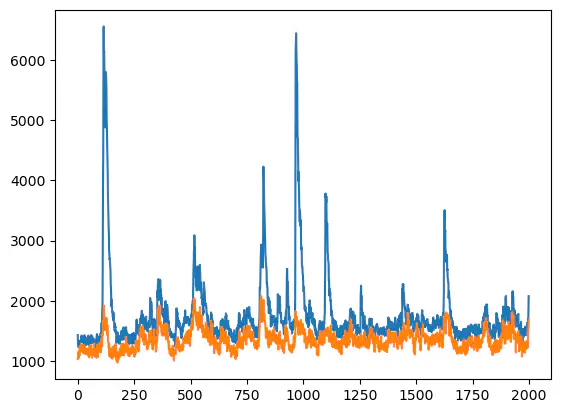

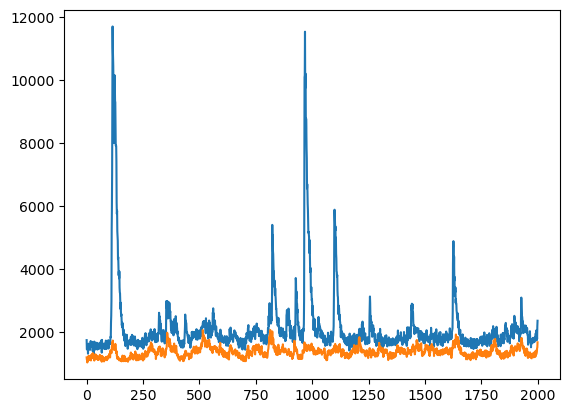

Example: Obtain neuropil trace for mask 1 from ring 1px wide and 7px away.

# cell pixels
y_pixels, x_pixels = np.where(mask1)
traces = data[:, y_pixels, x_pixels]

# neuropil pixels
y_npil, x_npil = np.where(npil)
outer = dilation(mask1, disk(8))
inner = dilation(mask1, disk(7))
npil = outer & ~inner
npil_traces = data[:, y_npil, x_npil]

# plotting average cell and neuropil traces
plt.plot(np.median(traces, axis=1))
plt.plot(np.median(npil_traces, axis=1))

Exercise: Obtain neuropil trace for mask 3 from ring 1px wide and 1px away.

Solution

# cell pixels
y_pixels, x_pixels = np.where(mask3)
traces = data[:, y_pixels, x_pixels]

# neuropil pixels
y_npil, x_npil = np.where(npil)
outer = dilation(mask3, disk(2))
inner = dilation(mask3, disk(1))
npil = outer & ~inner
npil_traces = data[:, y_npil, x_npil]

# plotting average cell and neuropil traces
plt.plot(np.median(traces, axis=1))
plt.plot(np.median(npil_traces, axis=1))

Exercise: Obtain neuropil trace for mask 3 from ring 3px wide and 2px away.

Solution

# cell pixels
y_pixels, x_pixels = np.where(mask3)
traces = data[:, y_pixels, x_pixels]

# neuropil pixels
y_npil, x_npil = np.where(npil)
outer = dilation(mask3, disk(5))
inner = dilation(mask3, disk(2))
npil = outer & ~inner
npil_traces = data[:, y_npil, x_npil]

# plotting average cell and neuropil traces
plt.plot(np.median(traces, axis=1))
plt.plot(np.median(npil_traces, axis=1))

Section 4: Using Weighted and Robust Aggregation Methods

While averaging is often sufficient, not all pixels in the ROI may contribute equally to the signal. Some may be on the edge, poorly illuminated, or contain more noise. Weighted aggregation methods can improve the quality of the final trace by accounting for pixel-level differences. In this section, we introduce weighted averaging using numpy to compute a single representative fluorescence trace by taking a weighted average of multiple pixel traces, where the weights are proportional to the average brightness of each pixel. This is done by

• Compute the average fluorescence intensity over time for each pixel trace.
• Use these average values to determine weights and normalize them.
• Apply the weights to combine all pixel traces into a single weighted-average trace, where more active pixels contribute more strongly.

Exercises

y_pixels1, x_pixels1 = np.where(mask1)
traces1 = data[:, y_pixels1, x_pixels1]

y_pixels2, x_pixels2 = np.where(mask2)
traces2 = data[:, y_pixels2, x_pixels2]

y_pixels3, x_pixels3 = np.where(mask3)
traces3 = data[:, y_pixels3, x_pixels3]

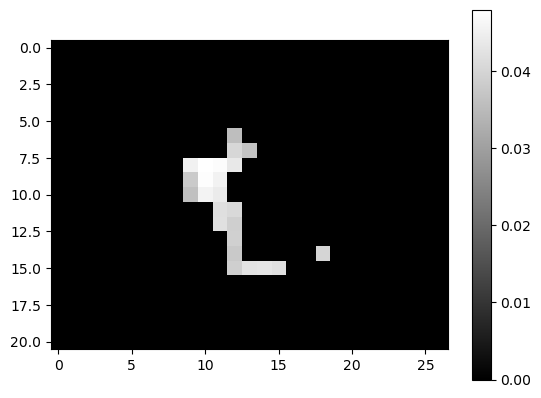

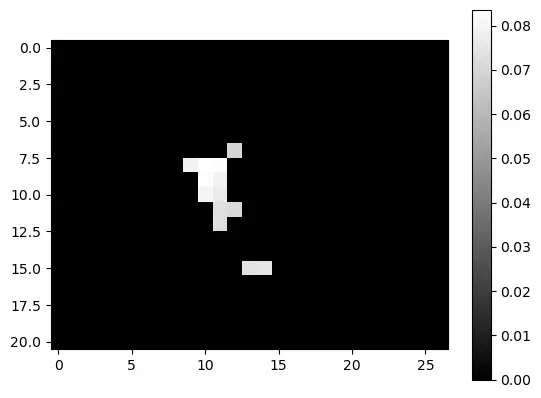

Example: Visualize pixel-wise weights for a region by normalizing the mean fluorescence intensity of each pixel in mask1.

means1 = np.mean(traces1, axis=0)
weights1 = means1 / np.sum(means1)

weights_image = np.zeros_like(mask1, dtype=float)
y_pixels1, x_pixels1 = np.where(mask1)
weights_image[y_pixels1, x_pixels1] = weights1

plt.imshow(weights_image, cmap='gray')
plt.colorbar()

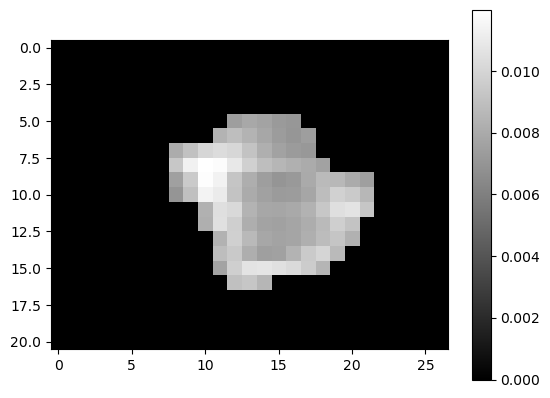

Exercise: Visualize pixel-wise weights for a region by normalizing the mean fluorescence intensity of each pixel in mask2.

Solution

means2 = np.mean(traces2, axis=0)
weights2 = means2 / np.sum(means2)

weights_image = np.zeros_like(mask2, dtype=float)
y_pixels2, x_pixels2 = np.where(mask2)
weights_image[y_pixels2, x_pixels2] = weights2

plt.imshow(weights_image, cmap='gray')
plt.colorbar()

Exercise: Visualize pixel-wise weights for a region by normalizing the mean fluorescence intensity of each pixel in mask3.

Solution

means3 = np.mean(traces3, axis=0)
weights3 = means3 / np.sum(means3)

weights_image = np.zeros_like(mask3, dtype=float)
y_pixels3, x_pixels3 = np.where(mask3)
weights_image[y_pixels3, x_pixels3] = weights3

plt.imshow(weights_image, cmap='gray')
plt.colorbar()

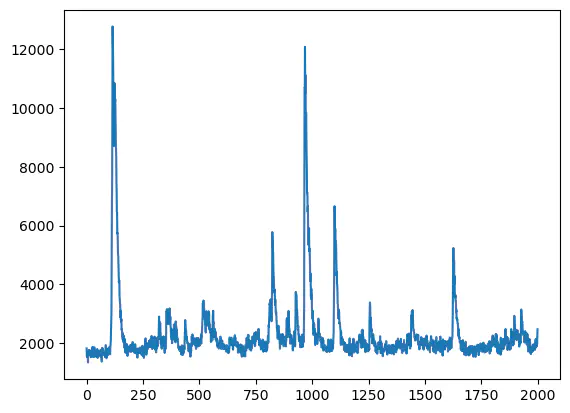

Example: Plot the weighted average time series of pixels in mask1.

weighted_trace1 = np.average(traces1, axis=1, weights=weights1)
plt.plot(weighted_trace1)

Exercise: Plot the weighted average time series of pixels in mask2.

Solution

weighted_trace = np.average(traces2, axis=1, weights=weights2)
plt.plot(weighted_trace)

Exercise: Plot the weighted average time series of pixels in mask3.

Solution

weighted_trace = np.average(traces3, axis=1, weights=weights3)
plt.plot(weighted_trace)
